Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|

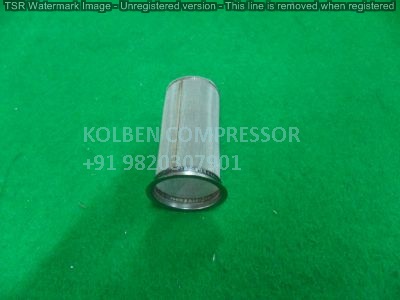

1. |
|
4G |
362001-10 |
Suction Gas Filter 35.0X29.0X59.4-To Fit Bitzer 4G,S4G
|
|
|
2. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
311110-04 |
Bearing crankcase/pump (standard) 4/6-J/H/G/F
|
|
|
3. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
N/A |
Bearing crankcase/pump (-25mm u/size) J/H/G/F
|
|
|
4. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
N/A |
Bearing crankcase/pump (-50mm u/size) J/H/G/F
|
|
|
5. |
|
4H , 4G , 4F , 6H , 6G , 6F |
311100-08 |
Bearing seal-end (standard) 4/6H-G-F
|
|
|
6. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
320500-06 |
Thrust-washer crankcase 4/6- J/H/G/F
|
|
|
7. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
320500-07 |
Thrust-washer pump-end 4/6- J/H/G/F
|
|
|
8. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
320500-08 |
Thrust-washer seal-end 4/6- J/H/G/F
|
|
|
9. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
374027-01 |
Thrust-collar & spring assy for models 4-6/J/H/G/F
|
|
|
10. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
302115-01 |
Con-rod (standard) 4/6-J/H/G/F
|
|
|
11. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
N/A |
Con-rod (-0.25mm u/size) 4-6-J/H/G/F
|
|
|
12. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
N/A |
Con-rod (-0.50mm u/size) 4-6-J/H/G/F
|
|
|
13. |
|
4G , 6G |
372811-08 |
Gasket set for 75mm bore 4/6-G
|
|
|
14. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
343213-04 |
Heater 240v/140W 4/6- J/H/G/F
|
|
|
15. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
362500-01 |
Pump (1st Generation) for models 4/6-J/H/G/F
|
|
|
16. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
362503-02 |
Pump (2nd Generation) for models 4/6J/H/G/F
|
|
|
17. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
374017-03 |
Shaft Seal assembly for models 4/6-H-G-F
|
|
|
18. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
343416-02 |
Electrical plate assm 10HP+ models 4-6/J/H/G/F
|
|
|

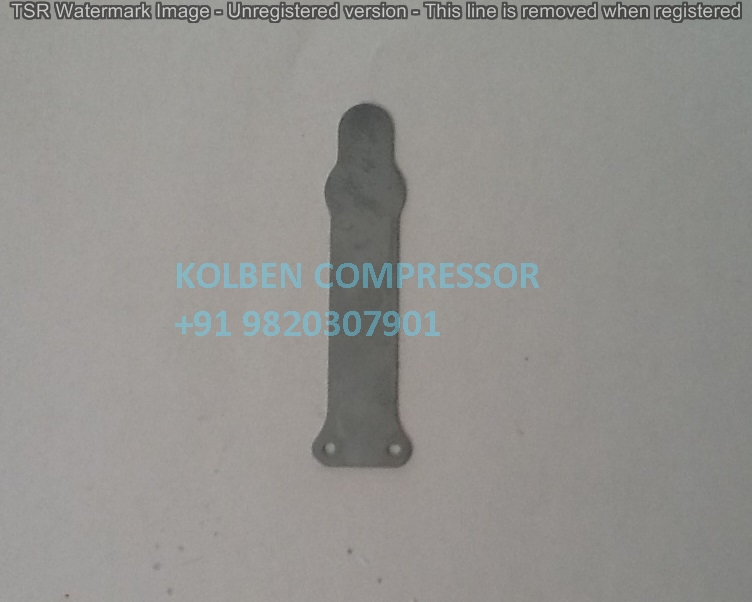

19. |
|
4G , 6G |
320201-10 |
Valve reed suction (75mm bore) 4/6-G
|
|
|
20. |
|
4G , 6G |
304051-03 |
Valve plate assm for models 4-6/G
|
|
|
21. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
383013-03 |
Valve reed suction pin (2.5x8mm) for models 2/4/6
|
|
|
22. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
383011-02 |
Valve plate locating pin (6x20mm) models 4-6/J>F
|
|
|
23. |
|
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F |
374017-03 |
BZ Shaft Seal assembly for models 4/6-H-G-F
|
|
Manufacturers of BITZER COMPRESSOR PARTS
|
|
|
