Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|
1. |
|
4NC, 4NCS |
302297-12 |

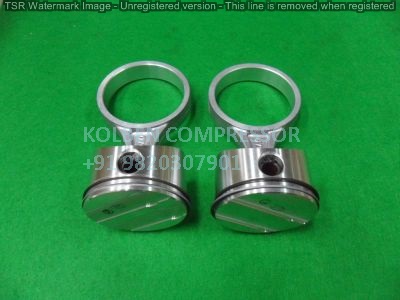

Piston - Piston Ring - Conrod Assy -(Right+Left=Set)-Std-To Fit Bitzer 4Nc12,4Nc20,4Nes ( 70 Mm )
|
|
|
2. |
|
4NC, 4NCS |
302.97-12R |

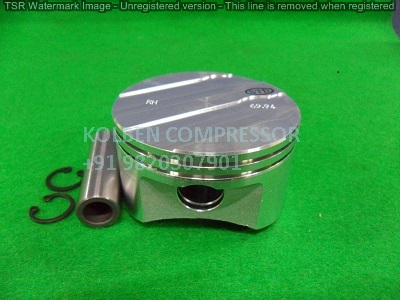

Piston - Pin(Right) 69.9(Std)X 12.4Xcr1.48Xp1.48X160550 -To Fit Bitzer 4Nc12,4Nc20, 4Ncs12,4Ncs10,4Ncs20
|
|
|
3. |
|
4NC, 4NCS |
302.97-12L |

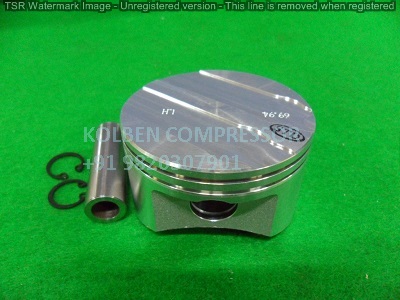

Piston - Pin(Left) 69.9(Std)X 12.4Xcr1.48Xp1.48X160550 -To Fit Bitzer 4Nc12,4Nc20, 4Ncs12,4Ncs10,4Ncs20
|
|
|
4. |
|
4NC, 4NCS |
383401-45 |

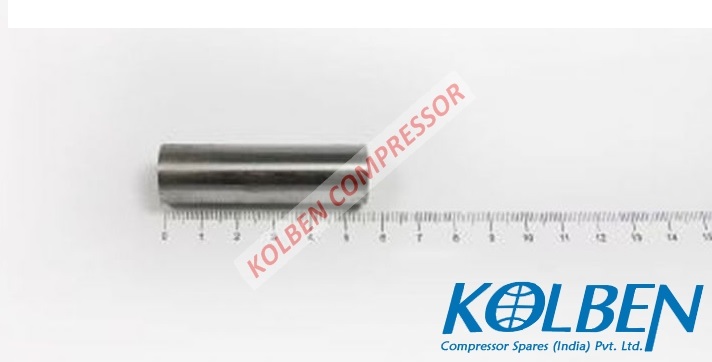

Piston - Pin 16.0X55.0-To Fit Bitzer
|
|
|
5. |
|
4VC, 4TC, 4PC, 4NC |
302131-02 |
Conrod 70.0(Std)-46.9(Std)-16.0-To Fit Bitzer 4Vc,4Tc,4Pc, 4Tcs,4Nc,4Ves,4Tes,4Nes
|
|
|
6. |
|
4VC, 4TC, 4PC, 4NC |
|
Conrod 70.0(-0.25Mm)-To Fit Bitzer 4Vc6,4Tc12,4Pc10,4Nc12, 4Ves6,4Tes12
|
|
|
7. |
|
4VC, 4TC, 4PC, 4NC |
|
Conrod 70.0(-0.50Mm) -46.9(+0.25Mm)-16.0-To Fit Bitzer 4Vc6,4Tc12,4Pc10,4Nc12, 4Ves6,4Tes12
|
|
|
8. |
|
4NC, 4NCS, 4HE, 6HE |
382300-55 |
Piston Ring 70.0(Std)-Cr1.50-To Fit Bitzer 4Ncs,4Nc,4Nes,4Ne,4H, 4He,6H,6He,S6H,4H.2,6H.2
|
|
|
9. |
|
4NC, 4NCS, 4HE, 6HE |
382310-22 |
Piston Ring 70.0(Std)-P1.50-To Fit Bitzer 4Ncs,4Nc,4Nes,4Ne,4H,4He,6H, 6He,S6H,4H.2,6H.2
|
|
|
10. |
|
4NC, 4NCS |
382303-03 |
Piston Ring 70.0(Std)-Cr1.00-To Fit Bitzer 4Ncs,4Nc,4Nes,4Ne
|
|
|
11. |
|
4NC, 4NCS |
382310-43 |
Piston Ring 70.0(Std)-P1.00-To Fit Bitzer 4Ncs,4Nc,4Nes,4Ne
|
|
|
12. |
|
4VC, 4TC , 4NC |
|
Discharge Reed 43.9X16.8X0.3-To Fit Bitzer 4Vc6,4Tc8,4Pc10
|
|
|
13. |
|
4VC, 4TC , 4NC |
|
Discharge Spring 43.9X16.8X0.3-To Fit Bitzer 4Vc6,4Tc8,4Pc10
|
|
|
14. |
|
4NC, 6H |
|
Suction Reed 82.0X19.0X0.6 For Piston 65,70-To Fit Bitzer 4Nc12,,6J22,4H15, 6H25,S6J16,S6H20
|
|
|
15. |
|
4NCS, 4PCS, 4TCS |
301117-04 |
Crankshaft 44.9X69.9(2+2)X44.9 -376Mm-To Fit Bitzer 4Ncs-12.2, 4Pcs-15.2,4Tcs12,4Ncs20
|
|
|
16. |
|
4NC, 4PC, 4TC |
301117-02 |
Crankshaft 44.9X69.9(2+2)X44.9 -413Mm-To Fit Bitzer 4Nc-12.2,4Nc-20.2,4Pc15,4Tc-12.2
|
|
|
17. |
|
4NC, 4NCS, 4PC, 4PCS, 4VC, 4VCS, 4TC, 4TCS |
320500-10 |
Thrust Washer 66.0X48.0X1.6-To Fit Bitzer 4Nc,4Ncs,4Pc,4Pcs, 4Tc,4Tcs,4Vc,4Vcs
|
|
|
18. |
|
4NC, 4NCS |
304063-08 |
Valve Plate Assy Without Gasket(70.0) 10.5X6-15.5X4-To Fit Bitzer 4Nc12,4Ncs10,4Ncs20
|
|
|
19. |
|
4VC, 4TCS, 4PC, 4PCS, 4NC |
372623-01 |
Head Gasket 168.4-To Fit Bitzer 4Vc, 4Tcs,4Pc, 4Pcs,4Nc
|
|
|
20. |
|
4NC, 4NCS |
372515-08 |
Valve Plate Gasket(70.0) 167.2X70.1-To Fit Bitzer 4Nc12,4Ncs10,4Ncs20
|
|
|
21. |
|
4VC, 4VCS, 4PC, 4TC, 4TCS, 4NC, 4NCS |
345506-01 |
Terminal Plate-To Fit Bitzer 4Vc,4Vcs,4Ve,4Tc, 4Tcs,4Pc,4Pcs,4Pe,4Nc,4Ncs
|
|
|
22. |
|
4NCS, 4NC, 4PC, 4TC, 4VC |
362001-15 |
Suction Gas Filter 70.0X50.0X54.5-To Fit Bitzer 4Ncs,4Nc,4Pc,4Tc,4Tc,4Vc, 4Vc
|
|
|
23. |
|
4N, 4NC , 4NCS, 4PC, 4PCS, VII |
362001-08 |
Suction Gas Filter 70.0X49.3X55.2-To Fit Bitzer 4Ncs20,4N,4Nc20, 4Ncs,4Pc15,4Pcs,Ⅶ
|
|
|
24. |
|
2T, 4NC, 4P, 4PC, 4TC, 4VC, |
362503-01 |
Oil Pump Assy-To Fit Bitzer 2T,4Nc12,4P15, 4Pc10,4Tc12,4Vc6,S4Bcf-5.2Y-25.D,4V-10.2
|
|
|
25. |
|
4NC |
372841-01 |
Gasket Set(70.0)-To Fit Bitzer 4Nc
|
|
|
26. |
|
4NC , 4VC |
311112-07 |
Bearing main for models 4VC>4NC
|
|
|
27. |
|
4NC , 4VC |
320500-10 |
Thrust washer 4NC>4VC
|
|
|
28. |
|
4VC , 4TC , 4PC , 4NC |
302131-02 |
Con-rod for models 4VC/4TC/4PC/4NC
|
|
|
29. |
|
4PC , 4NC |
372841-01/02 |
Gasket kit 4PC/4NC
|
|
|
30. |
|
4NC,4NCS |
N/A |
Piston & pin (left-hnd) 70mm 4NC
|
|
|
31. |
|
4NC,4NCS |
N/A |
Piston & pin (right-hand) 70mm 4NC
|
|
|
32. |
|
4N , 4P , 4T , 4V , 4NC |
345506-01 |
Terminal plate assm octagon 4T/V/P/NC
|
|
|
33. |
|
4PC , 4NC |
|
Valve reed discharge (flat) 4PC 4NC
|
|
|
34. |
|
4NC |
304063-08 |

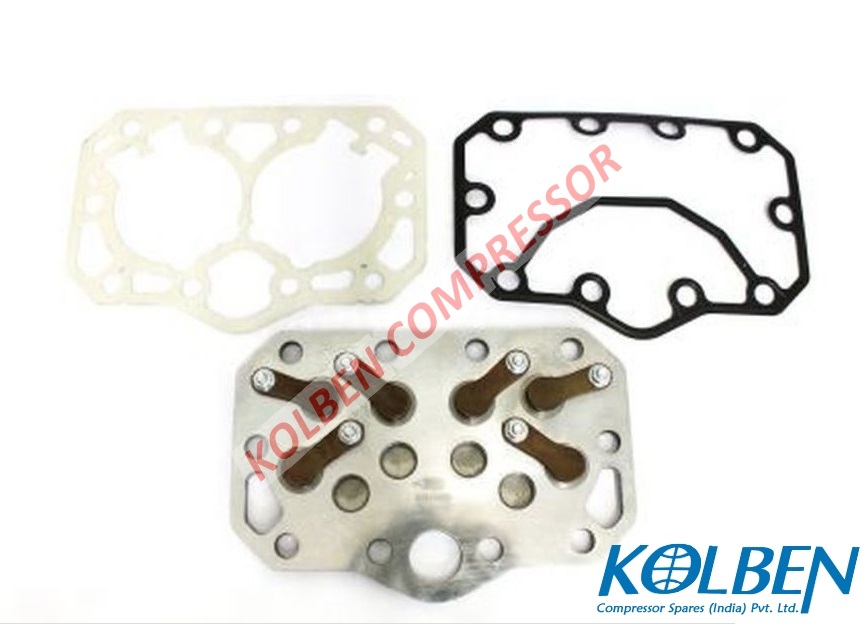

Valve plate assembly for models 4NC
|
|
|
35. |
|
4NC-20.2 |
302926-08 |
balance weight (30292608)
|
|
|
36. |
|
4NC-20.2 |
311135-01 |
Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)
|
|
|
37. |
|
4NC-20.2 |
305139-01 |
bearing cover (30513901)
|
|
|
38. |
|
4NC-20.2 |
346294-46 |
built-in motor 14.7 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34629446)
|
|
|
39. |
|
4NC-20.2 |
380508-51 |
Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)
|
|
|
40. |
|
4NC-20.2 |
380306-04 |
cheese head screw balance weight DIN 912, 10.9 M8 x 30 (38030604)
|
|
|
41. |
|
4NC-20.2 |
380302-05 |
Cheese Head Screw suction shut-off valve DIN 912, 10.9 M12 x 50 (38030205)
|
|
|
42. |
|
4NC-20.2 |
380402-06 |
cheese head screw protection device brass M4 x 16 (38040206)
|
|
|
43. |
|
4NC-20.2 |
380306-32 |
Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
|
|
|
44. |
|
4NC-20.2 |
367121-01 |
clamping plate suction shut-off valve 80 x 80 (36712101)
|
|
|
45. |
|
4NC-20.2 |
302131-02 |
connecting rod Ø70 x Ø16 x 90 (30213102)
|
|
|
46. |
|
4NC-20.2 |
302298-49 |

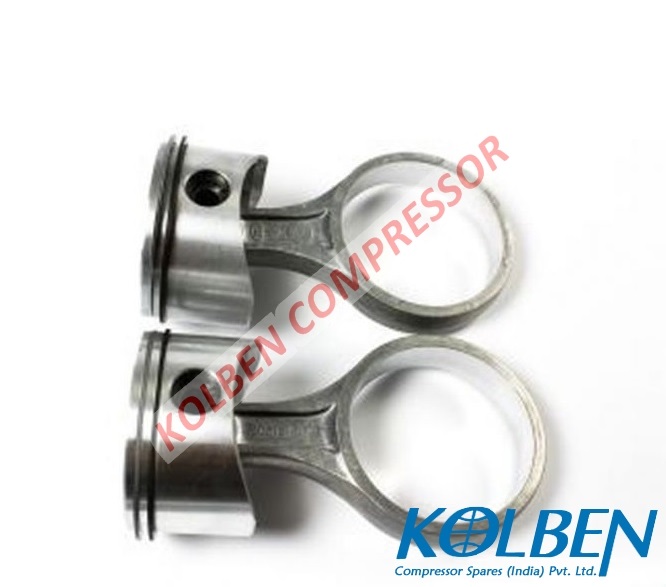

connecting rod / piston Kit - right / left Ø70 (30229849)
|
|
|
47. |
|
4NC-20.2 |
343219-04 |
crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)
|
|
|
48. |
|
4NC-20.2 |
301117-02 |
crankshaft (30111702)
|
|
|
49. |
|
4NC-20.2 |
302360-20 |
cylinder head air-cooled (30236020)
|
|
|
50. |
|
4NC-20.2 |
382001-05 |
disk rotor spring steel DIN 125 A17 (38200105)
|
|
|
51. |
|
4NC-20.2 |
380902-01 |
eye bolt DIN 580 M10 (38090201)
|
|
|
52. |
|
4NC-20.2 |
372949-02 |
gasket housing cover 14 - Hole 275 x 275 x 0,38 (37294902)
|
|
|
53. |
|
4NC-20.2 |
372421-14 |
gasket Terminal plate 163 x 118 x 0,5 (37242114)
|
|
|
54. |
|
4NC-20.2 |
372623-01 |
gasket cylinder head Retall 191 x 115 x 0,49 (37262301)
|
|
|
55. |
|
4NC-20.2 |
372301-02 |
gasket suction shut-off valve Ø70 x Ø54 x 1 (37230102)
|
|
|
56. |
|
4NC-20.2 |
372303-01 |
gasket Pipe connection Ø52 x Ø37 x 2 (37230301)
|
|
|
57. |
|
4NC-20.2 |
372200-01 |
Gasket PTFE Ø14,3 x 1,5 (37220001)
|
|
|
58. |
|
4NC-20.2 |
372704-05 |
gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)
|
|
|
59. |
|
4NC-20.2 |
372145-01 |
gasket terminal box aluminium for terminal box 286 x 181 x 2 (37214501)
|
|
|
60. |
|
4NC-20.2 |
372515-08 |

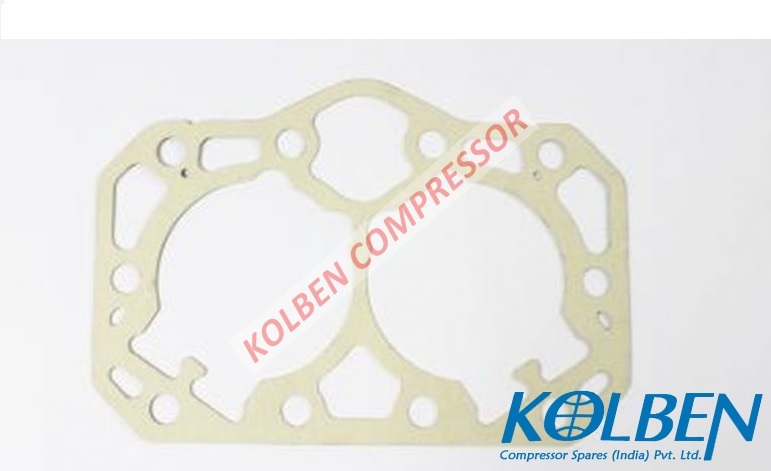

gasket valve plate 191 x 115 x 1,1 (37251508)
|
|
|
61. |
|
4NC-20.2 |
382403-01 |
Gasket Ring oil pressure monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
|
|
|
62. |
|
4NC-20.2 |
382401-31 |
gasket ring copper A10 x 16 x 2 (38240131)
|
|
|
63. |
|
4NC-20.2 |
382403-05 |
Gasket Ring oil drain aluminium DIN 7603 A22 x 27 x 1,5 (38240305)
|
|
|
64. |
|
4NC-20.2 |
372841-01 |

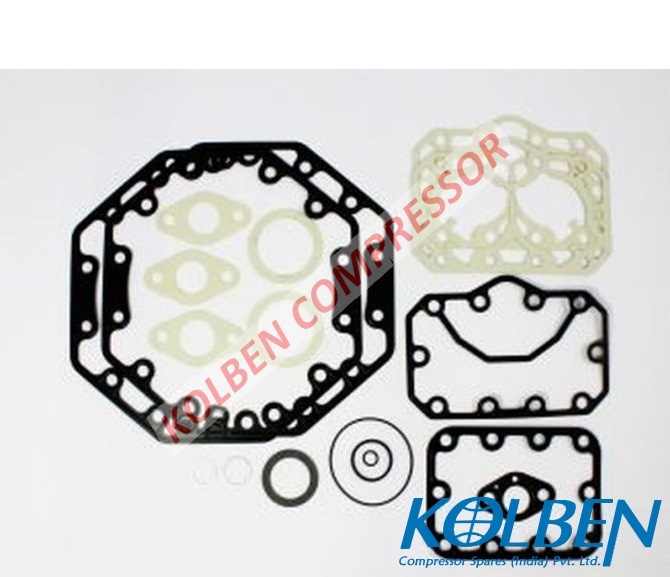

gasket set (37284101)
|
|
|
65. |
|
4NC-20.2 |
384101-05 |
gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)
|
|
|
66. |
|
4NC-20.2 |
383103-04 |
half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)
|
|
|
67. |
|
4NC-20.2 |
380056-14 |
hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)
|
|
|
68. |
|
4NC-20.2 |
380104-05 |
Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)
|
|
|
69. |
|
4NC-20.2 |
380056-21 |
hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)
|
|
|
70. |
|
4NC-20.2 |
380156-06 |
hexagon head screw discharge shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)
|
|
|
71. |
|
4NC-20.2 |
380007-52 |
hexagon head screw suction shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)
|
|
|
72. |
|
4NC-20.2 |
380155-05 |
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
|
|
|
73. |
|
4NC-20.2 |
380166-10 |
hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)
|
|
|
74. |
|
4NC-20.2 |
380056-04 |
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
|
|
|
75. |
|
4NC-20.2 |
381101-56 |
hexagon nut screw for grounding DIN 934 M10 (38110156)
|
|
|
76. |
|
4NC-20.2 |
380306-83 |
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
|
|
|
77. |
|
4NC-20.2 |
300085-04 |
housing Ø70 (30008504)
|
|
|
78. |
|
4NC-20.2 |
305236-01 |

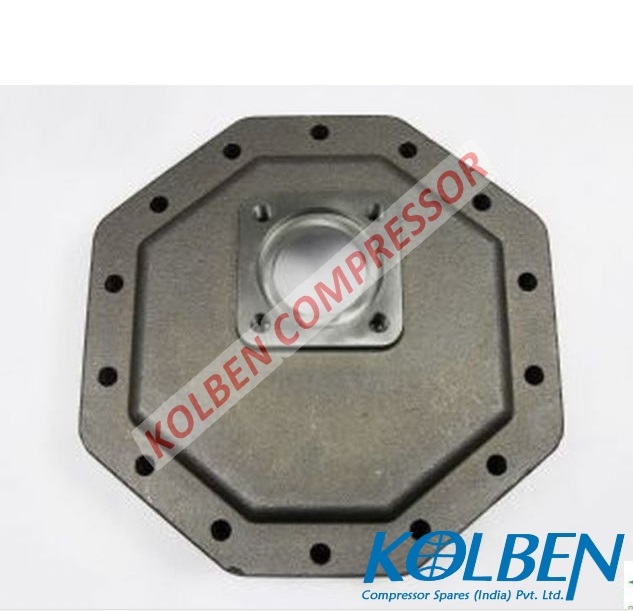

housing cover suction side grey cast iron 275 x 275 x 65 (30523601)
|
|
|
79. |
|
4NC-20.2 |
345950-03 |
metal plate for grounding screw for grounding for grounding aluminium M10 (34595003)
|
|
|
80. |
|
4NC-20.2 |
372003-27 |
O-ring Ø10,82 x 1,78 (37200327)
|
|
|
81. |
|
4NC-20.2 |
372003-39 |
O-ring sight glass Ø33 x 2,5 (37200339)
|
|
|
82. |
|
4NC-20.2 |
372001-19 |
O-ring oil pump Ø74 x 2 (37200119)
|
|
|
83. |
|
4NC-20.2 |
362003-02 |
oil filter Ø14 x 105 (36200302)
|
|
|
84. |
|
4NC-20.2 |
347334-03 |
oil level monitoring 230V 50/60 Hz (34733403)
|
|
|
85. |
|
4NC-20.2 |
361101-01 |
oil pressure relief valve SW17 x 29 (36110101)
|
|
|
86. |
|
4NC-20.2 |
362503-01 |
oil pump oil pump grey cast iron (36250301)
|
|
|
87. |
|
4NC-20.2 |
361914-01 |
oil service valve (36191401)
|
|
|
88. |
|
4NC-20.2 |
380501-54 |
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
|
|
|
89. |
|
4NC-20.2 |
384001-16 |
parallel key built-in motor steel DIN 6885 A12 x 8 x 80 (38400116)
|
|
|
90. |
|
4NC-20.2 |
365321-14 |
pipe connection suction side steel brazing and welding bush Ø42 (1 5/8") (36532114)
|
|
|
91. |
|
4NC-20.2 |
382310-43 |

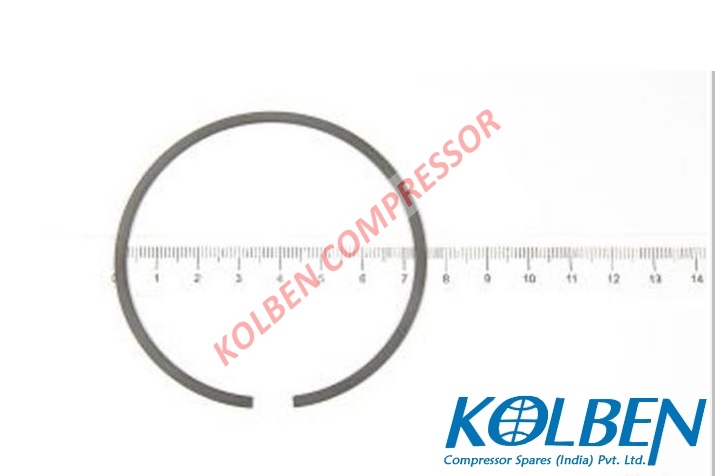

piston ring Ø70 x 1,0 (38231043)
|
|
|
92. |
|
4NC-20.2 |
382303-03 |

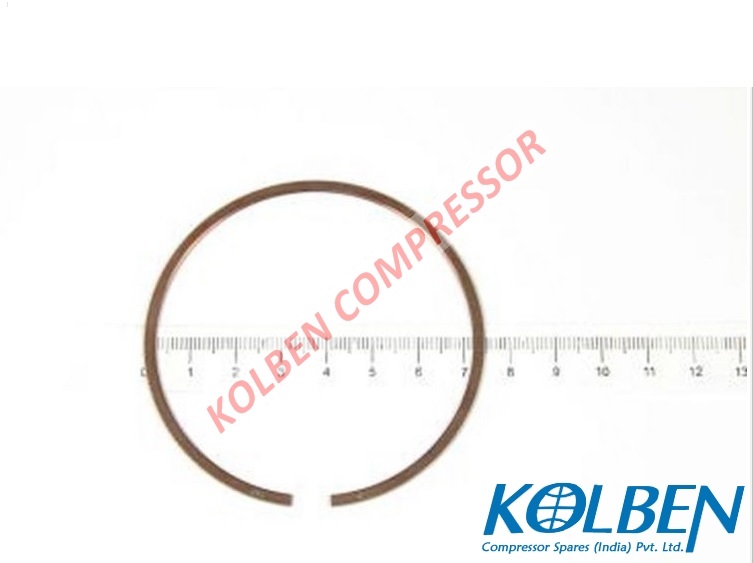

piston ring Ø70 x 1,0 (38230303)
|
|
|
93. |
|
4NC-20.2 |
325000-01 |
pressure spring spring steel Ø18 x 28 x 1,25 (32500001)
|
|
|
94. |
|
4NC-20.2 |
347019-01 |
protection device motor overheat protection SE-B1 230V-50/60Hz (34701901)
|
|
|
95. |
|
4NC-20.2 |
366201-22 |
Protective Cap suction shut-off valve Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
|
|
|
96. |
|
4NC-20.2 |
366201-19 |
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
|
|
|
97. |
|
4NC-20.2 |
382231-18 |
retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)
|
|
|
98. |
|
4NC-20.2 |
361500-01 |
Schrader valve oil pressure connection T-piece brass Jul-16 (36150001)
|
|
|
99. |
|
4NC-20.2 |
361501-01 |
Schrader Valve brass 1/8"-27 NPTF (36150101)
|
|
|
100. |
|
4NC-20.2 |
314104-21 |
screwed nipple coated 1/2" - 14NPTF x 48 (31410421)
|
|
|
101. |
|
4NC-20.2 |
366104-22 |
sealing plug brass 3/4" - 14 NPTF (36610422)
|
|
|
102. |
|
4NC-20.2 |
366103-21 |
sealing plug oil service valve brass 1/2" - 14 NPTF (36610321)
|
|
|
103. |
|
4NC-20.2 |
366110-08 |
Sealing Plug suction shut-off valve steel1/4" - 18NPTF (36611008)
|
|
|
104. |
|
4NC-20.2 |
366100-01 |
Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)
|
|
|
105. |
|
4NC-20.2 |
366110-02 |
Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)
|
|
|
106. |
|
4NC-20.2 |
366124-01 |
sealing screw permanent magnet M22 x 1,5 (36612401)
|
|
|
107. |
|
4NC-20.2 |
366123-01 |
sealing screw oil pressure monitoring M20 x 1,5 (36612301)
|
|
|
108. |
|
4NC-20.2 |
380358-01 |
Set screw coated DIN 916 M10 x 12 (38035801)
|
|
|
109. |
|
4NC-20.2 |
361338-01 |
shut-off valve suction side Ø42 (1 5/8") (36133801)
|
|
|
110. |
|
4NC-20.2 |
361315-13 |
shut-off valve Discharge side Ø28 (1 1/8") (36131513)
|
|
|
111. |
|
4NC-20.2 |
361802-03 |
sight glass steel / glass Ø60 x 7 (36180203)
|
|
|
112. |
|
4NC-20.2 |
382201-55 |
Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)
|
|
|
113. |
|
4NC-20.2 |
382201-04 |
single coil spring washer balance weight spring steel DIN 127 B8 (38220104)
|
|
|
114. |
|
4NC-20.2 |
311004-02 |

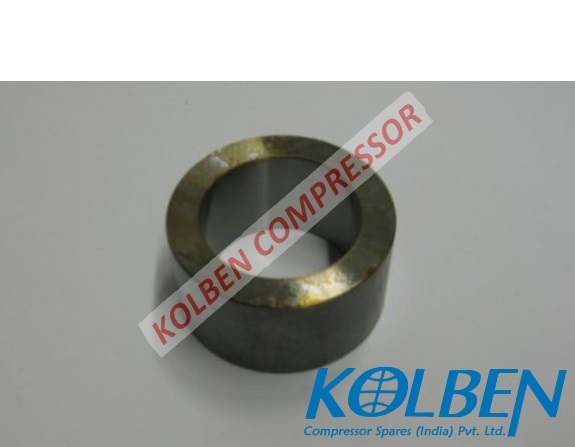

spacer sleeve steel Ø60 x Ø42,1 x 30,6 (31100402)
|
|
|
115. |
|
4NC-20.2 |
311012-09 |
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
|
|
|
116. |
|
4NC-20.2 |
362001-08 |
suction gas filter Ø50 x 57 (36200108)
|
|
|
117. |
|
4NC-20.2 |
343507-02 |
terminal box standard 244 x 189 x 85 (34350702)
|
|
|
118. |
|
4NC-20.2 |
345507-01 |
terminal plate 6-Lead 165 x 120 x 10 (34550701)
|
|
|
119. |
|
4NC-20.2 |
345506-03 |
terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)
|
|
|
120. |
|
4NC-20.2 |
380912-01 |
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
|
|
|
121. |
|
4NC-20.2 |
320500-10 |
thrust washer Crankcase side Ø66 x Ø48 x 1,6 (32050010)
|
|
|
122. |
|
4NC-20.2 |
304063-08 |
valve plate Ø70 (30406308)
|
|
|
123. |
|
4NC-20.2 |
370003-07 |
vibration damper set brown spring (37000307)
|
|
|
124. |
|
4NC-20.2 |
370003-05 |
vibration damper set Crankcase side yellow spring (37000305)
|
|
|
125. |
|
4NC-20.2 |
382002-04 |
Washer screw for grounding brass DIN 125 10,5 (38200204)
|
|
|
126. |
|
4NC-20.2 |
382002-01 |
washer brass DIN 125 A4, 3 (38200201)
|
|
|
127. |
|
4NC-20.2 |
383401-45 |
wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 55 (38340145)
|
|
|
128. |
|
4NCS-20.2 |
302926-08 |
balance weight (30292608)
|
|
|
129. |
|
4NCS-20.2 |
302952-03 |
balance weight rotor (30295203)
|
|
|
130. |
|
4NCS-20.2 |
311135-01 |
Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)
|
|
|
131. |
|
4NCS-20.2 |
305107-78 |
bearing cover Oil level monitoring (30510778)
|
|
|
132. |
|
4NCS-20.2 |
346294-46 |
built-in motor 14.7 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34629446)
|
|
|
133. |
|
4NCS-20.2 |
380402-06 |
cheese head screw protection device brass M4 x 16 (38040206)
|
|
|
134. |
|
4NCS-20.2 |
380306-04 |
cheese head screw oil centrifuge DIN 912, 10.9 M8 x 30 (38030604)
|
|
|
135. |
|
4NCS-20.2 |
380302-05 |
Cheese Head Screw suction shut-off valve DIN 912, 10.9 M12 x 50 (38030205)
|
|
|
136. |
|
4NCS-20.2 |
380508-51 |
Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)
|
|
|
137. |
|
4NCS-20.2 |
380301-37 |
cheese head screw balance weight DIN 912, 8.8 M8 x 12 (38030137)
|
|
|
138. |
|
4NCS-20.2 |
367121-01 |
clamping plate suction shut-off valve 80 x 80 (36712101)
|
|
|
139. |
|
4NCS-20.2 |
302131-02 |
connecting rod Ø70 x Ø16 x 90 (30213102)
|
|
|
140. |
|
4NCS-20.2 |
302298-49 |
connecting rod / piston Kit - right / left Ø70 (30229849)
|
|
|
141. |
|
4NCS-20.2 |
343219-04 |
crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)
|
|
|
142. |
|
4NCS-20.2 |
302360-20 |
cylinder head air-cooled (30236020)
|
|
|
143. |
|
4NCS-20.2 |
382001-05 |
disk rotor spring steel DIN 125 A17 (38200105)
|
|
|
144. |
|
4NCS-20.2 |
301117-04 |
eccentric shaft (30111704)
|
|
|
145. |
|
4NCS-20.2 |
380902-01 |
eye bolt DIN 580 M10 (38090201)
|
|
|
146. |
|
4NCS-20.2 |
372200-01 |
Gasket PTFE Ø14,3 x 1,5 (37220001)
|
|
|
147. |
|
4NCS-20.2 |
372301-02 |
gasket suction shut-off valve Ø70 x Ø54 x 1 (37230102)
|
|
|
148. |
|
4NCS-20.2 |
372704-05 |
gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)
|
|
|
149. |
|
4NCS-20.2 |
372949-02 |
gasket housing cover 14 - Hole 275 x 275 x 0,38 (37294902)
|
|
|
150. |
|
4NCS-20.2 |
372303-01 |
gasket Pipe connection Ø52 x Ø37 x 2 (37230301)
|
|
|
151. |
|
4NCS-20.2 |
372515-08 |
gasket valve plate 191 x 115 x 1,1 (37251508)
|
|
|
152. |
|
4NCS-20.2 |
372623-01 |
gasket cylinder head Retall 191 x 115 x 0,49 (37262301)
|
|
|
153. |
|
4NCS-20.2 |
372145-01 |
gasket terminal box aluminium for terminal box 286 x 181 x 2 (37214501)
|
|
|
154. |
|
4NCS-20.2 |
372421-14 |
gasket Terminal plate 163 x 118 x 0,5 (37242114)
|
|
|
155. |
|
4NCS-20.2 |
382403-05 |
Gasket Ring oil drain aluminium DIN 7603 A22 x 27 x 1,5 (38240305)
|
|
|
156. |
|
4NCS-20.2 |
382403-01 |
Gasket Ring oil supply monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
|
|
|
157. |
|
4NCS-20.2 |
382401-31 |
gasket ring copper A10 x 16 x 2 (38240131)
|
|
|
158. |
|
4NCS-20.2 |
372841-01 |
gasket set (37284101)
|
|
|
159. |
|
4NCS-20.2 |
384101-05 |
gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)
|
|
|
160. |
|
4NCS-20.2 |
383103-04 |
half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)
|
|
|
161. |
|
4NCS-20.2 |
380007-52 |
hexagon head screw suction shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)
|
|
|
162. |
|
4NCS-20.2 |
380156-06 |
hexagon head screw discharge shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)
|
|
|
163. |
|
4NCS-20.2 |
380056-21 |
hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)
|
|
|
164. |
|
4NCS-20.2 |
380104-05 |
Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)
|
|
|
165. |
|
4NCS-20.2 |
380056-04 |
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
|
|
|
166. |
|
4NCS-20.2 |
380166-10 |
hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)
|
|
|
167. |
|
4NCS-20.2 |
380056-14 |
hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)
|
|
|
168. |
|
4NCS-20.2 |
381101-56 |
hexagon nut screw for grounding DIN 934 M10 (38110156)
|
|
|
169. |
|
4NCS-20.2 |
380306-83 |
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
|
|
|
170. |
|
4NCS-20.2 |
300085-04 |
housing Ø70 (30008504)
|
|
|
171. |
|
4NCS-20.2 |
305236-01 |
housing cover suction side grey cast iron 275 x 275 x 65 (30523601)
|
|
|
172. |
|
4NCS-20.2 |
345950-03 |
metal plate for grounding screw for grounding aluminium M10 (34595003)
|
|
|
173. |
|
4NCS-20.2 |
372003-39 |
O-ring sight glass Ø33 x 2,5 (37200339)
|
|
|
174. |
|
4NCS-20.2 |
321105-06 |
oil centrifuge steel (32110506)
|
|
|
175. |
|
4NCS-20.2 |
362003-02 |
oil filter Ø14 x 105 (36200302)
|
|
|
176. |
|
4NCS-20.2 |
347334-03 |
oil level monitoring 230V 50/60 Hz (34733403)
|
|
|
177. |
|
4NCS-20.2 |
361914-01 |
oil service valve (36191401)
|
|
|
178. |
|
4NCS-20.2 |
380501-54 |
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
|
|
|
179. |
|
4NCS-20.2 |
384001-16 |
parallel key built-in motor steel DIN 6885 A12 x 8 x 80 (38400116)
|
|
|
180. |
|
4NCS-20.2 |
365321-14 |
pipe connection suction side steel brazing and welding bush Ø42 (1 5/8") (36532114)
|
|
|
181. |
|
4NCS-20.2 |
382310-43 |
piston ring Ø70 x 1,0 (38231043)
|
|
|
182. |
|
4NCS-20.2 |
382303-03 |
piston ring Ø70 x 1,0 (38230303)
|
|
|
183. |
|
4NCS-20.2 |
325000-01 |
pressure spring steel Ø18 x 28 x 1,25 (32500001)
|
|
|
184. |
|
4NCS-20.2 |
347019-01 |
protection device motor overheat protection SE-B1 230V-50/60Hz (34701901)
|
|
|
185. |
|
4NCS-20.2 |
366201-22 |
Protective Cap suction shut-off valve Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
|
|
|
186. |
|
4NCS-20.2 |
366201-19 |
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
|
|
|
187. |
|
4NCS-20.2 |
382231-18 |
retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)
|
|
|
188. |
|
4NCS-20.2 |
361501-01 |
Schrader Valve brass 1/8"-27 NPTF (36150101)
|
|
|
189. |
|
4NCS-20.2 |
314104-21 |
screwed nipple coated 1/2" - 14NPTF x 48 (31410421)
|
|
|
190. |
|
4NCS-20.2 |
366103-21 |
sealing plug oil service valve brass 1/2" - 14 NPTF (36610321)
|
|
|
191. |
|
4NCS-20.2 |
366110-08 |
Sealing Plug suction shut-off valve steel 1/4" - 18NPTF (36611008)
|
|
|
192. |
|
4NCS-20.2 |
366100-01 |
Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)
|
|
|
193. |
|
4NCS-20.2 |
366110-02 |
Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)
|
|
|
194. |
|
4NCS-20.2 |
366124-01 |
sealing screw oil drain permanent magnet M22 x 1,5(36612401)
|
|
|
195. |
|
4NCS-20.2 |
380910-03 |
Sealing Screw oil supply monitoring DIN 908, 5.8 M20 x 1,5 (38091003)
|
|
|
196. |
|
4NCS-20.2 |
380358-01 |
Set screw coated DIN 916 M10 x 12 (38035801)
|
|
|
197. |
|
4NCS-20.2 |
361315-13 |
shut-off valve Discharge side Ø28 (1 1/8") (36131513)
|
|
|
198. |
|
4NCS-20.2 |
361338-01 |
shut-off valve suction side Ø42 (1 5/8") (36133801)
|
|
|
199. |
|
4NCS-20.2 |
361802-03 |
sight glass steel / glass Ø60 x 7 (36180203)
|
|
|
200. |
|
4NCS-20.2 |
382201-04 |
single coil spring washer balance weight spring steel DIN 127 B8 (38220104)
|
|
|
201. |
|
4NCS-20.2 |
382201-55 |
Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)
|
|
|
202. |
|
4NCS-20.2 |
311004-02 |
spacer sleeve steel Ø60 x Ø42,1 x 30,6 (31100402)
|
|
|
203. |
|
4NCS-20.2 |
311012-09 |
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
|
|
|
204. |
|
4NCS-20.2 |
362001-08 |
suction gas filter Ø50 x 57 (36200108)
|
|
|
205. |
|
4NCS-20.2 |
343507-02 |
terminal box standard 244 x 189 x 85 (34350702)
|
|
|
206. |
|
4NCS-20.2 |
345506-03 |
terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)
|
|
|
207. |
|
4NCS-20.2 |
345507-01 |
terminal plate 6-Lead 165 x 120 x 10 (34550701)
|
|
|
208. |
|
4NCS-20.2 |
380912-01 |
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
|
|
|
209. |
|
4NCS-20.2 |
320500-10 |
thrust washer Motor side Ø66 x Ø48 x 1,6 (32050010)
|
|
|
210. |
|
4NCS-20.2 |
304063-08 |
valve plate Ø70 (30406308)
|
|
|
211. |
|
4NCS-20.2 |
370003-05 |
vibration damper set Crankcase side yellow spring (37000305)
|
|
|
212. |
|
4NCS-20.2 |
370003-07 |
vibrationdamper set brown spring (37000307)
|
|
|
213. |
|
4NCS-20.2 |
382002-04 |
Washer screw for grounding brass DIN 125 10,5 (38200204)
|
|
|
214. |
|
4NCS-20.2 |
382002-01 |
washer brass DIN 125 A4, 3 (38200201)
|
|
|
215. |
|
4NCS-20.2 |
383401-45 |
wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 55 (38340145)
|
|
