Sr. No.
Model
OEM Part No.
Description

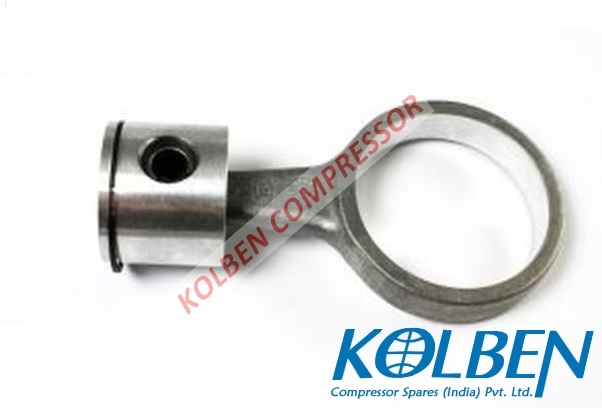

1.
4FC
302297-95
Piston - Piston Ring - Conrod Assy -Std-To Fit Bitzer 4Fc3,4Fc5 ( 41 Mm )

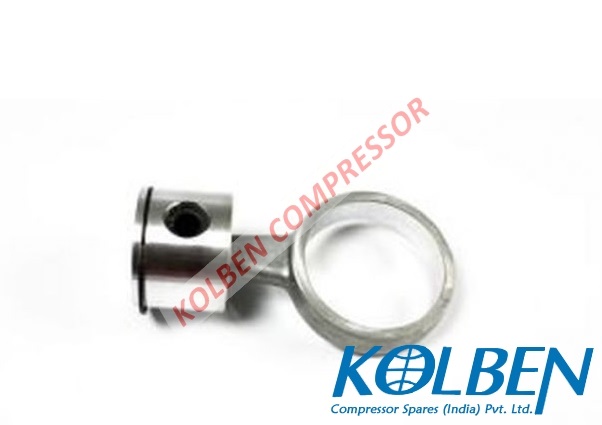

2.
2FC
302297-92
Piston - Piston Ring - Conrod Assy-Std-To Fit Bitzer 2Fc2,2Fc3 ( 46 Mm )
3.
4F, 6F
302297-43
Piston - Piston Ring - Conrod Assy -Std-To Fit Bitzer 4F,6F2,6F,S6F2, S6F ( 82 Mm )
4.
2GC, 4FC

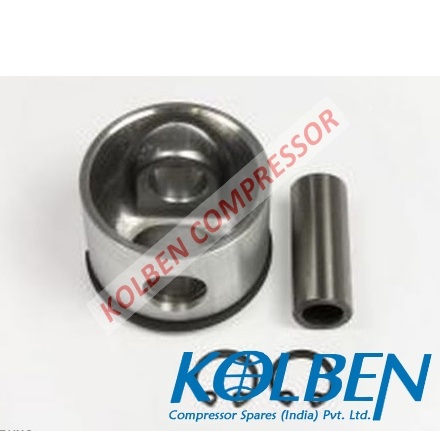

302233-70
Piston - Pin 41.0(Std)X10.8Xp1.48X150319 -To Fit Bitzer 2Gc2,4Fc-3.2,4Fc-5.2
5.
2FC, 2EC, 4EC

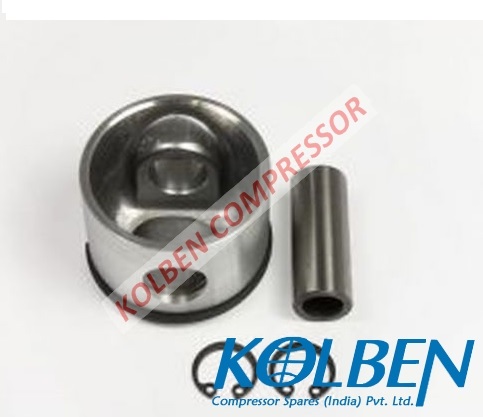

302233-73
Piston - Pin 46.0(Std)X10.8Xp1.50X150379 -To Fit Bitzer 2Ec2,2Ec3,2Fc2,2Fc3,4Ec4,4Ec6
6.
4F, 6F
302233-11
Piston - Pin 82.0(Std)X 18.0Xcr1.50Xp1.50X200598-To Fit Bitzer F
7.
6FE
302233-95
Piston - Pin 82.0(Std)-To Fit Bitzer 6Fe,Ecoline

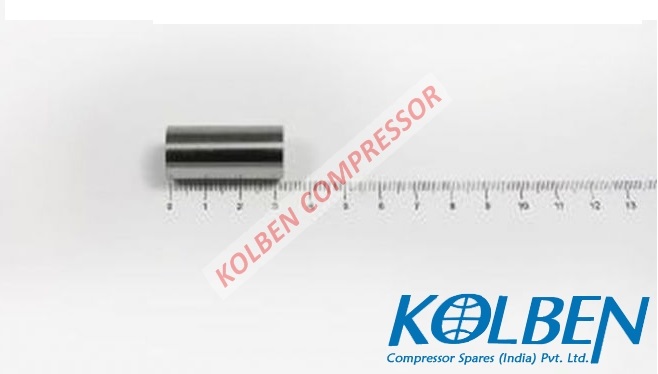

8.
4FC
383401-39
Piston - Pin 15.0X31.9-To Fit Bitzer 4Fc
9.
4F, 6F
383401-26
Piston - Pin 20.0X59.8-To Fit Bitzer F
10.
2GC, 2FC
302129-01
Conrod 55.0(Std)-36.9(Std)-15.0 -To Fit Bitzer 2Hc1,2Hc2,2Gc2,2Fc2,2Fc3
11.
2GC, 2 FC
Conrod 55.0(-0.25Mm)-To Fit Bitzer 2Hc1,2Hc2,2Gc2,2Fc2,2Fc3
12.
2GC, 2FC
Conrod 55.0(0.50Mm)-To Fit Bitzer 2Hc1,2Hc2,2Gc2,2Fc2,2Fc3
13.
2EC, 4EC, 2CC, 4CC, 2DC, 4DC, 4FC
302134-01
Conrod 58.3(Std)-46.2(Std)-15.0 -To Fit Bitzer 2Ec2,2Cc4,4Fc3,4Cc9,4Dc5
14.
2EC, 4EC, 2CC, 4CC, 2DC, 4DC, 4FC
Conrod 58.3(-0.25Mm)-To Fit Bitzer 2Ec2,2Cc4,4Fc3,4Cc9
15.
2EC, 4EC, 2CC, 4CC, 2DC, 4DC, 4FC
Conrod 58.3(-0.50Mm)-To Fit Bitzer 2Ec2,2Cc4,4Fc3,4Cc9

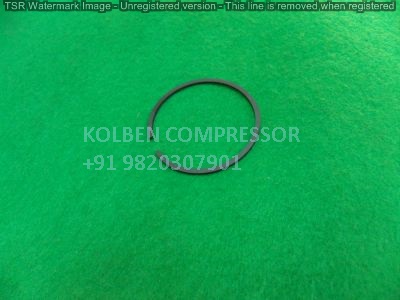

16.
2GC, 2FC
382300-82
Piston Ring 41.0(Std)-P1.50-To Fit Bitzer 2Gc2,4Fc

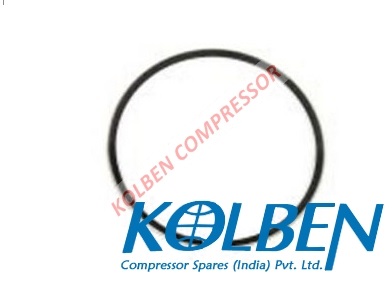

17.
2GC, 2FC
382300-84
Piston Ring 41.0(Std)-Cr1.00-To Fit Bitzer 2Gc,2Ges,4Fc,4Fes

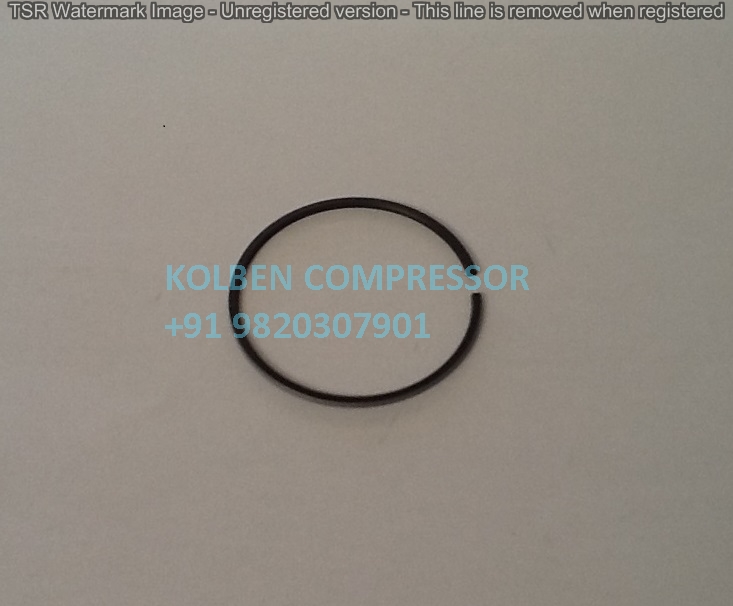

18.
2EC, 2FC, 4EC
382300-85
Piston Ring 46.0(Std)-P1.50-To Fit Bitzer 2Ec,2Fc,4Ec

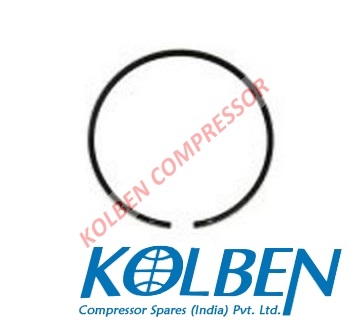

19.
2FC, 2EC, 4EC
382300-86
Piston Ring 46.0(Std)-Cr1.00-To Fit Bitzer 2Fc.2Ec,2Fes,2Ees,4Ec, 4Ees
20.
4F, 6F
382300-61
Piston Ring 82.0(Std)-Cr1.50-To Fit Bitzer 4F,8Fc70,4Fe,6F,6Fe,8Fc60, 8Fe60,8Fe70,S6F,6F.2
21.
4F, 6F
382310-28
Piston Ring 82.0(Std)-P1.50-To Fit Bitzer 4F,8Fc70,4Fe,6F,6Fe,8Fc60, 8Fe60,8Fe70,S6F,6F.2
22.
F, G, H, J, P
Discharge Spring 43.5X16.0X0.3-To Fit Bitzer G,H,J,M,F,P,S6H
23.
F, G, H, J
Discharge Reed 50.0X16.5X0.3-To Fit Bitzer J,M,H,G,F
24.
2HC, 4FC
Suction Reed 54.0X17.0X21.9-To Fit Bitzer 2Hc1,2Hc2,2Gc2,4Fc3,4Fc5
25.
8FC
Discharge Reed 57.3X23.8X0.5-To Fit Bitzer 8Fc60,8Fc70
26.
6F
Suction Reed 92.5X23.0X0.6 For Piston 82-To Fit Bitzer S6F,S6F30,S6F,6F40, 6F50,6F
27.
8FC
Suction Reed 92.1X55.0X0.6-To Fit Bitzer 8Fc(Gc)70
28.
8FC
Suction Reed 92.1X55.0X0.8-To Fit Bitzer 8Fc60,8Fc70
29.
4FC, 4EC, 4DC, 4CC

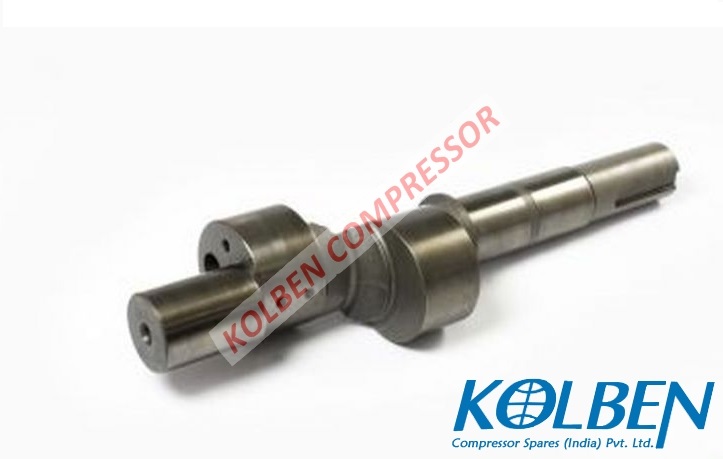

301111-50
Crankshaft 35.9X58.2(2+2)X35.9 -330Mm-To Fit Bitzer 4Fc,4Ec,4Dc, 4Cc
30.
2FC, 2GC, 2HC
311112-05
Bearing Pump Side(Teflon) 23.0X20.0(Std)X25.0-To Fit Bitzer 2Fc,2Fl,2Gc,2Gl,2Hc,2Kc
31.
2CC, 4FC
311125-01
Main Bush 40.0X36.0(Std)X30.0-Ptfe-Std-To Fit Bitzer 2Cc4,2Cl,Dc,2Dl,Ec,2El,4Fc-5.2
32.
N, T, F, G, H, J
Main Bushing Insert 50.0X45.0(-0.25Mm) -To Fit Bitzer N,T,F,G,H,J, S4G,S6F,S6H,S6J
33.
N, T, F, G, H, J
Main Bushing Insert 50.0X45.0(-0.50Mm) -To Fit Bitzer N,T,F,G,H,J, S4G,S6F,S6H,S6J
34.
N, T, F, G, H, J
311100-04
Main Bush Insert 50.0X45.0(Std)X47.0- 3Hole-To Fit Bitzer N,T,F,G,H, J,S4G,S6F,S6H,S6J
35.
8FC, 8GC
Bearing Bush 55.0X50.0(-0.25Mm) X50.0-3 Hole-To Fit Bitzer 8Fc70,8Fc60,8Gc50,8Gc60
36.
8FC, 8GC
Bearing Bush 55.0X50.0(-0.50Mm) X50.0-3 Hole-To Fit Bitzer 8Fc70,8Fc60,8Gc50,8Gc60
37.
8FC, 8GC

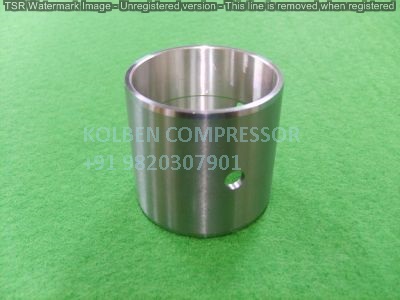

311112-18
Bearing Bush 55.0X50.0(Std)X50.0-3 Hole-To Fit Bitzer 8Fc70,8Fc60,8Gc50,8Gc60
38.
8FC
374026-01
Thrust Collar And Spring Set,Shaft Seal 41.4-To Fit Bitzer 8Fc60
39.
4J, 4H, 6F, 6G
374027-01
Shaft Seal,Thrust Collar And Spring Set 42.1-To Fit Bitzer 4J-13.2,4H-25.2,6F-40.2,6G-40.2
40.
4H, 6F, 6G
374017-03
Shaft Seal Assy-Metal Bellows 50.0-To Fit Bitzer 4H/6F/6G/Open
41.
4H, 6F
320500-06
Thrust Washer 62.0X48.0X1.7-To Fit Bitzer 4J13,6F50,4H,6F
42.
4H, 6F
320500-07
Thrust Washer 62.0X48.0X1.7-To Fit Bitzer 4J13,6F50,4H,6F
43.
8FC, 8GC
320500-09
Thrust Washer 65.0X53.0X1.9-To Fit Bitzer 8Fc60,8Gc50
44.
4G, 4H, 6F, 6G, 6H
320500-08
Thrust Washer 86.0X71.0X1.7-Oil Groove(4)-To Fit Bitzer 4G.2,4H.2,6F.2, 6G.2,6H.2,S6F.2,S6G.2,S6H.2
45.
2FC, 2GC, 2HC
372617-01
Head Gasket 128.1-To Fit Bitzer 2Fc2,2Gc2,2Hc2

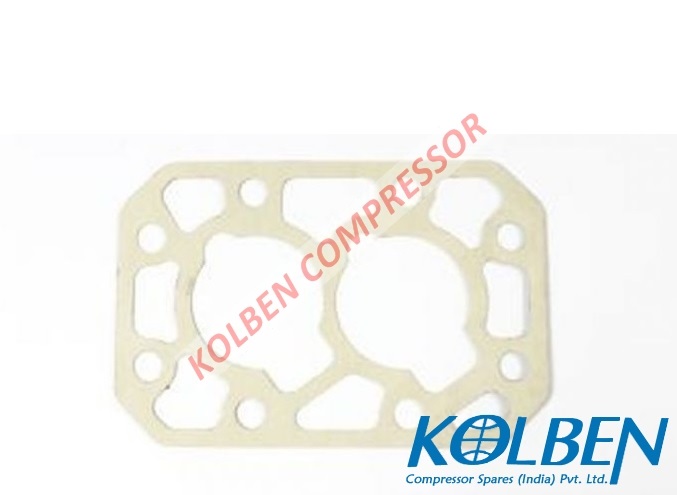

46.
2FC
372514-04
Valve Plate Gasket(46.0) 128.1X47.5-To Fit Bitzer 2Fc2
47.
4FC
304059-09
Valve Plate Assy Without Gasket(41.0) 10.5X2-14.0X2-To Fit Bitzer 4Fc3,4Fc5
48.
4FC, 4EC, 4DC, 4CC
372618-01
Head Gasket 144.0-To Fit Bitzer 4Fc5,4Ec6,2Dc3,4Cc9

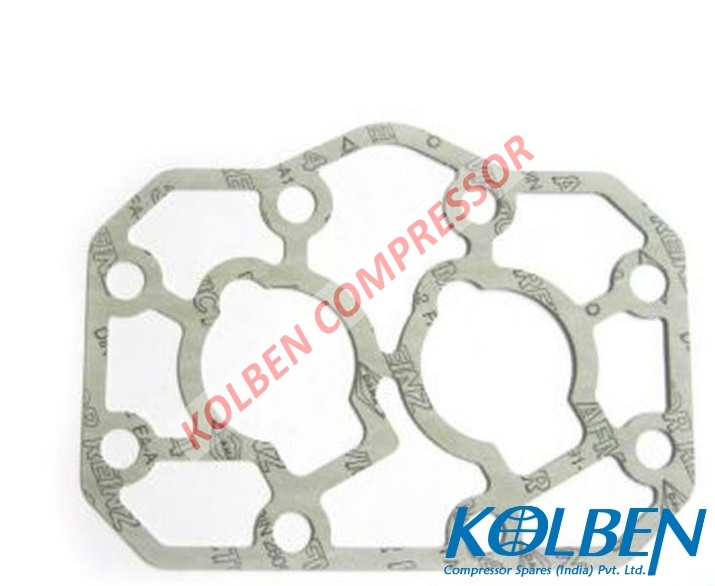

49.
4FC
372517-01
Valve Plate Gasket(41.0) 143.6X43.0-To Fit Bitzer 4Fc3,4Fc5
50.
6F,
304016-04
Valve Plate Assy Without Gasket(82.0) 10.0X8-18.5X4-31.0-To Fit Bitzer 6F40,6F50,6F,S6F,S6F30
51.
6F, 4N, 4P, 4T
304051-15
Valve Plate Assy Without Gasket,Relief Valve(82.0) 10.0X8-18.5X4-3/4Nptf-To Fit Bitzer S6F30,S6F
52.
6F, 4N, 4P, 4T
304016-08
Valve Plate Assy Without Gasket,Seal Plug(82.0) 10.0X8-18.5X4-3/4Nptf-31.0-To Fit Bitzer S6F,S6F30
53.
6F
Valve Plate Assy Without Gasket(82.0)-To Fit Bitzer 6F40,6F50,6F

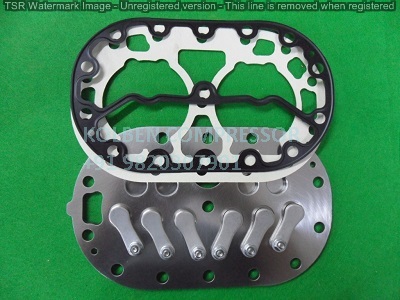

54.
FE
304063-24
Valve Plate Complete-To Fit Bitzer Fe
55.
6FE
304063-35
Valve Plate Complete-To Fit Bitzer 6Fe-44
56.
4G, 4H, 6F, 6G, 6H, 6J
372616-03
Head Gasket 224.3-To Fit Bitzer 4G2,4H2,4H,4J,6F2,6F,6G2, 6G,6H,6J,S4G,S6F2,S6F, S6G2,S6G,S6H2,S6H,S6J
57.
6J, 6H, 6G, 6F
372616-04
Head Gasket 224.3-To Fit Bitzer S6J16,S6H20,S6H,S6G25,S6F30
58.
6F
372511-07
Valve Plate Gasket(82.0) 224.0X83.2-To Fit Bitzer S6F30,S6F
59.
8FC
304060-05
Valve Plate Assy Without Gasket,Seal Plug(82.0) 14.5X6-20.0X4-To Fit Bitzer 8Fc60,8Fc70

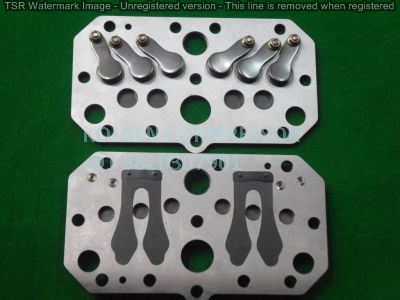

60.
8FC
304060-06
Valve Plate Assy Without Gasket,Pressure Relief Valve(82.0) 14.5X6-20.0X4-To Fit Bitzer 8Fc60,8Fc70
61.
8FC
372944-01
Head Gasket 224.5-To Fitbitzer 8Fc60,8Fc70,8Fc60,8Fc70

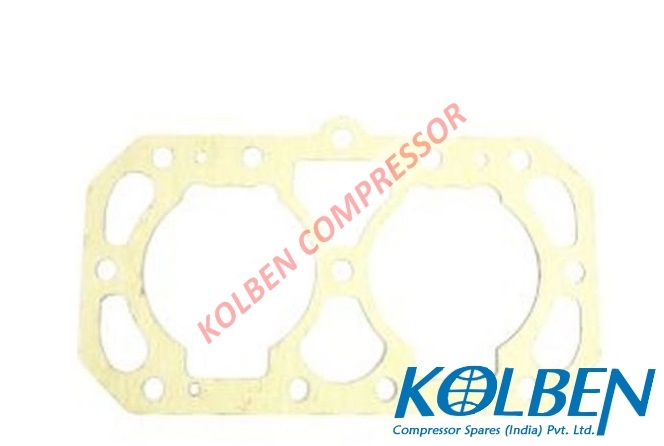

62.
8FC
372518-03
Valve Plate Gasket(82.0) 224.5X83.1-To Fit Bitzer 8Fc60,8Fc70,8Fc60,8Fc70

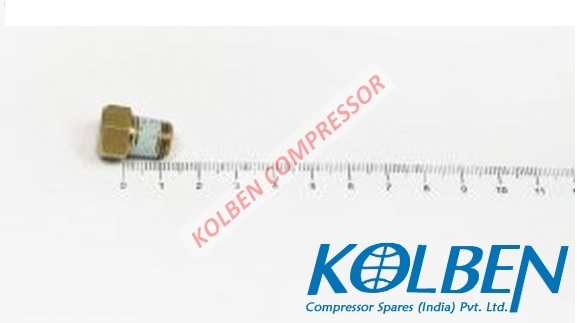

63.
4N, 4P, 4T, 4F
361100-21
Pressure Relief Valve-34Bar-3/4Nptf-To Fit Bitzer
64.
4N, 4P, 4T, 4F
361100-23
Pressure Relief Valve-15Bar-3/4Nptf-To Fit Bitzer
65.
4J, 4P, 4N, 4V, 4G, 6H, 6G, 4H, 6J, 6F
343416-02
Terminal Plate Kit-To Fit Bitzer 4J,4P,4N,4V,4G,6H,6G,4H,6J,6F
66.
FC, CC
345500-15
Terminal Plate 6 Pin-To Fit Bitzer Fc,Cc
67.
2CC, 2DC, 2EC, 2FC, 2GC, 2HC
362012-01
Suction Gas Filter 62.1X23.5X41.6-To Fit Bitzer 2Cc,2Dc,2Ec,2Fc,2Gc,2Hc
68.
4CC, 4DC, 4EC, 4FC

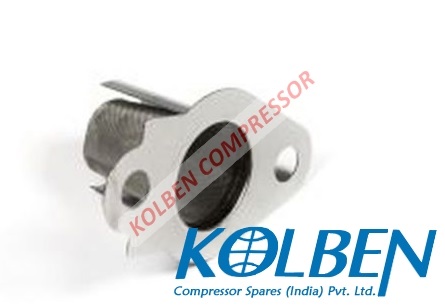

362012-02
Suction Gas Filter 90.9X34.0X44.9-To Fit Bitzer 4Cc,4Dc,4Ec,4Fc
69.
6F, 6G, 6H
362002-06
Suction Gas Filter 67.0X50.0X145.0-To Fit Bitzer S6F2,S6F,S6G2,S6G,S6H2,S6H,S6J
70.
4J, 6F
362003-01
Oil Filter 23.1X19.0X200.0-To Fit Bitzer 4J13,6F50,6F
71.
F, G, H, J
362004-02
Suction Gas Filter-To Fit Bitzer F,G,H,J
72.
8FC, 8GC
362004-03
Suction Gas Filter-To Fit Bitzer 8Fc60,8Gc50
73.
G, H, F
362004-01
Suction Gas Filter-To Fit Bitzer G,H,F-Open Type
74.
G, H, F, 4J
305125-03
Bearing Cover Complete Included Oil Pump-To Fit Bitzer G,H,F,4J
75.
4G, 4H, 4J, 6F, 6J, 6GC, 4HE
362503-02
Oil Pump Assy-To Fit Bitzer 4G20,4H15,4J13,6F40,6J33,8Gc50, 4He15
76.
F, G, H, J, N
361802-02
Sight Glass 67X8.5-To Fit Bitzer H,J,F,G,N
77.
2FC

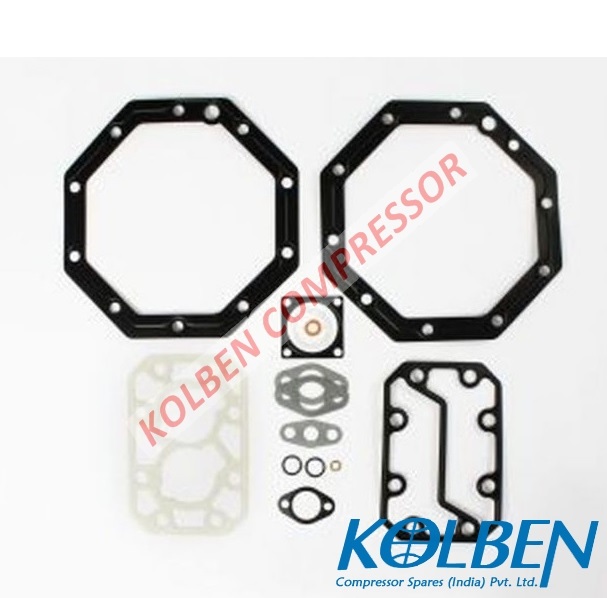

372830-03
Gasket Set(46.0)-To Fit Bitzer 2Fc,2Fes-2
78.
4FC

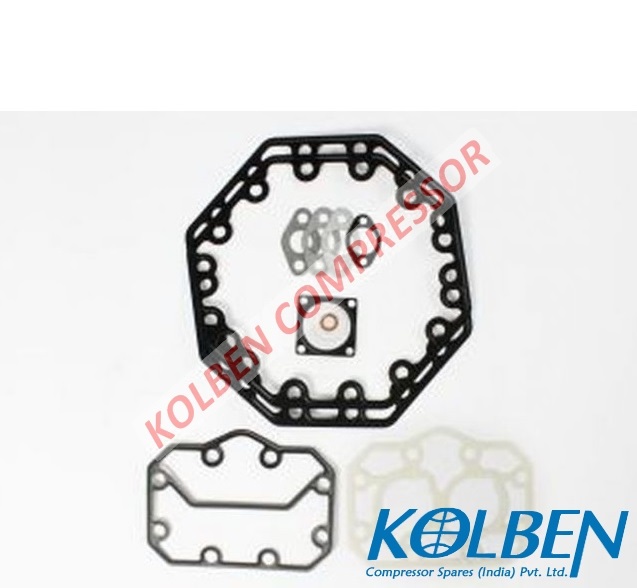

372835-04
Gasket Set(41.0)-To Fit Bitzer 4Fc-5.2
79.
4G, 4F

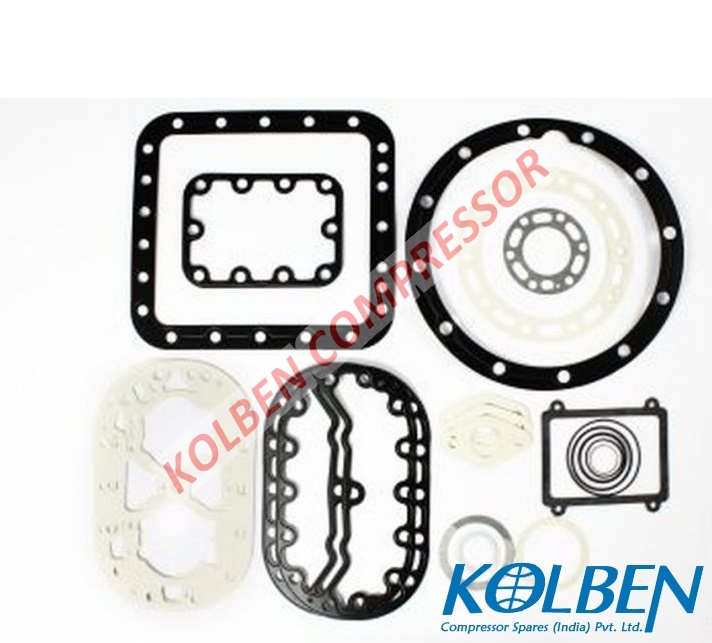

372811-04
Gasket Set(75.0)-To Fit Bitzer 4G,4F
80.
6F
372812-05
Gasket Set(82.0)-To Fit Bitzer 6F.2
81.
6F
372816-04
Gasket Set(82.0)-To Fit Bitzer S6F-30.2
82.
6F
372811-09
Gasket Set(82.0)-To Fit Bitzer 6F-40.2,6F-50.2

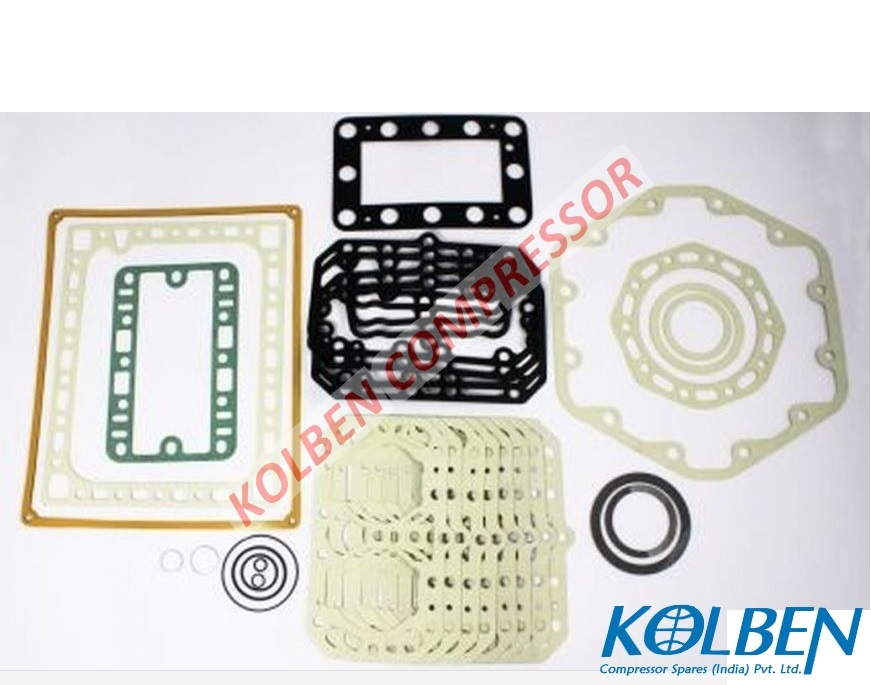

83.
8FC
372839-02
Gasket Set(82.0)-To Fit Bitzer 8Fc60,8Fc70
84.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
311110-04
Bearing crankcase/pump (standard) 4/6-J/H/G/F
85.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
N/A
Bearing crankcase/pump (-25mm u/size) J/H/G/F
86.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
N/A
Bearing crankcase/pump (-50mm u/size) J/H/G/F
87.
4H , 4G , 4F , 6H , 6G , 6F
311100-08
Bearing seal-end (standard) 4/6H-G-F
88.
8FC , 8GC

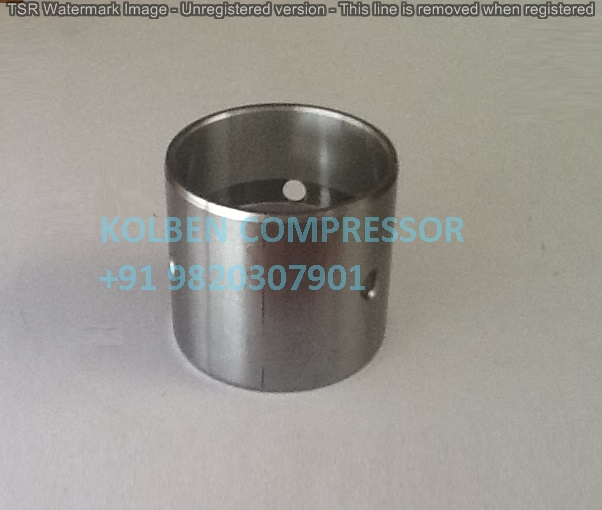

311112-02
Bearing man for models 8FC/8GC
89.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
320500-06
Thrust-washer crankcase 4/6- J/H/G/F
90.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
320500-07
Thrust-washer pump-end 4/6- J/H/G/F
91.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
320500-08
Thrust-washer seal-end 4/6- J/H/G/F
92.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
374027-01
Thrust-collar & spring assy for models 4-6/J/H/G/F
93.
8GC , 8FC
320500-09
Thrust washer for 8GC/8FC
94.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
302115-01
Con-rod (standard) 4/6-J/H/G/F
95.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
N/A
Con-rod (-0.25mm u/size) 4-6-J/H/G/F
96.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
N/A
Con-rod (-0.50mm u/size) 4-6-J/H/G/F
97.
6F
372811-09
Gasket set for 82mm bore 6-F
98.
6F
372812-05
Gasket set for 82mm bore 6-F (open drive)
99.
8GC , 8FC
372839-01
Gasket kit 8GC/8FC
100.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
343213-04
Heater 240v/140W 4/6- J/H/G/F
101.
6G , 6F
346330-46
Stator & Rotor set 380/420v PWS 30.0/40HP for 6G/F
102.
2GC, 4FC
302233-70
Piston complete (41.00mm) 2GC/4FC
103.
2FC,2EC,4EC
302233-73
Piston complete (46.00mm) 2FC-2EC-4EC
104.
6F
302232-11
Piston & pin (standard) 6-F
105.
6F
383401-26
Piston pin 20mm o/d x 60mm l/g for models 6F
106.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
362500-01
Pump (1st Generation) for models 4/6-J/H/G/F
107.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
362503-02
Pump (2nd Generation) for models 4/6J/H/G/F
108.
2FC
382300-85
Piston ring 46mm for models 2FC/2-4EC
109.
6F
382310-61
Ring 82.00mm (std) top chrome 6-F
110.
6F
N/A
Ring 82.50mm (o/size) top chrome 6-F
111.
6F
382310-28
Ring 82.00mm (std) 2nd phos.6-F
112.
6F
N/A
Ring 82.50mm (o/size) 2nd phos.6-F
113.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
374017-03
Shaft Seal assembly for models 4/6-H-G-F
114.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
343416-02
Electrical plate assm 10HP+ models 4-6/J/H/G/F
115.
8G , 8FC
345500-10
Terminal plate assm 8G/FC HS64/74 CSH75
116.
6F
320201-07
Valve reed suction (82mm bore) 6-F
117.
4F , 4J , 6J , 6F
320210-09
Valve reed discharge (flat) 4-6J>F
118.
4F , 4J , 6J , 6F
320210-08
Valve reed discharge (spring) 4-6J>F
119.
4F , 4J , 6J , 6F
320210-06
Valve reed discharge for 1st Gen 4-6/J>F
120.
6FE
Valve reed suction 82mm for models 6FE
121.
8FC
Valve reed suction for models 8FC
122.
8FC
Valve reed discharge for models 8FC
123.
4F

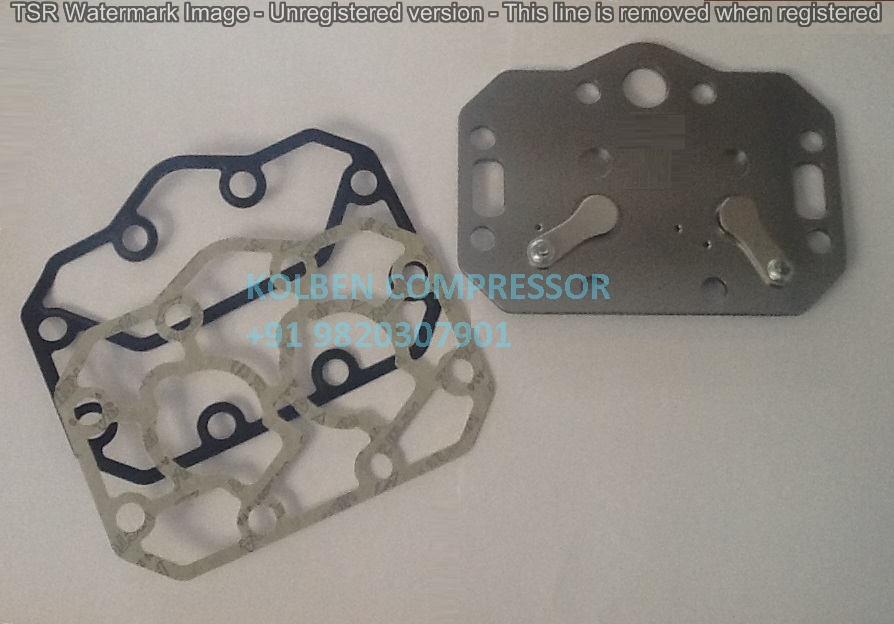

304059-02
VPA for models 4F-C (41mm)
124.
6F
304051-15
Valve plate assm for models 6-F
125.
8FC
304060-03
Valve plate assembly (with plug) models 8FC
126.
8FC
304060-04
Valve plate assembly (with PRV) models 8FC
127.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
383013-03
Valve reed suction pin (2.5x8mm) for models 2/4/6
128.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
383011-02
Valve plate locating pin (6x20mm) models 4-6/J>F
129.
6H , 6G , 6F
N/A
Valve plate clinch stud (M5 x 16) 6H/G/F
130.
6J , 6F , 4J , 4F
361100-01
Valve pressure relief (34bar discharge) for 4-6J>F
131.
6J , 6F , 4J , 4F
361100-03
Valve pressure relief (15bar diff) for 4-6J>F
132.
8G , 8FC
361100-29
Valve pressure relief (34 Bar)for vpa 8G/F-C
133.
4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F
374017-03
BZ Shaft Seal assembly for models 4/6-H-G-F
134.
6F-50.2
311100-04
bearing bush Motor side Ø50 x Ø45 x 47,5 (31110004)
135.
6F-50.2
311100-05
bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)
136.
6F-50.2
320500-06
thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)
137.
6F-50.2
301007-16
crankshaft Stroke 55mm Ø45 x 603 (30100716)
138.
6F-50.2
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
139.
6F-50.2
302297-43

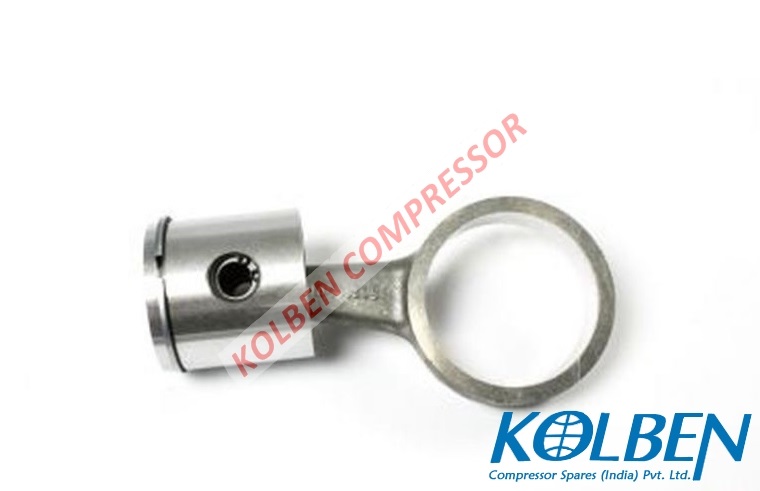

connecting rod / piston Ø82 (30229743)
140.
6F-50.2
302115-50

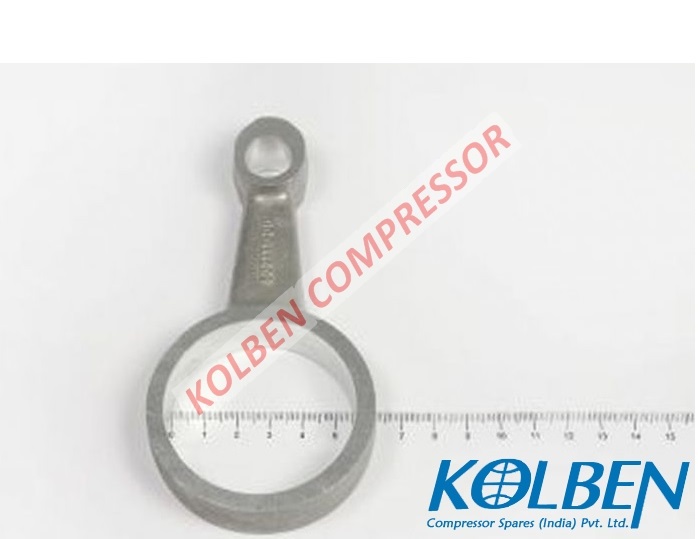

connecting rod (30211550)
141.
6F-50.2
383021-11
clamping sleeve 10 x 0,75 x 29 (38302111)
142.
6F-50.2
382141-01
retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)
143.
6F-50.2
380105-09
hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)
144.
6F-50.2
311103-06
bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)
145.
6F-50.2
302233-95
Piston Ø82 (30223395)
146.
6F-50.2
383401-26

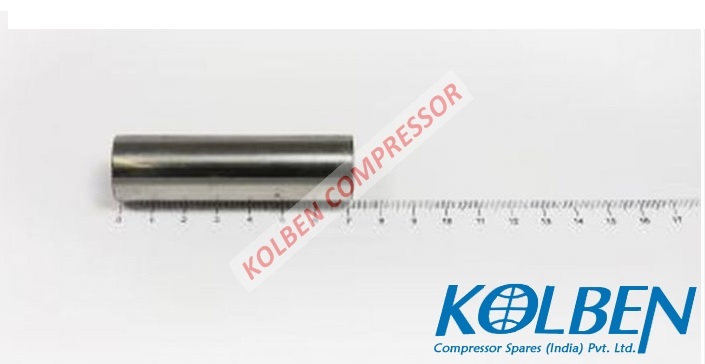

wrist pin Ø20 x Ø13 x 60 (38340126)
147.
6F-50.2
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
148.
6F-50.2
382300-61
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)
149.
6F-50.2
382310-28
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)
150.
6F-50.2
372314-03
gasket bearing cover Ø182 x Ø133 x 1 (37231403)
151.
6F-50.2
305125-03
bearing cover complete inclusive oil pump (30512503)
152.
6F-50.2
361101-01
oil pressure relief valve SW17 x 29 (36110101)
153.
6F-50.2
382402-01
gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)
154.
6F-50.2
320500-07
thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)
155.
6F-50.2
380306-32
Cheese Head Screw bearing cover DIN 912, 10.9 DIN 912, 10.9 M10 x 30 (38030632)
156.
6F-50.2
372001-19
O-ring oil pump CR Ø74 x 2 (37200119)
157.
6F-50.2
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
158.
6F-50.2
380339-01
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
159.
6F-50.2
320314-01
fixing plate MP54 140 x 40 x 3 (32031401)
160.
6F-50.2
382002-01
washer brass DIN 125 A4, 3 (38200201)
161.
6F-50.2
382201-51
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
162.
6F-50.2
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
163.
6F-50.2
347320-33
differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
164.
6F-50.2
361500-22
Schrader valve (36150022)
165.
6F-50.2
312030-03
thrust collar Ø62 x 7 (31203003)
166.
6F-50.2
372001-13
O-ring CR Ø45 x 3 (37200113)
167.
6F-50.2
325900-02
spring washer Ø58,5 x Ø46 x 0,5 (32590002)
168.
6F-50.2
312006-05
ring spring washer Ø 42,1 x Ø 58 x 5 (31200605)
169.
6F-50.2
374027-03
shaft seal bearing bush (37402703)
170.
6F-50.2
384102-01
gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)
171.
6F-50.2
384001-19
parallel key steel DIN 6885 A12 x 8 x 110 (38400119)
172.
6F-50.2
320502-04
thrust washer steel Ø54 x Ø17 x 5 (32050204)
173.
6F-50.2
382150-04
thrust washer spring steel S16 (38215004)
174.
6F-50.2
380166-03
hexagon head screw coated DIN 933, 10.9 M16 x 40 (38016603)
175.
6F-50.2
325910-01
retaining ring with lugs spring steel Ø230 (32591001)
176.
6F-50.2
362004-02
suction gas filter Ø220 x 50 (36200402)
177.
6F-50.2
372315-03
gasket housing cover Ø286 x Ø236 x 0,38 (37231503)
178.
6F-50.2
305900-03
housing cover (30590003)
179.
6F-50.2
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
180.
6F-50.2
380057-11
hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)
181.
6F-50.2
380057-14
hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)
182.
6F-50.2
372301-03
gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)
183.
6F-50.2
380009-53
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)
184.
6F-50.2
361338-04
Shut-Off Valve suction side Ø54 (2 1/8") (36133804)
185.
6F-50.2
365321-03
Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)
186.
6F-50.2
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
187.
6F-50.2
367121-02
Clamping Plate suction shut-off valve 110 x 110 (36712102)
188.
6F-50.2
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
189.
6F-50.2
375014-05
Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
190.
6F-50.2
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
191.
6F-50.2
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
192.
6F-50.2
325000-34
pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)
193.
6F-50.2
362003-01
oil filter Ø20 x 200 (36200301)
194.
6F-50.2
360110-06
oil return system (36011006)
195.
6F-50.2
372003-15
O-ring sight glass Ø36,3 x 1,78 (37200315)
196.
6F-50.2
361802-02
sight glass steel / glass Ø67 x 8,5 (36180202)
197.
6F-50.2
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
198.
6F-50.2
366110-10
sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)
199.
6F-50.2
366110-05
sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)
200.
6F-50.2
372415-02
gasket bottom plate (37241502)
201.
6F-50.2
320307-04

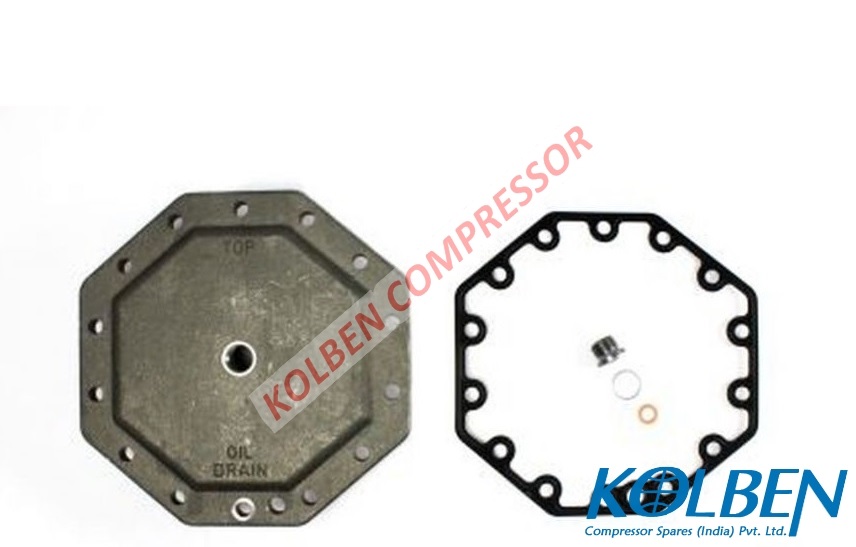

bottom plate steel 270 x 360 x 12 (32030704)
202.
6F-50.2
380156-05
hexagon head screw bottom plate DIN 933, 10.9 M10 x 25 (38015605)
203.
6F-50.2
370004-01
vibration damper set Crankcase side spring brown Lo = 42 (37000401)
204.
6F-50.2
325002-01
damper element Crankcase side spring steel brown Lo=42 (32500201)
205.
6F-50.2
370004-03
vibration damper set Motor side spring blue Lo = 48 (37000403)
206.
6F-50.2
325002-03
damper element Motor side spring steel blue Lo=48 (32500203)
207.
6F-50.2
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
208.
6F-50.2
361110-01
gas equalising valve (36111001)
209.
6F-50.2
361100-21
pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)
210.
6F-50.2
372704-01
Gasket intermediate flange h=25 91 x 52 x 1 (37270401)
211.
6F-50.2
380306-23
Cheese Head Screw intermediate flange h=25 DIN 912, 10.9 M10 x 25 (38030623)
212.
6F-50.2
372301-02
gasket discharge shut-off valve Ø70 x Ø54 x 1 (37230102)
213.
6F-50.2
380007-52
hexagon head screw discharge shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)
214.
6F-50.2
361338-01
shut-off valve Discharge side Ø42 (1 5/8") (36133801)
215.
6F-50.2
365321-14
pipe connection discharge shut-off valve steel brazing and welding bush Ø42 (1 5/8") (36532114)
216.
6F-50.2
372303-01
gasket Ø52 x Ø37 x 2 (37230301)
217.
6F-50.2
366201-22
Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
218.
6F-50.2
366110-01
Sealing Plug steel 1/4" - 18 NPTF (36611001)
219.
6F-50.2
304051-15
valve plate Ø82 (30405115)
220.
6F-50.2
372511-07
gasket 253 x 155 x 1,0 Ø82 (37251107)
221.
6F-50.2
372616-03
gasket Retall 253 x 155 x 0,5 (37261603)
222.
6F-50.2
302360-22
cylinder head air-cooled (30236022)
223.
6F-50.2
380056-03
hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)
224.
6F-50.2
302360-03
cylinder head water-cooled Water cooled 253 x 155 x 64 (30236003)
225.
6F-50.2
302326-02
cylinder head water-cooled grey cast iron 253 x 155 x 64 (30232602)
226.
S6F.2
311100-08
bearing bush Crankcase side Ø75 x Ø70 x 70 (31110008)
227.
S6F.2
311100-04
bearing bush Ø50 x Ø45 x 47,5 (31110004)
228.
S6F.2
311103-06
bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)
229.
S6F.2
305125-03
bearing cover complete inclusive oil pump (30512503)
230.
S6F.2
302400-01
bottom plate grey cast iron 350 x 315 x 54 (30240001)
231.
S6F.2
380306-32
Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)
232.
S6F.2
380302-05
Cheese Head Screw DIN 912, 10.9 M12 x 50 (38030205)
233.
S6F.2
380306-23
Cheese Head Screw intermediate flange h=25 DIN 912, 10.9 M10 x 25 (38030623)
234.
S6F.2
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
235.
S6F.2
380306-26
cheese head screw bottom plate DIN 912, 10.9 M10 x 55 (38030626)
236.
S6F.2
367121-08
clamping plate 80 x 80 (36712108)
237.
S6F.2
383021-11
clamping sleeve 10 x 0,75 x 29 (38302111)
238.
S6F.2
382300-61
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)
239.
S6F.2
382310-28
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)
240.
S6F.2
302115-50
connecting rod (30211550)
241.
S6F.2
302297-43
connecting rod / piston Ø82 (30229743)
242.
S6F.2
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
243.
S6F.2
301007-08
crankshaft Stroke 55mm Ø45 x 554 (30100708)
244.
S6F.2
302360-14
cylinder head high pressure side 155 x 253 x 68 (30236014)
245.
S6F.2
302360-16
cylinder head low pressure stage 155 x 253 x 62,5 (30236016)
246.
S6F.2
347320-33
differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
247.
S6F.2
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
248.
S6F.2
361404-06
expansion valve operation with liquid subcooler R22 TEVI 2, nozzle 05 (36140406)
249.
S6F.2
380902-02
eye bolt DIN 580 M12 (38090202)
250.
S6F.2
362101-05
filter drier Operation without subcooler brazed connection Ø10 (36210105)
251.
S6F.2
320314-01
fixing plate MP54 140 x 40 x 3 (32031401)
252.
S6F.2
361110-01
gas equalising valve (36111001)
253.
S6F.2
372712-01
gasket suction gas line Retall 89 x 52 x 0,25 (37271201)
254.
S6F.2
372301-02
gasket Suction gas filter Ø70 x Ø54 x 1 (37230102)
255.
S6F.2
372704-02
gasket discharge shut-off valve Retall 89 x 51 x 1 (37270402)
256.
S6F.2
372616-03
gasket low pressure stage Retall 253 x 155 x 0,5 (37261603)
257.
S6F.2
372301-03
gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)
258.
S6F.2
372704-01
Gasket intermediate flange h=25 91 x 52 x 1 (37270401)
259.
S6F.2
372616-04
gasket high pressure side Retall 253 x 155 x 0,5 (37261604)
260.
S6F.2
372415-02
gasket bottom plate (37241502)
261.
S6F.2
372511-08
gasket valve plate 253 x 155 x 1,2 Ø82 (37251108)
262.
S6F.2
372303-01
gasket Ø52 x Ø37 x 2 (37230301)
263.
S6F.2
372200-04
gasket teflon Ø38 x Ø35 x 1,5 (37220004)
264.
S6F.2
372313-02
gasket Ø142 x Ø106,5 x 0,5 (37231302)
265.
S6F.2
372315-03
gasket housing cover Ø286 x Ø236 x 0,38 (37231503)
266.
S6F.2
382402-01
gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)
267.
S6F.2
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
268.
S6F.2
382501-05
gasket ring NBR felt ring G58 x 50 x 4 (38250105)
269.
S6F.2
372807-01
gasket set bearing cover Ø182 x Ø133 x 1/ 0,8/ 0,75 /0,6 /0,5 (37280701)
270.
S6F.2
372816-11
gasket set (37281611)
271.
S6F.2
381214-01
grooved nut M40 x 1,5 (38121401)
272.
S6F.2
345906-02
heater sleeve for 140W heater 43315 (34590602)
273.
S6F.2
380057-06
hexagon head screw housing cover DIN 931, 10.9 M12 x 100 (38005706)
274.
S6F.2
380056-12
hexagon head screw DIN 931, 10.9 M10 x 120 (38005612)
275.
S6F.2
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
276.
S6F.2
380155-08
hexagon head screw DIN 933, 10.9 M8 x 30 (38015508)
277.
S6F.2
380156-09
Hexagon Head Screw DIN 933, 10.9 M10 x 45 (38015609)
278.
S6F.2
380154-02
hexagon head screw steel DIN 933, 10.9 M6 x 12 (38015402)
279.
S6F.2
380007-52
hexagon head screw galvanized DIN 931, 8.8 M12 x 80 (38000752)
280.
S6F.2
380105-09
hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)
281.
S6F.2
380166-12
Hexagon Head Screw coated ISO 4017 - Precote85 M16 x 50 (38016612)
282.
S6F.2
380056-03
hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)
283.
S6F.2
380057-07
hexagon head screw housing cover DIN 931, 10.9 M12 x 110(38005707)
284.
S6F.2
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
285.
S6F.2
380339-01
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
286.
S6F.2
300026-08
housing Ø82 (30002608)
287.
S6F.2
305214-01
housing cover grey cast iron Ø286 x 112 (30521401)
288.
S6F.2
377002-01
insulation intermediate pressure mixing pipe Armaflex (37700201)
289.
S6F.2
377003-02
insulation main pipe (37700302)
290.
S6F.2
300903-01
intermediate flange grey cast iron 225 x 96 x 93 (30090301)
291.
S6F.2
367015-21
intermediate flange steel 91 x 52 x 13 (36701521)
292.
S6F.2
360504-02
intermediate pressure mixing pipe (36050402)
293.
S6F.2
372001-19
O-ring oil pump Ø74 x 2 (37200119)
294.
S6F.2
372001-20
O-ring housing cover Ø126 x 4 (37200120)
295.
S6F.2
372003-15
O-ring sight glass Ø36,3 x 1,78 (37200315)
296.
S6F.2
372001-25
O-ring stationary ring Ø63,09 x 3,53 (37200125)
297.
S6F.2
372003-28
O-ring Ø47x Ø4 (37200328)
298.
S6F.2
362003-01
oil filter Ø20 x 200 (36200301)
299.
S6F.2
361101-01
oil pressure relief valve SW17 x 29 (36110101)
300.
S6F.2
360110-07
oil return system (36011007)
301.
S6F.2
384001-06
parallel key steel DIN 6885 A8 x 7 x 45 (38400106)
302.
S6F.2
327000-01
parallel pin 6H 11 x 20 (32700001)
303.
S6F.2
360101-03
pipe oil return Ø6 x 1 (36010103)
304.
S6F.2
360401-16
pipe injection pipe Ø6 x 1 (36040116)
305.
S6F.2
365321-08
pipe connection steel brazing and welding bush Ø42 (1 5/8') Ø54 (2 1/8') (36532108)
306.
S6F.2
365321-14
pipe connection discharge shut-off valve steel brazing and welding bush Ø42 (1 5/8") (36532114)
307.
S6F.2
366000-07
pipe connection steel copper-plated brazed connection Ø35, 1 3/4" - 12 UN (36600007)
308.
S6F.2
302233-11
piston aluminium alloy Ø82 (30223311)
309.
S6F.2
361100-21
pressure relief valve high pressure side 34 bar 3/4" - 14 NPTF - p=34bar (36110021)
310.
S6F.2
325000-34
pressure spring steel Ø23,5 x 28 x 1,8 (32500034)
311.
S6F.2
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
312.
S6F.2
366201-22
Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
313.
S6F.2
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
314.
S6F.2
347023-03
PTC-sensor 140° C (34702303)
315.
S6F.2
303602-11
pulley Taper-lock bush grey cast iron Ø224, 5R, SPA (30360211)
316.
S6F.2
382141-01
retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)
317.
S6F.2
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
318.
S6F.2
361500-01
Schrader valve T-piece brass Jul-16 (36150001)
319.
S6F.2
361500-22
Schrader valve (36150022)
320.
S6F.2
305413-07
sealing cover Ø142 x 31 (30541307)
321.
S6F.2
366202-01
sealing nut 7/16" - 20 UNF (36620201)
322.
S6F.2
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
323.
S6F.2
366110-01
Sealing plug steel 1/8“ - 27 NPTF (36611001)
324.
S6F.2
366110-10
sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)
325.
S6F.2
366104-22
sealing plug separation wall brass 3/4" - 14 NPTF (36610422)
326.
S6F.2
366110-09
sealing plug bottom plate steel 3/8" - 18 NPTF (36611009)
327.
S6F.2
366110-05
sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)
328.
S6F.2
366112-02
sealing screw conic M12 x 1,5 (36611202)
329.
S6F.2
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
330.
S6F.2
374017-03
shaft sea (37401703)
331.
S6F.2
374001-06
shaft seal rotating unit (37400106)
332.
S6F.2
361313-01
Shut-Off Valve Discharge side without hexagon head screws (pos. 131) brazing and welding bush Ø42 (1 5/8") (36131301)
333.
S6F.2
361310-08
shut-off valve Discharge side brazing and welding bush Ø35 (1 3/8") (36131008)
334.
S6F.2
361338-02
shut-off valve suction side Ø42 (1 5/8") (36133802)
335.
S6F.2
361822-01
sight glass brazed connection Ø10 x 109 (36182201)
336.
S6F.2
361802-02
sight glass Ø67 x 8,5 (36180202)
337.
S6F.2
382201-51
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
338.
S6F.2
347100-02
solenoid valve liquid injection Brazed connection EVR 6 230V-50/60Hz Ø10 L (34710002)
339.
S6F.2
353002-08
subcooler 317 x 76 x 47 (35300208)
340.
S6F.2
362002-06
suction gas filter Ø50 x 140 (36200206)
341.
S6F.2
360503-02
suction header (36050302)
342.
S6F.2
320500-08
thrust washer Crankcase side Ø86 x Ø71 x 1,7 (32050008)
343.
S6F.2
320500-07
thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)
344.
S6F.2
382112-01
toothed washer (38211201)
345.
S6F.2
304016-04
valve plate high pressure side High pressure side D 82 mm (30401604)
346.
S6F.2
304016-08
valve plate low pressure stage Sealing plug included Low pressure side D 82 mm (30401608)
347.
S6F.2
304016-12
valve plate low pressure stage Pressure relief valve included Low pressure side D 82 mm (30401612)
348.
S6F.2
382002-01
washer brass DIN 125 A4, 3 (38200201)
349.
S6F.2
383401-26
wrist pin Ø20 x Ø13 x 60 (38340126)
350.
6F-50.2
380391-55
sealing screw conic brass R 3/4 (38039155)
351.
6F-50.2
327000-01
parallel pin 6H 11 x 20 (32700001)
352.
6F-50.2
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
353.
6F-50.2
300903-01
intermediate flange grey cast iron 225 x 96 x 93 (30090301)
354.
6F-50.2
343416-02
terminal plate kit (34341602)
355.
6F-50.2
372421-14
gasket 163 x 118 x 0,5 (37242114)
356.
6F-50.2
304900-01
terminal plate 165 x 120 x 15,5 (30490001)
357.
6F-50.2
343417-07
connection to ground, complete grounding (34341707)
358.
6F-50.2
372124-03
gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)
359.
6F-50.2
375002-03
insulating plate 85 x 25 x 6 (37500203)
360.
6F-50.2
375001-03
pressure bush Ø8 x Ø24 x 8 (37500103)
361.
6F-50.2
375000-03
gasket ring Ø16 x Ø8 x 8,5 (37500003)
362.
6F-50.2
382042-03
washer copper 8 x 1,6 (38204203)
363.
6F-50.2
381301-05
hexagon nut brass M8 (38130105)
364.
6F-50.2
382002-02
washer brass DIN 125 A5, 3 (38200202)
365.
6F-50.2
381301-03
hexagon nut brass M5 (38130103)
366.
6F-50.2
382152-01
thrust washer DIN 127 S 8 (38215201)
367.
6F-50.2
302915-02
cable connector brass (30291502)
368.
6F-50.2
320318-03
connection bridge brass A 5,4 (32031803)
369.
6F-50.2
343414-08
terminal plate kit (34341408)
370.
6F-50.2
343414-07
terminal plate kit (34341407)
371.
6F-50.2
375002-01
insulating plate 53 x 18 x 6,5 (37500201)
372.
6F-50.2
375001-01
pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)
373.
6F-50.2
375000-01
gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)
374.
6F-50.2
345923-06
insulating plate (34592306)
375.
6F-50.2
343413-01
conversion kit (34341301)
376.
6F-50.2
380306-89
cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)
377.
6F-50.2
321202-01
centering plate steel 167 x 122 x 12 (32120201)
378.
6F-50.2
372120-01
gasket 133 x 117 x 2 (37212001)
379.
6F-50.2
300950-17
terminal box black aluminium cast 313 x 175 x 84 (30095017)
380.
6F-50.2
380508-51
Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
381.
6F-50.2
305914-45
Cover black 313 x 175 x 11 (38050851)
382.
6F-50.2
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
383.
6F-50.2
380507-52
Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
384.
6F-50.2
380501-54
Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)
385.
6F-50.2
372811-09
gasket set (37281109)
386.
6F-50.2
346331-51
built-in motor 37 kW, 4-pole 380..400V Y/YY-3-50Hz, 440..460V Y/YY-3-60Hz Ø223 x 234,9 (34633151)
387.
6F-50.2
367121-01
clamping plate 80 x 80 (36712101)
388.
6F-50.2
380302-05
Cheese Head Screw DIN 912, 10.9 M12 x 50 (38030205)
389.
6F-50.2
372124-01
gasket terminal box aluminium 165 x 120 x 3 (37212401)
390.
6F-50.2
372138-02
gasket terminal box aluminium (37213802)
391.
6F-50.2
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
392.
6F-50.2
345906-02
heater sleeve for 140W heater 43315 (34590602)
393.
6FE-50
311100-04
bearing bush Motor side Ø50 x Ø45 x 47,5 (31110004)
394.
6FE-50
311100-05
bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)
395.
6FE-50
320500-06
thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)
396.
6FE-50
301007-16
crankshaft Stroke 55mm Ø45 x 603 (30100716)
397.
6FE-50
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
398.
6FE-50
302298-69
connecting rod / piston Ø82 (30229869)
399.
6FE-50
302115-52
connecting rod (30211552)
400.
6FE-50
302233-95
Piston Ø82 (30223395)
401.
6FE-50
383401-26
wrist pin Ø20 x Ø13 x 60 (38340126)
402.
6FE-50
382231-04
retaining ring with lugs spring stee DIN 472 Ø20 x 1 (38223104)
403.
6FE-50
382300-61
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)
404.
6FE-50
382310-28
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)
405.
6FE-50
372314-03
gasket bearing cover Ø182 x Ø133 x 1 (37231403)
406.
6FE-50
305125-03
bearing cover complete inclusive oil pump (30512503)
407.
6FE-50
361101-01
oil pressure relief valve SW17 x 29 (36110101)
408.
6FE-50
382402-01
gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)
409.
6FE-50
320500-07
thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)
410.
6FE-50
380306-32
Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)
411.
6FE-50
362503-02
oil pump (36250302)
412.
6FE-50
372001-19
O-ring oil pump Ø74 x 2 (37200119)
413.
6FE-50
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
414.
6FE-50
380339-01
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
415.
6FE-50
320314-01
fixing plate MP54 140 x 40 x 3 (32031401)
416.
6FE-50
382002-01
washer brass DIN 125 A4, 3 (38200201)
417.
6FE-50
382201-51
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
418.
6FE-50
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
419.
6FE-50
347320-33
differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
420.
6FE-50
361500-22
Schrader valve (36150022)
421.
6FE-50
374027-03
shaft seal bearing bush (37402703)
422.
6FE-50
384102-01
gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)
423.
6FE-50
384001-24
parallel key steel DIN 6885 A12 x 8 x 125 (38400124)
424.
6FE-50
320502-04
thrust washer steel Ø54 x Ø17 x 5 (32050204)
425.
6FE-50
382150-04
thrust washer spring stee S16 (38215004)
426.
6FE-50
380166-03
hexagon head screw coated DIN 933, 10.9 M16 x 40 (38016603)
427.
6FE-50
325910-01
retaining ring with lugs spring stee Ø230 (32591001)
428.
6FE-50
362004-02
suction gas filter Ø220 x 50 (36200402)
429.
6FE-50
372315-03
gasket housing cover Ø286 x Ø236 x 0,38 (37231503)
430.
6FE-50
305900-03
housing cover (30590003)
431.
6FE-50
377108-52
Insulation for motor housing cover (37710852)
432.
6FE-50
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
433.
6FE-50
380057-11
hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)
434.
6FE-50
380057-14
hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)
435.
6FE-50
372301-03
gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)
436.
6FE-50
380009-53
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)
437.
6FE-50
361338-04
Shut-Off Valve suction side Ø54 (2 1/8") Ø54 (2 1/8") (36133804)
438.
6FE-50
365321-03
Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)
439.
6FE-50
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
440.
6FE-50
367121-02
Clamping Plate suction shut-off valve 110 x 110 (36712102)
441.
6FE-50
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
442.
6FE-50
375014-05
Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
443.
6FE-50
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
444.
6FE-50
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
445.
6FE-50
325000-34
pressure spring Ø23,5 x 28 x 1,8 (32500034)
446.
6FE-50
362003-01
oil filter Ø20 x 200 (36200301)
447.
6FE-50
360110-06
oil return system (36011006)
448.
6FE-50
372003-15
O-ring sight glass Ø36,3 x 1,78 (37200315)
449.
6FE-50
361802-02
sight glass steel / glass Ø67 x 8,5 (36180202)
450.
6FE-50
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
451.
6FE-50
366110-10
sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)
452.
6FE-50
366110-05
sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)
453.
6FE-50
372415-02
gasket bottom plate (37241502)
454.
6FE-50
320307-04
bottom plate steel 270 x 360 x 12 (32030704)
455.
6FE-50
380156-05
hexagon head screw bottom plate DIN 933, 10.9 M10 x 25 (38015605)
456.
6FE-50
370004-01
vibration damper set Crankcase side spring brown Lo = 42 (37000401)
457.
6FE-50
325002-01
damper element Crankcase side spring stee brown Lo=42 (32500201)
458.
6FE-50
370004-03
vibration damper set Motor side spring blue Lo = 48 (37000403)
459.
6FE-50
325002-03
damper element Motor side spring stee blue Lo=48 (32500203)
460.
6FE-50
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
461.
6FE-50
361110-01
gas equalising valve (36111001)
462.
6FE-50
361110-06
Pressure relief valve 37 bar 3/4" (36111006)
463.
6FE-50
372704-01
Gasket 91 x 52 x 1 (37270401)
464.
6FE-50
380306-23
Cheese Head Screw DIN 912, 10.9 M10 x 25 (38030623)
465.
6FE-50
372301-02
gasket discharge shut-off valve Ø70 x Ø54 x 1 (37230102)
466.
6FE-50
380007-52
hexagon head screw discharge shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)
467.
6FE-50
361338-01
shut-off valve Discharge side Ø42 (1 5/8") (36133801)
468.
6FE-50
365321-14
pipe connection discharge shut-off valve steel brazing and welding bush Ø42 (1 5/8") (36532114)
469.
6FE-50
372303-01
gasket discharge shut-off valve Ø52 x Ø37 x 2 (37230301)
470.
6FE-50
366201-22
Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
471.
6FE-50
366110-01
Sealing plug steel 1/8“ - 27 NPTF (36611001)
472.
6FE-50
304063-35
valve plate (30406335)
473.
6FE-50
372511-07
gasket 253 x 155 x 1,0 Ø82 (37251107)
474.
6FE-50
372616-03
gasket Retall 253 x 155 x 0,5 (37261603)
475.
6FE-50
302360-38
cylinder head air-cooled (302360380
476.
6FE-50
380056-14
hexagon head screw DIN 931, 10.9 M10 x 70 (38005614)
477.
6FE-50
380056-20
hexagon head screw DIN 931, 10.9 M10 x 90 (38005620)
478.
6FE-50
327000-01
parallel pin 6H 11 x 20 (32700001)
479.
6FE-50
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
480.
6FE-50
300903-01
intermediate flange grey cast iron 225 x 96 x 93 (30090301)
481.
6FE-50
343416-02
terminal plate kit (34341602)
482.
6FE-50
372421-14
gasket Terminal plate 163 x 118 x 0,5 (37242114)
483.
6FE-50
345950-01
Metal Plate For Grounding aluminium M6 (34595001)
484.
6FE-50
382150-01
thrust washer spring stee S6 (38215001)
485.
6FE-50
380004-53
hexagon head screw grounding ISO 4014, 8.8 - A2K M6 x 35 (38000453)
486.
6FE-50
372124-03
gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)
487.
6FE-50
311018-01
Spacer Sleeve Ø14 x Ø6,3 x 21,4 (31101801)
488.
6FE-50
382101-54
toothed washer spring steel galvanized DIN 6797 A6, 4 (38210154)
489.
6FE-50
345506-24
terminal plate optimized condensation sequence optimized condensation sequence (34550624)
490.
6FE-50
381108-01
hexagon nut M5 (38110801)
491.
6FE-50
382152-01
thrust washer DIN 127 S 8 (38215201)
492.
6FE-50
302915-02
cable connector brass (30291502)
493.
6FE-50
381301-05
hexagon nut brass M8 (38130105)
494.
6FE-50
343413-01
conversion kit (34341301)
495.
6FE-50
380306-89
cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)
496.
6FE-50
321202-01
centering plate steel 167 x 122 x 12 (3212)0201)
497.
6FE-50
372120-01
gasket 133 x 117 x 2 (37212001)
498.
6FE-50
300950-17
terminal box black aluminium cast 313 x 175 x 84 (30095017)
499.
6FE-50
380508-51
Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
500.
6FE-50
305914-45
Cover black 313 x 175 x 11 (30591445)
501.
6FE-50
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
502.
6FE-50
380507-52
Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
503.
6FE-50
380501-54
Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)
504.
6FE-50
372811-09
gasket set (37281109)
505.
6FE-50
346331-51
built-in motor 37 kW, 4-pole 380..400V Y/YY-3-50Hz, 440..460V Y/YY-3-60Hz Ø223 x 234,9 (34633151)
506.
6FE-50
367121-01
clamping plate 80 x 80 (36712101)
507.
6FE-50
380302-05
Cheese Head Screw DIN 912, 10.9 M12 x 50 (38030205)
508.
6FE-50
372124-01
gasket terminal box aluminium 165 x 120 x 3 (37212401)
509.
6FE-50
372138-02
gasket terminal box aluminium (37213802)
510.
6FE-50
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
511.
6FE-50
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
512.
6FE-50
345906-02
heater sleeve for 140W heater 43315 (34590602)
513.
6FE-50
344006-04
cable grounding for grounding M6 x 220 (34400604)
514.
6FE-50
380501-52
cross recessed raised screw grounding Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
515.
6FE-50
382403-01
Gasket Ring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
516.
6FE-50
347319-11
differential oil pressure cut-out Delta-P II 230V-50/60Hz (34731911)
517.
4F-25.2
311100-05
bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)
518.
4F-25.2
311100-04
bearing bush Motor side Ø50 x Ø45 x 47,5 (31110004)
519.
4F-25.2
305125-03
bearing cover complete inclusive oil pump (30512503)
520.
4F-25.2
367015-15
blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)
521.
4F-25.2
320307-04
bottom plate steel 270 x 360 x 12 (32030704)
522.
4F-25.2
346306-46
built-in motor 16 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 x 190,5 (34630646)
523.
4F-25.2
302915-02
cable connector brass (30291502)
524.
4F-25.2
321202-01
centering plate steel 167 x 122 x 12 (32120201)
525.
4F-25.2
380306-32
Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)
526.
4F-25.2
380306-89
cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)
527.
4F-25.2
380508-51
Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
528.
4F-25.2
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
529.
4F-25.2
367121-02
Clamping Plate suction shut-off valve 110 x 110 (36712102)
530.
4F-25.2
382300-61
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)
531.
4F-25.2
382310-28
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)
532.
4F-25.2
302115-50
connecting rod (30211550)
533.
4F-25.2
302297-43
connecting rod / piston Ø82 (30229743)
534.
4F-25.2
320318-03
connection bridge brass A 5,4 (32031803)
535.
4F-25.2
343417-07
connection to ground, complete grounding (34341707)
536.
4F-25.2
343413-01
conversion kit (34341301)
537.
4F-25.2
305914-45
Cover black 313 x 175 x 11 (30591445)
538.
4F-25.2
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
539.
4F-25.2
301007-07
crankshaft Stroke 55mm Ø45 x 522 (30100707)
540.
4F-25.2
380507-52
Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
541.
4F-25.2
302360-22
cylinder head air-cooled(30236022)
542.
4F-25.2
302326-05
cylinder head water-cooled Water cooled 253 x 155 x 60,5 (30232605)
543.
4F-25.2
302360-03
cylinder head water-cooled Water cooled 253 x 155 x 64 (30236003)
544.
4F-25.2
325002-02
damper element Motor side spring steel red Lo=42 (32500202)
545.
4F-25.2
325002-01
damper element Crankcase side spring steel brown Lo=42 (32500201)
546.
4F-25.2
347320-33
differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
547.
4F-25.2
389002-01
electric connector of the machine / device capacity control DIN 43650 Typ GDM 209 (38900201)
548.
4F-25.2
320314-01
fixing plate MP54 140 x 40 x 3 (32031401)
549.
4F-25.2
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
550.
4F-25.2
361110-03
gas equalising valve (36111003)
551.
4F-25.2
372124-03
gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)
552.
4F-25.2
372511-07
gasket 253 x 155 x 1,0 Ø82 (37251107)
553.
4F-25.2
372314-03
gasket bearing cover Ø182 x Ø133 x 1 (37231403)
554.
4F-25.2
372704-01
Gasket blind flange 91 x 52 x 1 (37270401)
555.
4F-25.2
372415-02
gasket bottom plate (37241502)
556.
4F-25.2
372421-14
gasket 163 x 118 x 0,5 (37242114)
557.
4F-25.2
372200-04
gasket Pipe connection teflon Ø38 x Ø35 x 1,5 (37220004)
558.
4F-25.2
372138-02
gasket terminal box aluminium (37213802)
559.
4F-25.2
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
560.
4F-25.2
372124-01
gasket terminal box aluminium 165 x 120 x 3 (37212401)
561.
4F-25.2
372301-03
gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)
562.
4F-25.2
372120-01
gasket 133 x 117 x 2 (37212001)
563.
4F-25.2
372616-03
gasket Retall 253 x 155 x 0,5 (37261603)
564.
4F-25.2
372315-03
gasket housing cover Ø286 x Ø236 x 0,38 (37231503)
565.
4F-25.2
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 38240304)
566.
4F-25.2
375000-03
gasket ring Ø16 x Ø8 x 8,5 (37500003)
567.
4F-25.2
382402-01
gasket ring aluminiu DIN 7603 A10 x 15 x 1 (38240201)
568.
4F-25.2
375000-01
gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)
569.
4F-25.2
372811-09
gasket set (37281109)
570.
4F-25.2
384102-01
gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)
571.
4F-25.2
383101-08
half length taper-grooved dowel pin spacer sleeve DIN 1472 5 x 20 (38310108)
572.
4F-25.2
345906-02
heater sleeve for 140W heater 43315 (34590602)
573.
4F-25.2
380154-06
hexagon head scre DIN 933, 10.9 M6 x 20 (38015406)
574.
4F-25.2
380056-03
hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)
575.
4F-25.2
380156-05
hexagon head screw bottom plate DIN 933, 10.9 M10 x 25 (38015605)
576.
4F-25.2
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
577.
4F-25.2
380009-53
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)
578.
4F-25.2
380057-14
hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)
579.
4F-25.2
380156-06
hexagon head screw blind flange coated DIN 933, 10.9 M10 x 30 (38015606)
580.
4F-25.2
380166-05
hexagon head screw coated DIN 931, 10.9 M16 x 55 (38016605)
581.
4F-25.2
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
582.
4F-25.2
380057-11
hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)
583.
4F-25.2
381301-05
hexagon nut brass M8 (38130105)
584.
4F-25.2
381301-03
hexagon nut brass M5 (38130103)
585.
4F-25.2
380339-01
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
586.
4F-25.2
300028-10
housing(30002810)
587.
4F-25.2
305900-03
housing cover (30590003)
588.
4F-25.2
375002-03
insulating plate 85 x 25 x 6 (37500203)
589.
4F-25.2
375002-01
insulating plate 53 x 18 x 6,5 (37500201)
590.
4F-25.2
345923-06
insulating plate (34592306)
591.
4F-25.2
372001-19
O-ring oil pump Ø74 x 2 (37200119)
592.
4F-25.2
372001-13
O-ring Ø45 x 3 (37200113)
593.
4F-25.2
372003-15
O-ring sight glass Ø36,3 x 1,78 (37200315)
594.
4F-25.2
362003-01
oil filter Ø20 x 200 (36200301)
595.
4F-25.2
361101-01
oil pressure relief valve SW17 x 29 (36110101)
596.
4F-25.2
360110-06
oil return system (36011006)
597.
4F-25.2
380501-54
Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)
598.
4F-25.2
384001-16
parallel key steel DIN 6885 A12 x 8 x 80 (38400116)
599.
4F-25.2
327000-01
parallel pin 6H 11 x 20 (32700001)
600.
4F-25.2
366000-06
pipe connection discharge shut-off valve steel copper-plated brazed connection Ø28, 1 3/4" - 12 UN (36600006)
601.
4F-25.2
365321-03
Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)
602.
4F-25.2
302233-95
Piston Ø82 (30223395)
603.
4F-25.2
375001-03
pressure bush Ø8 x Ø24 x 8 (37500103)
604.
4F-25.2
375001-01
pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)
605.
4F-25.2
361100-21
pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)
606.
4F-25.2
325000-34
pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034
607.
4F-25.2
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
608.
4F-25.2
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
609.
4F-25.2
375014-05
Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
610.
4F-25.2
325910-01
retaining ring with lugs spring steel Ø230 (32591001)
611.
4F-25.2
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
612.
4F-25.2
382141-01
retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)
613.
4F-25.2
312006-05
ring spring washer Ø 42,1 x Ø 58 x 5 (31200605)
614.
4F-25.2
361500-22
Schrader valve (36150022)
615.
4F-25.2
366202-01
sealing nut 7/16" - 20 UNF (36620201)
616.
4F-25.2
366110-01
Sealing plug steel 1/8“ - 27 NPTF (36611001)
617.
4F-25.2
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
618.
4F-25.2
366110-05
sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)
619.
4F-25.2
366110-10
sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)
620.
4F-25.2
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
621.
4F-25.2
380391-55
sealing screw conic brass R 3/4 (38039155)
622.
4F-25.2
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
623.
4F-25.2
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
624.
4F-25.2
374027-03
shaft seal bearing bush (37402703)
625.
4F-25.2
361310-07
shut-off valve Discharge side brazing and welding bush Ø28 (1 1/8") (36131007)
626.
4F-25.2
361338-04
Shut-Off Valve suction side Ø54 (2 1/8") (36133804)
627.
4F-25.2
361802-02
sight glass steel / glass Ø67 x 8,5 (36180202)
628.
4F-25.2
382201-51
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
629.
4F-25.2
313007-01
spacer washer Ø60 x 14 (31300701)
630.
4F-25.2
325900-02
spring washer Ø58,5 x Ø46 x 0,5 (32590002)
631.
4F-25.2
362004-02
suction gas filter Ø220 x 50 (36200402)
632.
4F-25.2
300950-17
terminal box black aluminium cast 313 x 175 x 84 (30095017)
633.
4F-25.2
304900-01
terminal plate 165 x 120 x 15,5 (30490001)
634.
4F-25.2
343416-02
terminal plate ki (34341602)
635.
4F-25.2
343414-08
terminal plate kit (34341408)
636.
4F-25.2
343414-07
terminal plate kit (34341407)
637.
4F-25.2
312030-03
thrust collar Ø62 x 7 (31203003)
638.
4F-25.2
320500-06
thrust washer Crankcase side Ø62 x Ø48 x 1,7 (32050006)
639.
4F-25.2
382152-01
thrust washer DIN 127 S 8 (38215201)
640.
4F-25.2
320502-04
thrust washer steel Ø54 x Ø17 x 5 (32050204)
641.
4F-25.2
382150-04
thrust washer spring steel S16 (38215004)
642.
4F-25.2
320500-07
thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)
643.
4F-25.2
304051-15
valve plate Ø82 (30405115)
644.
4F-25.2
370004-02
vibration damper set Motor side spring red Lo=42 (37000402)
645.
4F-25.2
370004-01
vibration damper set Crankcase side spring brown Lo = 42 (37000401)
646.
4F-25.2
382042-03
washer copper 8 x 1,6 (38204203)
647.
4F-25.2
382002-02
washer brass DIN 125 A5, 3 (38200202)
648.
4F-25.2
382002-01
washer brass DIN 125 A4, 3 (38200201)
649.
4F-25.2
383401-26
wrist pin Ø20 x Ø13 x 60 (38340126)
650.
4FC-5.2
311125-01
Bearing bush Ø40 x Ø36 x 30 (31112501)
651.
4FC-5.2
347750-01
bearing cover 241,2 x 241,2 (34775001)
652.
4FC-5.2
305107-41
Bearing cover (30510741)
653.
4FC-5.2
346162-12
built-in motor 4.0 kW, 4-pole 220..240V D-3-50Hz, 380..420V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø190 (34616212)
654.
4FC-5.2
344119-01
cable 1 x 2,5, 2 x 100 (34411901)
655.
4FC-5.2
382300-84
compression ring 41 x 1,0 (38230084)
656.
4FC-5.2
302134-01
connecting rod Ø58,3 x Ø15 x 83 (30213401)
657.
4FC-5.2
302297-95
connecting rod / piston (30229795)
658.
4FC-5.2
343417-14
connection to ground, complete (34341714)
659.
4FC-5.2
343219-01
crankcase heate 0..120 W, 200-260 V (PTC) 200-260V Ø11 x 113 (34321901)
660.
4FC-5.2
302360-13
cylinder head 165 x 123 x 43 (30236013)
661.
4FC-5.2
313000-24
disk Motor side Ø45 x Ø33,1 x 2 (31300024
662.
4FC-5.2
301111-50
Eccentric shaft (30111150)
663.
4FC-5.2
324391-01
eyebolt 33 x 32 x 50 (32439101)
664.
4FC-5.2
372704-05
gasket suction shut-off valve Ø34 x 1,0 - LA 66 (37270405)
665.
4FC-5.2
372517-01
gasket valve plate 165 x 124 x 0,8 (37251701)
666.
4FC-5.2
372718-01
Gasket Terminal plate Retall 32 x 48 x 0,38 (37271801)
667.
4FC-5.2
372618-01
gasket cylinder head Retall 165 x 124 x 0,38 (37261801)
668.
4FC-5.2
372702-03
gasket 35 x 60 x 1 (37270203)
669.
4FC-5.2
372938-01
Gasket Terminal plate 52 x 52 x 0,38 (37293801)
670.
4FC-5.2
372937-03
gasket bearing cover 14 - Hole 2241 x 241 x 0,38 (37293703)
671.
4FC-5.2
382403-01
Gasket Ring oil level monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
672.
4FC-5.2
372200-10
gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)
673.
4FC-5.2
382401-31
gasket ring oil drain copper A10 x 16 x 2 (38240131)
674.
4FC-5.2
372835-04
gasket set (37283504)
675.
4FC-5.2
380155-05
hexagon head screw discharge shut-off valve DIN 933, 10.9 M8 x 20 (38015505)
676.
4FC-5.2
380154-02
hexagon head screw oil splasher plate steel DIN 933, 10.9 M6 x 12 (38015402)
677.
4FC-5.2
380167-01
hexagon head screw built-in motor coated DIN 933, 10.9 M12 x 35 (38016701)
678.
4FC-5.2
380156-06
hexagon head screw suction shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)
679.
4FC-5.2
380056-04
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
680.
4FC-5.2
380104-05
Hexagon head screw Terminal plate DIN 933, 8.8 M6 x 18 (38010405)
681.
4FC-5.2
380228-02
Hexagon Head Screw ISO 4017 - 10.9 - A2K M10 x 30 (38022802)
682.
4FC-5.2
380056-03
hexagon head screw cylinder head DIN 931, 10.9 M10 x 60 (38005603)
683.
4FC-5.2
305229-01
housing cover Motor side grey cast iron 241,2 x 241,2 x 20 (30522901)
684.
4FC-5.2
347334-03
oil level monitoring 230V 50/60 Hz (34733403)
685.
4FC-5.2
321105-03
Oil splasher ring steel Ø185 x 51 (32110503)
686.
4FC-5.2
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
687.
4FC-5.2
384003-04
parallel key built-in motor steel DIN 6885 A10 x 6 x 54 (38400304)
688.
4FC-5.2
302233-70
piston aluminium alloy Ø41 (30223370)
689.
4FC-5.2
347019-01
protection device SE-B1 230V-50/60Hz (34701901)
690.
4FC-5.2
366201-17
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
691.
4FC-5.2
366201-16
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm (36620116)
692.
4FC-5.2
382231-02
retaining ring with lugs wrist pin spring steel DIN 472 Ø15 x 1 (38223102)
693.
4FC-5.2
343610-03
rotor fixing built-in motor (34361003)
694.
4FC-5.2
361501-22
Schrader valve oil fill connection 1/4" - 18 NPTF (36150122)
695.
4FC-5.2
315027-01
Screw for grounding Terminal plate M6 x 40 (31502701)
696.
4FC-5.2
375030-25
sealing plug Ø11,2 x 13,0 x 10 (37503025)
697.
4FC-5.2
366100-01
Sealing Plug cylinder head brass 1/8" - 27 NPTF (36610001)
698.
4FC-5.2
380910-03
Sealing Screw DIN 908, 5.8 M20 x 1,5 (38091003)
699.
4FC-5.2
361315-10
shut-off valve Discharge side brazed connection Ø16 L (36131510)
700.
4FC-5.2
361315-12
shut-off valve suction side brazing and welding bush PS45/DN20/S30TX/22 Ø22 (7/8 (36131512)
701.
4FC-5.2
361815-01
Sight Glass steel / glass 1 1/8" - 18 UNEF (36181501)
702.
4FC-5.2
382201-06
single coil spring washer built-in motor spring steel DIN 127 A12 (38220106)
703.
4FC-5.2
320525-01
spring washer wrist pin Ø22 x Ø15,1 x 0,8 (32052501)
704.
4FC-5.2
362012-02
suction gas filter suction shut-off valve Ø52 x 91 x 45 (36201202)
705.
4FC-5.2
343509-01
terminal box 202 x 95 x 57 (34350901)
706.
4FC-5.2
345504-01
Terminal plate 48 x 32 x 39 (34550401)
707.
4FC-5.2
345500-15
Terminal plate 6-Lead 52 x 52 x 39 (34550015)
708.
4FC-5.2
343428-01
terminal plate kit (34342801)
709.
4FC-5.2
312103-02
thrust washer Motor side Ø46 x Ø37,5 x 3 (31210302)
710.
4FC-5.2
382150-01
thrust washer spring steel S6 (38215001)
711.
4FC-5.2
320502-02
thrust washer built-in motor steel Ø45 x Ø12,5 x 3,5 (32050202)
712.
4FC-5.2
375079-01
Train plug terminal box aluminium (37507901)
713.
4FC-5.2
304059-09
valve plate Ø41 (30405909)
714.
4FC-5.2
370000-20
vibration damper set rubber (37000020)
715.
4FC-5.2
383401-39
wrist pin DIN 73126 Ø15 x Ø10 x 32 (38340139)
716.
4FE-35
311100-05
bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)
717.
4FE-35
311100-04
bearing bush Ø50 x Ø45 x 47,5 (31110004)
718.
4FE-35
305125-03
bearing cover complete inclusive oil pump (30512503)
719.
4FE-35
367015-15
blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)
720.
4FE-35
320307-04
bottom plate steel 270 x 360 x 12 (32030704)
721.
4FE-35
346399-15
built-in motor 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34639915)
722.
4FE-35
344006-03
cable grounding for grounding (34400603)
723.
4FE-35
302915-02
cable connector brass (30291502)
724.
4FE-35
321202-01
centering plate steel 167 x 122 x 12 (32120201)
725.
4FE-35
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
726.
4FE-35
380306-89
cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)
727.
4FE-35
380508-51
Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
728.
4FE-35
380306-32
Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)
729.
4FE-35
367121-02
Clamping Plate 110 x 110 (36712102)
730.
4FE-35
382300-61
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)
731.
4FE-35
382310-28
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)
732.
4FE-35
302115-52
connecting rod (30211552)
733.
4FE-35
302298-69
connecting rod / piston Ø82 (30229869)
734.
4FE-35
343413-01
conversion kit (34341301)
735.
4FE-35
305914-45
Cover black 313 x 175 x 11 (30591445)
736.
4FE-35
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
737.
4FE-35
301007-07
crankshaft Stroke 55mm Ø45 x 522 (30100707)
738.
4FE-35
380507-52
Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
739.
4FE-35
380501-52
cross recessed raised screw grounding Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
740.
4FE-35
302360-38
cylinder head air-cooled (30236038)
741.
4FE-35
325002-03
damper element Motor side spring steel blue Lo=48 (32500203)
742.
4FE-35
325002-01
damper element Crankcase side spring steel brown Lo=42 (32500201)
743.
4FE-35
347320-33
differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
744.
4FE-35
347319-11
differential oil pressure cut-out Delta-P II 230V-50/60Hz (34731911)
745.
4FE-35
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
746.
4FE-35
320314-01
fixing plate MP54 140 x 40 x 3 (32031401)
747.
4FE-35
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
748.
4FE-35
361110-03
gas equalising valve (36111003)
749.
4FE-35
372616-03
gasket Retall 253 x 155 x 0,5 (37261603)
750.
4FE-35
372704-01
Gasket blind flange 91 x 52 x 1 (37270401)
751.
4FE-35
372704-05
gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)
752.
4FE-35
372415-02
gasket (37241502)
753.
4FE-35
372120-01
gasket 133 x 117 x 2 (37212001)
754.
4FE-35
372511-07
gasket 253 x 155 x 1,0 Ø82 (37251107)
755.
4FE-35
372124-01
gasket terminal box aluminium 165 x 120 x 3 (37212401)
756.
4FE-35
372138-02
gasket terminal box aluminium (37213802)
757.
4FE-35
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
758.
4FE-35
372315-03
gasket housing cover Ø286 x Ø236 x 0,38 (37231503)
759.
4FE-35
372301-03
gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)
760.
4FE-35
372314-03
gasket bearing cover Ø182 x Ø133 x 1 (37231403)
761.
4FE-35
372124-03
gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)
762.
4FE-35
372421-14
gasket 163 x 118 x 0,5 (37242114)
763.
4FE-35
382402-01
gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)
764.
4FE-35
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
765.
4FE-35
382403-01
Gasket Ring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
766.
4FE-35
372811-09
gasket set (37281109)
767.
4FE-35
384102-01
gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)
768.
4FE-35
345906-02
heater sleeve for 140W heater 43315 (34590602)
769.
4FE-35
380009-53
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)
770.
4FE-35
380156-06
hexagon head screw discharge shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)
771.
4FE-35
380156-05
hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)
772.
4FE-35
380166-10
hexagon head screw coated DIN 933, 10.9 M16 x 70 (38016610)
773.
4FE-35
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
774.
4FE-35
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
775.
4FE-35
380056-14
hexagon head screw DIN 931, 10.9 M10 x 70 (38005614)
776.
4FE-35
380056-20
hexagon head screw DIN 931, 10.9 M10 x 90 (38005620)
777.
4FE-35
380004-53
hexagon head screw grounding ISO 4014, 8.8 - A2K M6 x 35 (38000453)
778.
4FE-35
380057-11
hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)
779.
4FE-35
380057-14
hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)
780.
4FE-35
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
781.
4FE-35
381301-05
hexagon nut brass M8 (38130105)
782.
4FE-35
381108-01
hexagon nut M5 (38110801)
783.
4FE-35
380339-01
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
784.
4FE-35
300028-10
housing (30002810)
785.
4FE-35
305900-03
housing cover (30590003)
786.
4FE-35
377108-52
Insulation for motor housing cover (37710852)
787.
4FE-35
345950-01
Metal Plate For Grounding aluminium M6 (34595001)
788.
4FE-35
372001-19
O-ring oil pump Ø74 x 2 (37200119)
789.
4FE-35
372003-15
O-ring sight glass Ø36,3 x 1,78 (37200315)
790.
4FE-35
362003-01
oil filter Ø20 x 200 (36200301)
791.
4FE-35
361101-01
oil pressure relief valve SW17 x 29 (36110101)
792.
4FE-35
362503-02
oil pump (36250302)
793.
4FE-35
360110-06
oil return system (36011006)
794.
4FE-35
380501-54
Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)
795.
4FE-35
384001-24
parallel key steel DIN 6885 A12 x 8 x 125 (38400124)
796.
4FE-35
327000-01
parallel pin 6H 11 x 20 (32700001)
797.
4FE-35
365321-03
Pipe Connectio brazed and welding bush steel Ø54 (2 1/8") (36532103)
798.
4FE-35
302233-95
Piston Ø82 (30223395)
799.
4FE-35
361110-06
Pressure relief valve 37 bar 3/4" (36111006)
800.
4FE-35
325000-34
pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)
801.
4FE-35
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
802.
4FE-35
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
803.
4FE-35
375014-05
Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
804.
4FE-35
325910-01
retaining ring with lugs spring steel Ø230 (32591001)
805.
4FE-35
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
806.
4FE-35
361500-22
Schrader valve (36150022)
807.
4FE-35
366110-01
Sealing plug steel 1/8“ - 27 NPTF (36611001)
808.
4FE-35
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
809.
4FE-35
366110-10
sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)
810.
4FE-35
366110-05
sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)
811.
4FE-35
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
812.
4FE-35
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
813.
4FE-35
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
814.
4FE-35
374027-03
shaft seal bearing bush (37402703)
815.
4FE-35
361315-13
shut-off valve Discharge side Ø28 (1 1/8") (36131513)
816.
4FE-35
361338-04
Shut-Off Valve suction side Ø54 (2 1/8") (36133804)
817.
4FE-35
361802-02
sight glass steel / glass Ø67 x 8,5 (36180202)
818.
4FE-35
382201-51
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
819.
4FE-35
311018-01
Spacer Sleeve Ø14 x Ø6,3 x 21,4 (31101801)
820.
4FE-35
362004-02
suction gas filter Ø220 x 50 (36200402)
821.
4FE-35
300950-17
terminal box black aluminium cast 313 x 175 x 84 (30095017)
822.
4FE-35
345506-24
terminal plate optimized condensation sequence optimized condensation sequence (34550624)
823.
4FE-35
343416-02
terminal plate kit (34341602)
824.
4FE-35
320502-04
thrust washer steel Ø54 x Ø17 x 5 (32050204)
825.
4FE-35
382150-04
thrust washer spring steel S16 (38215004)
826.
4FE-35
320500-07
thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)
827.
4FE-35
320500-06
thrust washer Crankcase side Ø62 x Ø48 x 1,7 (32050006)
828.
4FE-35
382150-01
thrust washer spring steel S6 (38215001)
829.
4FE-35
382152-01
thrust washer DIN 127 S 8 (38215201)
830.
4FE-35
382101-54
toothed washer grounding spring steel galvanized DIN 6797 A6, 4 (38210154)
831.
4FE-35
304063-35
valve plate (30406335)
832.
4FE-35
370004-01
vibration damper set Crankcase side spring brown Lo = 42 (37000401)
833.
4FE-35
370004-03
vibration damper set Motor side spring blue Lo = 48 (37000403)
834.
4FE-35
382002-01
washer brass DIN 125 A4, 3 (38200201)
835.
4FE-35
383401-26
wrist pin Ø20 x Ø13 x 60 (38340126)
836.
4FES-5
311125-04
Bearing bush Ø40 x Ø36 x 30 (31112504)
837.
4FES-5
347750-01
bearing cover 241,2 x 241,2 (34775001)
838.
4FES-5
305107-41
Bearing cover (30510741)
839.
4FES-5
346162-12
built-in motor 4.0 kW, 4-pole 220..240V D-3-50Hz, 380..420V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø190 (34616212)
840.
4FES-5
302915-02
cable connector brass (30291502)
841.
4FES-5
380393-03
cheese head screw ISO 4762, 10.9 - A2K M8 x 25 (38039303)
842.
4FES-5
382300-84
compression ring piston 41 x 1,0 (38230084)
843.
4FES-5
302134-01
connecting rod Ø58,3 x Ø15 x 83 (30213401)
844.
4FES-5
302298-72
connecting rod / piston Ø41 (30229872)
845.
4FES-5
343430-12
connection bridge (34343012)
846.
4FES-5
343219-01
crankcase heater 0..120 W, 200-260 V (PTC) 200-260V Ø11 x 113 (34321901)
847.
4FES-5
380516-01
Cross Recessed Raised Screw (38051601)
848.
4FES-5
380516-02
Cross Recessed Raised Screw (38051602)
849.
4FES-5
302360-36
cylinder head (30236036)
850.
4FES-5
313000-24
disk Motor side Ø45 x Ø33,1 x 2 (31300024)
851.
4FES-5
301111-50
Eccentric shaft (30111150)
852.
4FES-5
324391-01
eyebolt 33 x 32 x 50 (32439101)
853.
4FES-5
372704-05
gasket suction shut-off valve Ø34 x 1,0 - LA 66 (37270405)
854.
4FES-5
372517-01
gasket valve plate 165 x 124 x 0,8 (37251701)
855.
4FES-5
372702-03
gasket 35 x 60 x 1 (37270203)
856.
4FES-5
372618-01
gasket cylinder head Retall 165 x 124 x 0,38 (37261801)
857.
4FES-5
372937-03
gasket housing cover 14 - Hole 2241 x 241 x 0,38 (37293703)
858.
4FES-5
372938-10
gasket Terminal plate 90 x 70 x 0,73 (37293810)
859.
4FES-5
382403-01
Gasket Ring oil level monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
860.
4FES-5
372200-10
gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)
861.
4FES-5
382401-31
gasket ring oil drain copper A10 x 16 x 2 (38240131)
862.
4FES-5
372835-04
gasket set (37283504)
863.
4FES-5
380106-06
hexagon head screw DIN 933, 8.8 M10 x 30 (38010606)
864.
4FES-5
380167-01
hexagon head screw built-in motor coated DIN 933, 10.9 M12 x 35 (38016701)
865.
4FES-5
380004-53
hexagon head screw ISO 4014, 8.8 - A2K M6 x 35 (38000453)
866.
4FES-5
380156-06
hexagon head screw bearing cover coated DIN 933, 10.9 M10 x 30 (38015606)
867.
4FES-5
380056-21
hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)
868.
4FES-5
380154-02
hexagon head screw oil splasher plate steel DIN 933, 10.9 M6 x 12 (38015402)
869.
4FES-5
380155-05
hexagon head screw discharge shut-off valve DIN 933, 10.9M8 x 20(38015505)
870.
4FES-5
380056-04
hexagon head screw cylinder head DIN 931, 10.9M10 x 65(38005604)
871.
4FES-5
305229-01
housing cover Motor side grey cast iron 241,2 x 241,2 x 20M(30522901)
872.
4FES-5
345950-01
Metal Plate For Grounding aluminium M6 (34595001)
873.
4FES-5
347334-03
oil level monitoring 230V 50/60 Hz (34733403)
874.
4FES-5
321105-03
Oil splasher ring steel Ø185 x 51 (32110503)
875.
4FES-5
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
876.
4FES-5
384003-04
parallel key steel DIN 6885 A10 x 6 x 54 (38400304)
877.
4FES-5
302711-04
piston Ø41 (30271104)
878.
4FES-5
347019-01
protection device SE-B1 230V-50/60Hz (34701901)
879.
4FES-5
366201-17
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
880.
4FES-5
366201-16
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm (36620116)
881.
4FES-5
382231-02
retaining ring with lugs wrist pin spring steel DIN 472 Ø15 x 1 (38223102)
882.
4FES-5
361501-22
Schrader valve 1/4" - 18 NPTF (36150122)
883.
4FES-5
366100-21
sealing plug 1/8" - 27 NPTF (36610021)
884.
4FES-5
380910-03
Sealing Screw DIN 908, 5.8 M20 x 1,5 (38091003)
885.
4FES-5
361315-10
shut-off valve Discharge side brazed connection Ø16 L (36131510)
886.
4FES-5
361315-12
shut-off valve suction side brazing and welding bush PS45/DN20/S30TX/22 Ø22 (7/8 (36131512)
887.
4FES-5
361815-01
Sight Glass steel / glass 1 1/8" - 18 UNEF (36181501)
888.
4FES-5
382201-06
single coil spring washer built-in motor spring steel DIN 127 A12 (38220106)
889.
4FES-5
311018-01
Spacer Sleeve Ø14 x Ø6,3 x 21,4 (31101801)
890.
4FES-5
320525-01
spring washer wrist pin Ø22 x Ø15,1 x 0,8 (32052501)
891.
4FES-5
362012-03
suction gas filter suction shut-off valve Ø52 x 91 x 45 (36201203)
892.
4FES-5
343507-65
terminal box black RAL9005 202 x 132 x 83 (34350765)
893.
4FES-5
345507-05
terminal plate kit 6-Lead (34550705)
894.
4FES-5
345025-02
terminal strip Terminal Box 60 x 28 x 20 (34502502)
895.
4FES-5
382150-01
thrust washer spring steel S6 (38215001)
896.
4FES-5
312103-02
thrust washer Motor side Ø46 x Ø37,5 x 3 (31210302)
897.
4FES-5
320502-02
thrust washer built-in motor steel Ø45 x Ø12,5 x 3,5 (32050202)
898.
4FES-5
382101-54
toothed washer spring steel galvanized DIN 6797 A6, 4 (38210154)
899.
4FES-5
375079-01
Train plug terminal box aluminium (37507901)
900.
4FES-5
304059-09
valve plate Ø41 (30405909)
901.
4FES-5
370000-20
vibration damper set rubber (37000020)
902.
4FES-5
383401-39
wrist pin DIN 73126 Ø15 x Ø10 x 32 (38340139)
903.
2FC-3.2
343021-01
additional fan 230V-1-50/60Hz 230V-1-50/60Hz (34302101)
904.
2FC-3.2
382091-11
Adjusting washer Motor side Ø32 x Ø22 x 2 (38209111)
905.
2FC-3.2
311112-16
bearing bush Motor side Ø25 x Ø28 x 25 (31111216)
906.
2FC-3.2
311112-15
bearing bush Crankcase side Ø23 x Ø20 x 25 (31111215)
907.
2FC-3.2
305107-73
bearing cover Crankcase side (30510773)
908.
2FC-3.2
346022-12
built-in motor 1.3 kW, 4-pole 220..240V D-3-50Hz, 380..420V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø160 (34602212)
909.
2FC-3.2
344119-01
cable 1 x 2,5, 2 x 100 (34411901)
910.
2FC-3.2
380306-02
Cheese head screw suction shut-off valve DIN 912, 10.9 M8 x 20 (38030602)
911.
2FC-3.2
382300-86
compression ring 46 x 1,0 (38230086)
912.
2FC-3.2
302129-01
connecting rod Ø55 x Ø15 x 72 (30212901)
913.
2FC-3.2
302297-92
connecting rod / piston (30229792)
914.
2FC-3.2
343417-14
connection to ground, complete (34341714)
915.
2FC-3.2
343224-02
crankcase heater 100-240V-60W-PTC Ø11 x 95 (34322402)
916.
2FC-3.2
302360-12
cylinder head 152 x 102 x 51,5 (30236012)
917.
2FC-3.2
313000-17
Disk built-in motor Ø30 x Ø10,5 x 6 (31300017)
918.
2FC-3.2
301109-50
Eccentric shaft Ø55 x 245 (30110950)
919.
2FC-3.2
320354-02
Eyebolt 51 x 30 x 4 (32035402)
920.
2FC-3.2
372938-01
Gasket Terminal plate 52 x 52 x 0,38 (37293801)
921.
2FC-3.2
372937-01
Gasket bearing cover Retall 202 x 202 x 0,38 (37293701)
922.
2FC-3.2
372702-03
gasket suction shut-off valve 35 x 60 x 1 (37270203)
923.
2FC-3.2
372718-01
Gasket Terminal plate Retall 32 x 48 x 0,38 (37271801)
924.
2FC-3.2
372713-01
Gasket discharge shut-off valve 24 x 52 x 1 (37271301)
925.
2FC-3.2
372514-04
gasket valve plate 152 x 102 x 0,7 (37251404)
926.
2FC-3.2
372617-01
Gasket cylinder head Retall 152 x 102 x 0,38 (37261701)
927.
2FC-3.2
382401-30
Gasket ring oil drain copper A8 x 14 x 2 (38240130)
928.
2FC-3.2
372200-10
gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)
929.
2FC-3.2
372830-03
gasket set (37283003)
930.
2FC-3.2
380056-04
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
931.
2FC-3.2
380104-05
Hexagon head screw Terminal plate DIN 933, 8.8 M6 x 18 (38010405)
932.
2FC-3.2
380155-54
hexagon head screw DIN 933, 10.9 M8 x 25 (38015554)
933.
2FC-3.2
380169-02
hexagon head screw built-in motor coated DIN 933, 10.9 M10 x 35 (38016902)
934.
2FC-3.2
380153-02
Hexagon head screw oil splasher plate steel DIN 933, 10.9 M5 x 10 (38015302)
935.
2FC-3.2
380155-07
Hexagon head screw housing cover DIN 933, 10.9 M8 x 25 (38015507)
936.
2FC-3.2
305227-01
housing cover Motor side grey cast iron 202 x 202 x 18 (30522701)
937.
2FC-3.2
321105-02
oil splasher plate steel Ø156 x 33 (32110502)
938.
2FC-3.2
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
939.
2FC-3.2
384001-03
Parallel key built-in motor steel DIN 6885 A6 x 6 x 45 (38400103)
940.
2FC-3.2
302233-73
piston aluminium alloy Ø46 (30223373)
941.
2FC-3.2
347019-01
protection device SE-B1 230V-50/60Hz (34701901)
942.
2FC-3.2
366201-16
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm (36620116)
943.
2FC-3.2
382231-02
retaining ring with lugs wrist pin spring steel DIN 472 Ø15 x 1 (38223102)
944.
2FC-3.2
343610-17
rotor fixing built-in motor (34361017)
945.
2FC-3.2
361501-22
Schrader valve oil fill connection 1/4" - 18 NPTF (36150122)
946.
2FC-3.2
315027-01
Screw for grounding Terminal plate M6 x 40 (31502701)
947.
2FC-3.2
375030-25
sealing plug Ø11,2 x 13,0 x 10 (37503025)
948.
2FC-3.2
366100-01
Sealing Plug cylinder head brass 1/8" - 27 NPTF (36610001)
949.
2FC-3.2
361315-11
shut-off valve Discharge side brazed connection Ø12 L (36131511)
950.
2FC-3.2
361315-10
shut-off valve suction side brazed connection Ø16 L (36131510)
951.
2FC-3.2
361815-01
Sight Glass steel / glass 1 1/8" - 18 UNEF (36181501)
952.
2FC-3.2
382201-05
Single coil spring washer built-in motor spring steel DIN 127 A10 (38220105)
953.
2FC-3.2
320525-01
spring washer wrist pin Ø22 x Ø15,1 x 0,8 (32052501)
954.
2FC-3.2
362012-01
suction gas filter suction shut-off valve Ø34 x 62 x 41,7 (36201201)
955.
2FC-3.2
343509-01
terminal box 202 x 95 x 57 (34350901)
956.
2FC-3.2
345504-01
Terminal plate 48 x 32 x 39 (34550401)
957.
2FC-3.2
345500-15
Terminal plate 6-Lead 52 x 52 x 39 (34550015)
958.
2FC-3.2
343428-01
terminal plate kit (34342801)
959.
2FC-3.2
312103-01
Thrust washer Motor side Ø33 x Ø26,5 x 3 (31210301)
960.
2FC-3.2
382150-05
thrust washer spring steel Ø9 (38215005)
961.
2FC-3.2
304055-03
valve plate Ø46 (30405503)
962.
2FC-3.2
370000-19
vibration damper set rubber (37000019)
963.
2FC-3.2
383401-40
wrist pin DIN 73126 Ø15 x Ø10 x 38 (38340140)
964.
2FES-3
311112-16
bearing bush Motor side Ø25 x Ø28 x 25 (31111216)
965.
2FES-3
311112-15
bearing bush Crankcase side Ø23 x Ø20 x 25 (31111215)
966.
2FES-3
305107-74
bearing cover Crankcase side (30510774)
967.
2FES-3
346022-12
built-in motor 1.3 kW, 4-pole 220..240V D-3-50Hz, 380..420V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø160 (34602212)
968.
2FES-3
380306-02
Cheese head screw discharge shut-off valve DIN 912, 10.9 M8 x 20 (38030602)
969.
2FES-3
382300-86
compression ring piston 46 x 1,0 (38230086)
970.
2FES-3
302129-01
connecting rod Ø55 x Ø15 x 72 (30212901)
971.
2FES-3
302298-71
connecting rod / piston Ø46 (30229871)
972.
2FES-3
343417-14
connection to ground, complete (34341714)
973.
2FES-3
343224-02
crankcase heater 100-240V-60W-PTC Ø11 x 95 (34322402)
974.
2FES-3
302360-12
cylinder head 152 x 102 x 51,5 (30236012)
975.
2FES-3
313000-17
Disk built-in motor Ø30 x Ø10,5 x 6 (31300017)
976.
2FES-3
301109-50
Eccentric shaft Ø55 x 245 (30110950)
977.
2FES-3
320354-02
Eyebolt 51 x 30 x 4 (32035402)
978.
2FES-3
372718-01
Gasket Terminal plate Retall 32 x 48 x 0,38 (37271801)
979.
2FES-3
372938-01
Gasket Terminal plate 52 x 52 x 0,38 (37293801)
980.
2FES-3
372702-03
gasket suction shut-off valve 35 x 60 x 1 (37270203)
981.
2FES-3
372713-01
Gasket discharge shut-off valve 24 x 52 x 1 (37271301)
982.
2FES-3
372617-01
Gasket cylinder head Retall 152 x 102 x 0,38 (37261701)
983.
2FES-3
372514-04
gasket valve plate 152 x 102 x 0,7 (37251404)
984.
2FES-3
372937-02
gasket bearing cover 202 x 202 x 0,38 (37293702)
985.
2FES-3
372200-10
gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)
986.
2FES-3
382401-30
Gasket ring oil drain copper A8 x 14 x 2 (38240130)
987.
2FES-3
372830-03
gasket set (37283003)
988.
2FES-3
380155-54
hexagon head screw housing cover DIN 933, 10.9 M8 x 25 (38015554)
989.
2FES-3
380056-04
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
990.
2FES-3
380056-14
hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)
991.
2FES-3
380153-02
Hexagon head screw oil splasher plate steel DIN 933, 10.9 M5 x 10 (38015302)
992.
2FES-3
380169-02
hexagon head screw built-in motor coated DIN 933, 10.9 M10 x 35 (38016902)
993.
2FES-3
380104-05
Hexagon head screw Terminal plate DIN 933, 8.8 M6 x 18 (38010405)
994.
2FES-3
305227-02
housing cover Motor side 202 x 202 x 18 (30522702)
995.
2FES-3
321105-02
oil splasher plate steel Ø156 x 33 (32110502)
996.
2FES-3
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
997.
2FES-3
384001-03
Parallel key built-in motor steel DIN 6885 A6 x 6 x 45 (38400103)
998.
2FES-3
302711-03
piston complete Ø46 (30271103)
999.
2FES-3
347019-01
protection device SE-B1 230V-50/60Hz (34701901)
1000.
2FES-3
366201-16
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm (36620116)
1001.
2FES-3
382231-02
retaining ring with lugs wrist pin spring steel DIN 472 Ø15 x 1 (38223102)
1002.
2FES-3
361501-22
Schrader valve oil fill connection 1/4" - 18 NPTF (36150122)
1003.
2FES-3
315027-01
Screw for grounding Terminal plate M6 x 40 (31502701)
1004.
2FES-3
366100-01
Sealing Plug cylinder head brass 1/8" - 27 NPTF (36610001)
1005.
2FES-3
361315-10
shut-off valve suction side brazed connection Ø16 L (36131510)
1006.
2FES-3
361315-11
shut-off valve Discharge side brazed connection Ø12 L (36131511)
1007.
2FES-3
361815-01
Sight Glass steel / glass 1 1/8" - 18 UNEF (36181501)
1008.
2FES-3
382201-05
Single coil spring washer built-in motor spring steel DIN 127 A10 (38220105)
1009.
2FES-3
320525-01
spring washer wrist pin Ø22 x Ø15,1 x 0,8 (32052501)
1010.
2FES-3
362012-04
suction gas filter suction shut-off valve LA 42 (36201204)
1011.
2FES-3
343509-01
terminal box 202 x 95 x 57 (34350901)
1012.
2FES-3
345504-01
Terminal plate 48 x 32 x 39 (34550401)
1013.
2FES-3
345500-15
Terminal plate 6-Lead 52 x 52 x 39 (34550015)
1014.
2FES-3
343428-01
terminal plate kit (34342801)
1015.
2FES-3
312103-01
Thrust washer Motor side Ø33 x Ø26,5 x 3 (31210301)
1016.
2FES-3
382150-05
thrust washer spring steel Ø9 (38215005)
1017.
2FES-3
375079-01
Train plug (37507901)
1018.
2FES-3
304055-03
valve plate Ø46 (30405503)
1019.
2FES-3
370000-19
vibration damper set rubber (37000019)
1020.
2FES-3
383401-40
wrist pin DIN 73126 Ø15 x Ø10 x 38 (38340140)
1021.
2FL-2.2
311112-15
bearing bush Ø23 x Ø20 x 25 (31111215)
1022.
2FL-2.2
311112-16
bearing bush Crankcase side Ø25 x Ø28 x 25 (31111216)
1023.
2FL-2.2
305107-06
bearing cover (30510706)
1024.
2FL-2.2
367017-01
blind flange steel 58 x 36 x 10 (36701701)
1025.
2FL-2.2
320307-01
bottom plate steel 244 x 156 x 16 (32030701)
1026.
2FL-2.2
346015-12
built-in motor 1.1 kW, 4-pole 220..240V D-3-50Hz, 380..415V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø160 x 76 (34601512)
1027.
2FL-2.2
345900-02
cable strap (34590002)
1028.
2FL-2.2
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
1029.
2FL-2.2
380508-51
Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
1030.
2FL-2.2
382300-64
compression ring Ø48 x 2 (38230064)
1031.
2FL-2.2
302111-03
connecting rod Ø55 x Ø15 x 85,5 (30211103)
1032.
2FL-2.2
302297-51
connecting rod / piston (30229751)
1033.
2FL-2.2
320318-02
connection bridge (32031802)
1034.
2FL-2.2
343208-23
crankcase heater heating capacity: 70W 230V-1-50/60Hz (34320823)
1035.
2FL-2.2
380501-52
cross recessed raised screw Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
1036.
2FL-2.2
380507-52
Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
1037.
2FL-2.2
302360-10
cylinder head air-cooled 165 x 112 x 41 (30236010)
1038.
2FL-2.2
375023-02
damper element 55 Shore Ø30 x 30 (37502302)
1039.
2FL-2.2
302011-01
eccentric grey cast iron Ø55 x 73 (30201101)
1040.
2FL-2.2
310007-01
eccentric shaft steel Ø25 x 240,5 (31000701)
1041.
2FL-2.2
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
1042.
2FL-2.2
327305-01
foot 242 x 30 x 8 (32730501)
1043.
2FL-2.2
361110-02
gas equalising valve steel 3/4" - 14 NPTF (36111002)
1044.
2FL-2.2
372509-07
gasket Ø48, 112 x 165 x 0,7 (37250907)
1045.
2FL-2.2
372702-03
gasket 35 x 60 x 1 (37270203)
1046.
2FL-2.2
372120-01
gasket 133 x 117 x 2 (37212001)
1047.
2FL-2.2
372609-02
gasket valve plate 165 x 112 x 0,5 (37260902)
1048.
2FL-2.2
372312-05
gasket Ø98 x Ø58 x 1 (37231205)
1049.
2FL-2.2
372411-01
gasket bottom plate 176 x 156 x 1 (37241101)
1050.
2FL-2.2
372315-01
gasket Ø220 x Ø178 x 1 (37231501)
1051.
2FL-2.2
372138-01
gasket Ø 2,5 x 780 (37213801)
1052.
2FL-2.2
375000-01
gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)
1053.
2FL-2.2
372802-03
gasket set (37280203)
1054.
2FL-2.2
383103-02
half length reserve taper grooved dowel pin steel DIN 1474 2,5 x 8 (38310302)
1055.
2FL-2.2
345906-05
heater sleeve for 70W heater 43315 (34590605)
1056.
2FL-2.2
380153-02
Hexagon head screw steel DIN 933, 10.9 M5 x 10 (38015302)
1057.
2FL-2.2
380155-05
hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
1058.
2FL-2.2
380169-01
Hexagon head screw coated DIN 933, 10.9 M10 x 30 (38016901)
1059.
2FL-2.2
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
1060.
2FL-2.2
380155-07
Hexagon head screw DIN 933, 10.9 M8 x 25 (38015507)
1061.
2FL-2.2
380056-03
hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)
1062.
2FL-2.2
380003-01
hexagon head screw DIN 931, 8.8 M5 x 35 (38000301)
1063.
2FL-2.2
381301-02
hexagon nut brass M4 (38130102)
1064.
2FL-2.2
381101-04
hexagon nut DIN 934, 8.8 M6 (38110104)
1065.
2FL-2.2
375002-01
insulating plate 53 x 18 x 6,5 (37500201)
1066.
2FL-2.2
375002-02
insulating plate 70 x 20 x 6 (37500202)
1067.
2FL-2.2
372003-15
O-ring sight glass Ø36,3 x 1,78 (37200315)
1068.
2FL-2.2
321105-01
oil splasher plate steel Ø175 x 29 (32110501)
1069.
2FL-2.2
384001-03
Parallel key steel DIN 6885 A6 x 6 x 45 (38400103)
1070.
2FL-2.2
302233-31
piston aluminium alloy Ø48 (30223331)
1071.
2FL-2.2
375001-01
pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)
1072.
2FL-2.2
325000-03
pressure spring spring steel Ø17,2 x Ø26 x 1,8 (32500003)
1073.
2FL-2.2
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
1074.
2FL-2.2
366201-17
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
1075.
2FL-2.2
324309-02
retaining ring with lugs steel 33 x 20 x 1 (32430902)
1076.
2FL-2.2
382231-02
retaining ring with lugs spring steel DIN 472 Ø15 x 1 (38223102)
1077.
2FL-2.2
366202-01
sealing nut 7/16" - 20 UNF (36620201)
1078.
2FL-2.2
366110-01
Sealing plug steel 1/8“ - 27 NPTF (36611001)
1079.
2FL-2.2
366110-08
Sealing Plug steel 1/4" - 18NPTF (36611008)
1080.
2FL-2.2
361315-10
shut-off valve brazed connection Ø16 L (36131510)
1081.
2FL-2.2
361315-02
shut-off valve brazed connection PS45/DN10/S19(12/2LA42)TX/AF1 Ø12 (1/2) (36131502)
1082.
2FL-2.2
361802-02
sight glass steel / glass Ø67 x 8,5 (36180202)
1083.
2FL-2.2
311011-01
spacer ring eccentric Ø32 x Ø21 x 15,5 (31101101)
1084.
2FL-2.2
362001-03
suction gas filter Ø23 x 36 (36200103)
1085.
2FL-2.2
343517-56
terminal box aluminium 250 x 178 x 76,5 (34351756)
1086.
2FL-2.2
343414-07
terminal plate kit (34341407)
1087.
2FL-2.2
343414-05
terminal plate kit (34341405)
1088.
2FL-2.2
343414-06
terminal plate kit (34341406)
1089.
2FL-2.2
315100-03
threaded key M6, Ø10 x 52 (31510003)
1090.
2FL-2.2
311010-02
thrust collar Ø19 x Ø13 x 8 (31101002)
1091.
2FL-2.2
382150-05
thrust washer steel Ø30 x 10,5 x 3,5 (32050301)
1092.
2FL-2.2
320503-01
thrust washer spring steel S6 (38215001)
1093.
2FL-2.2
382150-01
thrust washer Crankcase side Ø40 x Ø25 x 1,5 (32050002)
1094.
2FL-2.2
320500-02
valve plate Ø48 (30405302)
1095.
2FL-2.2
304053-02
vibration damper set 55 Shore rubber Ø30 x 30 (37000002)
1096.
2FL-2.2
370000-02
washer brass DIN 125 A4, 3 (38200201)
1097.
2FL-2.2
382002-01
washer brass DIN 125 A4, 3 (38200201)
1098.
2FL-2.2
382021-02
washer brass DIN 125 A4, 3 (38200201)
1099.
2FL-2.2
383401-02
wrist pin
1100.
8FC-60.2
311100-18
bearing bush oil pump side Ø50 x Ø55 x 50 (31110018)
1101.
8FC-60.2
305107-21
bearing cover oil pump cannot be delivered separately (30510721)
1102.
8FC-60.2
305138-01
bearing cover (30513801)
1103.
8FC-60.2
320307-09
bottom plate steel 345 x 320 x 12 , Ø21 (32030709)
1104.
8FC-60.2
346550-46
built-in motor Standard voltages 44 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø260 x 240 (34655046)
1105.
8FC-60.2
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
1106.
8FC-60.2
380306-82
Cheese Head Screw terminal box aluminium 10.9 galvanized DIN 912, 10.9 M10 x 16 (38030682)
1107.
8FC-60.2
380306-32
Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
1108.
8FC-60.2
367121-03
Clamping Plate suction shut-off valve 142 x 142 x 33 (36712103)
1109.
8FC-60.2
367121-02
Clamping Plate discharge shut-off valve 110 x 110 (36712102)
1110.
8FC-60.2
383021-16
clamping sleeve 10 * 29 (38302116)
1111.
8FC-60.2
382300-61
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)
1112.
8FC-60.2
382310-28
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)
1113.
8FC-60.2
302136-50
connecting rod (30213650)
1114.
8FC-60.2
302280-02
connecting rod / piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø82 (30228002)
1115.
8FC-60.2
324942-01
cover terminal box aluminium steel 361 x 291 x 7 (32494201)
1116.
8FC-60.2
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
1117.
8FC-60.2
301016-01
crankshaft Stroke 60mm (30101601)
1118.
8FC-60.2
380501-52
cross recessed raised screw Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
1119.
8FC-60.2
302360-44
cylinder head air-cooled (30236044)
1120.
8FC-60.2
389002-01
electric connector of the machine / devic DIN 43650 Typ GDM 209 (38900201)
1121.
8FC-60.2
380902-02
eye bolt DIN 580 M12 (38090202)
1122.
8FC-60.2
324391-03
eye bolt steel 49 x 50 x 135 (32439103)
1123.
8FC-60.2
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
1124.
8FC-60.2
361110-01
gas equalising valve (36111001)
1125.
8FC-60.2
372944-01
gasket cylinder head Retall (37294401)
1126.
8FC-60.2
372518-03
gasket valve plate (37251803)
1127.
8FC-60.2
372301-03
gasket discharge shut-off valve Ø76 x Ø60 x 1 (37230103)
1128.
8FC-60.2
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
1129.
8FC-60.2
372421-03
gasket Terminal plate 222 x 140 x 1 (37242103)
1130.
8FC-60.2
372303-03
Gasket Pipe connection Ø105 x Ø85 x 2 (37230303)
1131.
8FC-60.2
372301-05
gasket suction shut-off valve Ø105 x Ø86 x 1 (37230105)
1132.
8FC-60.2
372927-05
gasket housing cover 335 x Ø316 x 1 (37292705)
1133.
8FC-60.2
372416-01
gasket bottom plate 295 x 250 x 1 (37241601)
1134.
8FC-60.2
372429-04
Gasket for terminal box 360 x 290 x 2 (37242904)
1135.
8FC-60.2
372927-06
gasket bearing cover Ø182 x Ø182 x 0,8 (37292706)
1136.
8FC-60.2
372126-01
gasket terminal box aluminium EPDM 222 x 140 x 3 (37212601)
1137.
8FC-60.2
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
1138.
8FC-60.2
382403-01
Gasket Ring oil pressure monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
1139.
8FC-60.2
372839-02
gasket set (37283902)
1140.
8FC-60.2
345906-02
heater sleeve crankcase heater for 140W heater 43315 (34590602)
1141.
8FC-60.2
380154-06
hexagon head screw sight glass DIN 933, 10.9 M6 x 20 (38015406)
1142.
8FC-60.2
380056-20
hexagon head screw cylinder head DIN 931, 10.9 M10 x 90 (38005620)
1143.
8FC-60.2
380057-17
hexagon head screw housing cover DIN 931, 10.9 M12 x 200 (38005717)
1144.
8FC-60.2
380169-03
hexagon head screw DIN 933, 10.9 M10 x 22 (38016903)
1145.
8FC-60.2
380056-07
hexagon head screw cylinder head DIN 931, 10.9 M10 x 80 (38005607)
1146.
8FC-60.2
380109-09
Hexagon Head Screw clamping plat DIN 933, 8.8 M16 x 55 (38010909)
1147.
8FC-60.2
380156-06
hexagon head screw bottom plate coated DIN 933, 10.9 M10 x 30 (38015606)
1148.
8FC-60.2
380195-01
Hexagon Head Screw DIN 933, 8.8 M8 x 45 (38019501)
1149.
8FC-60.2
380009-60
hexagon head screw discharge shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 90 (38000960)
1150.
8FC-60.2
380009-54
Hexagon Head Screw suction shut-off valve galvanized DIN 931, 8.8 M16 x 140 (38000954)
1151.
8FC-60.2
380009-62
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 130 (38000962)
1152.
8FC-60.2
380111-01
Hexagon Head Screw suction shut-off valve DIN 933, 8.8 M18 x 70 (38011101)
1153.
8FC-60.2
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
1154.
8FC-60.2
380166-07
hexagon head screw rotor coated DIN 933, 10.9 M16 x 45 (38016607)
1155.
8FC-60.2
345122-02
hexagon nut terminal box aluminium plastic M20 x 1,5 (34512202)
1156.
8FC-60.2
345122-03
hexagon nut terminal box aluminium plastic M25 x 1,5 (34512203)
1157.
8FC-60.2
345122-04
hexagon nut terminal box aluminium plastic M63 x 1,5 (34512204)
1158.
8FC-60.2
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
1159.
8FC-60.2
345122-01
Hexagon Nut terminal box aluminium plastic M16 x 1,5 (34512201
1160.
8FC-60.2
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
1161.
8FC-60.2
300074-01
housing Ø82 (30007401)
1162.
8FC-60.2
305233-11
housing cover grey cast iron 345 x 316 x 194 (30523311)
1163.
8FC-60.2
375907-05
insulating foil terminal box aluminium Y/D (37590705)
1164.
8FC-60.2
375051-02
insulating plate 40 x 39,5 (37505102)
1165.
8FC-60.2
345950-03
metal plate for grounding screw for grounding aluminium M10 (34595003)
1166.
8FC-60.2
389007-01
notch-type cable lug 6 R/10, Ø10 x 35 MM2 (38900701)
1167.
8FC-60.2
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
1168.
8FC-60.2
372003-27
O-ring Ø10,82 x 1,78 (37200327)
1169.
8FC-60.2
372001-19
O-ring oil pump Ø74 x 2 (37200119)
1170.
8FC-60.2
362003-01
oil filter Ø20 x 200 (36200301)
1171.
8FC-60.2
361101-01
oil pressure relief valve SW17 x 29 (36110101)
1172.
8FC-60.2
362503-02
oil pump (36250302)
1173.
8FC-60.2
360117-01
oil return system (36011701)
1174.
8FC-60.2
384007-02
parallel key Stator steel A5,3 x 4,63 x 100 (38400702)
1175.
8FC-60.2
384007-03
parallel key built-in motor steel A9,56 x 9,15 x 140 (38400703)
1176.
8FC-60.2
327000-01
parallel pin valve plate 6H 11 x 20 (32700001)
1177.
8FC-60.2
365321-03
Pipe Connection discharge shut-off valve brazed and welding bush steel Ø54 (2 1/8") (36532103)
1178.
8FC-60.2
365321-05
Pipe Connection suction side Brazed and welding bush steel Ø76 (3 1/8") DN 80 (36532105)
1179.
8FC-60.2
302296-16
piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø82 (30229616)
1180.
8FC-60.2
361100-29
pressure relief valve (36110029)
1181.
8FC-60.2
325000-34
pressure spring steel Ø23,5 x 28 x 1,8 (32500034)
1182.
8FC-60.2
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
1183.
8FC-60.2
375014-05
Protective Cap discharge shut-off valve Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
1184.
8FC-60.2
347023-03
PTC-sensor 140° C (34702303)
1185.
8FC-60.2
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
1186.
8FC-60.2
382141-01
retaining ring with lugs spring steel DIN 6796 - FSt A 8 (38214101)
1187.
8FC-60.2
361500-22
Schrader valve oil pressure connection (36150022)
1188.
8FC-60.2
366100-01
Sealing Plug oil fill connection bras 1/8" - 27 NPTF (36610001)
1189.
8FC-60.2
345126-04
Sealing Plug terminal box aluminium plastic M63 x 1,5 (34512604)
1190.
8FC-60.2
366104-22
sealing plug valve plate brass 3/4" - 14 NPTF (36610422)
1191.
8FC-60.2
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
1192.
8FC-60.2
366103-21
sealing plug oil equalisation brass 1/2" - 14 NPTF (36610321)
1193.
8FC-60.2
345126-01
Sealing Plug terminal box aluminium plastic M16 x 1,5 (34512601)
1194.
8FC-60.2
366110-08
Sealing Plug discharge shut-off valve steel 1/4" - 18NPTF (36611008)
1195.
8FC-60.2
366104-21
sealing plug gas equalisation brass 3/4" - 14NPTF (36610421)
1196.
8FC-60.2
345126-02
Sealing Plug terminal box aluminium plastic M20 x 1,5 (34512602)
1197.
8FC-60.2
345126-03
Sealing Plug terminal box aluminium plastic M25 x 1,5 (34512603)
1198.
8FC-60.2
366123-01
sealing screw oil pressure monitoring M20 x 1,5 (36612301)
1199.
8FC-60.2
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
1200.
8FC-60.2
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
1201.
8FC-60.2
380354-09
set screw DIN 916 M10 x 20 (38035409)
1202.
8FC-60.2
374026-01
shaft seal Motor side (37402601)
1203.
8FC-60.2
361338-04
Shut-Off Valve Discharge side Ø54 (2 1/8") (36133804)
1204.
8FC-60.2
361339-14
shut-off valve suction side (36133914)
1205.
8FC-60.2
361802-03
sight glass Ø60 x 7 (36180203)
1206.
8FC-60.2
382201-55
Single Coil Spring Washer terminal box aluminium spring steel galvanized DIN 127 A6, 4 (38220155)
1207.
8FC-60.2
382062-01
single coil spring washer eye bolt steel galvanized DIN 127 18 x 30 x 8 (38206201)
1208.
8FC-60.2
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
1209.
8FC-60.2
362004-03
suction gas filter Ø267,5 x 74,5 (36200403)
1210.
8FC-60.2
324500-46
terminal box 360 x 290 x 90 (32450046)
1211.
8FC-60.2
345500-10
terminal plate 220 x 140 x 50 (34550010)
1212.
8FC-60.2
345902-01
terminal strip terminal box aluminium 12-polig (34590201)
1213.
8FC-60.2
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
1214.
8FC-60.2
382150-04
thrust washer rotor spring steel S16 (38215004)
1215.
8FC-60.2
320502-05
thrust washer steel Ø61 x 5 (32050205)
1216.
8FC-60.2
320500-09
thrust washer oil pump side Ø65 x Ø53 x 1, (32050009)
1217.
8FC-60.2
370002-06
vibration damper set Motor side black (75 Shore) rubber (37000206)
1218.
8FC-60.2
370002-02
vibration damper set Crankcase side red (60 Shore) rubber (37000202)
1219.
8FC-60.2
382041-54
washer screw for grounding steel galvanized DIN 433 A6, 4 (38204154)
1220.
8FC-60.2
382002-01
washer start unloading brass DIN 125 A4, 3 (38200201)
1221.
8FC-60.2
383401-46
wrist pin connecting rod / piston DIN 73126 Ø20 x 13 x 70 (38340146)
1222.
8FC-70.2
311100-18
bearing bush oil pump side Ø50 x Ø55 x 50 (31110018)
1223.
8FC-70.2
305107-21
bearing cover oil pump cannot be delivered separately (30510721)
1224.
8FC-70.2
305138-01
bearing cover (30513801)
1225.
8FC-70.2
320307-09
bottom plate steel 345 x 320 x 12 , Ø21 (32030709)
1226.
8FC-70.2
346562-46
built-in motor Standard voltages 51 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø260 x 280 (34656246)
1227.
8FC-70.2
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
1228.
8FC-70.2
380306-82
Cheese Head Screw terminal box aluminium 10.9 galvanized DIN 912, 10.9 M10 x 16 (38030682)
1229.
8FC-70.2
380306-32
Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
1230.
8FC-70.2
367121-03
Clamping Plate suction shut-off valve 142 x 142 x 33 (36712103)
1231.
8FC-70.2
367121-02
Clamping Plate discharge shut-off valve 110 x 110 (36712102)
1232.
8FC-70.2
383021-16
clamping sleeve 10 * 29 (38302116)
1233.
8FC-70.2
382300-61
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)
1234.
8FC-70.2
382310-28
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)
1235.
8FC-70.2
302136-50
connecting rod (30213650
1236.
8FC-70.2
302280-02
connecting rod / piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no Ø82 (30228002)
1237.
8FC-70.2
324942-01
cover terminal box aluminium steel 361 x 291 x 7 (32494201)
1238.
8FC-70.2
343213-12
Crankcase heate heating capacity: 140W 230V-1-50/60Hz (34321312)
1239.
8FC-70.2
301016-01
crankshaft Stroke 60mm (30101601)
1240.
8FC-70.2
380501-52
cross recessed raised screw Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
1241.
8FC-70.2
302360-44
cylinder head air-cooled (30236044)
1242.
8FC-70.2
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
1243.
8FC-70.2
380902-02
eye bolt DIN 580 M12 (38090202)
1244.
8FC-70.2
324391-03
eye bolt steel 49 x 50 x 135 (32439103)
1245.
8FC-70.2
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
1246.
8FC-70.2
361110-01
gas equalising valve (36111001)
1247.
8FC-70.2
372944-01
gasket cylinder head Retall (37294401)
1248.
8FC-70.2
372518-03
gasket valve plate (37251803)
1249.
8FC-70.2
372301-03
gasket discharge shut-off valve Ø76 x Ø60 x 1 (37230103)
1250.
8FC-70.2
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
1251.
8FC-70.2
372421-03
gasket Terminal plate 222 x 140 x 1 (37242103)
1252.
8FC-70.2
372303-03
Gasket Pipe connection Ø105 x Ø85 x 2 (37230303)
1253.
8FC-70.2
372301-05
gasket suction shut-off valve Ø105 x Ø86 x 1 (37230105)
1254.
8FC-70.2
372927-05
gasket housing cover 335 x Ø316 x 1 (37292705)
1255.
8FC-70.2
372416-01
gasket bottom plate 295 x 250 x 1 (37241601)
1256.
8FC-70.2
372429-04
Gasket for terminal box 360 x 290 x 2 (37242904)
1257.
8FC-70.2
372927-06
gasket bearing cover Ø182 x Ø182 x 0,8 (37292706)
1258.
8FC-70.2
372126-01
gasket terminal box aluminium EPDM 222 x 140 x (37212601)
1259.
8FC-70.2
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
1260.
8FC-70.2
382403-01
Gasket Ring oil pressure monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
1261.
8FC-70.2
372839-02
gasket set (37283902)
1262.
8FC-70.2
345906-02
heater sleeve crankcase heater for 140W heater 43315 (34590602)
1263.
8FC-70.2
380154-06
hexagon head screw sight glass DIN 933, 10.9 M6 x 20 (38015406)
1264.
8FC-70.2
380056-20
hexagon head screw cylinder head DIN 931, 10.9 M10 x 90 (38005620)
1265.
8FC-70.2
380057-17
hexagon head screw housing cover DIN 931, 10.9 M12 x 200 (38005717)
1266.
8FC-70.2
380169-03
hexagon head screw DIN 933, 10.9 M10 x 22 (38016903)
1267.
8FC-70.2
380056-07
hexagon head screw cylinder head DIN 931, 10.9 M10 x 80 (38005607)
1268.
8FC-70.2
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
1269.
8FC-70.2
380156-06
hexagon head screw bottom plate coated DIN 933, 10.9 M10 x 30 (38015606)
1270.
8FC-70.2
380195-01
Hexagon Head Screw DIN 933, 8.8 M8 x 45 (38019501)
1271.
8FC-70.2
380009-60
hexagon head screw discharge shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 90 (38000960)
1272.
8FC-70.2
380009-54
Hexagon Head Screw suction shut-off valve galvanized DIN 931, 8.8 M16 x 140 (38000954)
1273.
8FC-70.2
380009-62
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 130 (38000962)
1274.
8FC-70.2
380111-01
Hexagon Head Screw suction shut-off valve DIN 933, 8.8 M18 x 70 (38011101)
1275.
8FC-70.2
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
1276.
8FC-70.2
380166-07
hexagon head screw rotor coated DIN 933, 10.9 M16 x 45 (38016607)
1277.
8FC-70.2
345122-02
hexagon nut terminal box aluminium plastic M20 x 1,5 (34512202)
1278.
8FC-70.2
345122-03
hexagon nut terminal box aluminium plastic M25 x 1,5 (34512203)
1279.
8FC-70.2
345122-04
hexagon nut terminal box aluminium plastic M63 x 1,5 (34512204)
1280.
8FC-70.2
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
1281.
8FC-70.2
345122-01
Hexagon Nut terminal box aluminium plastic M16 x 1,5 (34512201)
1282.
8FC-70.2
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
1283.
8FC-70.2
300074-01
housing Ø82 (30007401)
1284.
8FC-70.2
305233-11
housing cover grey cast iron 345 x 316 x 194 (30523311)
1285.
8FC-70.2
375907-05
insulating foil terminal box aluminium Y/D (37590705)
1286.
8FC-70.2
375051-02
insulating plate 40 x 39,5 (37505102)
1287.
8FC-70.2
345950-03
metal plate for grounding screw for grounding aluminium M10 (34595003)
1288.
8FC-70.2
389007-01
notch-type cable lug 6 R/10, Ø10 x 35 MM2 (38900701)
1289.
8FC-70.2
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
1290.
8FC-70.2
372003-27
O-ring Ø10,82 x 1,78 (37200327)
1291.
8FC-70.2
372001-19
O-ring oil pump Ø74 x 2 (37200119)
1292.
8FC-70.2
362003-01
oil filter Ø20 x 200 (36200301)
1293.
8FC-70.2
361101-01
oil pressure relief valve SW17 x 29 (36110101)
1294.
8FC-70.2
362503-02
oil pump (36250302)
1295.
8FC-70.2
360117-01
oil return syste (36011701)
1296.
8FC-70.2
384007-02
parallel key Stato steel A5,3 x 4,63 x 100 (38400702)
1297.
8FC-70.2
384007-03
parallel key built-in motor steel A9,56 x 9,15 x 140 (38400703)
1298.
8FC-70.2
327000-01
parallel pin valve plate 6H 11 x 20 (32700001)
1299.
8FC-70.2
365321-03
Pipe Connection discharge shut-off valve brazed and welding bush steel Ø54 (2 1/8") (36532103)
1300.
8FC-70.2
365321-05
Pipe Connection suction side Brazed and welding bush steel Ø76 (3 1/8") DN 80 (36532105)
1301.
8FC-70.2
302296-16
piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø82 (30229616)
1302.
8FC-70.2
361100-29
pressure relief valve (36110029)
1303.
8FC-70.2
325000-34
pressure spring steel Ø23,5 x 28 x 1,8 (32500034)
1304.
8FC-70.2
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
1305.
8FC-70.2
375014-05
Protective Cap discharge shut-off valve Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
1306.
8FC-70.2
347023-03
PTC-sensor 140° C (34702303)
1307.
8FC-70.2
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
1308.
8FC-70.2
382141-01
retaining ring with lugs spring steel DIN 6796 - FSt A 8 (38214101)
1309.
8FC-70.2
361500-22
Schrader valve oil pressure connection (36150022)
1310.
8FC-70.2
366100-01
Sealing Plug oil fill connection brass 1/8" - 27 NPTF (36610001)
1311.
8FC-70.2
345126-04
Sealing Plug terminal box aluminium plastic M63 x 1,5 (34512604)
1312.
8FC-70.2
366104-22
sealing plug valve plate brass 3/4" - 14 NPTF (36610422)
1313.
8FC-70.2
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
1314.
8FC-70.2
366103-21
sealing plug oil equalisation brass 1/2" - 14 NPTF (36610321)
1315.
8FC-70.2
345126-01
Sealing Plug terminal box aluminium plastic M16 x 1,5 (34512601)
1316.
8FC-70.2
366110-08
Sealing Plug discharge shut-off valve steel 1/4" - 18NPTF (36611008)
1317.
8FC-70.2
366104-21
sealing plug gas equalisation brass 3/4" - 14NPTF (36610421)
1318.
8FC-70.2
345126-02
Sealing Plug terminal box aluminium plastic M20 x 1,5 (34512602)
1319.
8FC-70.2
345126-03
Sealing Plug terminal box aluminium plastic M25 x 1,5 (34512603)
1320.
8FC-70.2
366123-01
sealing screw oil pressure monitoring M20 x 1,5 (36612301)
1321.
8FC-70.2
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
1322.
8FC-70.2
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
1323.
8FC-70.2
380354-09
set screw DIN 916 M10 x 20 (38035409)
1324.
8FC-70.2
374026-01
shaft seal Motor side (37402601)
1325.
8FC-70.2
361338-04
Shut-Off Valve Discharge side Ø54 (2 1/8") (36133804)
1326.
8FC-70.2
361339-14
shut-off valve suction side (36133914)
1327.
8FC-70.2
361802-03
sight glass Ø60 x 7 (36180203)
1328.
8FC-70.2
382201-55
Single Coil Spring Washer terminal box aluminium spring steel galvanized DIN 127 A6, 4 (38220155)
1329.
8FC-70.2
382062-01
single coil spring washer eyebolt steel galvanized DIN 127 18 x 30 x 8 (38206201)
1330.
8FC-70.2
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
1331.
8FC-70.2
362004-03
suction gas filter Ø267,5 x 74,5 (36200403)
1332.
8FC-70.2
324500-46
terminal box 360 x 290 x 90 (32450046)
1333.
8FC-70.2
345500-10
terminal plate 220 x 140 x 50 (34550010)
1334.
8FC-70.2
345902-01
terminal strip terminal box aluminium 12-polig (34590201)
1335.
8FC-70.2
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
1336.
8FC-70.2
382150-04
thrust washer rotor spring steel S16 (38215004)
1337.
8FC-70.2
320502-05
thrust washer steel Ø61 x 5 (32050205)
1338.
8FC-70.2
320500-09
thrust washer oil pump side Ø65 x Ø53 x 1,9 (32050009)
1339.
8FC-70.2
370002-06
vibration damper set Motor side black (75 Shore) rubber (37000206)
1340.
8FC-70.2
370002-02
vibration damper set Crankcase side red (60 Shore) rubber (37000202)
1341.
8FC-70.2
382041-54
washer screw for grounding steel galvanized DIN 433 A6, 4 (38204154)
1342.
8FC-70.2
382002-01
washer start unloading brass DIN 125 A4, 3 (38200201)
1343.
8FC-70.2
383401-46
wrist pin connecting rod / piston DIN 73126 Ø20 x 13 x 70 (38340146)
1344.
8FE-70
311100-18
bearing bush Crankcase side Ø50 x Ø55 x 50 (31110018)
1345.
8FE-70
305138-01
bearing cover (30513801)
1346.
8FE-70
320307-09
bottom plate steel 345 x 320 x 12 , Ø21 (32030709)
1347.
8FE-70
346562-46
built-in motor Standard voltages 51 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø260 x 280 (34656246)
1348.
8FE-70
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
1349.
8FE-70
380306-32
Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
1350.
8FE-70
380306-82
Cheese Head Screw terminal box aluminium 10.9 galvanized DIN 912, 10.9 M10 x 16 (38030682)
1351.
8FE-70
367121-02
Clamping Plate discharge shut-off valve 110 x 110 (36712102)
1352.
8FE-70
367121-14
clamping plate suction shut-off valve 141 x 141 x 23 (36712114)
1353.
8FE-70
382300-61
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)
1354.
8FE-70
382310-28
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)
1355.
8FE-70
302280-02
connecting rod / piston complete Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø82 (30228002)
1356.
8FE-70
324942-01
cover terminal box aluminium steel 361 x 291 x 7 (32494201)
1357.
8FE-70
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
1358.
8FE-70
301016-01
crankshaft Stroke 60mm (30101601)
1359.
8FE-70
380501-52
cross recessed raised screw Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
1360.
8FE-70
302360-44
cylinder head air-cooled (30236044)
1361.
8FE-70
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
1362.
8FE-70
380902-02
eye bolt DIN 580 M12 (38090202)
1363.
8FE-70
324391-03
eyebolt steel 49 x 50 x 135 (32439103)
1364.
8FE-70
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
1365.
8FE-70
372301-05
gasket suction shut-off valve Ø105 x Ø86 x 1 (37230105)
1366.
8FE-70
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
1367.
8FE-70
372421-03
gasket Terminal plate 222 x 140 x 1 (37242103)
1368.
8FE-70
372301-03
gasket discharge shut-off valve Ø76 x Ø60 x 1 (37230103)
1369.
8FE-70
372303-03
Gasket Pipe connection Ø105 x Ø85 x 2 (37230303)
1370.
8FE-70
372518-03
gasket valve plate (37251803)
1371.
8FE-70
372944-01
gasket cylinder head Retall (37294401)
1372.
8FE-70
372416-01
gasket bottom plate 295 x 250 x 1 (37241601)
1373.
8FE-70
372927-05
gasket housing cover 335 x Ø316 x 1 (37292705)
1374.
8FE-70
372927-06
gasket bearing cover Ø182 x Ø182 x 0,8 (37292706)
1375.
8FE-70
372126-01
gasket terminal box aluminium EPDM 222 x 140 x 3 (37212601)
1376.
8FE-70
372429-04
Gasket for terminal box 360 x 290 x 2 (37242904)
1377.
8FE-70
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
1378.
8FE-70
382403-01
Gasket Ring oil pressure monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
1379.
8FE-70
372839-02
gasket set (37283902)
1380.
8FE-70
345906-02
heater sleeve crankcase heater for 140W heater 43315 (34590602)
1381.
8FE-70
380056-20
hexagon head screw cylinder head DIN 931, 10.9 M10 x 90 (38005620)
1382.
8FE-70
380009-60
hexagon head screw discharge shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 90 (38000960)
1383.
8FE-70
380166-07
hexagon head screw rotor coated DIN 933, 10.9 M16 x 45 (38016607)
1384.
8FE-70
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
1385.
8FE-70
380056-07
hexagon head screw cylinder head DIN 931, 10.9 M10 x 80 (38005607)
1386.
8FE-70
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
1387.
8FE-70
380009-54
Hexagon Head Screw suction shut-off valve galvanized DIN 931, 8.8 M16 x 140 (38000954)
1388.
8FE-70
380009-62
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 130 (38000962)
1389.
8FE-70
380109-55
hexagon head screw suction shut-off valve galvanized DIN 933, 8.8 M16 x 60 (38010955)
1390.
8FE-70
380169-03
hexagon head screw DIN 933, 10.9 M10 x 22 (38016903)
1391.
8FE-70
380156-06
hexagon head screw bottom plate coated DIN 933, 10.9 M10 x 30 (38015606)
1392.
8FE-70
380154-06
hexagon head screw sight glas DIN 933, 10.9 M6 x 20 (38015406)
1393.
8FE-70
380057-17
hexagon head screw housing cover DIN 931, 10.9 M12 x 200 (38005717)
1394.
8FE-70
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
1395.
8FE-70
345122-02
hexagon nut terminal box aluminium plastic M20 x 1,5 (34512202)
1396.
8FE-70
345122-01
Hexagon Nut terminal box aluminium plastic M16 x 1,5 (34512201)
1397.
8FE-70
345122-03
hexagon nut terminal box aluminium plastic M25 x 1,5 (34512203)
1398.
8FE-70
345122-04
hexagon nut terminal box aluminium plastic M63 x 1,5 (34512204)
1399.
8FE-70
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
1400.
8FE-70
300074-01
housing Ø82 (30007401)
1401.
8FE-70
305233-11
housing cover grey cast iron 345 x 316 x 194 (30523311)
1402.
8FE-70
375907-05
insulating foil terminal box aluminium Y/D (37590705)
1403.
8FE-70
375051-02
insulating plate 40 x 39,5 (37505102)
1404.
8FE-70
345950-03
metal plate for grounding screw for grounding aluminium M10 (34595003)
1405.
8FE-70
389007-01
notch-type cable lug 6 R/10, Ø10 x 35 MM2 (38900701)
1406.
8FE-70
372003-27
O-ring Ø10,82 x 1,78 (37200327)
1407.
8FE-70
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
1408.
8FE-70
372001-19
O-ring oil pump Ø74 x 2 (37200119)
1409.
8FE-70
362003-01
oil filter Ø20 x 200 (36200301)
1410.
8FE-70
361101-01
oil pressure relief valve SW17 x 29 (36110101)
1411.
8FE-70
384007-03
parallel key built-in motor steel A9,56 x 9,15 x 140 (38400703)
1412.
8FE-70
384007-02
parallel key Stator steel A5,3 x 4,63 x 100 (38400702)
1413.
8FE-70
327000-01
parallel pin valve plate 6H 11 x 20 (32700001)
1414.
8FE-70
365321-05
Pipe Connection suction side Brazed and welding bush steel Ø76 (3 1/8") DN 80 (36532105)
1415.
8FE-70
365321-03
Pipe Connection discharge shut-off valve brazed and welding bush steel Ø54 (2 1/8") (36532103)
1416.
8FE-70
302296-16
piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø82 (30229616)
1417.
8FE-70
325000-34
pressure spring steel Ø23,5 x 28 x 1,8 (32500034)
1418.
8FE-70
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
1419.
8FE-70
375014-19
Protective Cap suction shut-off valve Plastic - GRP (37501419)
1420.
8FE-70
375014-05
Protective Cap discharge shut-off valve Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
1421.
8FE-70
347023-03
PTC-sensor 140° C (34702303)
1422.
8FE-70
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
1423.
8FE-70
361500-22
Schrader valve oil pressure connection (36150022)
1424.
8FE-70
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
1425.
8FE-70
345126-02
Sealing Plug terminal box aluminium plastic M20 x 1,5 (34512602)
1426.
8FE-70
366104-21
sealing plug gas equalisation brass 3/4" - 14NPTF (36610421)
1427.
8FE-70
345126-01
Sealing Plug terminal box aluminium plastic M16 x 1,5 (34512601)
1428.
8FE-70
366100-01
Sealing Plug brass 1/8" - 27 NPTF (36610001)
1429.
8FE-70
366103-21
sealing plug oil equalisation brass 1/2" - 14 NPTF (36610321)
1430.
8FE-70
345126-04
Sealing Plug terminal box aluminium plastic M63 x 1,5 (34512604)
1431.
8FE-70
366104-22
sealing plug valve plate brass 3/4" - 14 NPTF (36610422)
1432.
8FE-70
366110-08
Sealing Plug discharge shut-off valve steel 1/4" - 18NPTF (36611008)
1433.
8FE-70
345126-03
Sealing Plug terminal box aluminium plastic M25 x 1,5 (34512603)
1434.
8FE-70
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
1435.
8FE-70
366123-01
sealing screw oil pressure monitoring M20 x 1,5 (36612301)
1436.
8FE-70
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
1437.
8FE-70
380354-09
set screw DIN 916 M10 x 20 (38035409)
1438.
8FE-70
374026-01
shaft seal Motor side (37402601)
1439.
8FE-70
361338-04
Shut-Off Valve Discharge side Ø54 (2 1/8") (36133804)
1440.
8FE-70
361339-38
shut-off valve suction side (36133938)
1441.
8FE-70
361802-03
sight glass Ø60 x 7 (36180203)
1442.
8FE-70
382201-55
Single Coil Spring Washer terminal box aluminium spring steel galvanized DIN 127 A6, 4 (38220155)
1443.
8FE-70
382062-01
single coil spring washer eye bolt steel galvanized DIN 127 18 x 30 x 8 (38206201)
1444.
8FE-70
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
1445.
8FE-70
362004-03
suction gas filter Ø267,5 x 74,5 (36200403)
1446.
8FE-70
324500-46
terminal box 360 x 290 x 90 (32450046)
1447.
8FE-70
345500-10
terminal plate 220 x 140 x 50 (34550010)
1448.
8FE-70
345902-01
terminal strip terminal box aluminium 12-polig (34590201)
1449.
8FE-70
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
1450.
8FE-70
320500-09
thrust washer Motor side Ø65 x Ø53 x 1,9 (32050009)
1451.
8FE-70
320502-05
thrust washer steel Ø61 x 5 (32050205)
1452.
8FE-70
382150-04
thrust washer rotor spring steel S16 (38215004)
1453.
8FE-70
370002-02
vibration damper set Crankcase side red (60 Shore) rubber (37000202)
1454.
8FE-70
370002-06
vibration damper set Motor side black (75 Shore) rubber (37000206)
1455.
8FE-70
382041-54
washer screw for grounding steel galvanized DIN 433 A6, 4 (38204154)
1456.
8FE-70
382002-01
washer start unloading brass DIN 125 A4, 3 (38200201)
1457.
8FE-70
383401-46
wrist pin connecting rod / piston DIN 73126 Ø20 x 13 x 70 (38340146)
1458.
6F.2
311100-08
bearing bush Crankcase side Ø75 x Ø70 x 70 (31110008)
1459.
6F.2
311100-04
bearing bush Ø50 x Ø45 x 47,5 (31110004)
1460.
6F.2
311103-06
bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)
1461.
6F.2
305125-03
bearing cover complete inclusive oil pump (30512503)
1462.
6F.2
302400-01
bottom plate grey cast iron350 x 315 x 54(30240001)
1463.
6F.2
380306-26
cheese head screw bottom plate DIN 912, 10.9 M10 x 55 (38030626)
1464.
6F.2
380306-23
Cheese Head Screw intermediate flange h=25 DIN 912, 10.9 M10 x 25 (38030623)
1465.
6F.2
380306-32
Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)
1466.
6F.2
380302-05
Cheese Head Screw DIN 912, 10.9 M12 x 50 (38030205)
1467.
6F.2
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
1468.
6F.2
367121-02
Clamping Plate suction shut-off valve 110 x 110 (36712102)
1469.
6F.2
383021-11
clamping sleeve 10 x 0,75 x 29 (38302111)
1470.
6F.2
382300-61
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)
1471.
6F.2
382310-28
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)
1472.
6F.2
302115-50
connecting rod (30211550)
1473.
6F.2
302297-43
connecting rod / piston Ø82 (30229743)
1474.
6F.2
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
1475.
6F.2
301007-08
crankshaft Stroke 55mm Ø45 x 554 (30100708)
1476.
6F.2
302360-22
cylinder head air-cooled (30236022)
1477.
6F.2
302360-03
cylinder head water-cooled 253 x 155 x 64 (30236003)
1478.
6F.2
347320-33
differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
1479.
6F.2
389002-01
electric connector of the machine / device capacity control DIN 43650 Typ GDM 209 (38900201)
1480.
6F.2
380902-02
eye bolt DIN 580 M12 (38090202)
1481.
6F.2
320314-01
fixing plate MP54 140 x 40 x 3 (32031401)
1482.
6F.2
361110-01
gas equalising valve (36111001)
1483.
6F.2
372616-03
gasket Retall 253 x 155 x 0,5 (37261603)
1484.
6F.2
372315-03
gasket housing cover Ø286 x Ø236 x 0,38 (37231503)
1485.
6F.2
372704-01
Gasket intermediate flange h=25 91 x 52 x 1 (37270401)
1486.
6F.2
372415-02
gasket bottom plate (37241502)
1487.
6F.2
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
1488.
6F.2
372511-07
gasket 253 x 155 x 1,0 Ø82 (37251107)
1489.
6F.2
372313-02
gasket Ø142 x Ø106,5 x 0,5 (37231302)
1490.
6F.2
372301-03
gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)
1491.
6F.2
372301-02
gasket discharge shut-off valve Ø70 x Ø54 x 1 (37230102)
1492.
6F.2
372303-01
gasket Ø52 x Ø37 x 2 (37230301)
1493.
6F.2
382402-01
gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)
1494.
6F.2
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
1495.
6F.2
382501-05
gasket ring NBR felt ring G58 x 50 x 4 (38250105)
1496.
6F.2
372812-05
gasket set (37281205)
1497.
6F.2
372807-01
gasket set bearing cover Ø182 x Ø133 x 1/ 0,8/ 0,75 /0,6 /0,5 (37280701)
1498.
6F.2
381214-01
grooved nut M40 x 1,5 (38121401)
1499.
6F.2
345906-02
heater sleeve for 140W heater 43315 (34590602)
1500.
6F.2
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
1501.
6F.2
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
1502.
6F.2
380007-52
hexagon head screw discharge shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)
1503.
6F.2
380154-02
hexagon head screw steel DIN 933, 10.9 M6 x 12 (38015402)
1504.
6F.2
380057-07
hexagon head screw housing cover DIN 931, 10.9 M12 x 110 (38005707)
1505.
6F.2
380056-03
hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)
1506.
6F.2
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
1507.
6F.2
380155-08
hexagon head screw DIN 933, 10.9 M8 x 30 (38015508)
1508.
6F.2
380009-53
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)
1509.
6F.2
380105-09
hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)
1510.
6F.2
380057-06
hexagon head screw housing cover DIN 931, 10.9 M12 x 100 (38005706)
1511.
6F.2
380339-01
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
1512.
6F.2
300026-08
housing Ø82 (30002608)
1513.
6F.2
305214-01
housing cover grey cast iron Ø286 x 112 (30521401)
1514.
6F.2
300903-01
intermediate flange grey cast iron 225 x 96 x 93 (30090301)
1515.
6F.2
372003-15
O-ring sight glass Ø36,3 x 1,78 (37200315)
1516.
6F.2
372001-25
O-ring stationary ring Ø63,09 x 3,53 (37200125)
1517.
6F.2
372003-28
O-ring Ø47x Ø4 (37200328)
1518.
6F.2
372001-20
O-ring housing cover Ø126 x 4 (37200120)
1519.
6F.2
372001-19
O-ring oil pump Ø74 x 2 (37200119)
1520.
6F.2
362003-01
oil filter Ø20 x 200 (36200301)
1521.
6F.2
361101-01
oil pressure relief valve SW17 x 29 (36110101)
1522.
6F.2
360110-07
oil return system (36011007)
1523.
6F.2
384001-06
parallel key steel DIN 6885 A8 x 7 x 45 (38400106)
1524.
6F.2
327000-01
parallel pin 6H 11 x 20 (32700001)
1525.
6F.2
360101-03
pipe oil return Ø6 x 1 (36010103)
1526.
6F.2
365321-03
Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)
1527.
6F.2
365321-14
pipe connection discharge shut-off valve steel brazing and welding bush Ø42 (1 5/8") (36532114)
1528.
6F.2
302233-95
Piston Ø82 (30223395)
1529.
6F.2
361100-21
pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)
1530.
6F.2
325000-34
pressure spring steel Ø23,5 x 28 x 1,8 (32500034)
1531.
6F.2
366201-22
Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
1532.
6F.2
375014-05
Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
1533.
6F.2
303602-11
pulley Taper-lock bush grey cast iron Ø224, 5R, SPA (30360211)
1534.
6F.2
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
1535.
6F.2
382141-01
retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)
1536.
6F.2
361500-22
Schrader valve (36150022)
1537.
6F.2
305413-07
sealing cover Ø142 x 31 (30541307)
1538.
6F.2
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
1539.
6F.2
366110-01
Sealing plug steel 1/8“ - 27 NPTF (36611001)
1540.
6F.2
366110-10
sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)
1541.
6F.2
366110-09
sealing plug bottom plate steel 3/8" - 18 NPTF (36611009)
1542.
6F.2
366110-05
sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)
1543.
6F.2
380391-55
sealing screw conic brass R 3/4 (38039155)
1544.
6F.2
366112-02
sealing screw conic M12 x 1,5 (36611202)
1545.
6F.2
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
1546.
6F.2
374001-06
shaft seal rotating unit (37400106)
1547.
6F.2
374017-03
shaft seal (37401703)
1548.
6F.2
361338-04
Shut-Off Valve suction side Ø54 (2 1/8") (36133804)
1549.
6F.2
361338-01
shut-off valve Discharge side Ø42 (1 5/8") (36133801)
1550.
6F.2
361802-02
sight glass steel / glass Ø67 x 8,5 (36180202)
1551.
6F.2
382201-51
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
1552.
6F.2
362004-01
suction gas filter Ø228 x 32 (36200401)
1553.
6F.2
320500-07
thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)
1554.
6F.2
320500-08
thrust washer Crankcase side Ø86 x Ø71 x 1,7 (32050008)
1555.
6F.2
382150-01
thrust washer spring steel S6 (38215001)
1556.
6F.2
382112-01
toothed washer (38211201)
1557.
6F.2
304051-15
valve plate Ø82 (30405115)
1558.
6F.2
382002-01
washer brass DIN 125 A4, 3 (38200201)
1559.
6F.2
383401-26
wrist pin Ø20 x Ø13 x 60 (38340126)
