Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|
1. |
|
IV, V, VI, VII |
320200-04 |
Suction Reed 54.4X29.8X0.4-To Fit Bitzer Ⅳ,Ⅴ,Ⅵ,Ⅶ
|
|
|
2. |
|
IV, V |
320210-02 |

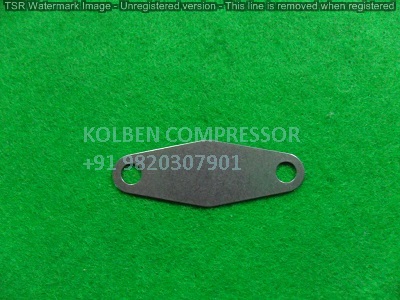

Discharge Reed 54.8X19.1X0.5-To Fit Bitzer Ⅳ,Ⅴ
|
|
|
3. |
|
IV |
372800-05 |

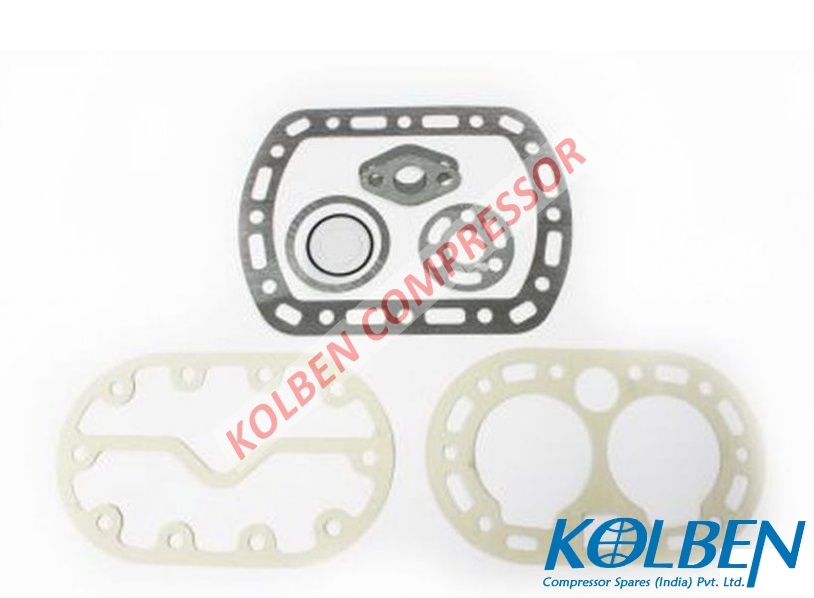

Gasket Set-To Fit Bitzer Iv
|
|
|
4. |
|
IV |

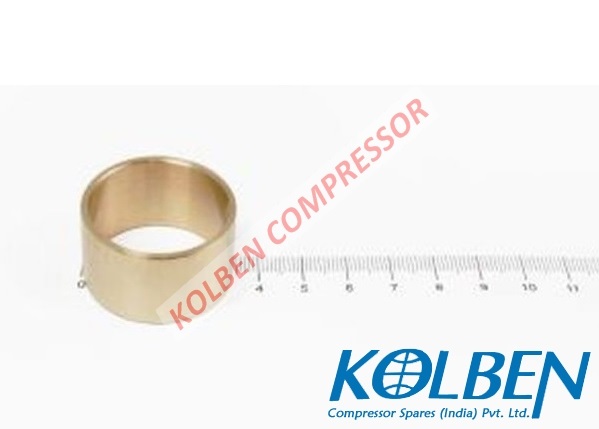

311104-07 |

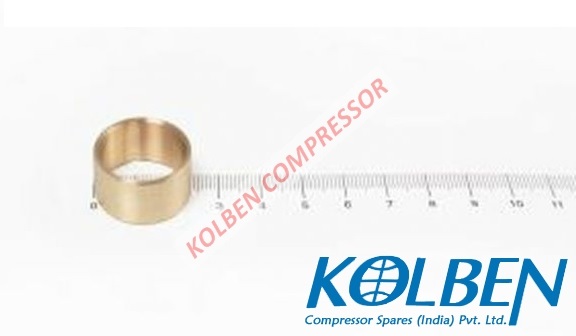

bearing bush Ø23 x Ø20 x 13,5 (31110407)
|
|
|
5. |
|
IV |
311104-09 |

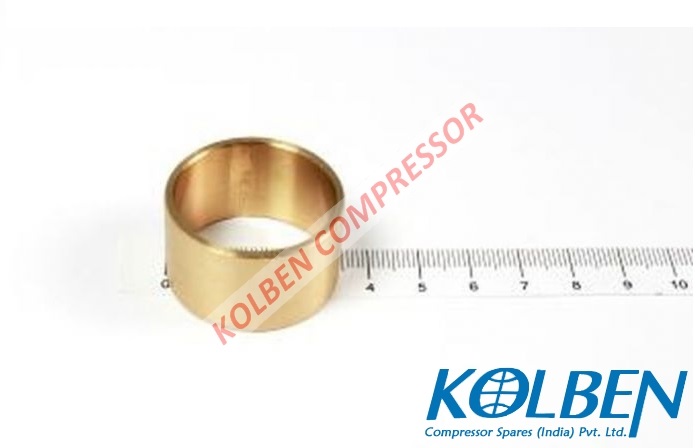

bearing bush face side Ø34 x Ø30 x 20 (31110409)
|
|
|
6. |
|
IV |
311103-02 |
bearing bush connecting rod Ø22 x Ø17,8 x 27,9 (31110302)
|
|
|
7. |
|
IV |
311104-06 |
bearing bush face side Ø34 x Ø30 x 20 (31110406)
|
|
|
8. |
|
IV |
315020-02 |
cheese head screw M4 x 4 (31502002)
|
|
|
9. |
|
IV |
380306-02 |
Cheese head screw DIN 912, 10.9 M8 x 20 (38030602)
|
|
|
10. |
|
IV |

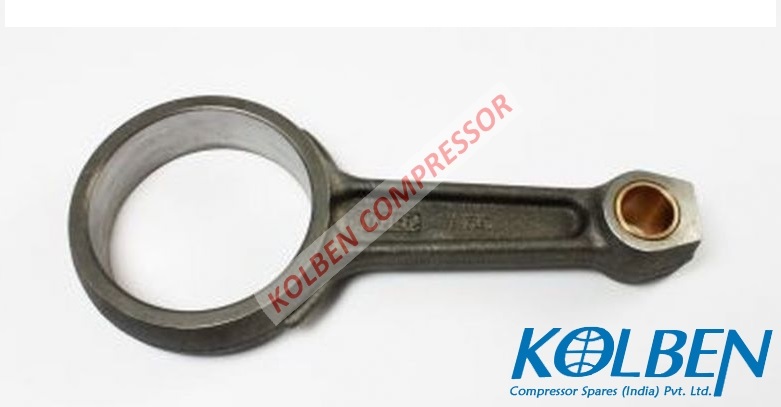

302118-02 |
connecting rod using utmost care Ø75 x Ø18 x 149,5 (30211802)
|
|
|
11. |
|
IV |
302239-05 |

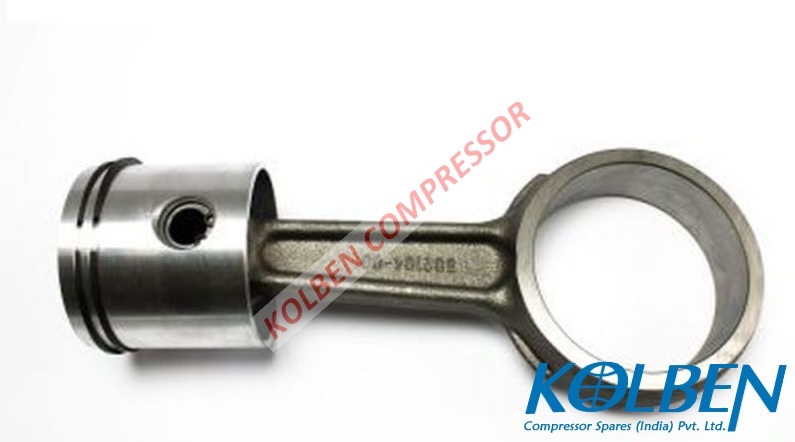

connecting rod / piston (30223905)
|
|
|
12. |
|
IV |
320315-01 |
covering plate for cylinder 28 x 28 x 0,2 (32031501)
|
|
|
13. |
|
IV |
300104-01 |

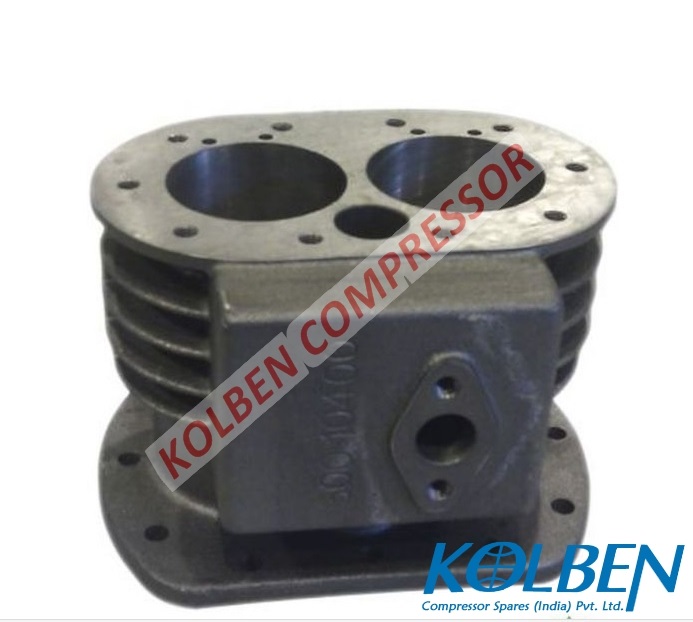

cylinder 200 x 165 x 135 (30010401)
|
|
|
14. |
|
IV |
302306-01 |

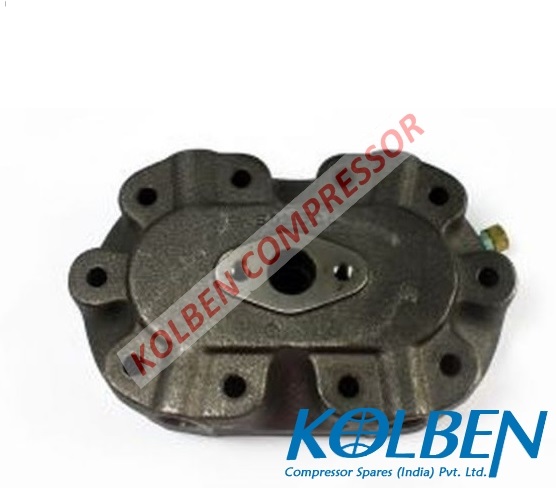

cylinder head water-cooled grey cast iron 191 x 118 x 52 (30230601)
|
|
|
15. |
|
IV |
302305-01 |

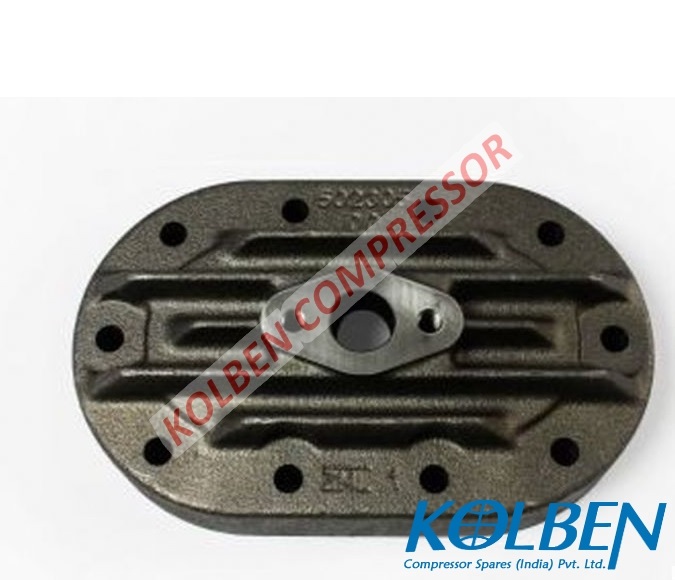

cylinder head air-cooled grey cast iron 191 x 118 x 46 (30230501)
|
|
|
16. |
|
IV |
302014-01 |

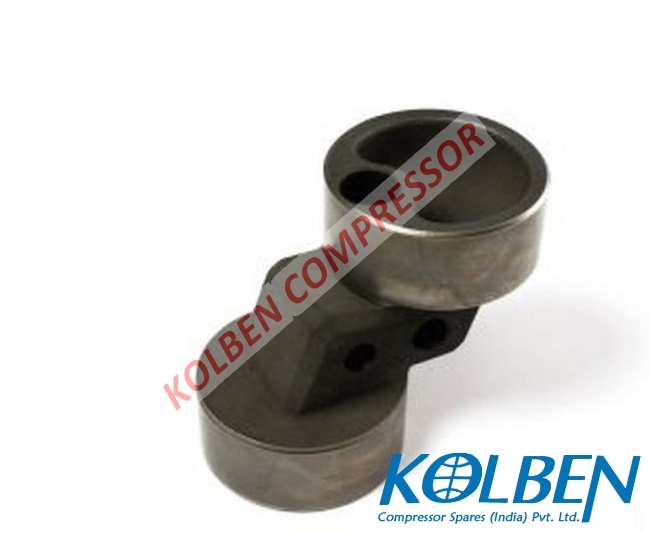

eccentric Ø75 x 103 (30201401)
|
|
|
17. |
|
IV |
310002-01 |

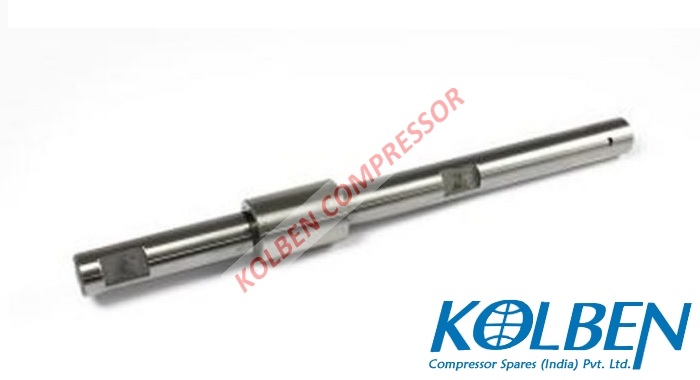

eccentric shaft steel Ø30 x 289 (31000201)
|
|
|
18. |
|
IV |
303219-51 |

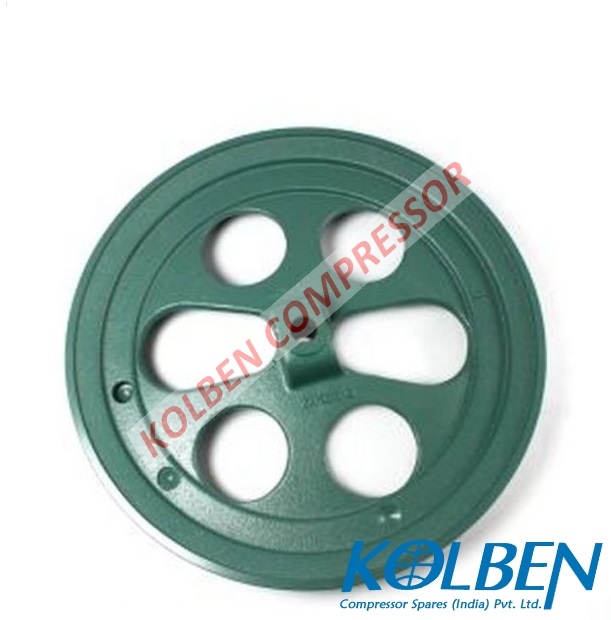

flywheel Ø380 x 52 (30321951)
|
|
|
19. |
|
IV |
372310-02 |
gasket sealing cover Ø56 x Ø22 x 0,5 (37231002)
|
|
|
20. |
|
IV |
372300-03 |

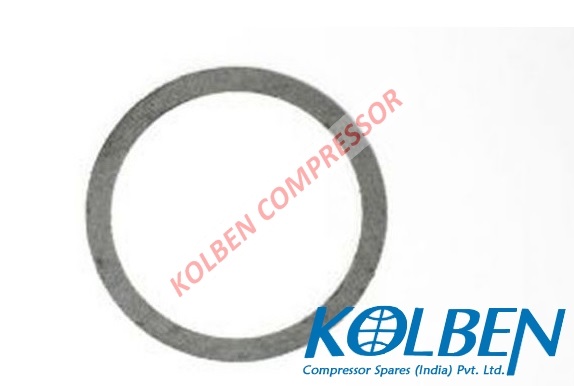

gasket side cover Ø62 x Ø52 x 0,5 (37230003)
|
|
|
21. |
|
IV |
372702-03 |
gasket 35 x 60 x 1 (37270203)
|
|
|
22. |
|
IV |
372200-03 |
Gasket teflon Ø25,4 x Ø22,2 x 1,5 (37220003)
|
|
|
23. |
|
IV |
372604-01 |

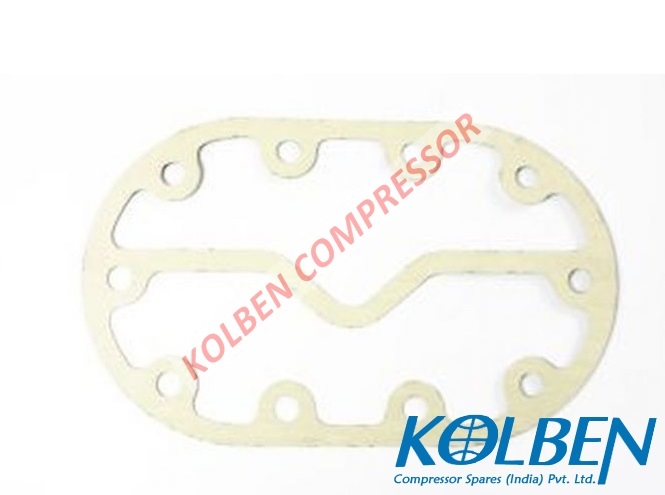

gasket cylinder head 191 x 118 x 0,75 (37260401)
|
|
|
24. |
|
IV |
372404-01 |

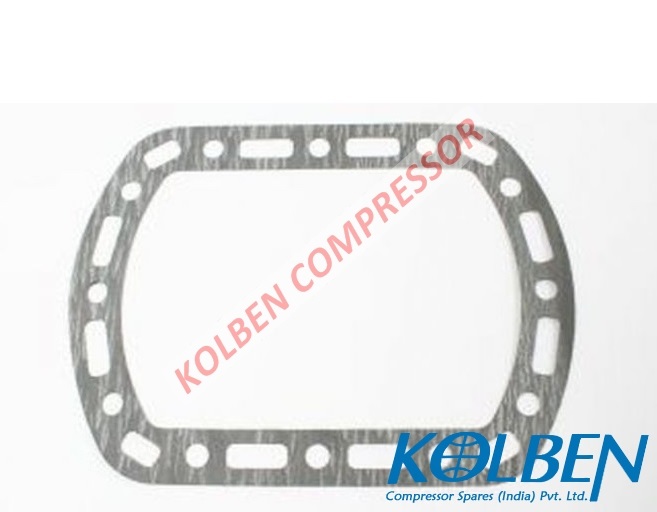

gasket 200 x 150 x 0,5 (37240401)
|
|
|
25. |
|
IV |
372504-01 |

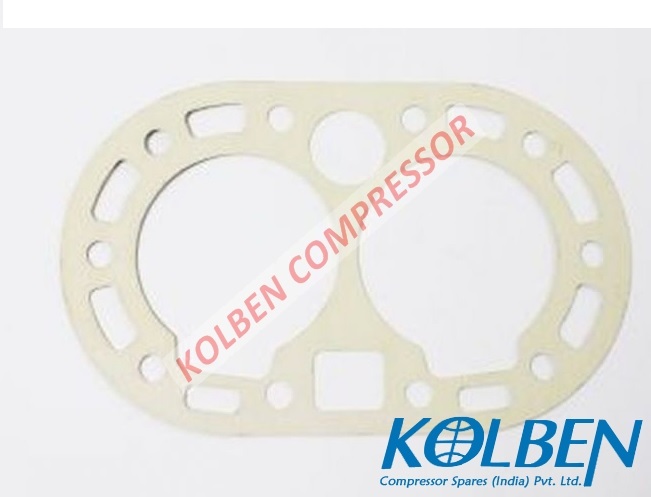

gasket valve plate 118 x 191 x 0,75 (37250401)
|
|
|
26. |
|
IV |
380101-91 |
hexagon head screw coated DIN 933, 8.8 M3 x 6 (38010191)
|
|
|
27. |
|
IV |
380155-05 |

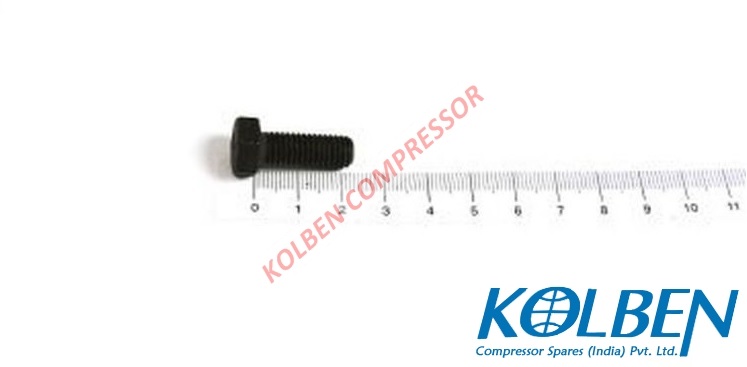

hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
|
|
|
28. |
|
IV |
315000-02 |
hexagon head screw M4 x 17,5 (31500002)
|
|
|
29. |
|
IV |
380055-04 |
hexagon head screw DIN 931, 10.9 M8 x 55 (38005504)
|
|
|
30. |
|
IV |
380155-06 |
hexagon head screw DIN 933, 10.9 M8 x 22 (38015506)
|
|
|
31. |
|
IV |
380055-08 |

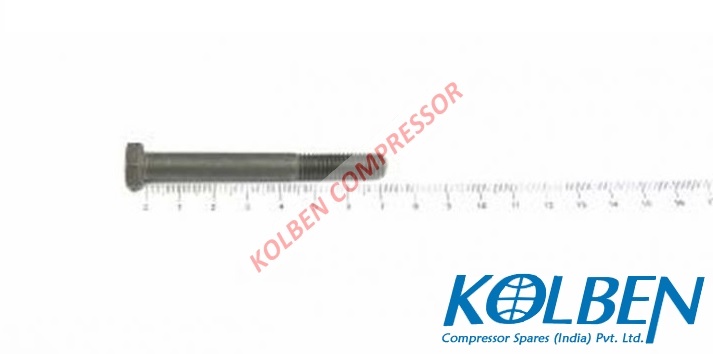

hexagon head screw DIN 931, 10.9 M8 x 70 (38005508)
|
|
|
32. |
|
IV |
380154-06 |
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
|
|
|
33. |
|
IV |
381101-05 |
hexagon nut DIN 934, 8.8 M8 (38110105)
|
|
|
34. |
|
IV |
381101-04 |
hexagon nut DIN 934, 8.8 M6 (38110104)
|
|
|
35. |
|
IV |
300025-01 |
housing 250 x 223 x 171 (30002501)
|
|
|
36. |
|
IV |
313100-01 |
insert plate Ø10 x 4,5 (31310001)
|
|
|
37. |
|
IV |
324018-02 |
locking plate 53,5 x 8,2 x 2,6 (32401802)
|
|
|
38. |
|
IV |
372001-03 |

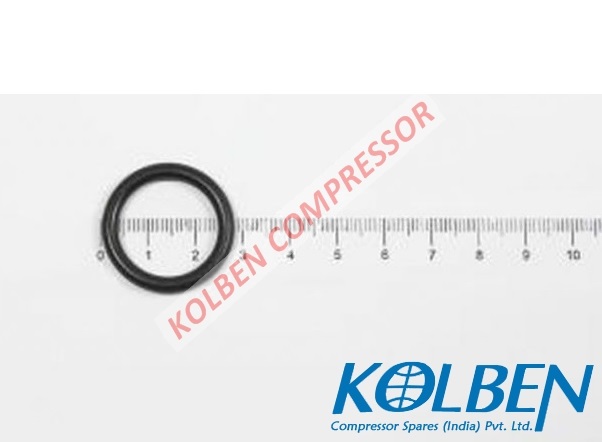

O-ring violet HCFC, (CFC) Ø20 x 3,5 (37200103)
|
|
|
39. |
|
IV |
372001-05 |

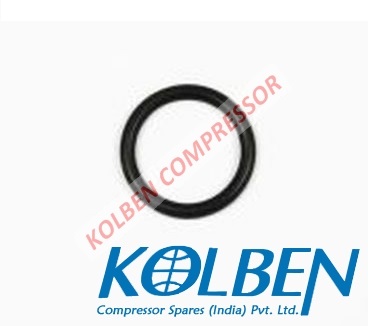

O-ring violet HCFC, (CFC) Ø23 x 3,5 (37200105)
|
|
|
40. |
|
IV |
372003-15 |
O-ring sight glass Ø36,3 x 1,78 (37200315)
|
|
|
41. |
|
IV |
320308-04 |

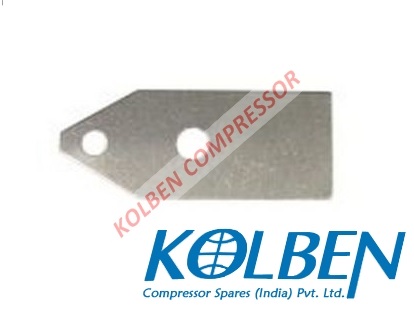

oil splasher plate 74 x 30 x 1 (32030804)
|
|
|
42. |
|
IV |
366000-03 |
pipe connection Brazed connection steel copper-plated Ø22, 1 1/4" - 12 UNF (36600003)
|
|
|
43. |
|
IV |
302233-14 |

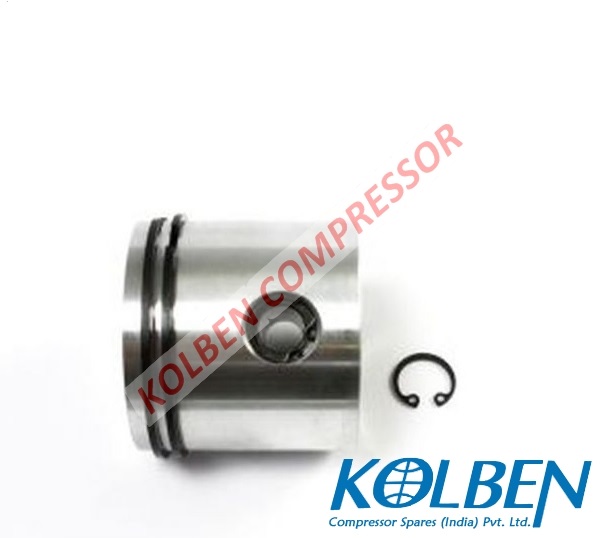

piston aluminium alloy Ø65 x 59,9 x Ø18 (30223314)
|
|
|
44. |
|
IV |
382300-35 |

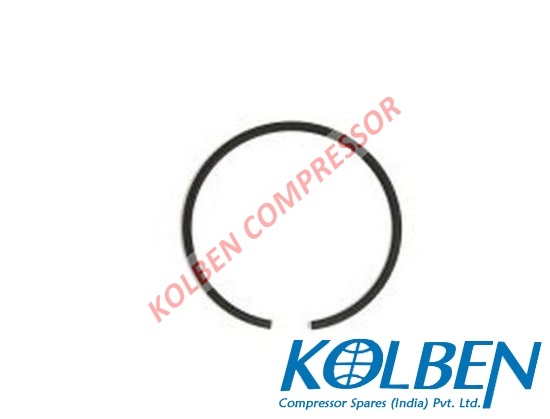

piston ring Ø65 x 2 (38230035)
|
|
|
45. |
|
IV |
325000-19 |
pressure spring steel 1,1 x Ø6,5 x 13 (32500019)
|
|
|
46. |
|
IV |
325000-24 |

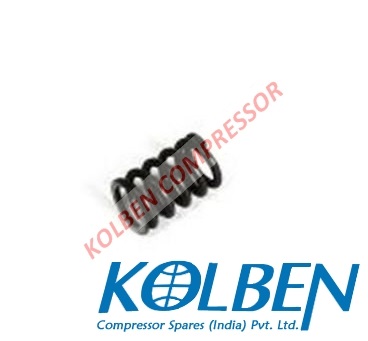

pressure spring steel 2,2 x Ø12,7 x 23 (32500024)
|
|
|
47. |
|
IV |
366201-17 |
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
|
|
|
48. |
|
IV |
320230-02 |
retainer 55 x 19,2 x 2 (32023002)
|
|
|
49. |
|
IV |
382231-03 |

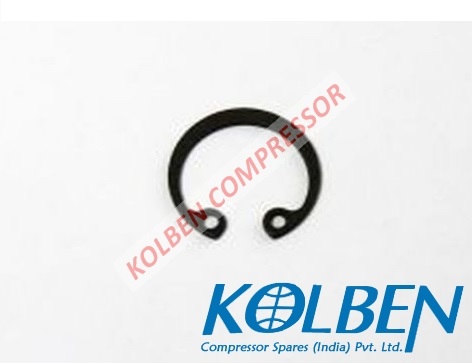

retaining ring with lugs spring steel DIN 472 Ø18 x 1 (38223103)
|
|
|
50. |
|
IV |
305412-02 |
sealing cover Ø55 x 10 (30541202)
|
|
|
51. |
|
IV |
366202-01 |
sealing nut 7/16" - 20 UNF (36620201)
|
|
|
52. |
|
IV |
366110-01 |
Sealing plug steel 1/8“ - 27 NPTF (36611001)
|
|
|
53. |
|
IV |
366110-08 |
Sealing Plug steel 1/4" - 18NPTF (36611008)
|
|
|
54. |
|
IV |
366111-21 |
sealing plug 1/4" - 18 NPTF (36611121)
|
|
|
55. |
|
IV |
374008-03 |

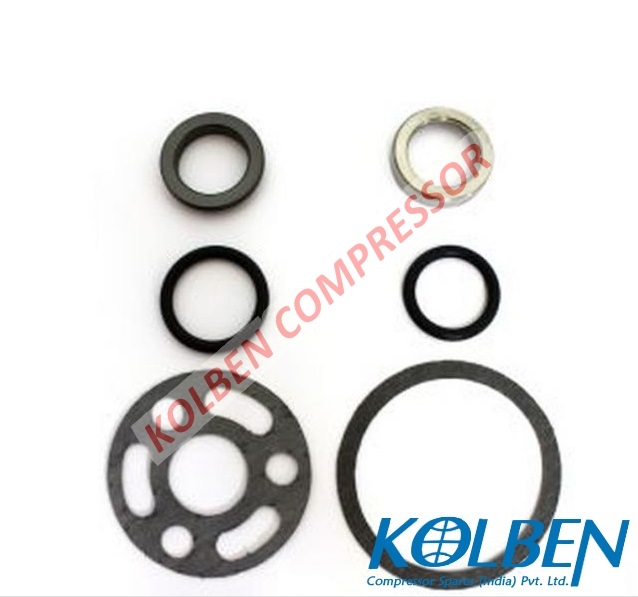

shaft seal (37400803)
|
|
|
56. |
|
IV |
361315-10 |
shut-off valve brazed connection Ø16 L (36131510)
|
|
|
57. |
|
IV |
361310-05 |

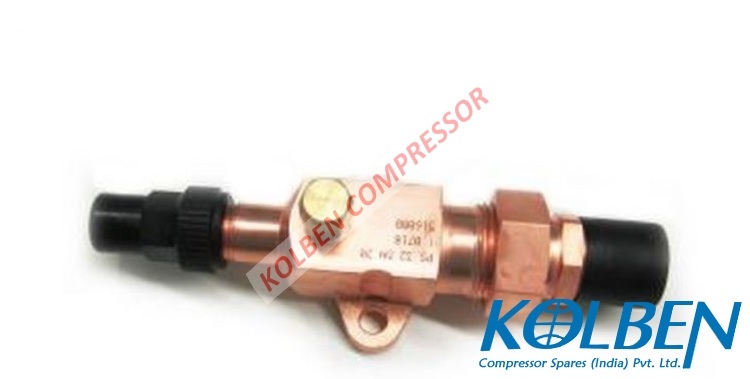

shut-off valve brazing and welding bush Ø22 (1 7/8") (36131005)
|
|
|
58. |
|
IV |
305302-01 |

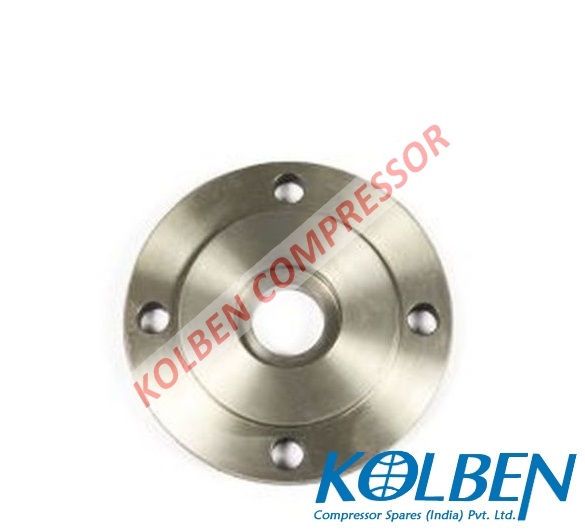

side cover Ø95 x 30 (30530201)
|
|
|
59. |
|
IV |
361802-02 |
sight glass Ø67 x 8,5 (36180202)
|
|
|
60. |
|
IV |
382201-04 |
single coil spring washer spring steel DIN 127 B8 (38220104)
|
|
|
61. |
|
IV |
320501-02 |

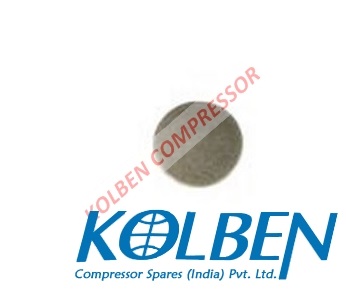

spacer washer spring compensation Ø15 x 0,5 (32050102)
|
|
|
62. |
|
IV |
362001-03 |
suction gas filter Ø23 x 36 (36200103)
|
|
|
63. |
|
IV |
315100-05 |
threaded key M8, Ø14 x 54 (31510005)
|
|
|
64. |
|
IV |
315107-10 |

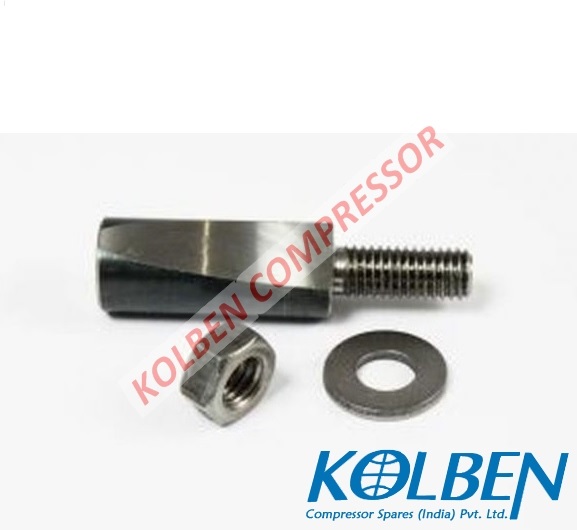

threaded key eccentric (31510710)
|
|
|
65. |
|
IV |
315100-02 |
threaded key M6, Ø12 x 52 (31510002)
|
|
|
66. |
|
IV |
315107-09 |

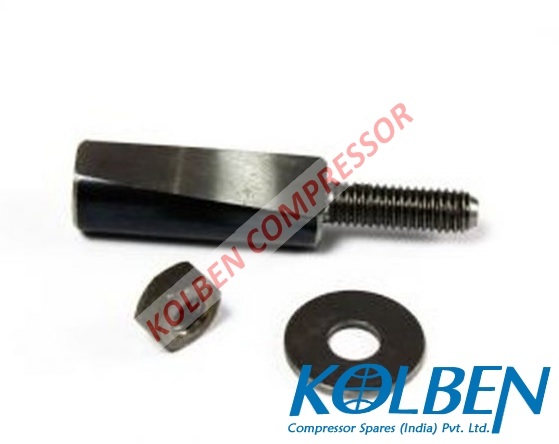

threaded key eccentric (31510709)
|
|
|
67. |
|
IV |
315107-03 |
threaded key flywheel (31510703)
|
|
|
68. |
|
IV |
304050-05 |
valve plate Ø65 (30405005)
|
|
|
69. |
|
IV |
320210-02 |
valve reed 54 x 19 x 0,5 (32021002)
|
|
|
70. |
|
IV |
320200-04 |
valve reed 44 x 24,1 x 0,25 (32020004)
|
|
|
71. |
|
IV |
382011-02 |
washer DIN 134 A8, 4 (38201102)
|
|
|
72. |
|
IV |
382021-02 |
washer steel DIN 9021 A6, 4 (38202102)
|
|
|
73. |
|
IV |
383401-16 |
wrist pin Ø18 x 12 x 56 (38340116)
|
|
