Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|
1. |
|
4V-10.2 |
302901-01 |

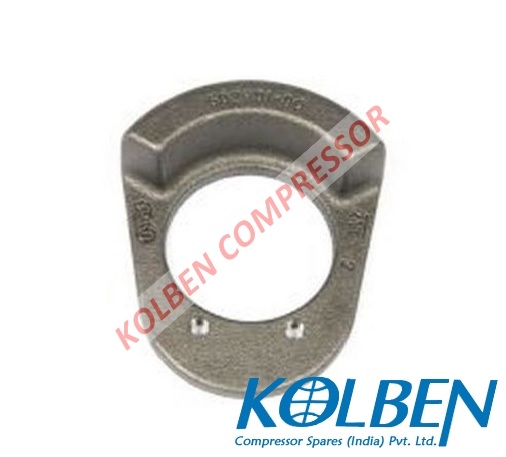

balance weight grey cast iron 119,5 x 33,5 x 100 (30290101)
|
|
|

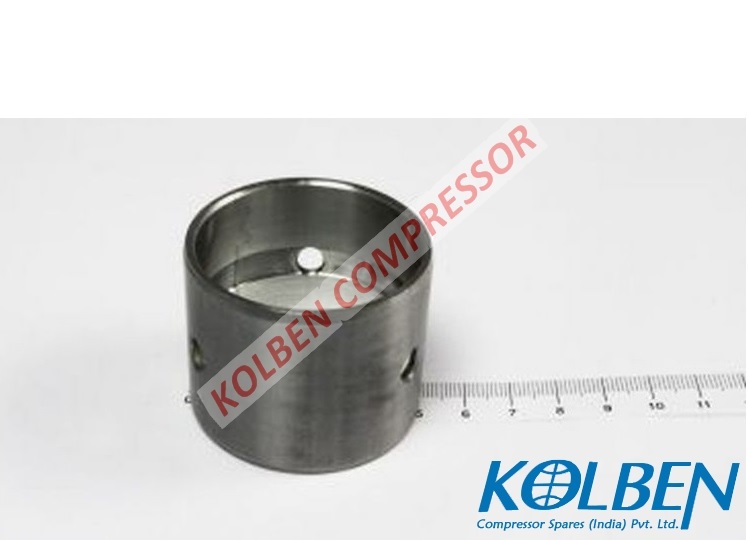

2. |
|
4V-10.2 |
311100-17 |
bearing bush Ø50 x Ø45 x 40,7 (31110017)
|
|
|
3. |
|
4V-10.2 |
311100-07 |

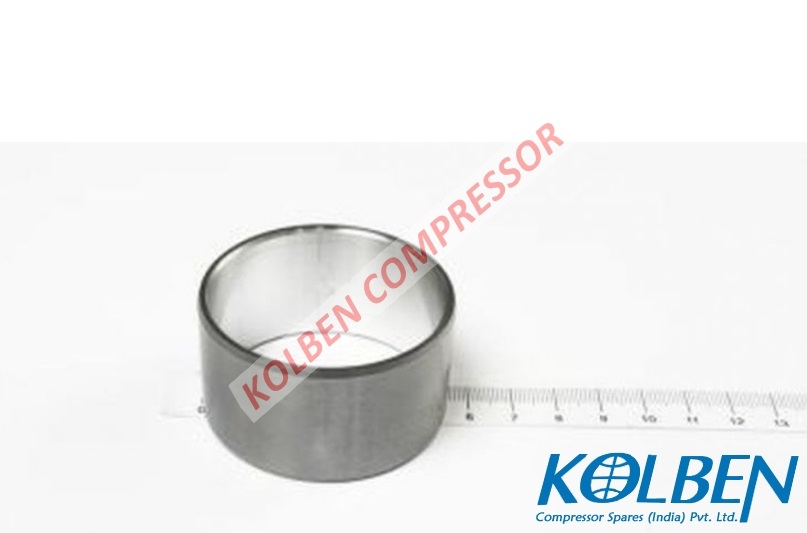

bearing bush Motor side Ø55 x Ø50 x 30 (31110007)
|
|
|

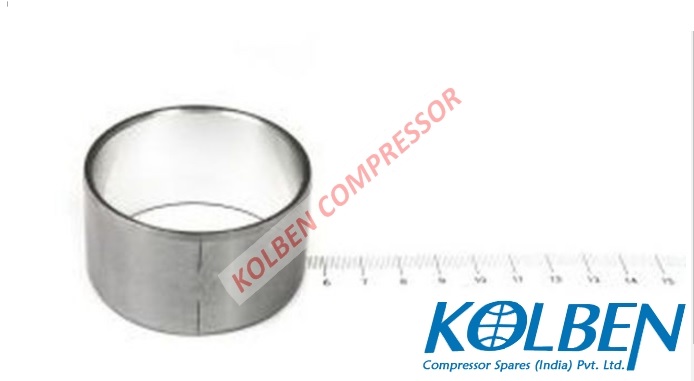

4. |
|
4V-10.2 |
311100-14 |
bearing bush Crankcase side Ø55 x Ø50 x 30 (31110014)
|
|
|
5. |
|
4V-10.2 |
305125-02 |

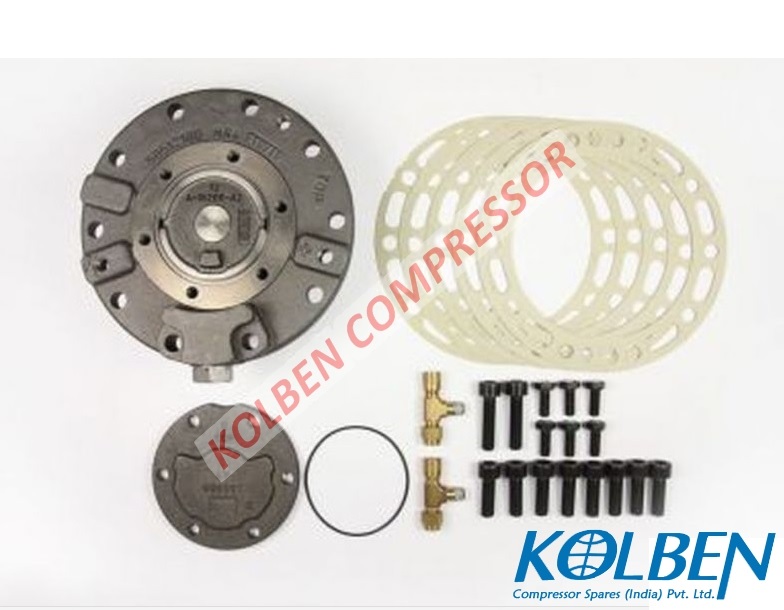

bearing cover inclusive oil pump (30512502)
|
|
|
6. |
|
4V-10.2 |
320307-03 |

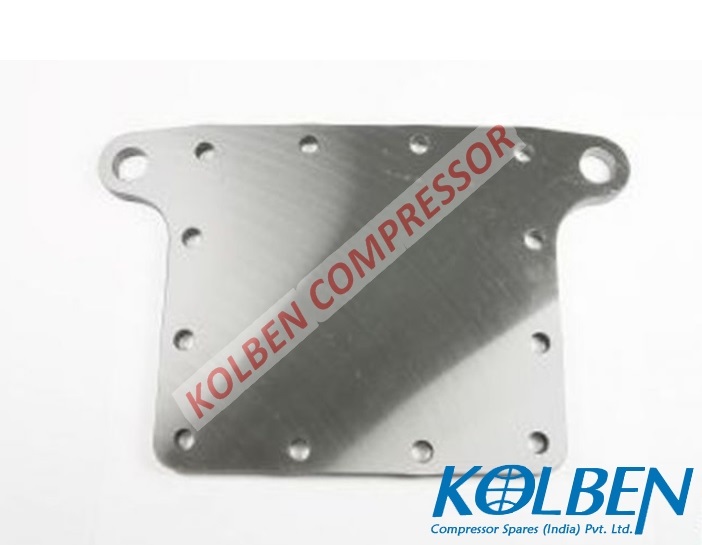

bottom plate steel 220 x 200 x 12 x Ø21 (32030703)
|
|
|
7. |
|
4V-10.2 |
346265-46 |
built-in motor 7.4 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34626546)
|
|
|
8. |
|
4V-10.2 |
302915-02 |
cable connector separate out using filters brass (30291502)
|
|
|
9. |
|
4V-10.2 |
321202-01 |
centering plate steel 167 x 122 x 12 (32120201)
|
|
|
10. |
|
4V-10.2 |
380508-51 |
Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
|
|
|
11. |
|
4V-10.2 |
380306-32 |
Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
|
|
|
12. |
|
4V-10.2 |
380507-51 |
cheese head screw 4.8 galvanized M4 x 8 (38050751)
|
|
|

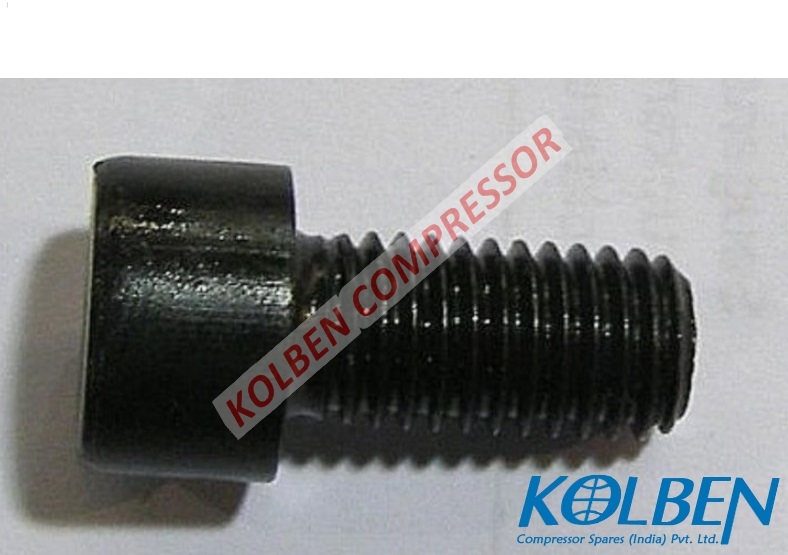

13. |
|
4V-10.2 |
380306-22 |
cheese head screw DIN 912, 10.9 M10 x 20 (38030622)
|
|
|

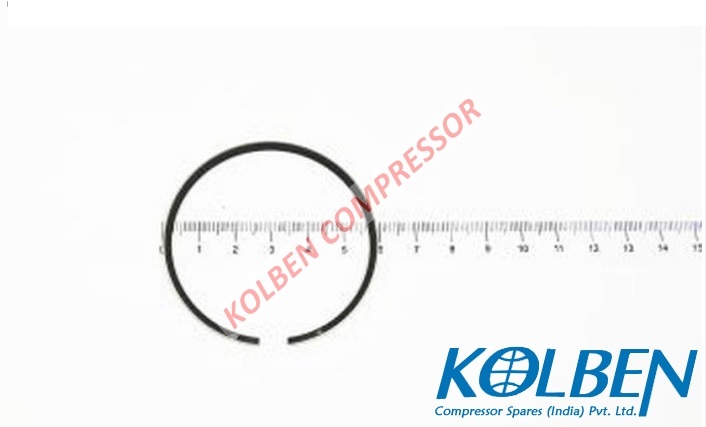

14. |
|
4V-10.2 |
382300-49 |
compression ring Ø55 x 1,5 (38230049)
|
|
|

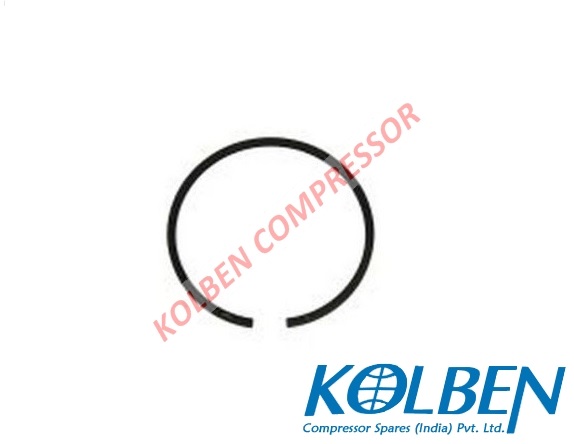

15. |
|
4V-10.2 |
382310-16 |
Compression ring Piston diameter 54,96mm Ø55 x 1,5 (38231016)
|
|
|
16. |
|
4V-10.2 |
302114-02 |

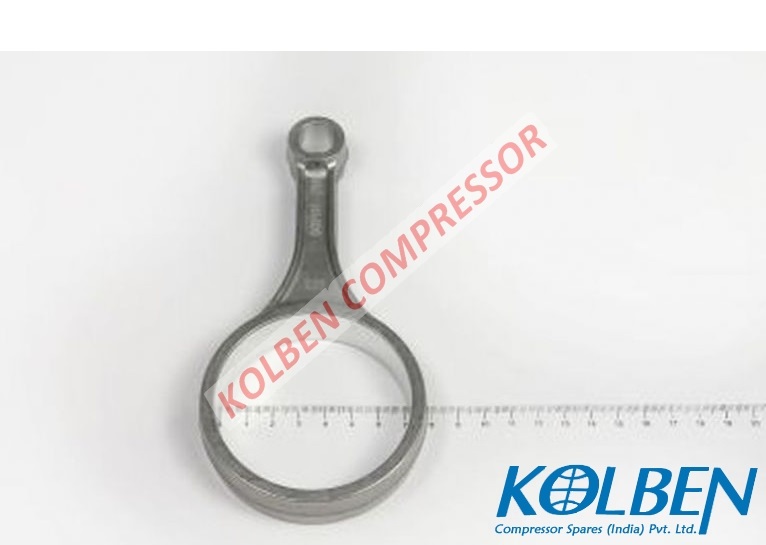

connecting rod Ø70 x Ø15 x 117 (30211402)
|
|
|

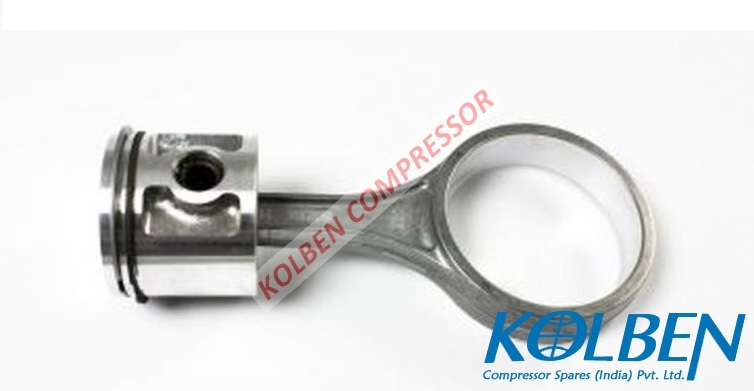

17. |
|
4V-10.2 |
302297-20 |
connecting rod / piston (30229720)
|
|
|
18. |
|
4V-10.2 |
320318-03 |
connection bridge brass A 5,4 (32031803)
|
|
|
19. |
|
4V-10.2 |
343417-07 |
connection to ground, (34341707)
|
|
|
20. |
|
4V-10.2 |
343413-01 |
conversion kit violet (34341301)
|
|
|
21. |
|
4V-10.2 |
305914-45 |
Cover black 313 x 175 x 11 (30591445)
|
|
|
22. |
|
4V-10.2 |
343208-34 |

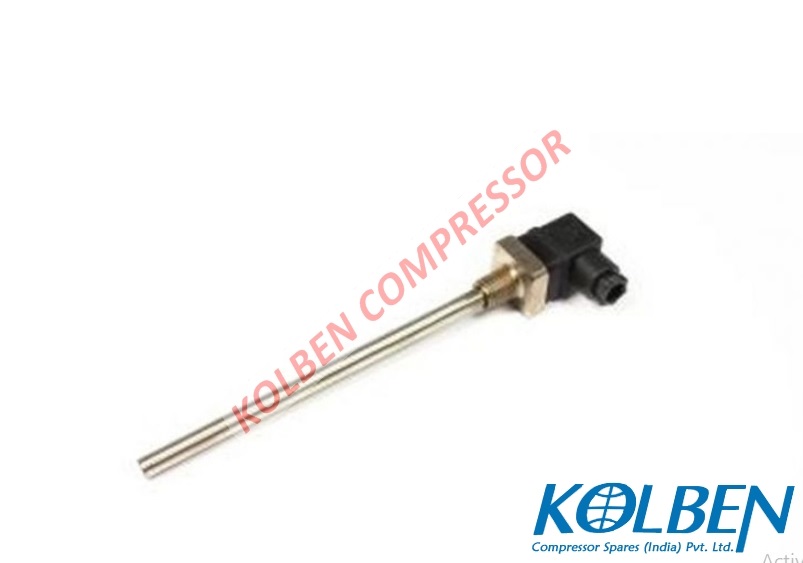

Crankcase Heater heating capacity: 100W 230V-1-50/60Hz (34320834)
|
|
|
23. |
|
4V-10.2 |
380507-52 |
Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
|
|
|
24. |
|
4V-10.2 |
302360-11 |

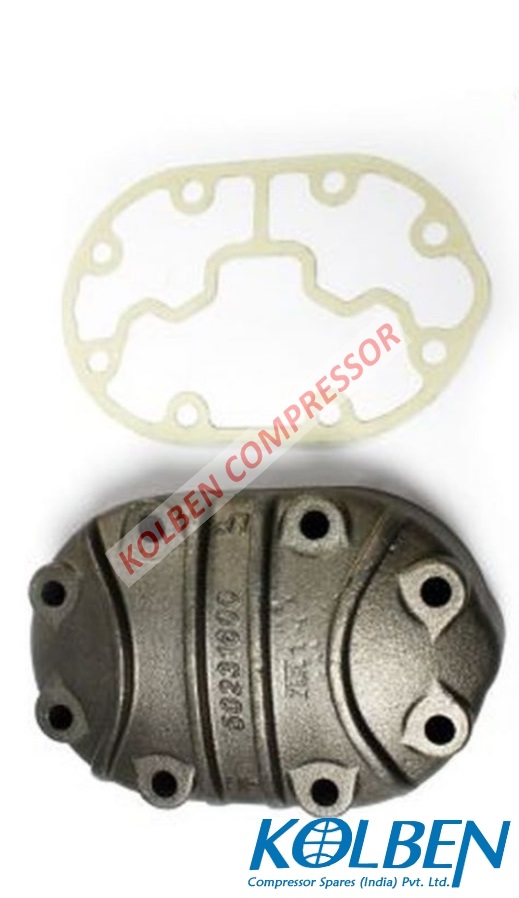

cylinder head air-cooled Air cooled 196 x 127 x 55 (30236011)
|
|
|

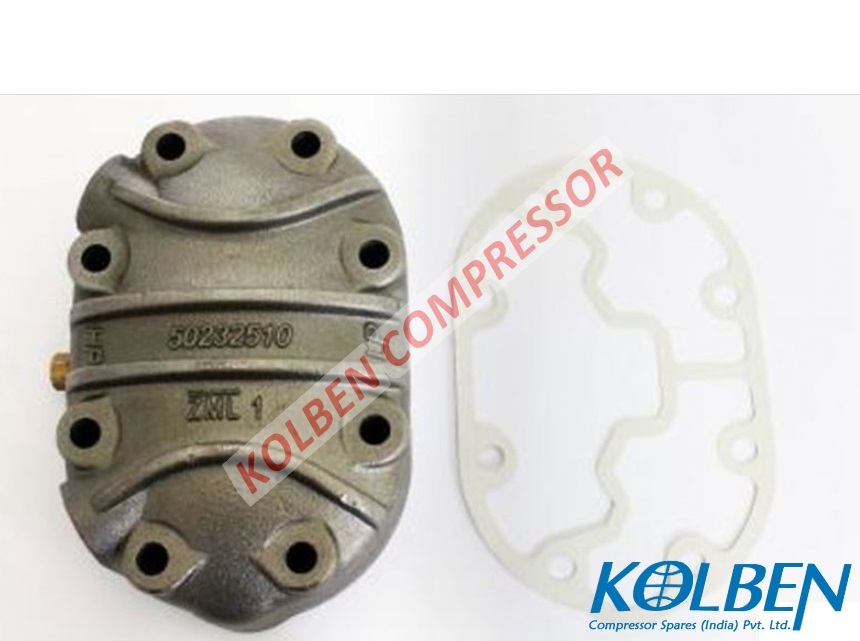

25. |
|
4V-10.2 |
302360-01 |
cylinder head Water cooled (30236001)
|
|
|
26. |
|
4V-10.2 |
325002-05 |

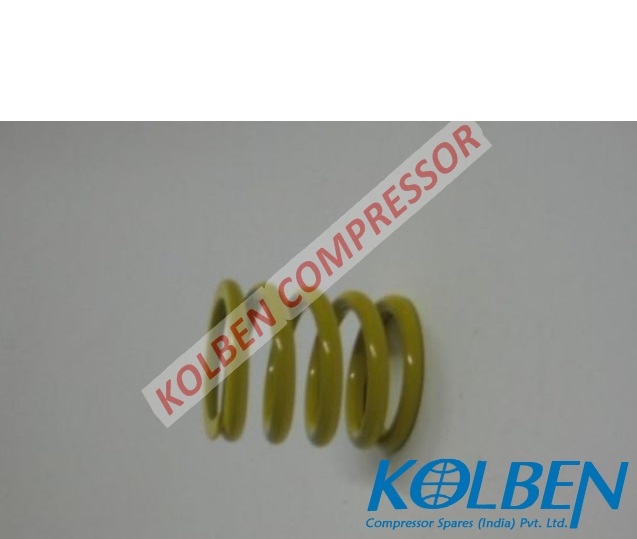

damper element yellow spring steel 42 mm (32500205)
|
|
|

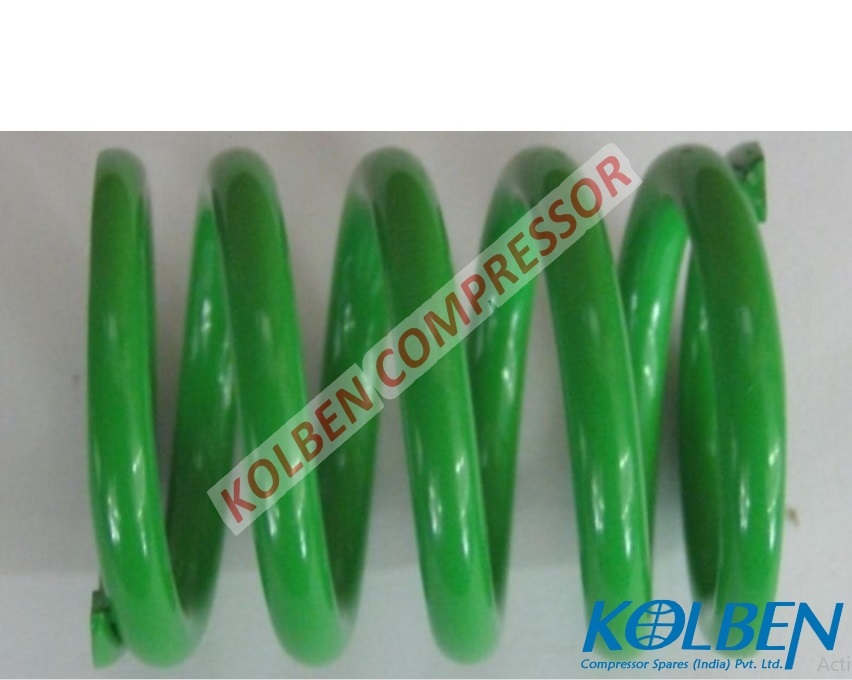

27. |
|
4V-10.2 |
325002-06 |
damper element green spring steel 46 mm (32500206)
|
|
|
28. |
|
4V-10.2 |
347320-33 |
differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
|
|
|

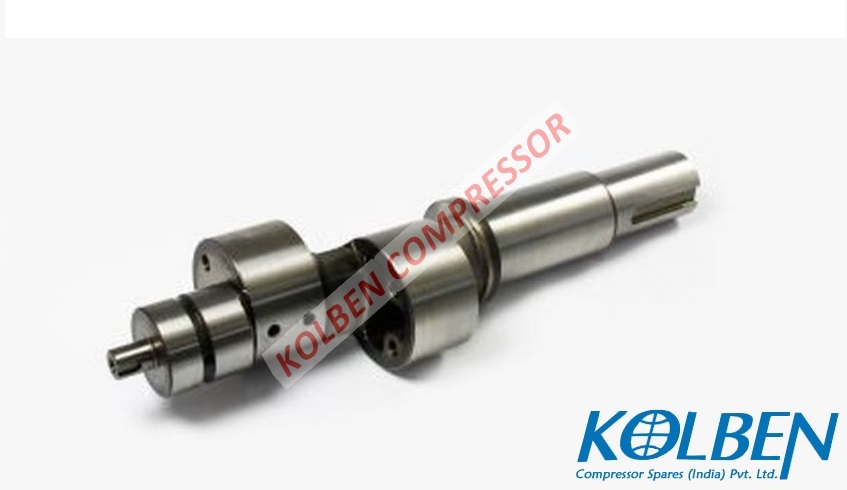

29. |
|
4V-10.2 |
301105-50 |
eccentric shaft Stroke 40mm Ø70 x 374 (30110550)
|
|
|
30. |
|
4V-10.2 |
389002-01 |
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
|
|
|
31. |
|
4V-10.2 |
320314-01 |
fixing plate MP54 140 x 40 x 3 (32031401)
|
|
|
32. |
|

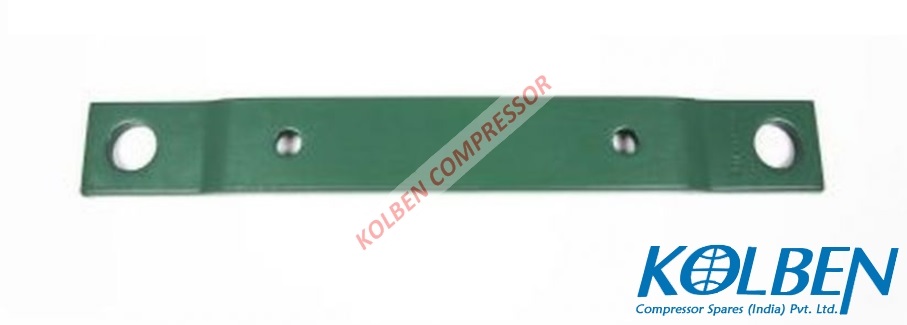

4V-10.2 |
327309-02 |
foot 315 x 40 x 8 x Ø21 (32730902)
|
|
|
33. |
|
4V-10.2 |
361110-01 |
gas equalising valve (36111001)
|
|
|
34. |
|
4V-10.2 |
372314-03 |
gasket Ø182 x Ø133 x 1 (37231403)
|
|
|
35. |
|
4V-10.2 |
372704-01 |
Gasket discharge shut-off valve 91 x 52 x 1 (37270401)
|
|
|

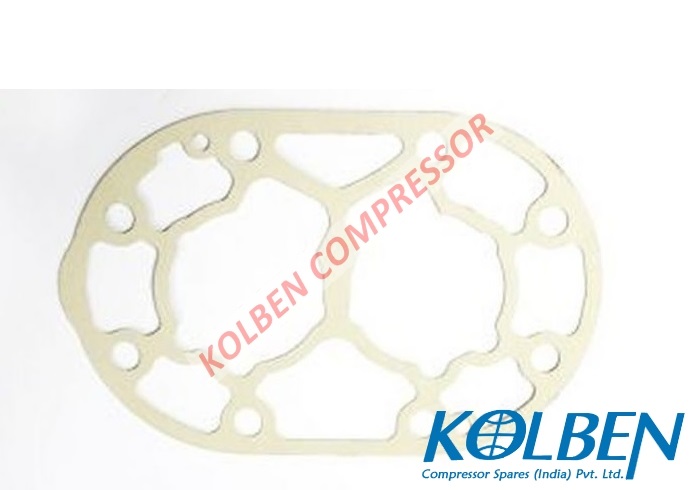

36. |
|
4V-10.2 |
372510-11 |
gasket Ø55, 127 x 196 x 0,9 (37251011)
|
|
|

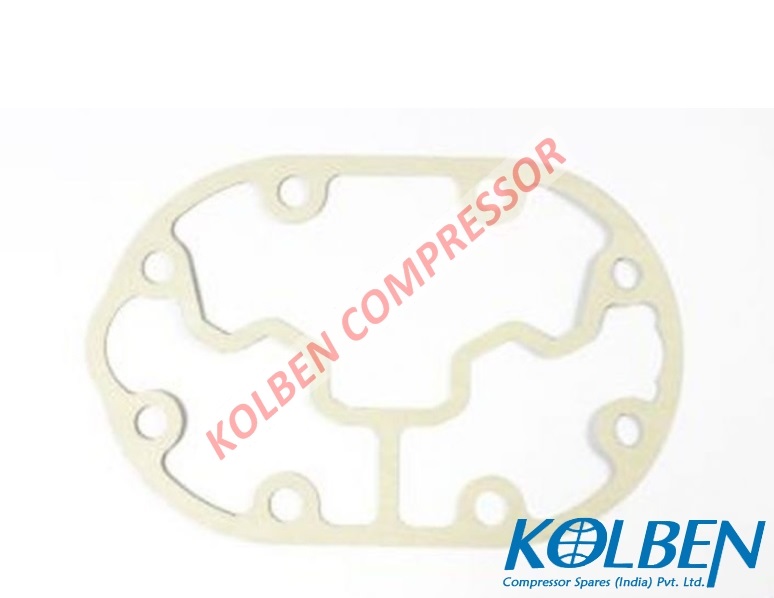

37. |
|
4V-10.2 |
372611-01 |
gasket valve plate Capacity control 192 x 127 x 0,75 (37261101)
|
|
|
38. |
|
4V-10.2 |
372200-03 |

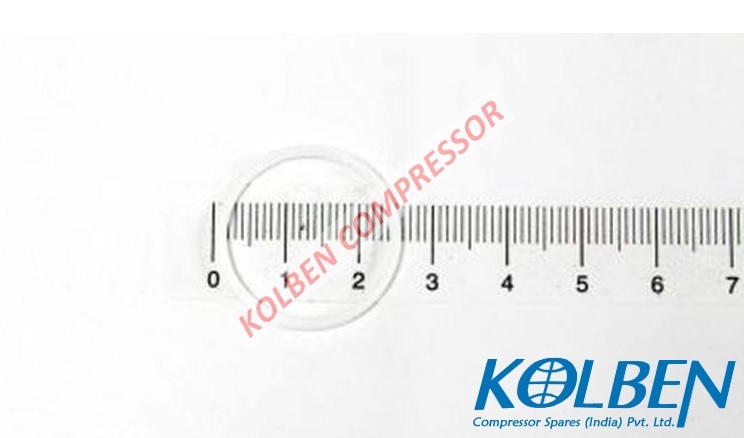

Gasket teflon Ø25,4 x Ø22,2 x 1,5 (37220003)
|
|
|
39. |
|
4V-10.2 |
372421-14 |
gasket 163 x 118 x 0,5 (37242114)
|
|
|
40. |
|
4V-10.2 |
372124-01 |
gasket violet 165 x 120 x 3 (37212401)
|
|
|
41. |
|
4V-10.2 |
372138-02 |
gasket (37213802)
|
|
|
42. |
|
4V-10.2 |
372120-01 |
gasket 133 x 117 x 2 (37212001)
|
|
|
43. |
|
4V-10.2 |
372200-04 |
gasket teflon Ø38 x Ø35 x 1,5 (37220004)
|
|
|
44. |
|
4V-10.2 |
372315-03 |
gasket Ø286 x Ø236 x 0,38 (37231503)
|
|
|
45. |
|
4V-10.2 |
372413-01 |

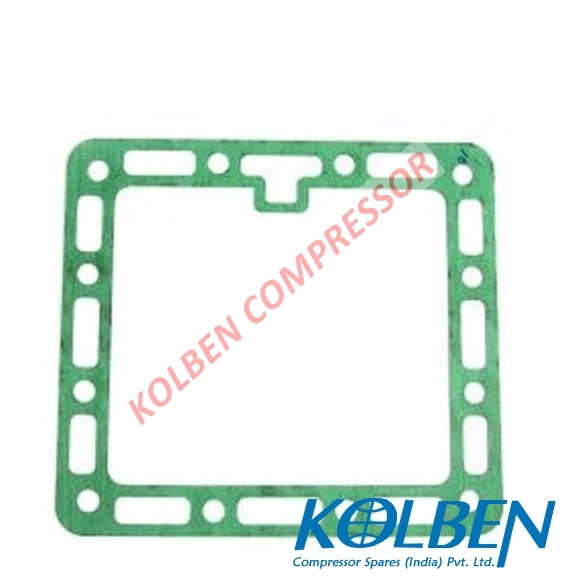

gasket 220 x 200 x 1 (37241301)
|
|
|
46. |
|
4V-10.2 |
382403-05 |
Gasket Ring aluminium DIN 7603 A22 x 27 x 1,5 (38240305)
|
|
|
47. |
|
4V-10.2 |
375000-01 |
gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)
|
|
|
48. |
|
4V-10.2 |
375000-03 |
gasket ring Ø16 x Ø8 x 8,5 (37500003)
|
|
|
49. |
|

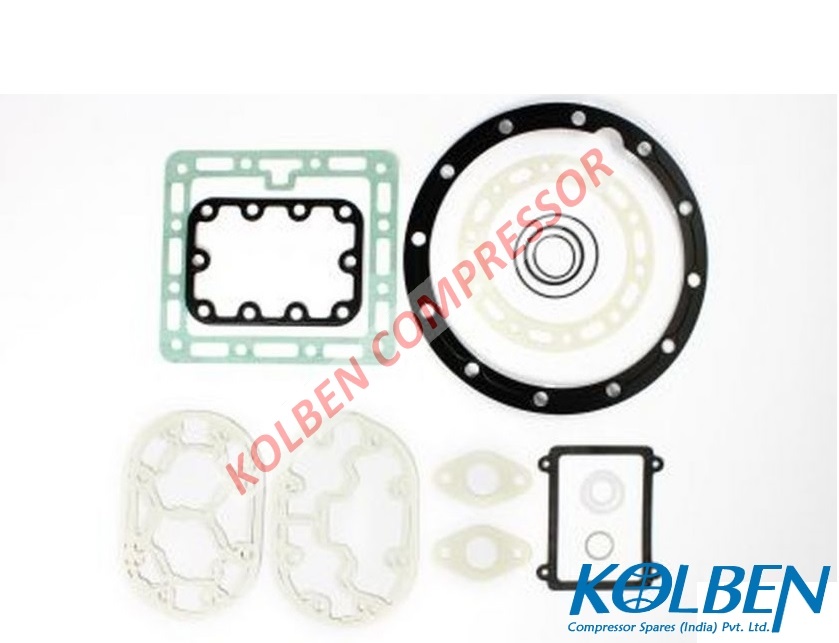

4V-10.2 |
372808-05 |
gasket set (37280805)
|
|
|
50. |
|
4V-10.2 |
384101-05 |
gib-headed key start menu steel DIN 6887 5 x 5 x 36 (38410105)
|
|
|
51. |
|
4V-10.2 |
345906-04 |

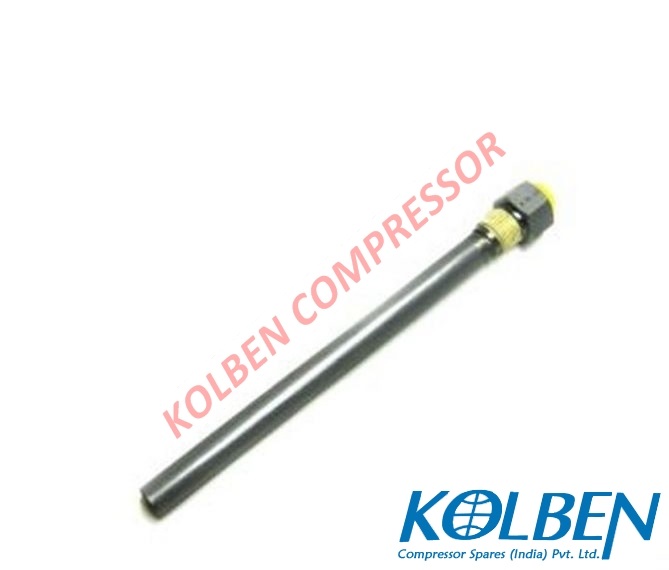

heater sleeve for 100W heater (34590604)
|
|
|
52. |
|
4V-10.2 |
380156-05 |
hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)
|
|
|
53. |
|
4V-10.2 |
380155-05 |
hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
|
|
|
54. |
|
4V-10.2 |
380059-02 |
hexagon head screw DIN 931, 10.9 M16 x 60 (38005902)
|
|
|
55. |
|
4V-10.2 |
380057-02 |

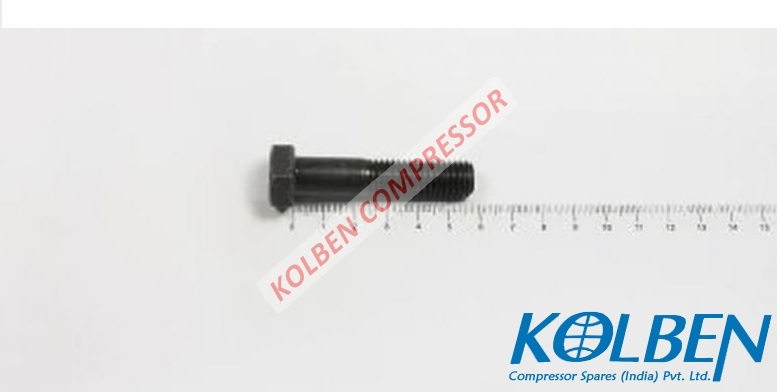

hexagon head screw DIN 931, 10.9 M12 x 55 (38005702)
|
|
|

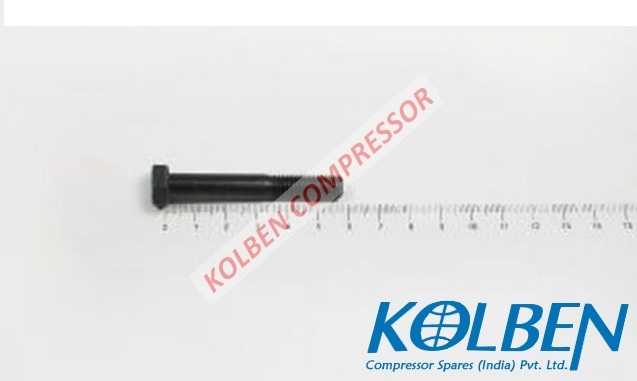

56. |
|
4V-10.2 |
380055-04 |
hexagon head screw DIN 931, 10.9 M8 x 55 (38005504)
|
|
|
57. |
|
4V-10.2 |
380154-06 |
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
|
|
|
58. |
|
4V-10.2 |
380056-07 |
hexagon head screw DIN 931, 10.9 M10 x 80 (38005607)
|
|
|
59. |
|
4V-10.2 |
381301-05 |
hexagon nu brass M8 (38130105)
|
|
|
60. |
|
4V-10.2 |
381301-03 |
hexagon nut brass M5 (38130103)
|
|
|
61. |
|
4V-10.2 |
380339-01 |
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
|
|
|
62. |
|
4V-10.2 |
300027-12 |
housing Ø55 (30002712)
|
|
|
63. |
|
4V-10.2 |
305206-01 |

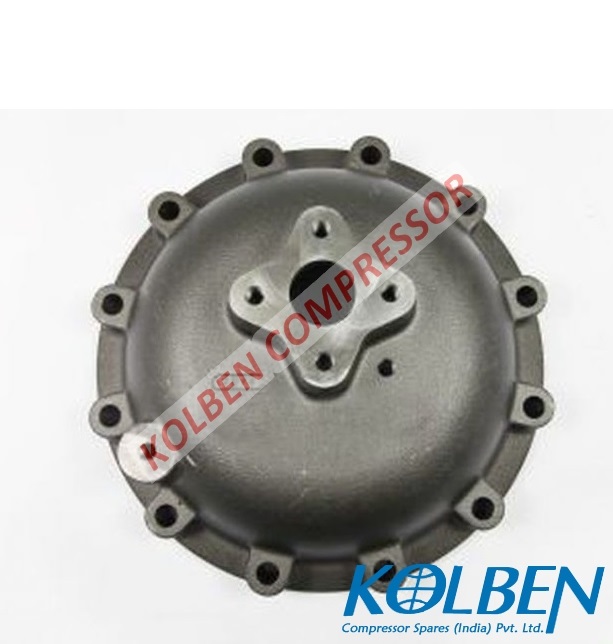

housing cover grey cast iron Ø286 x 38 (30520601)
|
|
|
64. |
|
4V-10.2 |
375002-03 |
insulating plate 85 x 25 x 6 (37500203)
|
|
|
65. |
|
4V-10.2 |
375002-01 |
insulating plate 53 x 18 x 6,5 (37500201)
|
|
|
66. |
|
4V-10.2 |
345923-06 |
insulating plate (34592306)
|
|
|
67. |
|
4V-10.2 |
372001-19 |
O-ring Ø74 x 2 (37200119)
|
|
|
68. |
|
4V-10.2 |
372003-15 |
O-ring Ø36,3 x 1,78 (37200315)
|
|
|

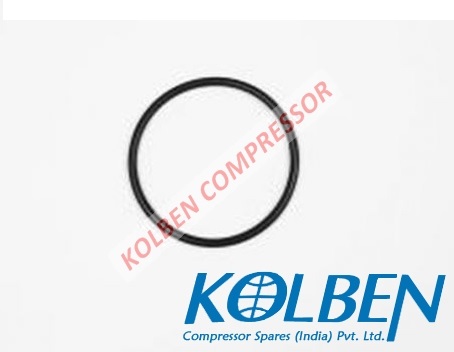

69. |
|
4V-10.2 |
372001-16 |
O-ring Ø50 x 3 (37200116)
|
|
|
70. |
|
4V-10.2 |
362003-02 |
oil filter Ø14 x 105 (36200302)
|
|
|
71. |
|
4V-10.2 |
362503-01 |
oil pump in view of grey cast iron (36250301)
|
|
|

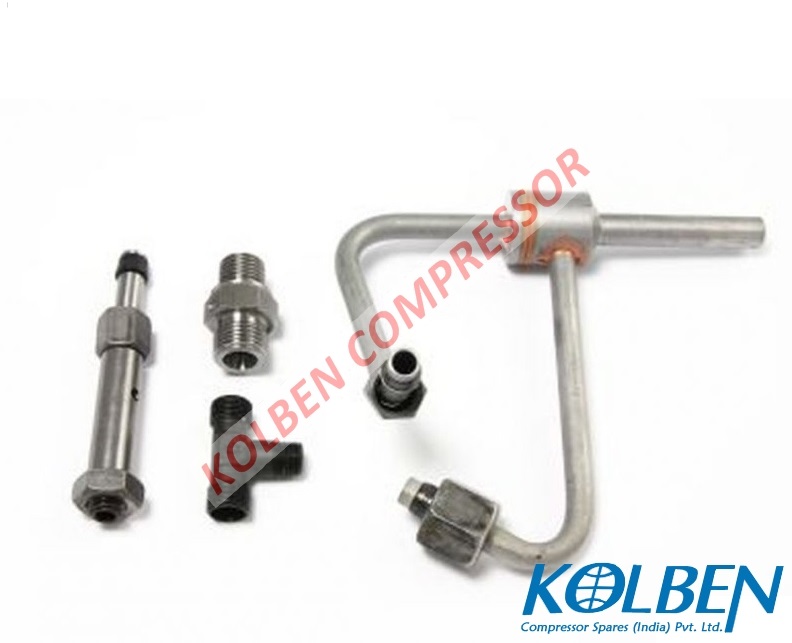

72. |
|
4V-10.2 |
360110-08 |
oil return system (36011008)
|
|
|
73. |
|
4V-10.2 |
380501-54 |
Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)
|
|
|
74. |
|
4V-10.2 |
384001-14 |

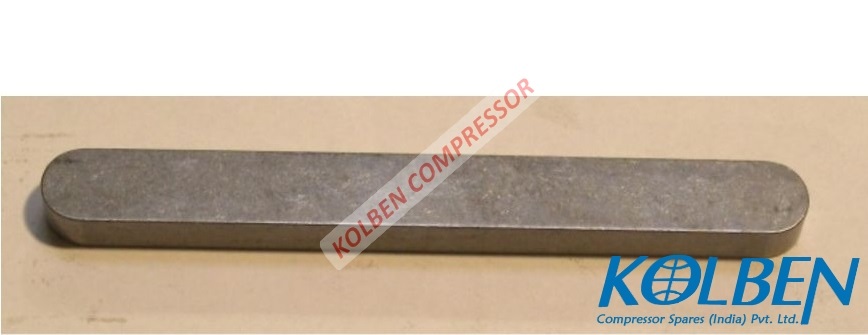

parallel key steel DIN 6885 A12 x 8 x 60 (38400114)
|
|
|

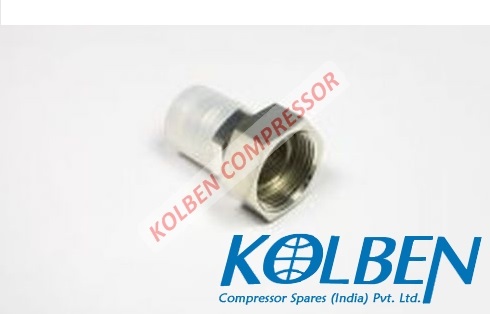

75. |
|
4V-10.2 |
366000-03 |
pipe connection Brazed connection steel copper-plated Ø22, 1 1/4" - 12 UNF (36600003)
|
|
|
76. |
|
4V-10.2 |
366000-06 |
pipe connection steel copper-plated brazed connection Ø28, 1 3/4" - 12 UN (36600006)
|
|
|

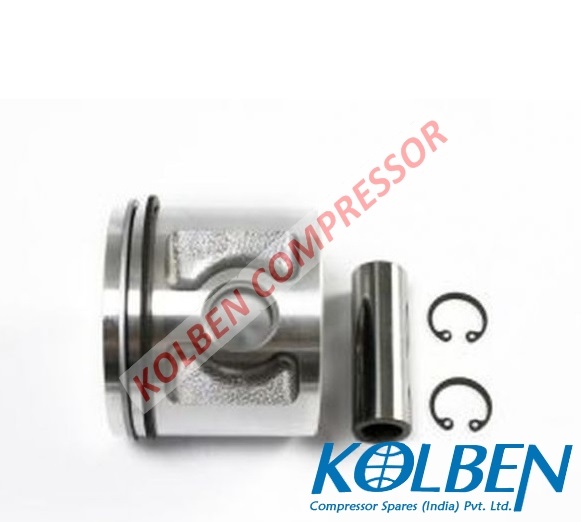

77. |
|
4V-10.2 |
302232-13 |
piston aluminium alloy Ø55 (30223213)
|
|
|
78. |
|
4V-10.2 |
375001-03 |
pressure bush Ø8 x Ø24 x 8 (37500103)
|
|
|
79. |
|
4V-10.2 |
375001-01 |
pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)
|
|
|
80. |
|
4V-10.2 |
325000-01 |
pressure spring steel Ø18 x 28 x 1,25 (32500001)
|
|
|
81. |
|
4V-10.2 |
347028-01 |
protection device SE-B2 230V-50/60Hz (34702801)
|
|
|
82. |
|
4V-10.2 |
366201-17 |
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
|
|
|
83. |
|
4V-10.2 |
366201-19 |
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
|
|
|

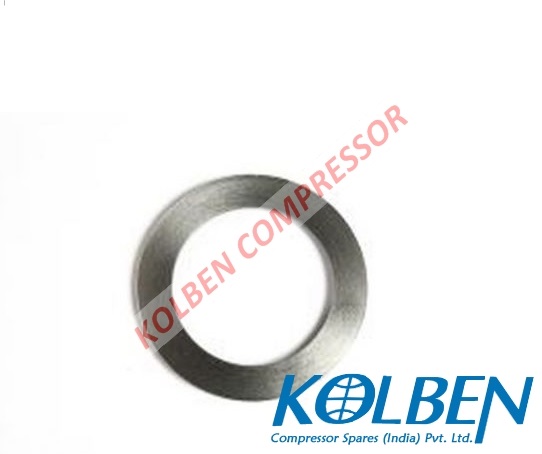

84. |
|
4V-10.2 |
312005-01 |
retaining ring Ø64 x 45 x 4,2 (31200501)
|
|
|
85. |
|
4V-10.2 |
382231-02 |
retaining ring with lugs spring steel DIN 472 Ø15 x 1 (38223102)
|
|
|

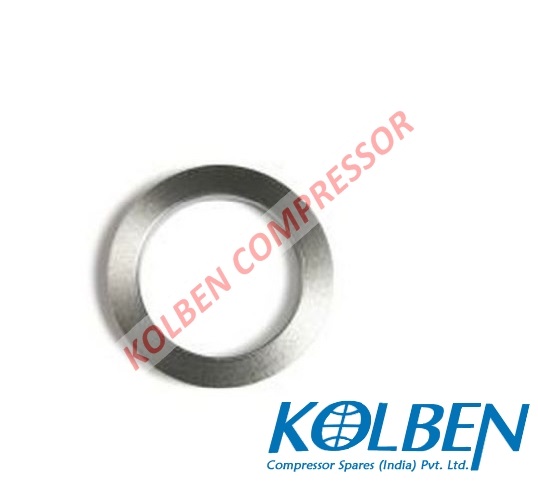

86. |
|
4V-10.2 |
312006-02 |
ring spring washer Ø58 x Ø42 x 8,6 (31200602)
|
|
|
87. |
|
4V-10.2 |
361500-01 |
Schrader valve T-piece brass Jul-16 (36150001)
|
|
|
88. |
|
4V-10.2 |
366202-01 |
sealing nut 7/16" - 20 UNF (36620201)
|
|
|
89. |
|
4V-10.2 |
366100-01 |
Sealing Plug brass 1/8" - 27 NPTF (36610001)
|
|
|
90. |
|
4V-10.2 |
366110-01 |
Sealing plug steel 1/8“ - 27 NPTF (36611001)
|
|
|
91. |
|
4V-10.2 |
366110-10 |
sealing plug steel 1/2" - 14 NPTF (36611010)
|
|
|
92. |
|
4V-10.2 |
366110-02 |
Sealing Plug steel 1/4" - 18 NPTF (36611002)
|
|
|
93. |
|
4V-10.2 |
366124-01 |
sealing screw permanent magnet M22 x 1,5 (36612401)
|
|
|
94. |
|
4V-10.2 |
380358-01 |
Set screw coated DIN 916 M10 x 12 (38035801)
|
|
|

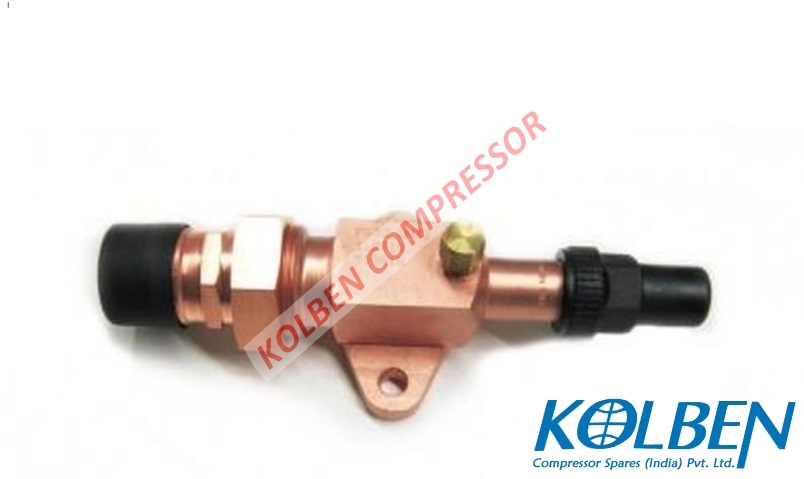

95. |
|
4V-10.2 |
361310-06 |
shut-off valve brazing and welding bush Ø22 (7/8") (36131006)
|
|
|
96. |
|
4V-10.2 |
361310-07 |
shut-off valve brazing and welding bush Ø28 (1 1/8") (36131007)
|
|
|
97. |
|
4V-10.2 |
361802-02 |
sight glass Ø67 x 8,5 (36180202)
|
|
|
98. |
|
4V-10.2 |
382201-51 |
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
|
|
|
99. |
|
4V-10.2 |
382201-04 |
single coil spring washer spring steel DIN 127 B8 (38220104)
|
|
|
100. |
|
4V-10.2 |
325900-02 |
spring washer Ø58,5 x Ø46 x 0,5 (32590002)
|
|
|
101. |
|
4V-10.2 |
362001-09 |

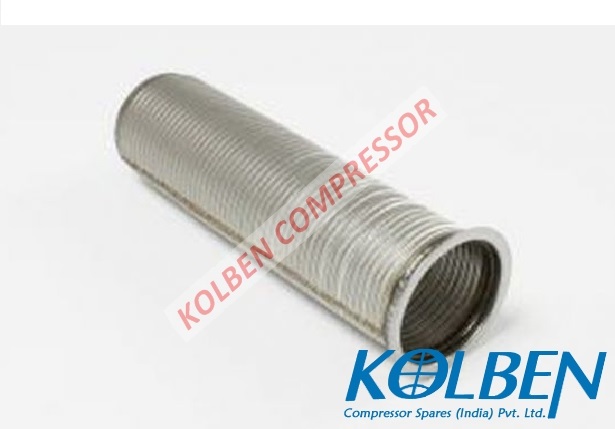

suction gas filte Ø30 x 105 (36200109)
|
|
|
102. |
|
4V-10.2 |
300950-17 |
terminal box black aluminium cast 313 x 175 x 84 (30095017)
|
|
|
103. |
|
4V-10.2 |
304900-01 |
terminal plate 165 x 120 x 15,5 (30490001)
|
|
|
104. |
|
4V-10.2 |
343414-07 |
terminal plate kit (34341407)
|
|
|
105. |
|
4V-10.2 |
343414-08 |
terminal plate kit (34341408)
|
|
|
106. |
|
4V-10.2 |
343416-02 |
terminal plate kit (34341602)
|
|
|

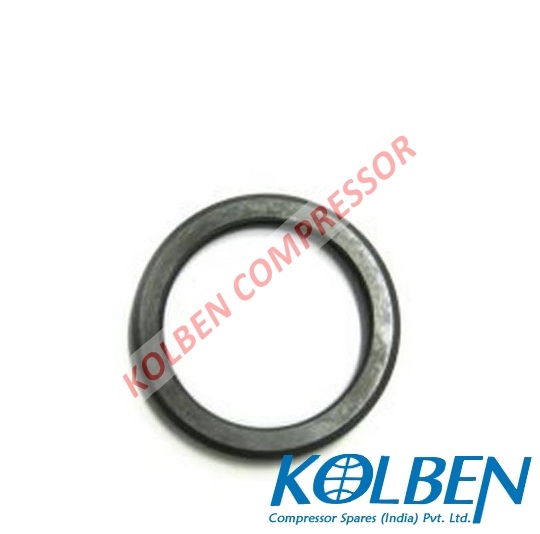

107. |
|
4V-10.2 |
312030-02 |
thrust collar Ø65 x 7 (31203002)
|
|
|
108. |
|
4V-10.2 |
320313-01 |

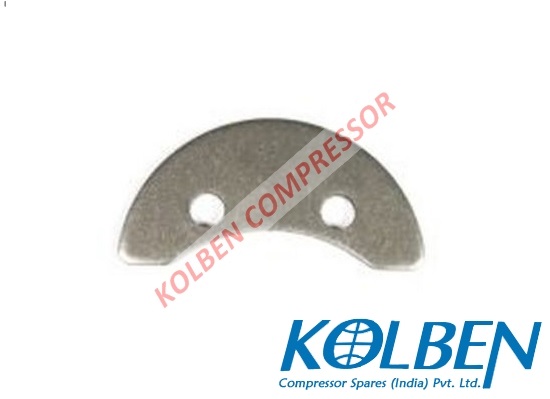

thrust segment 80 x 40 x 3,5 (32031301)
|
|
|
109. |
|
4V-10.2 |
320502-04 |
thrust washer steel Ø54 x Ø17 x 5 (32050204)
|
|
|
110. |
|
4V-10.2 |
382150-04 |
thrust washer spring steel S16 (38215004)
|
|
|

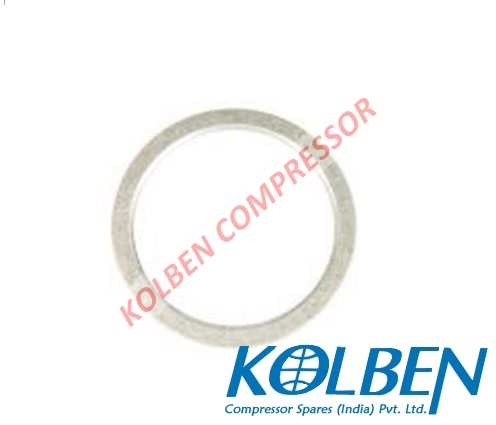

111. |
|
4V-10.2 |
320500-05 |
thrust washer Crankcase side Ø62 x Ø50,5 x 1,7 (32050005)
|
|
|
112. |
|
4V-10.2 |
382152-01 |
thrust washer DIN 127 S 8 (38215201)
|
|
|

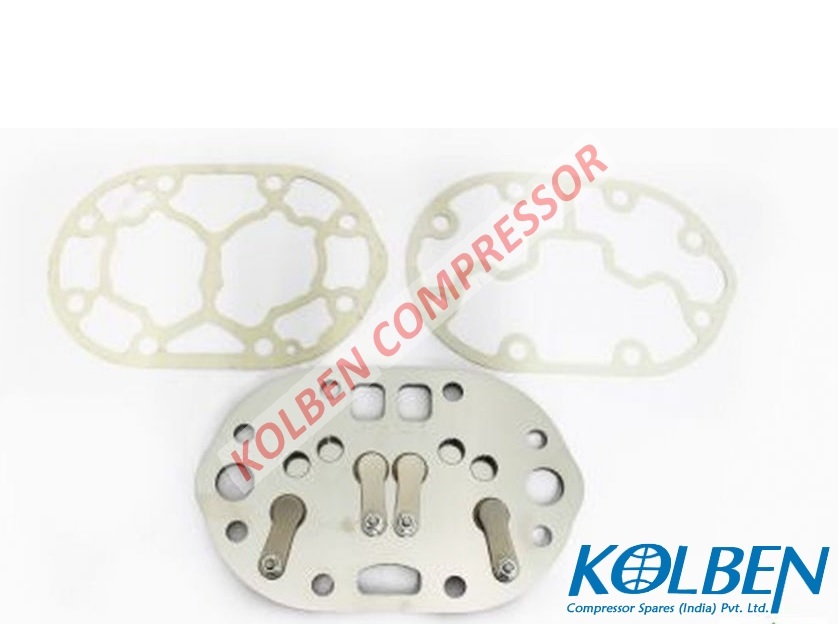

113. |
|
4V-10.2 |
304052-01 |
valve plate Ø55 (30405201)
|
|
|

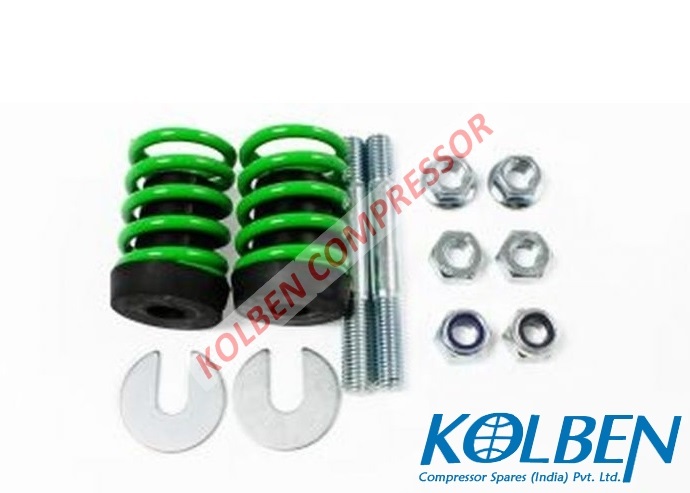

114. |
|
4V-10.2 |
370003-03 |
vibration damper set Motor side green spring Lo=46 (37000303)
|
|
|

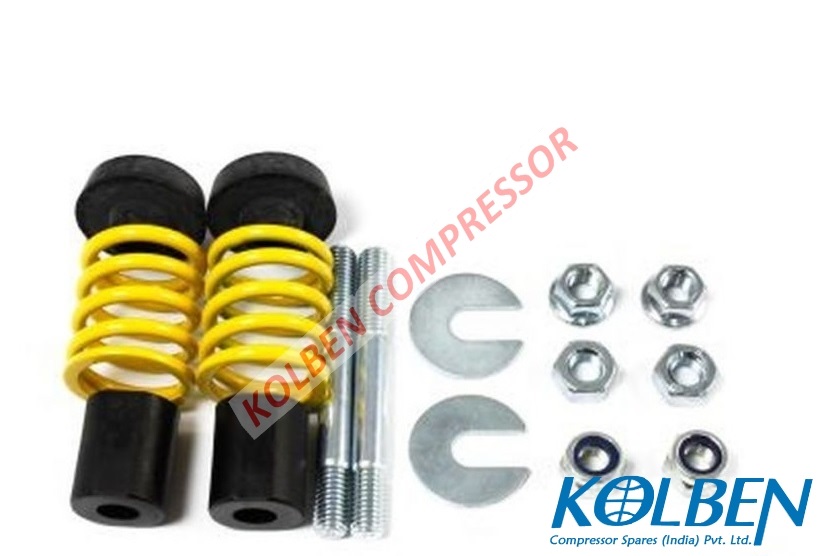

115. |
|
4V-10.2 |
370003-02 |
vibration damper set Crankcase side yellow spring Lo=42 (37000302)
|
|
|
116. |
|
4V-10.2 |
382042-03 |
washer copper 8 x 1,6 (38204203)
|
|
|
117. |
|
4V-10.2 |
382002-02 |
washer brass DIN 125 A5, 3 (38200202)
|
|
|
118. |
|
4V-10.2 |
382002-01 |
washer brass DIN 125 A4, 3 (38200201)
|
|
|
119. |
|
4V-10.2 |
383401-25 |
wrist pin DIN 73126 Ø15 x Ø10 x 46 (38340125)
|
|
