4Z-8.2

Sr. No.	Image	Model	OEM Part No.	Description
1.		4Z-8.2	302901-01	balance weight grey cast iron 119,5 x 33,5 x 100 ( 30290101)
2.		4Z-8.2	311100-07	bearing bush Motor side Ø55 x Ø50 x 30 (31110007)
3.		4Z-8.2	311100-14	bearing bush Crankcase side Ø55 x Ø50 x 30 (31110014)
4.		4Z-8.2	311100-17	bearing bush Ø50 x Ø45 x 40,7 (31110017)
5.		4Z-8.2	305125-02	bearing cover inclusive oil pump (30512502)
6.		4Z-8.2	320307-03	bottom plate steel 220 x 200 x 12 x Ø21 (32030703)
7.		4Z-8.2	346260-46	built-in motor Standard voltages 5.9 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 x 114,3 (34626046)
8.		4Z-8.2	321202-01	centering plate steel 167 x 122 x 12 (32120201)
9.		4Z-8.2	380306-22	cheese head screw DIN 912, 10.9 M10 x 20 (38030622)
10.		4Z-8.2	380306-32	Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
11.		4Z-8.2	380508-51	Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
12.		4Z-8.2	380507-51	cheese head screw 4.8 galvanized M4 x 8 (38050751)
13.		4Z-8.2	382310-16	Compression ring Piston diameter 54,96mm Ø55 x 1,5 (38231016)
14.		4Z-8.2	382300-49	compression ring Ø55 x 1,5 (38230049)

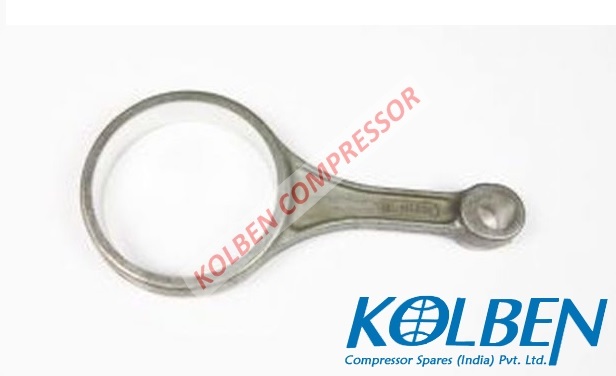

15.		4Z-8.2	302114-04	connecting rod Ø70 x Ø15 x 120 (30211404)

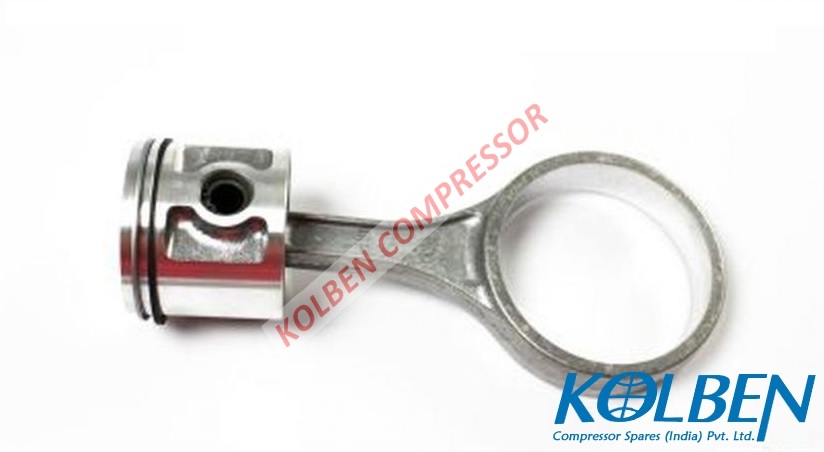

16.		4Z-8.2	302297-19	connecting rod / piston (30229719)
17.		4Z-8.2	320318-03	connection bridge brass A 5,4 (32031803)
18.		4Z-8.2	343417-08	connection to ground, (34341708)
19.		4Z-8.2	343208-34	Crankcase Heater heating capacity: 100W 230V-1-50/60Hz (34320834)
20.		4Z-8.2	380507-52	Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
21.		4Z-8.2	302360-01	cylinder head Water cooled (30236001)
22.		4Z-8.2	302360-11	cylinder head air-cooled Air cooled 196 x 127 x 55 (30236011)
23.		4Z-8.2	325002-06	damper element green spring steel 46 mm (32500206)
24.		4Z-8.2	325002-05	damper element yellow spring steel 42 mm (32500205)
25.		4Z-8.2	347320-33	differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)

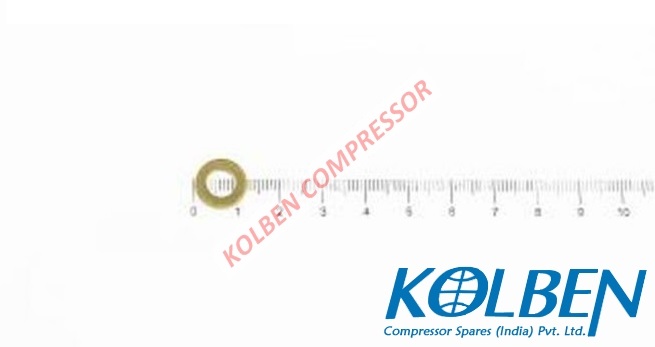

26.		4Z-8.2	382002-03	Disk brass DIN 125 A6, 4 (38200203)
27.		4Z-8.2	301103-50	eccentric shaft Stroke 34mm Ø70 x 374 (30110350)
28.		4Z-8.2	389002-01	electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
29.		4Z-8.2	320314-01	fixing plate MP54 140 x 40 x 3 (32031401)
30.		4Z-8.2	327309-02	foot 315 x 40 x 8 x Ø21 (32730902)
31.		4Z-8.2	361110-01	gas equalising valve (36111001)
32.		4Z-8.2	372413-01	gasket 220 x 200 x 1 (37241301)
33.		4Z-8.2	372138-01	gasket Ø 2,5 x 780 (37213801)
34.		4Z-8.2	372421-14	gasket 163 x 118 x 0,5 (37242114)
35.		4Z-8.2	372314-03	gasket Ø182 x Ø133 x 1 (37231403)
36.		4Z-8.2	372704-01	Gasket 91 x 52 x 1 (37270401)
37.		4Z-8.2	372200-03	Gasket teflon Ø25,4 x Ø22,2 x 1,5 (37220003)
38.		4Z-8.2	372124-01	gasket violet 165 x 120 x 3 (37212401)
39.		4Z-8.2	372510-11	gasket Ø55, 127 x 196 x 0,9 (37251011)
40.		4Z-8.2	372120-01	gasket 133 x 117 x 2 (37212001)
41.		4Z-8.2	372200-04	gasket teflon Ø38 x Ø35 x 1,5 (37220004)
42.		4Z-8.2	372315-03	gasket Ø286 x Ø236 x 0,38 (37231503)
43.		4Z-8.2	372611-01	gasket valve plate Capacity control 192 x 127 x 0,75(37261101)
44.		4Z-8.2	382403-05	Gasket Ring aluminium DIN 7603 A22 x 27 x 1,5 (38240305)

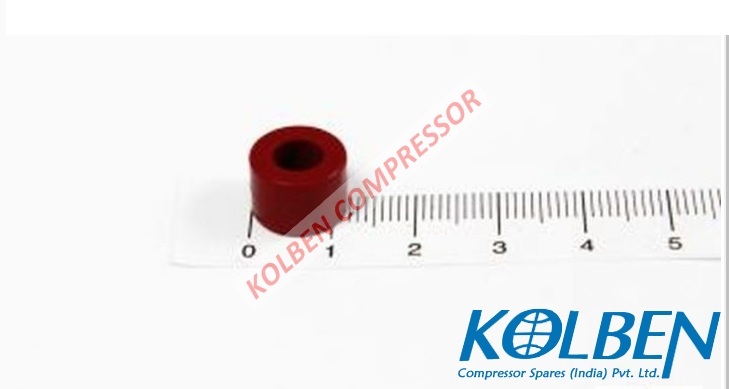

45.		4Z-8.2	375000-02	gasket ring Ø12 x Ø6 x 8 (37500002)
46.		4Z-8.2	375000-01	gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)
47.		4Z-8.2	372808-05	gasket set (37280805)
48.		4Z-8.2	384101-05	gib-headed key start menu steel DIN 6887 5 x 5 x 36 (38410105)
49.		4Z-8.2	345906-04	heater sleeve for 100W heater (34590604)
50.		4Z-8.2	380156-05	hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)
51.		4Z-8.2	380055-04	hexagon head screw DIN 931, 10.9 M8 x 55 (38005504)
52.		4Z-8.2	380056-07	hexagon head screw DIN 931, 10.9 M10 x 80 (38005607)
53.		4Z-8.2	380166-12	Hexagon Head Screw coated ISO 4017 - Precote85 M16 x 50 (38016612)
54.		4Z-8.2	380154-06	hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
55.		4Z-8.2	380155-05	hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
56.		4Z-8.2	380057-02	hexagon head screw DIN 931, 10.9 M12 x 55 (38005702)

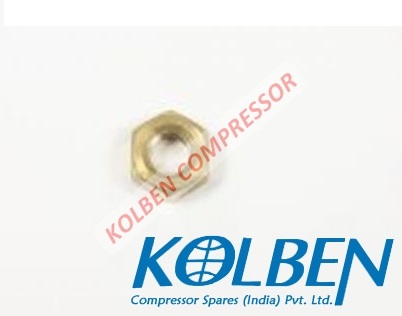

57.		4Z-8.2	381301-04	Hexagon nu Brass DIN 934 M6 (38130104)
58.		4Z-8.2	380339-01	Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
59.		4Z-8.2	300027-12	housing Ø55 (30002712)
60.		4Z-8.2	305206-01	housing cover grey cast iron Ø286 x 38 (30520601)
61.		4Z-8.2	375002-01	insulating plate 53 x 18 x 6,5 (37500201)

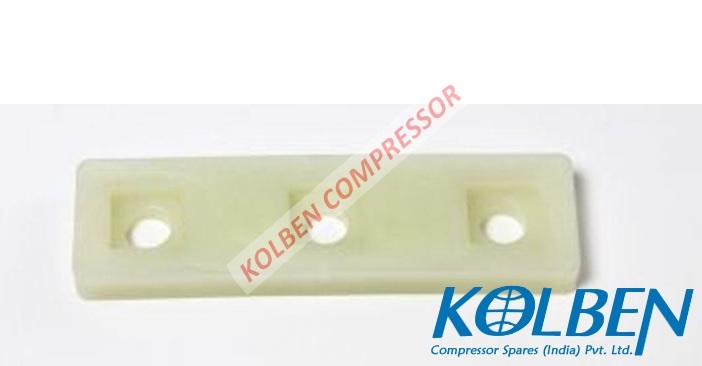

62.		4Z-8.2	375002-02	insulating plate 70 x 20 x 6 (37500202)
63.		4Z-8.2	372001-19	O-ring Ø74 x 2 (37200119)
64.		4Z-8.2	372003-15	O-ring Ø36,3 x 1,78 (37200315)
65.		4Z-8.2	372001-16	O-ring Ø50 x 3 (37200116)
66.		4Z-8.2	362003-02	oil filterØ14 x 105 (36200302)
67.		4Z-8.2	362503-01	oil pump in view of grey cast iron (36250301)
68.		4Z-8.2	360110-08	oil return system (36011008)
69.		4Z-8.2	380501-54	Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)

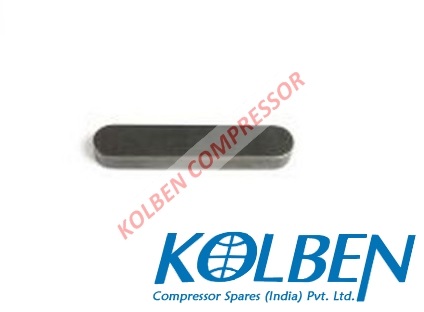

70.		4Z-8.2	384001-22	parallel key steel DIN 6885 A12 x 8 x 63 (38400122)
71.		4Z-8.2	366000-06	pipe connection steel copper-plated brazed connection Ø28, 1 3/4" - 12 UN (36600006)
72.		4Z-8.2	366000-03	pipe connection Brazed connection steel copper-plated Ø22, 1 1/4" - 12 UNF (36600003)
73.		4Z-8.2	302232-13	piston aluminium alloy Ø55 (30223213)
74.		4Z-8.2	375001-01	pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)

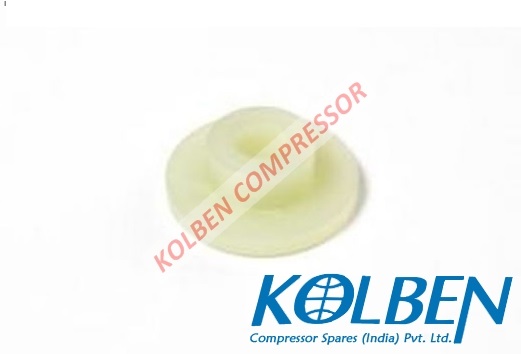

75.		4Z-8.2	375001-02	pressure bush Ø6 x Ø21,5 x 8 (37500102)
76.		4Z-8.2	325000-01	pressure spring steel Ø18 x 28 x 1,25 (32500001)
77.		4Z-8.2	347028-01	protection device SE-B2 230V-50/60Hz (34702801)
78.		4Z-8.2	366201-17	Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
79.		4Z-8.2	366201-19	Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
80.		4Z-8.2	312005-01	retaining ring Ø64 x 45 x 4,2 (31200501)
81.		4Z-8.2	382231-02	retaining ring with lugs spring steel DIN 472 Ø15 x 1 (38223102)
82.		4Z-8.2	312006-02	ring spring washer Ø58 x Ø42 x 8,6 (31200602)
83.		4Z-8.2	361500-01	Schrader valve T-piece brass Jul-16 (36150001)
84.		4Z-8.2	366202-01	sealing nut 7/16" - 20 UNF (36620201)
85.		4Z-8.2	366110-01	Sealing plug steel 1/8“ - 27 NPTF (36611001)
86.		4Z-8.2	366110-10	sealing plug steel 1/2" - 14 NPTF (36611010)
87.		4Z-8.2	366100-01	Sealing Plug brass 1/8" - 27 NPTF (36610001)
88.		4Z-8.2	366110-02	Sealing Plug steel 1/4" - 18 NPTF (36611002)
89.		4Z-8.2	366124-01	sealing screw permanent magnet M22 x 1,5 (36612401)
90.		4Z-8.2	380358-01	Set screw coated DIN 916 M10 x 12 (38035801)
91.		4Z-8.2	361310-06	shut-off valve brazing and welding bush Ø22 (7/8") (36131006)
92.		4Z-8.2	361310-07	shut-off valve brazing and welding bush Ø28 (1 1/8") (36131007)
93.		4Z-8.2	361802-02	sight glass Ø67 x 8,5 (36180202)
94.		4Z-8.2	382201-51	single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
95.		4Z-8.2	382201-04	single coil spring washer spring steel DIN 127 B8 (38220104)
96.		4Z-8.2	325900-02	spring washer Ø58,5 x Ø46 x 0,5 (32590002)
97.		4Z-8.2	362001-09	suction gas filter Ø30 x 105 (36200109)
98.		4Z-8.2	343517-56	terminal box aluminium 250 x 178 x 76,5 (34351756)
99.		4Z-8.2	343416-02	terminal plate kit (34341602)
100.		4Z-8.2	343414-03	terminal plate kit (34341403)

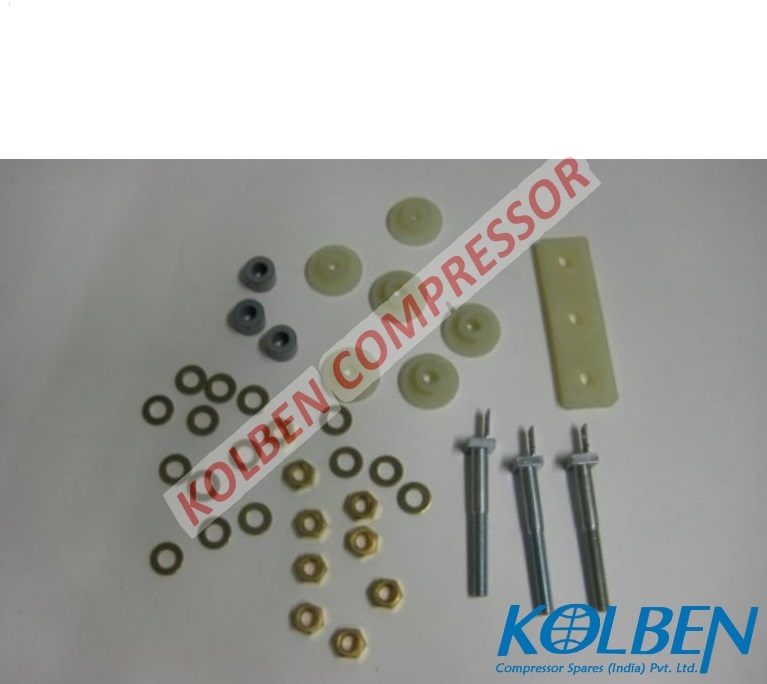

101.		4Z-8.2	343414-04	terminal plate kit (34341404)
102.		4Z-8.2	343414-07	terminal plate kit (34341407)
103.		4Z-8.2	312030-02	thrust collar Ø65 x 7 (31203002)
104.		4Z-8.2	320313-01	thrust segment 80 x 40 x 3,5 (32031301)
105.		4Z-8.2	320500-05	thrust washer Crankcase side Ø62 x Ø50,5 x 1,7 (32050005)
106.		4Z-8.2	382150-04	thrust washer spring steel S16 (38215004)
107.		4Z-8.2	320502-04	thrust washer steel Ø54 x Ø17 x 5 (32050204)
108.		4Z-8.2	304052-01	valve plate Ø55 (30405201)
109.		4Z-8.2	370003-02	vibration damper set Crankcase side yellow spring Lo=42 (37000302)
110.		4Z-8.2	370003-03	vibration damper set Motor side green spring Lo=46 (37000303)
111.		4Z-8.2	382002-01	washer brass DIN 125 A4, 3 (38200201)
112.		4Z-8.2	383401-25	wrist pin DIN 73126 Ø15 x Ø10 x 46 (38340125)
