COMPRESSOR PARTS > BITZER > 2CL-4.2

Sr. No.


Model

OEM Part No.

Description

1.



2CL-4.2

302919-01

balance weight grey cast iron 96,5 x 85 x 15,3 (30291901)




2.



2CL-4.2

311125-01

Bearing bush Ø40 x Ø36 x 30 (31112501)




3.



2CL-4.2

305107-07

bearing coverN(30510707)




4.



2CL-4.2

367017-01

blind flange steel 58 x 36 x 10 (36701701)




5.



2CL-4.2

320307-02

bottom plate steel 285 x 167 x 17,5 x Ø21 (32030702)




6.



2CL-4.2

346173-12

built-in motor 2.6 kW, 4-pole 220..240V D-3-50Hz, 380..415V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø190 x 76,2 (34617312)




7.



2CL-4.2

380306-02

Cheese head screw DIN 912, 10.9 M8 x 20 (38030602)




8.



2CL-4.2

380508-51

Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)




9.



2CL-4.2

382300-49

compression ring Ø55 x 1,5 (38230049)




10.

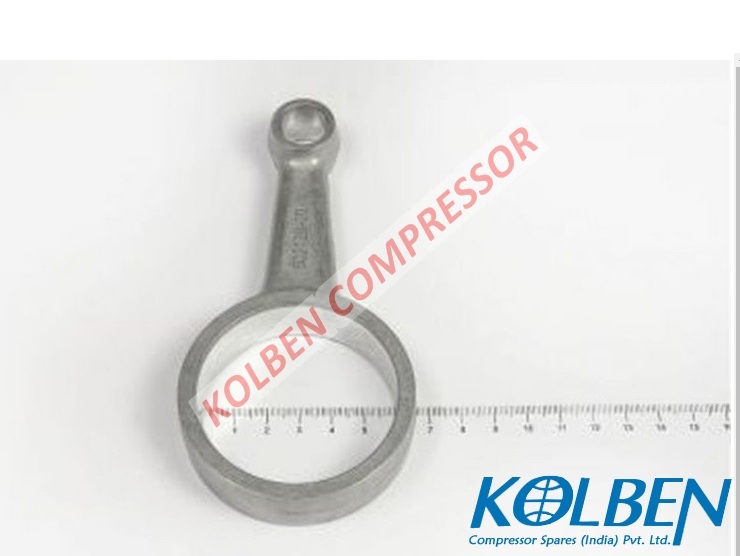

2CL-4.2

302128-01

connecting rod Ø58,3 x Ø15 x 96,3 (30212801)




11.

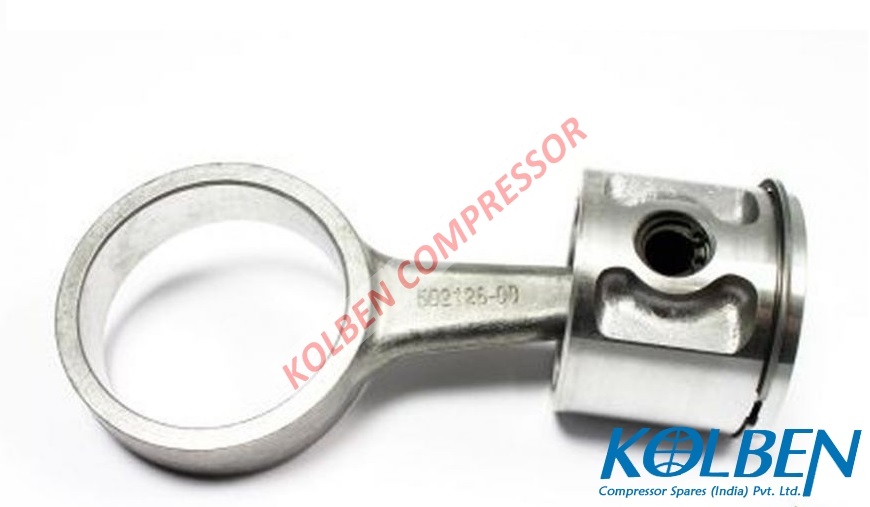

2CL-4.2

302297-70

connecting rod / piston (30229770)




12.



2CL-4.2

320318-03

connection bridge brass A 5,4 (32031803)




13.



2CL-4.2

343208-23

crankcase heater heating capacity: 70W 230V-1-50/60Hz (34320823)




14.



2CL-4.2

380501-52

cross recessed raised screw Cross recessed raised 4.8 galvanized M6 x 12 (38050152)




15.



2CL-4.2

380507-52

Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)




16.



2CL-4.2

302360-10

cylinder head air-cooled 165 x 112 x 41 (30236010)




17.



2CL-4.2

325002-04

damper element Motor side white spring steel (32500204)




18.



2CL-4.2

382002-03

Disk brass DIN 125 A6, 4 (38200203)




19.



2CL-4.2

301108-51

eccentric shaft Ø58,3 x 290 (30110851)




20.



2CL-4.2

389002-01

electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)




21.



2CL-4.2

327305-02

foot 285 x 40 x 10 x Ø21 (32730502)




22.



2CL-4.2

361110-02

gas equalising valve steel 3/4" - 14 NPTF (36111002)




23.



2CL-4.2

372702-03

gasket 35 x 60 x 1 (37270203)




24.

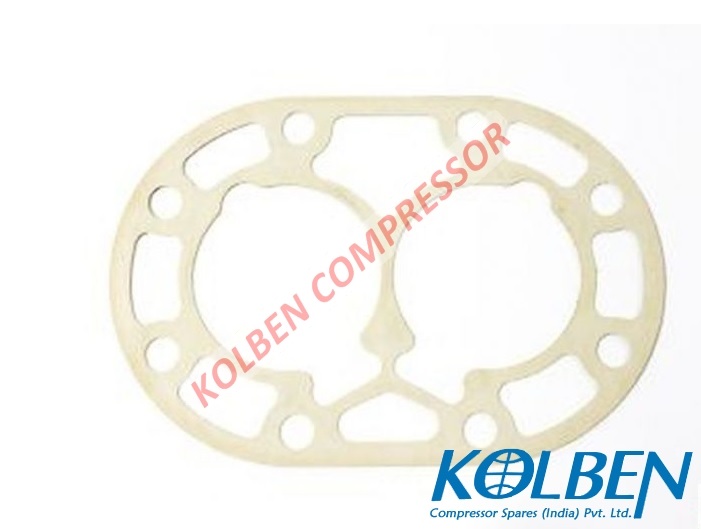

2CL-4.2

372509-08

gasket Ø55, 112 x 165 x 0,8 (37250908)




25.



2CL-4.2

372316-02

gasket Ø254 x Ø210 x 1 (37231602)




26.



2CL-4.2

372412-01

gasket bottom plate 190 x 167 x 1 (37241201)




27.



2CL-4.2

372138-01

gasket Ø 2,5 x 780 (37213801)




28.



2CL-4.2

372313-03

gasket Ø140 x Ø95 x 1 (37231303)




29.



2CL-4.2

372609-02

gasket valve plate 165 x 112 x 0,5 (37260902)




30.



2CL-4.2

372120-01

gasket 133 x 117 x 2 (37212001)




31.



2CL-4.2

375000-01

gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)




32.

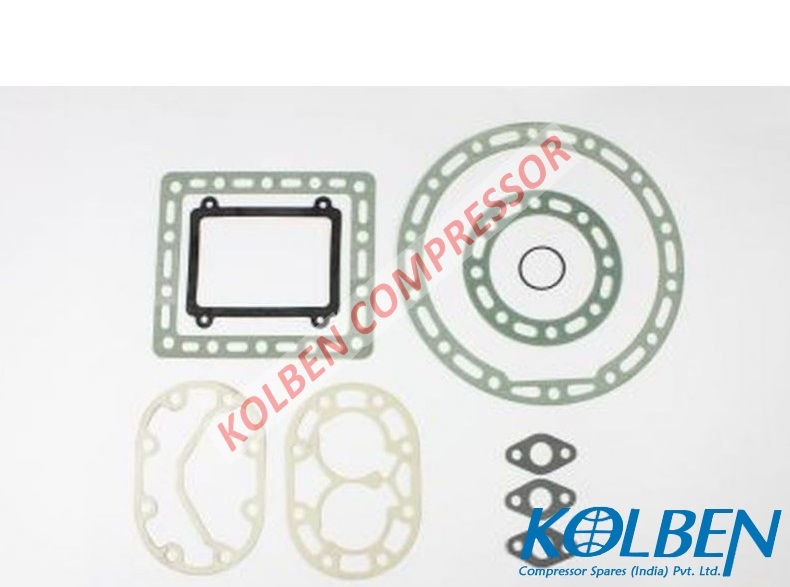

2CL-4.2

372826-01

gasket set (37282601)




33.



2CL-4.2

345906-05

heater sleeve for 70W heater 43315 (34590605)




34.



2CL-4.2

380154-06

hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)




35.



2CL-4.2

380167-02

hexagon head screw coated DIN 933, 10.9 M12 x 40 (38016702)




36.



2CL-4.2

380155-05

hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)




37.



2CL-4.2

380056-03

hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)




38.



2CL-4.2

380156-04

hexagon head screw DIN 933, 10.9 M10 x 22 (38015604)




39.



2CL-4.2

380003-01

hexagon head screw DIN 931, 8.8 M5 x 35 (38000301)




40.



2CL-4.2

381301-04

Hexagon nut Brass DIN 934 M6 (38130104)




41.



2CL-4.2

381101-03

hexagon nut DIN 934, 8.8 M5 (38110103)




42.



2CL-4.2

381301-02

hexagon nut brass M4 (38130102)




43.



2CL-4.2

375002-01

insulating plate 53 x 18 x 6,5 (37500201)




44.



2CL-4.2

375002-02

insulating plate 70 x 20 x 6 (37500202)




45.



2CL-4.2

372003-15

O-ring sight glass Ø36,3 x 1,78 (37200315)




46.

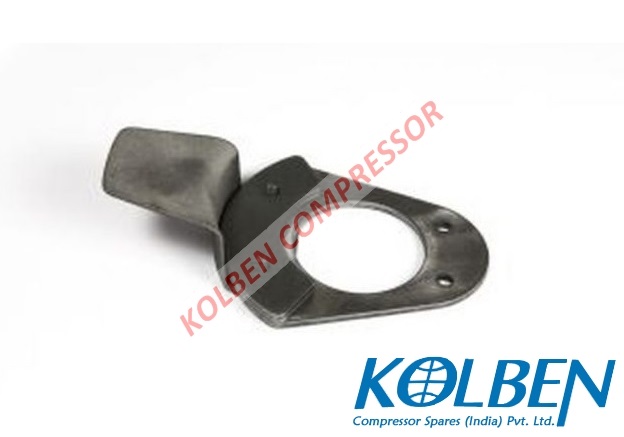

2CL-4.2

320325-02

oil splasher plate 145 x 85 (32032502)




47.



2CL-4.2

384003-01

parallel key steel DIN 6885 A10 x 6 x 36 (38400301)




48.

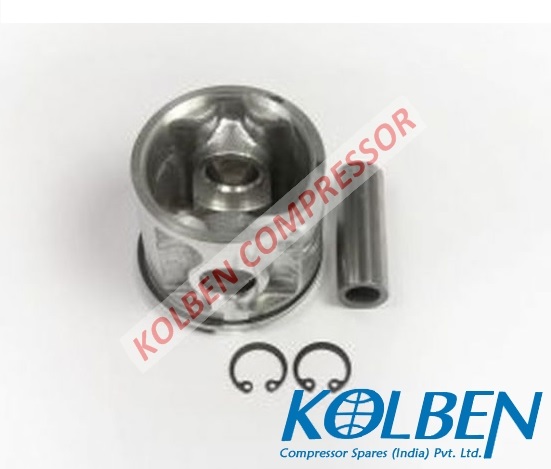

2CL-4.2

302233-34

piston aluminium alloy Ø54,96 x 47,5 (30223334)




49.



2CL-4.2

375001-02

pressure bush Ø6 x Ø21,5 x 8 (37500102)




50.



2CL-4.2

375001-01

pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)




51.



2CL-4.2

325020-02

pressure spring spring steel Ø33 x Ø38 x 2,5 (32502002)




52.



2CL-4.2

347028-01

protection device SE-B2 230V-50/60Hz (34702801)




53.



2CL-4.2

366201-17

Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)




54.



2CL-4.2

369107-04

pulsation muffler Ø12 x 1 x 180 (36910704)




55.



2CL-4.2

382231-02

retaining ring with lugs spring steel DIN 472 Ø15 x 1 (38223102)




56.



2CL-4.2

366202-01

sealing nut 7/16" - 20 UNF (36620201)




57.



2CL-4.2

366110-08

Sealing Plug steel 1/4" - 18NPTF (36611008)




58.



2CL-4.2

366110-01

Sealing plug steel 1/8“ - 27 NPTF (36611001)




59.



2CL-4.2

361315-05

shut-off valve brazed connection Ø22 L (36131505)




60.



2CL-4.2

361315-10

shut-off valve brazed connection Ø16 L (36131510)




61.



2CL-4.2

361802-02

sight glass steel / glass Ø67 x 8,5 (36180202)




62.



2CL-4.2

382201-06

single coil spring washer spring steel DIN 127 A12 (38220106)




63.



2CL-4.2

312008-01

spacer sleeve steel Ø36 x 33,2 x 8 (31200801)




64.



2CL-4.2

362001-03

suction gas filter Ø23 x 36 (36200103)




65.



2CL-4.2

343517-56

terminal box aluminium 250 x 178 x 76,5 (34351756)




66.



2CL-4.2

343414-01

terminal plate kit (34341401)




67.



2CL-4.2

343414-07

terminal plate kit (34341407)




68.



2CL-4.2

343414-02

terminal plate kit (34341402)




69.



2CL-4.2

311010-01

thrust collar Ø35,5 x Ø26 x 10 (31101001)




70.



2CL-4.2

320502-02

thrust washer steel Ø45 x Ø12,5 x 3,5 (32050202)




71.



2CL-4.2

320500-03

thrust washer Crankcase side Ø48 x Ø36,5 x 1,5 (32050003)




72.



2CL-4.2

382150-05

thrust washer spring steel Ø9 (38215005)

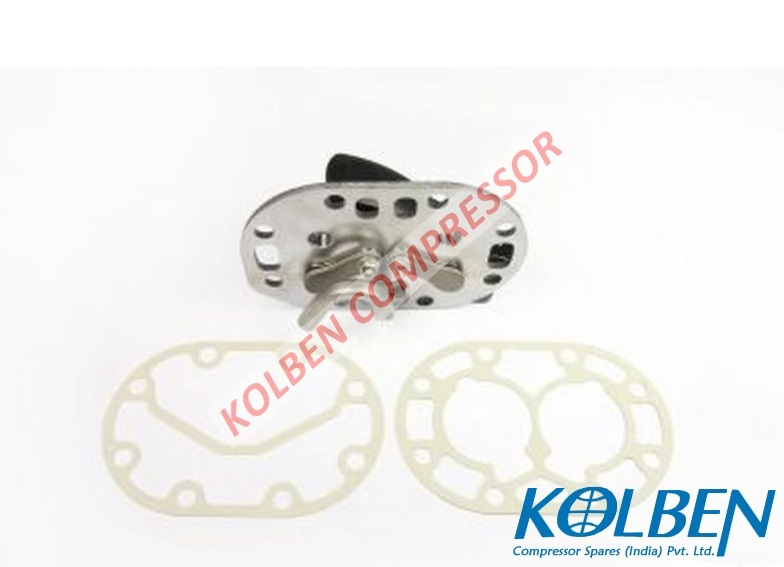

73.



2CL-4.2

304058-03

valve plate Ø55 (30405803)




74.



2CL-4.2

370003-04

vibration damper set gray spring grey (37000304)




75.



2CL-4.2

370003-01

vibration damper set Motor side white spring Lo=40 (37000301)




76.



2CL-4.2

382002-01

washer brass DIN 125 A4, 3 (38200201)




77.



2CL-4.2

383401-25

wrist pin DIN 73126 Ø15 x Ø10 x 46 (38340125)
