Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|
1. |
|
2EES-3 |
31112504 |
Bearing bush Ø40 x Ø36 x 30 (31112504)
|
|
|

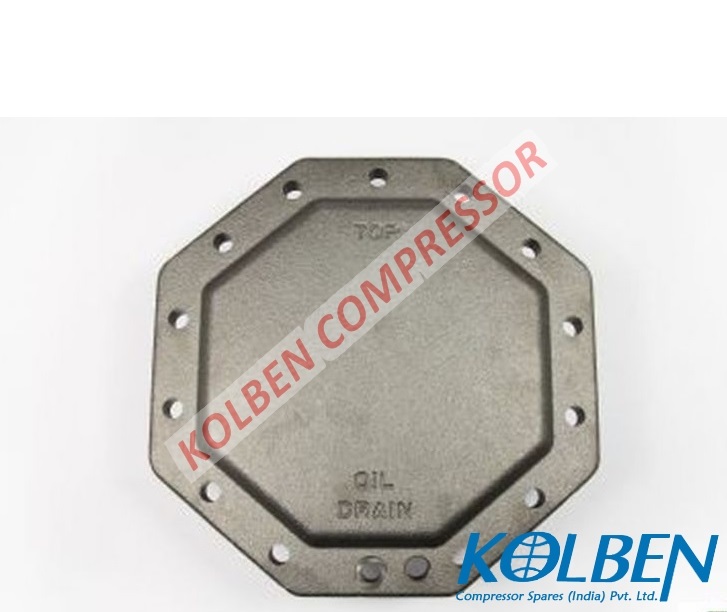

2. |
|
2EES-3 |
30510741 |
Bearing cover (30510741)
|
|
|
3. |
|
2EES-3 |
34614712 |

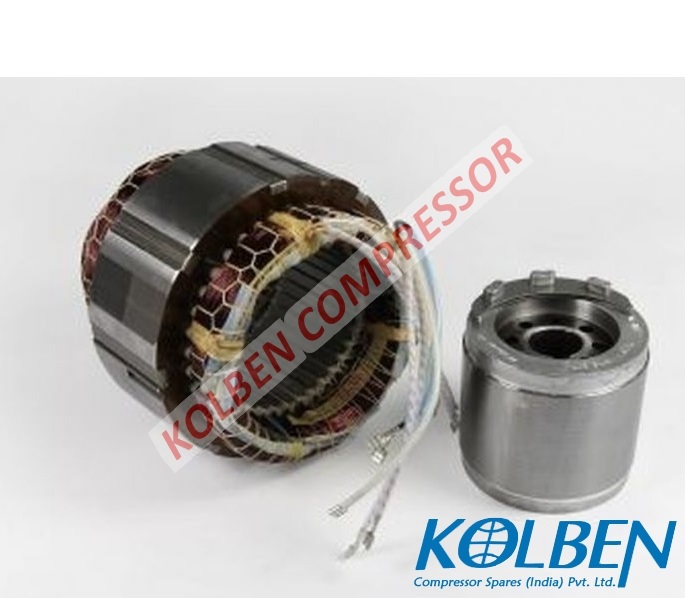

built-in motor 2.2 kW, 4-pole 220..240V D-3-50Hz, 380..415V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø190 (34614712)
|
|
|
4. |
|
2EES-3 |
38030602 |

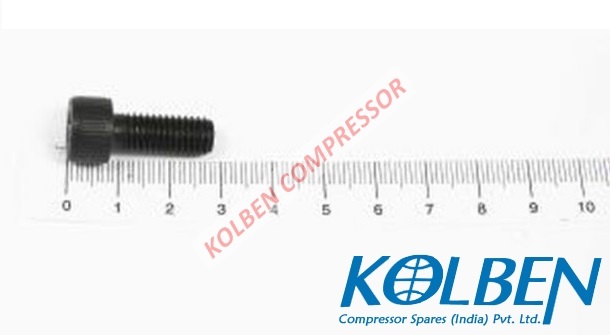

Cheese head screw suction shut-off valve DIN 912, 10.9 M8 x 20 (38030602)
|
|
|
5. |
|
2EES-3 |
38230086 |

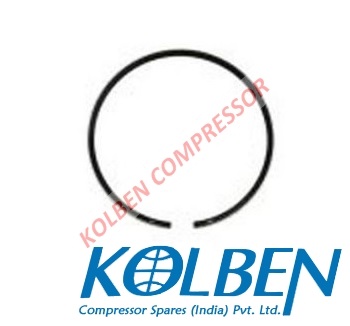

compression ring piston 46 x 1,0 (38230086)
|
|
|
6. |
|
2EES-3 |
30213401 |

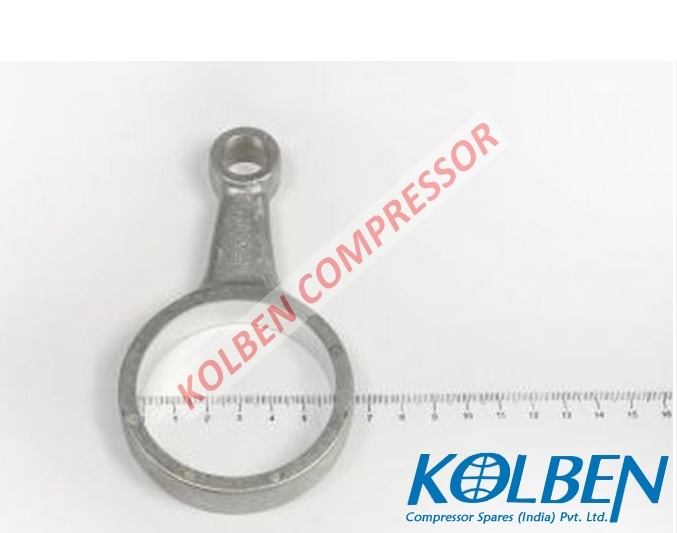

connecting rod Ø58,3 x Ø15 x 83 (30213401)
|
|
|
7. |
|
2EES-3 |
30229873 |

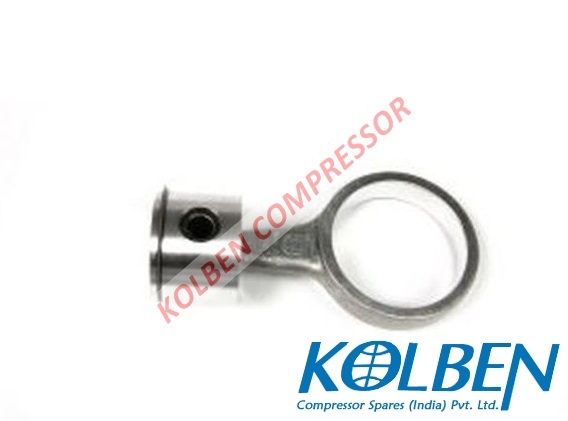

connecting rod / piston Ø46 (30229873)
|
|
|
8. |
|
2EES-3 |
34321901 |

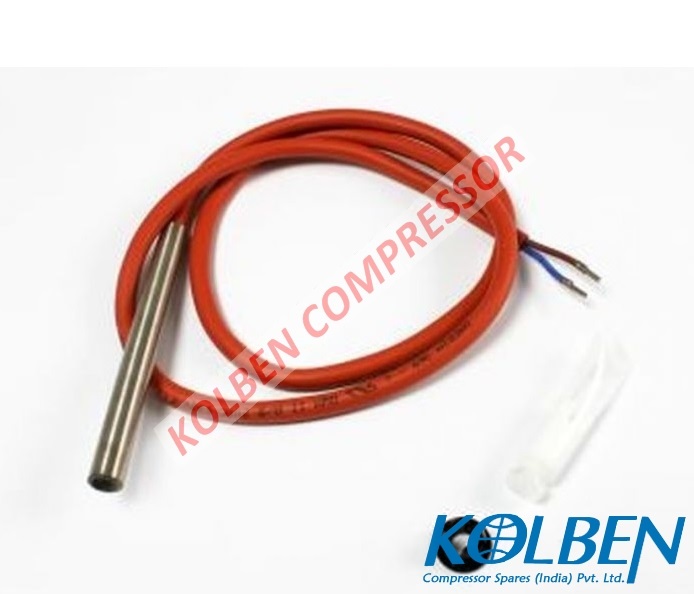

crankcase heater 0..120 W, 200-260 V (PTC) 200-260V Ø11 x 113 (34321901)
|
|
|
9. |
|
2EES-3 |

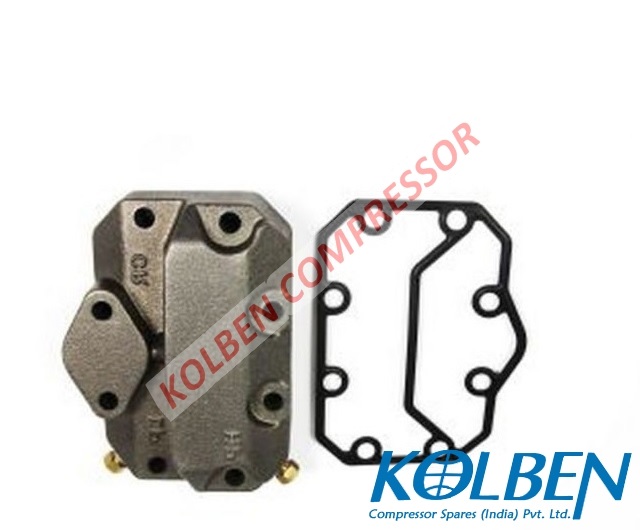

30236036 |
cylinder head (30236036)
|
|
|
10. |
|
2EES-3 |
31300024 |

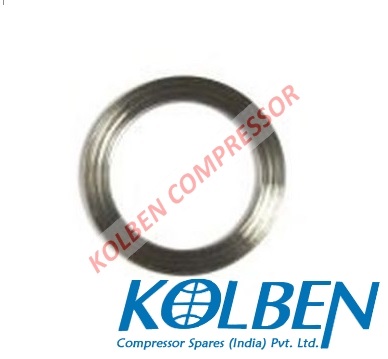

disk Motor side Ø45 x Ø33,1 x 2 (31300024)
|
|
|

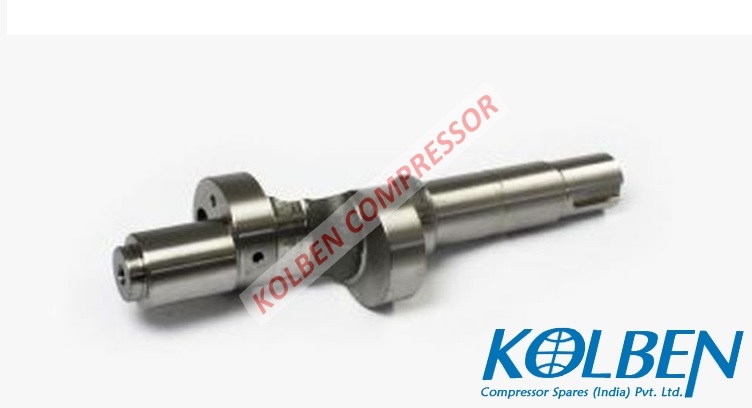

11. |
|
2EES-3 |
30110850 |
eccentric shaft Ø58,3 x 290 (30110850)
|
|
|
12. |
|
2EES-3 |
32035402 |

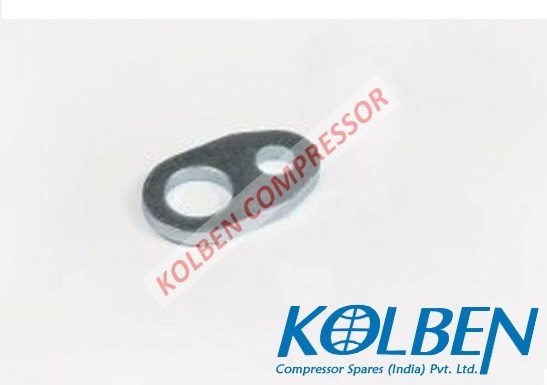

Eyebolt 51 x 30 x 4 (32035402)
|
|
|
13. |
|
2EES-3 |
37251703 |

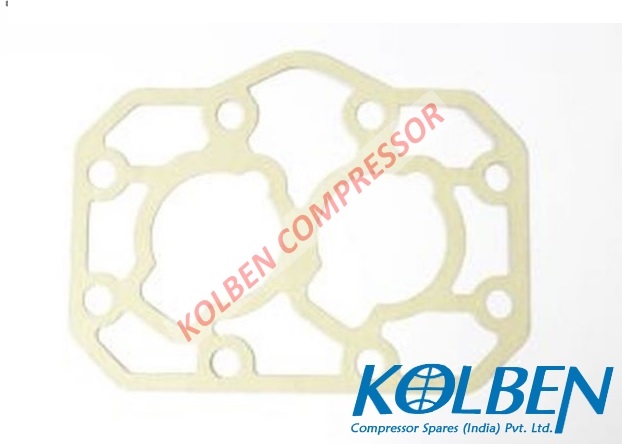

gasket valve plate 165 x 124 x 0,8 (37251703)
|
|
|
14. |
|
2EES-3 |
37293703 |

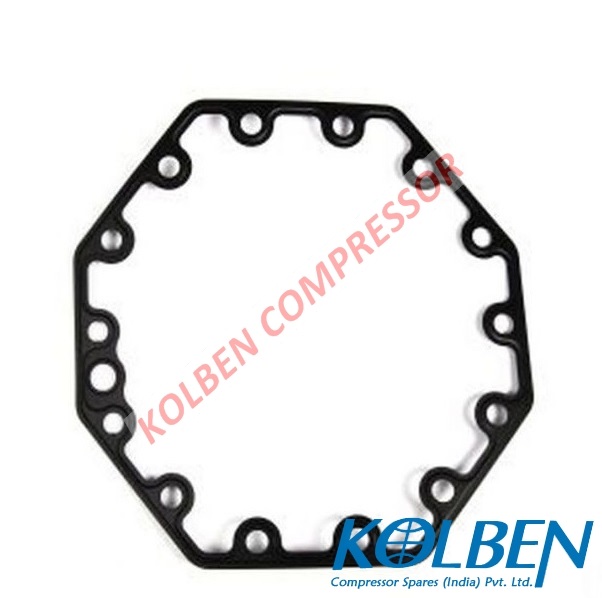

gasket bearing cover 14 - Hole 2241 x 241 x 0,38 (37293703)
|
|
|
15. |
|
2EES-3 |

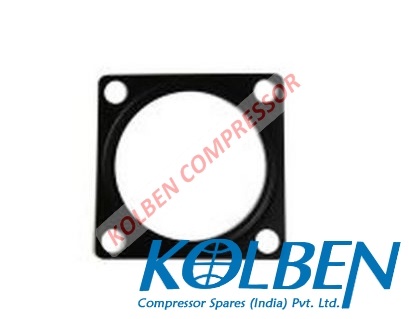

37293801 |
Gasket Terminal plate 52 x 52 x 0,38 (37293801)
|
|
|
16. |
|
2EES-3 |
37270203 |
gasket 35 x 60 x 1 (37270203)
|
|
|
17. |
|
2EES-3 |
37261801 |

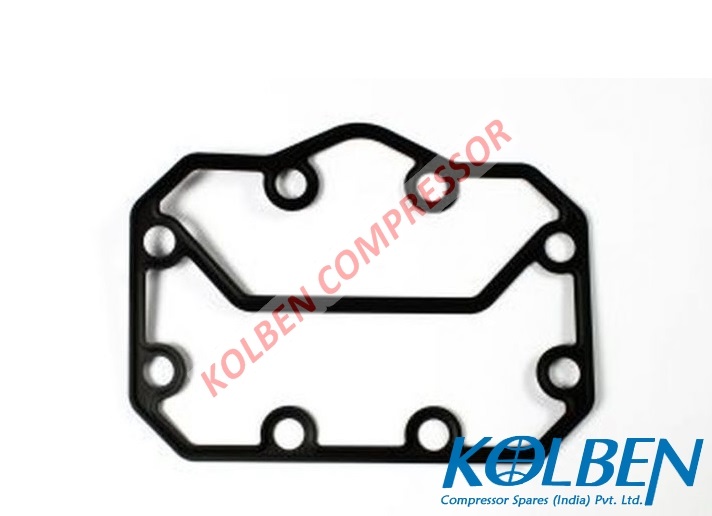

gasket cylinder head Retall 165 x 124 x 0,38 (37261801)
|
|
|
18. |
|
2EES-3 |
37271801 |

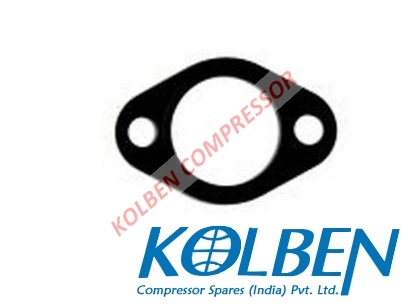

Gasket Terminal plate Retall 32 x 48 x 0,38 (37271801)
|
|
|
19. |
|
2EES-3 |
37220010 |

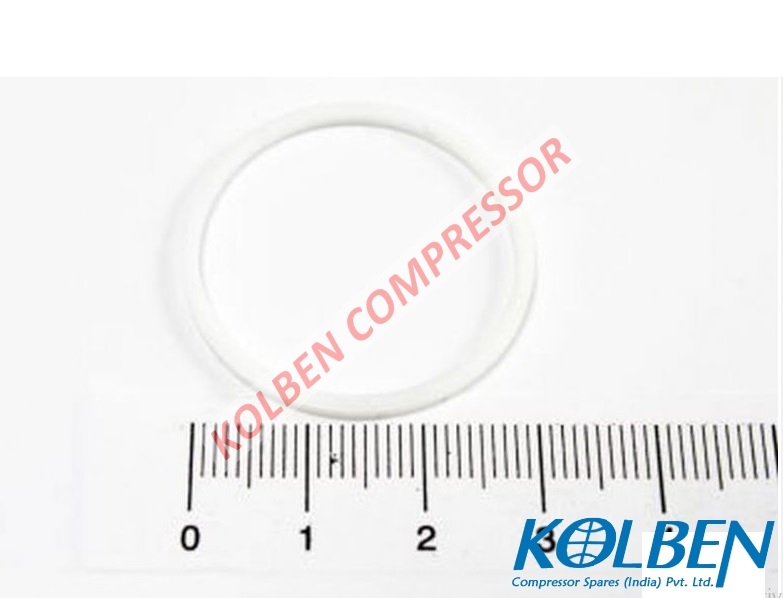

gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)
|
|
|
20. |
|
2EES-3 |
38240131 |

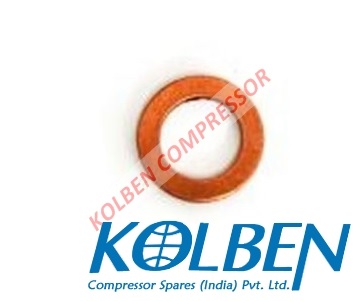

gasket ring oil drain copper A10 x 16 x 2 (38240131)
|
|
|

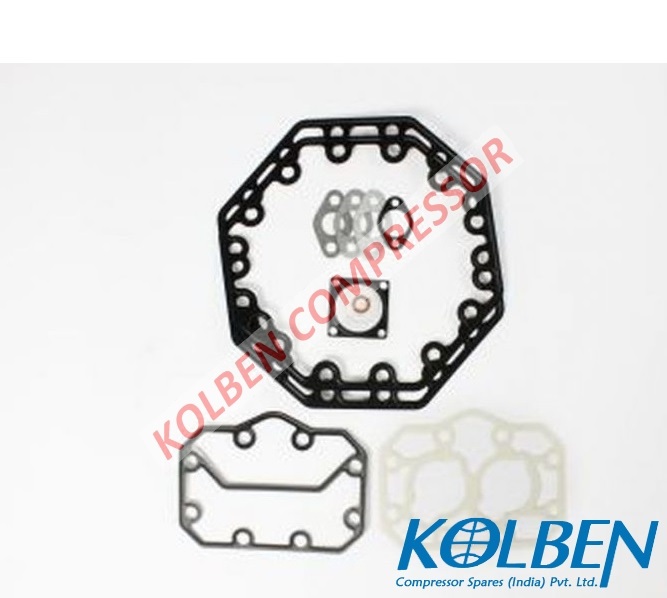

21. |
|
2EES-3 |
37283501 |
gasket set (37283501)
|
|
|
22. |
|
2EES-3 |
38010405 |

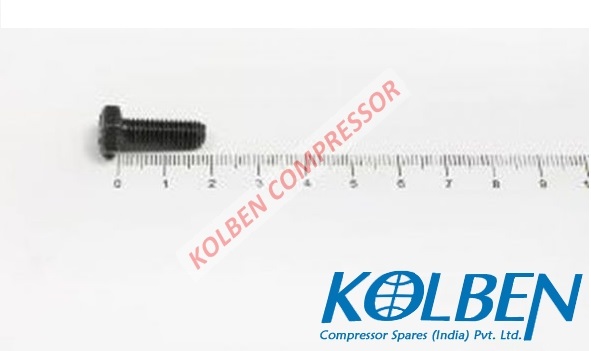

Hexagon head screw Terminal plate DIN 933, 8.8 M6 x 18 (38010405)
|
|
|
23. |
|
2EES-3 |
38005621 |
hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)
|
|
|
24. |
|
2EES-3 |
38015606 |
hexagon head screw bearing cover coated DIN 933, 10.9 M10 x 30 (38015606)
|
|
|
25. |
|
2EES-3 |
38016702 |
hexagon head screw built-in motor coated DIN 933, 10.9 M12 x 40 (38016702)
|
|
|
26. |
|
2EES-3 |
38005604 |
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
|
|
|
27. |
|
2EES-3 |
38015402 |

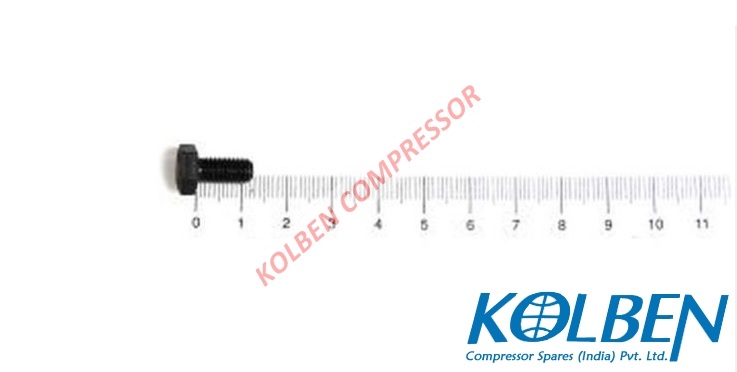

hexagon head screw oil splasher plate steel DIN 933, 10.9 M6 x 12 (38015402)
|
|
|
28. |
|
2EES-3 |
38015505 |
hexagon head screw discharge shut-off valve DIN 933, 10.9 M8 x 20 (38015505)
|
|
|
29. |
|
2EES-3 |

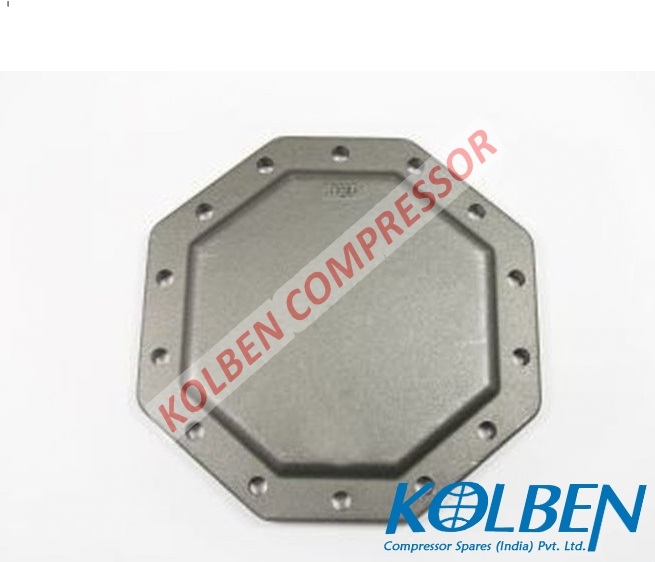

30522901 |
housing cover Motor side grey cast iron 241,2 x 241,2 x 20 (30522901)
|
|
|

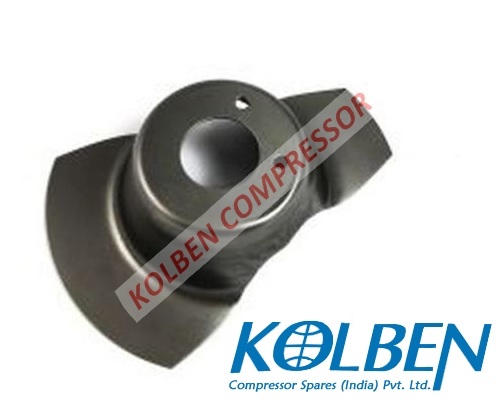

30. |
|
2EES-3 |
32110504 |
oil splasher plate steel Ø185 x 54 (32110504)
|
|
|
31. |
|
2EES-3 |
38050154 |
Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)
|
|
|
32. |
|
2EES-3 |
38400301 |

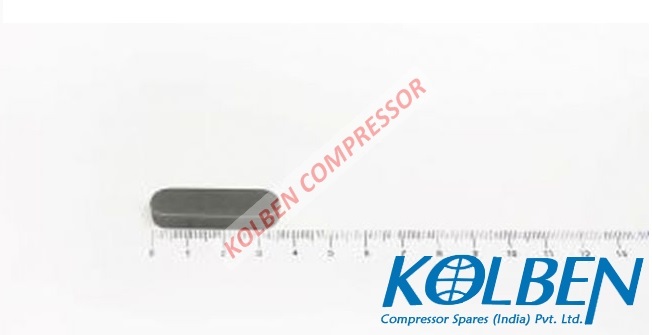

parallel key built-in motor steel DIN 6885 A10 x 6 x 36 (38400301)
|
|
|

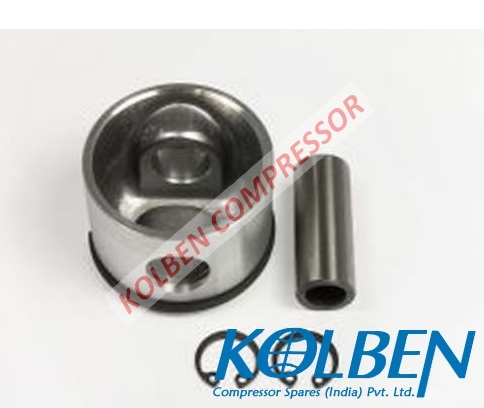

33. |
|
2EES-3 |
30271103 |
piston Ø46 (30271103)
|
|
|
34. |
|
2EES-3 |
34701901 |
protection device SE-B1 230V-50/60Hz (34701901)
|
|
|
35. |
|
2EES-3 |
36620116 |
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm(36620116)
|
|
|
36. |
|
2EES-3 |
36620117 |
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm(36620117)
|
|
|
37. |
|
2EES-3 |
38223102 |
retaining ring with lugs wrist pin spring steel DIN 472 Ø15 x 1 (38223102)
|
|
|

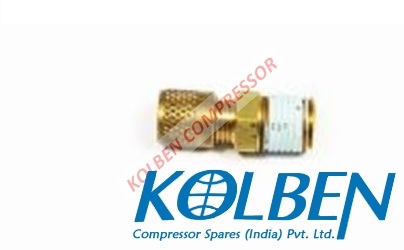

38. |
|
2EES-3 |
36150122 |
Schrader valve 1/4" - 18 NPTF (36150122)
|
|
|
39. |
|
2EES-3 |
31502701 |
Screw for grounding Terminal plate M6 x 40 (31502701)
|
|
|
40. |
|
2EES-3 |

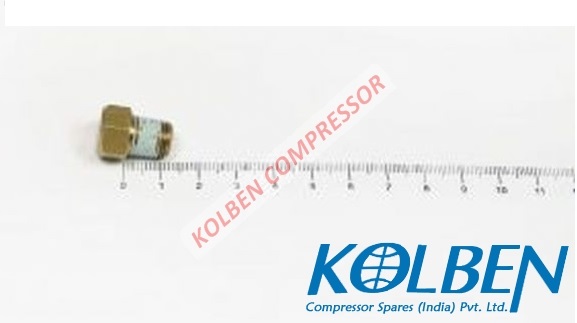

36610021 |
sealing plug 1/8" - 27 NPTF (36610021)
|
|
|
41. |
|
2EES-3 |
36610001 |
Sealing Plug cylinder head brass 1/8" - 27 NPTF (36610001)
|
|
|
42. |
|
2EES-3 |
36131505 |

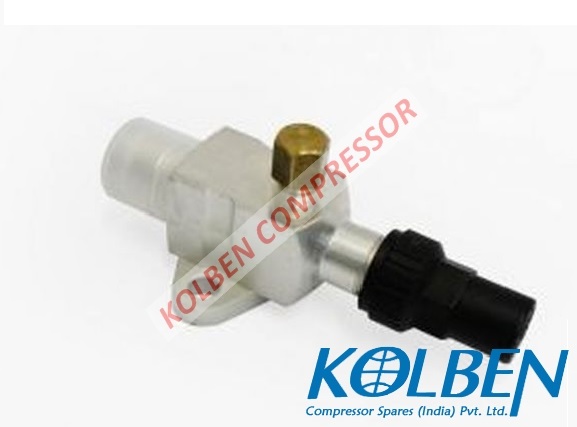

shut-off valve suction side brazed connection Ø22 L (36131505)
|
|
|
43. |
|
2EES-3 |

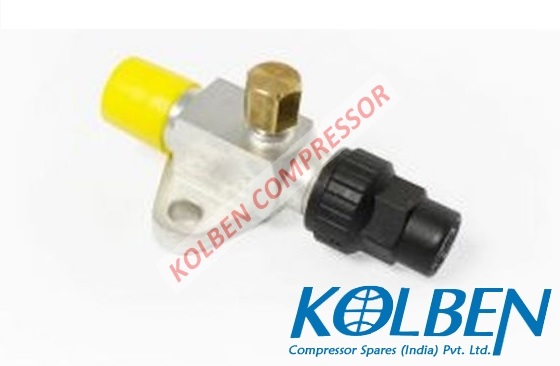

36131510 |
shut-off valve Discharge side brazed connection Ø16 L (36131510)
|
|
|
44. |
|
2EES-3 |
36181501 |

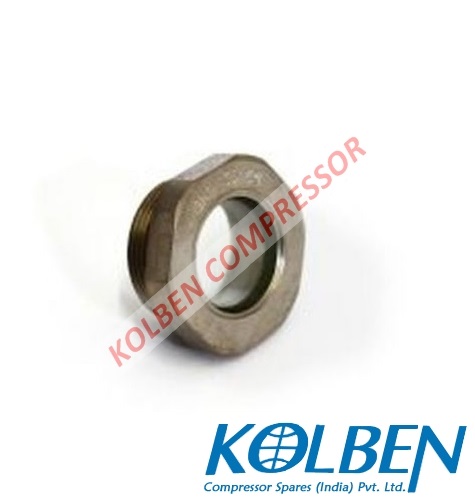

Sight Glass steel / glass 1 1/8" - 18 UNEF (36181501)
|
|
|

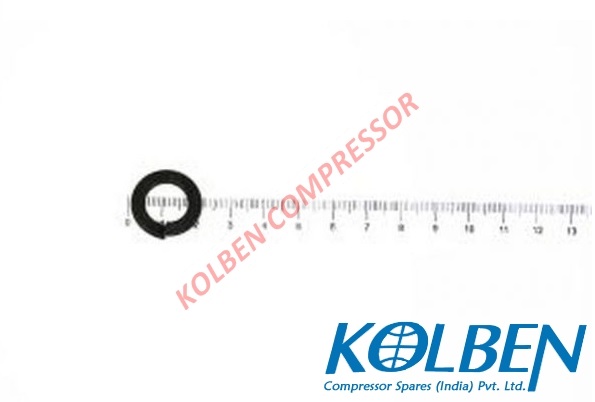

45. |
|
2EES-3 |
38220106 |
single coil spring washer built-in motor spring steel DIN 127 A12 (38220106)
|
|
|
46. |
|
2EES-3 |

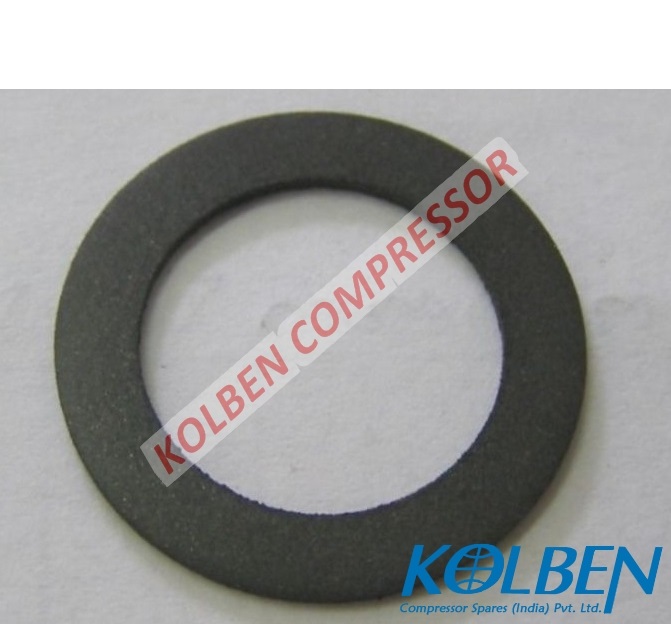

32052501 |
spring washer wrist pin Ø22 x Ø15,1 x 0,8 (32052501)
|
|
|
47. |
|
2EES-3 |
36201204 |
suction gas filter suction shut-off valve LA 42 (36201204)
|
|
|
48. |
|
2EES-3 |
34350901 |
terminal box standard 202 x 95 x 57 (34350901)
|
|
|
49. |
|
2EES-3 |
34550401 |

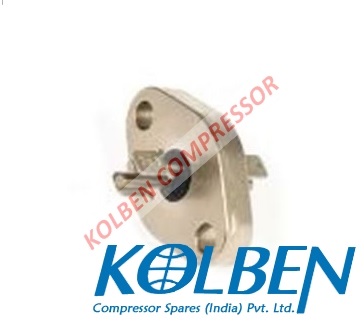

Terminal plate 48 x 32 x 39 (34550401)
|
|
|
50. |
|
2EES-3 |

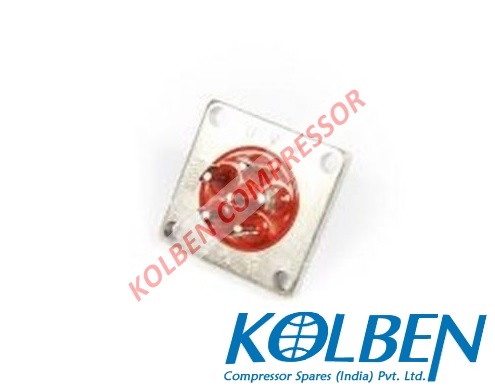

34550015 |
Terminal plate 6-Lead 52 x 52 x 39 (34550015)
|
|
|
51. |
|
2EES-3 |
34342801 |

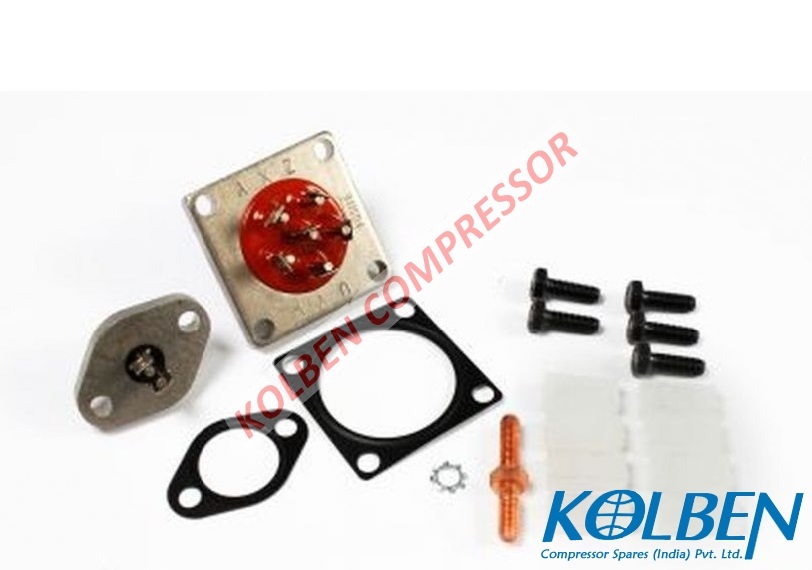

terminal plate kit (34342801)
|
|
|

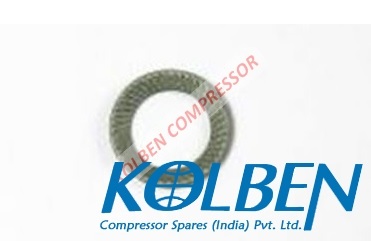

52. |
|
2EES-3 |
38215001 |
thrust washer spring steel S6 (38215001)
|
|
|
53. |
|
2EES-3 |
31210302 |

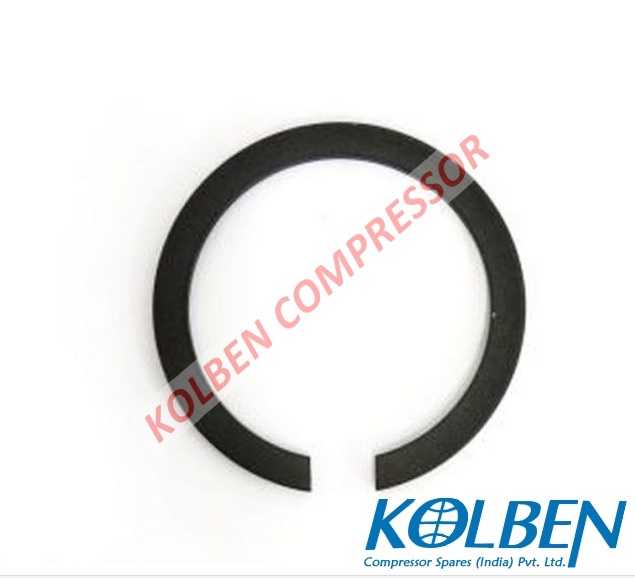

thrust washer Motor side Ø46 x Ø37,5 x 3 (31210302)
|
|
|
54. |
|
2EES-3 |
32050202 |

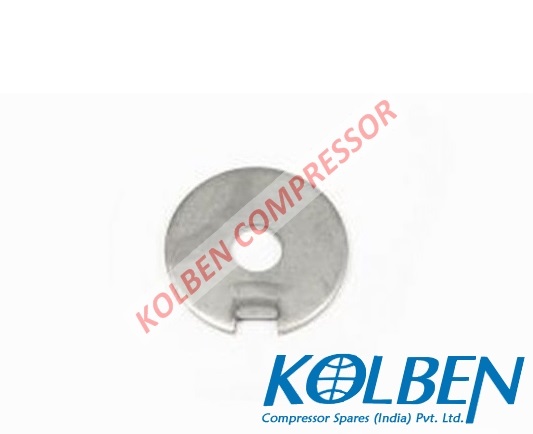

thrust washer built-in motor steel Ø45 x Ø12,5 x 3,5 (32050202)
|
|
|
55. |
|
2EES-3 |

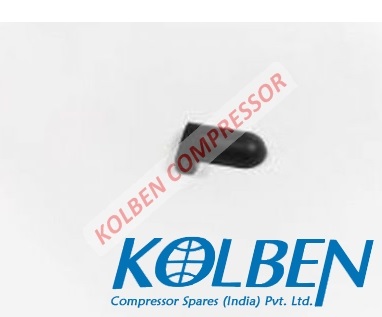

37507901 |
Train plug (37507901)
|
|
|
56. |
|
2EES-3 |
30405910 |

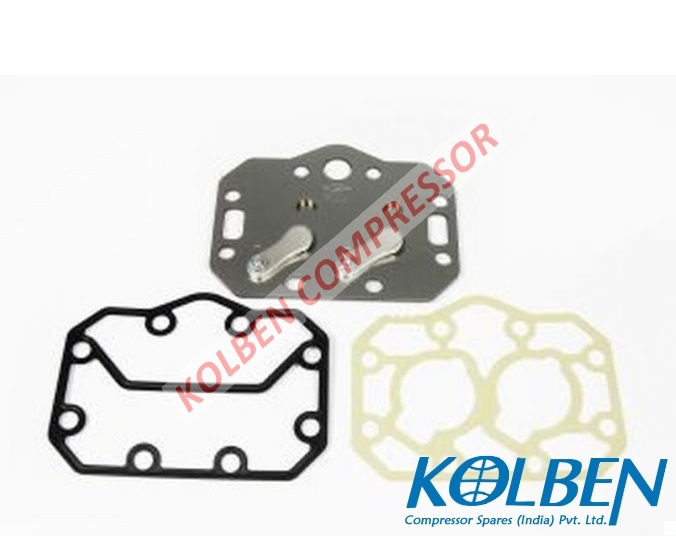

valve plate Ø46 (30405910)
|
|
|
57. |
|
2EES-3 |
37000020 |

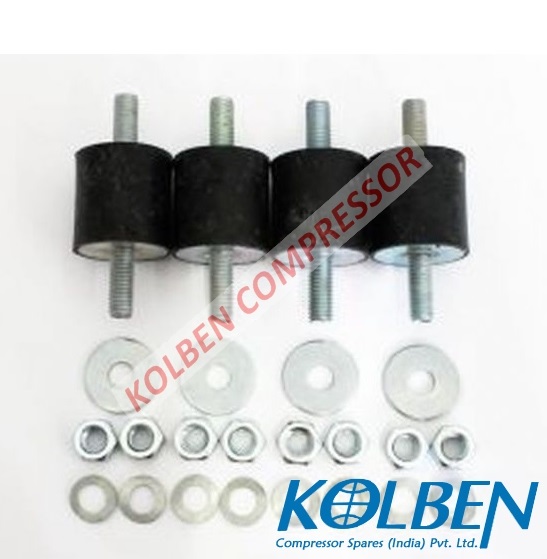

vibration damper set rubber (37000020)
|
|
|
58. |
|
2EES-3 |
38340140 |

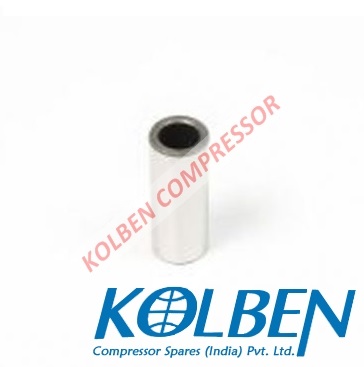

wrist pin DIN 73126 Ø15 x Ø10 x 38 (38340140)
|
|
