2N-7.2

Sr. No.	Image	Model	OEM Part No.	Description
1.		2N-7.2	311100-17	bearing bush Ø50 x Ø45 x 40,7 (31110017)

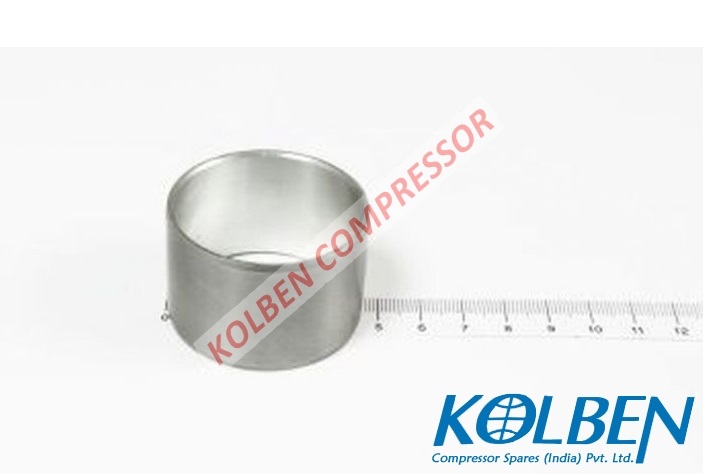

2.		2N-7.2	311100-06	bearing bush Motor side Ø46 x Ø42 x 30 (31110006)
3.		2N-7.2	305125-01	bearing cover (30512501)
4.		2N-7.2	367015-15	blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)
5.		2N-7.2	320307-03	bottom plate steel 220 x 200 x 12 x Ø21 (32030703)
6.		2N-7.2	346177-12	built-in motor 5.0 kW, 4-pole 220..240V D-3-50Hz, 380..415V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø190 x 117,3 (34617712)
7.		2N-7.2	345900-02	cable strap (34590002)
8.		2N-7.2	380507-51	cheese head screw 4.8 galvanized M4 x 8 (38050751)
9.		2N-7.2	380306-02	Cheese head scre DIN 912, 10.9 M8 x 20 (38030602)
10.		2N-7.2	380306-32	Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
11.		2N-7.2	380508-51	Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
12.		2N-7.2	383021-10	clamping sleeve DIN 7346 Ø8 x 18 (38302110)

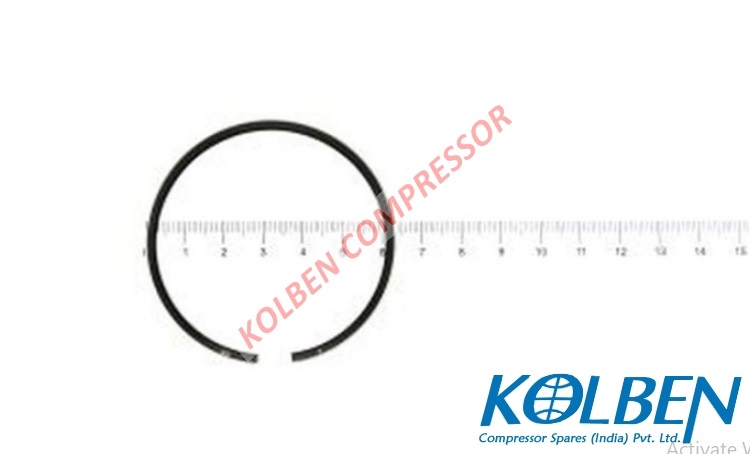

13.		2N-7.2	382300-52	compression ring Piston diameter 59,96mm Ø60 x 1,5 (38230052)
14.		2N-7.2	302117-05	connecting rod Ø45 x Ø20 x 112 (30211705)

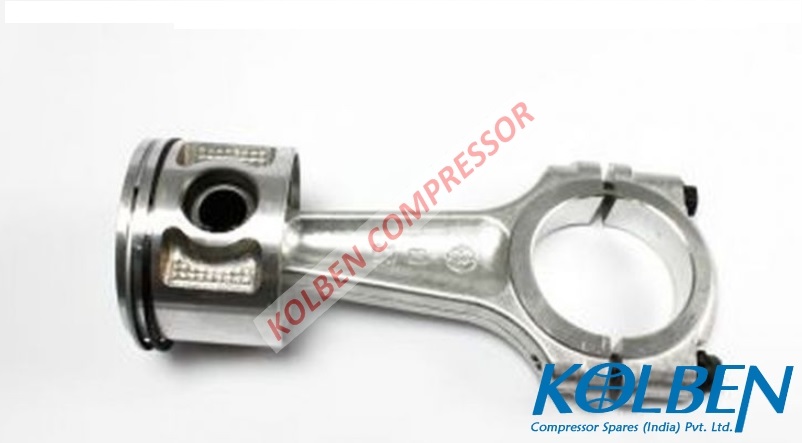

15.		2N-7.2	302297-24	connecting rod / piston (30229724)
16.		2N-7.2	320318-03	connection bridge brass A 5,4 (32031803)
17.		2N-7.2	343208-23	crankcase heater heating capacity: 70W 230V-1-50/60Hz (34320823)

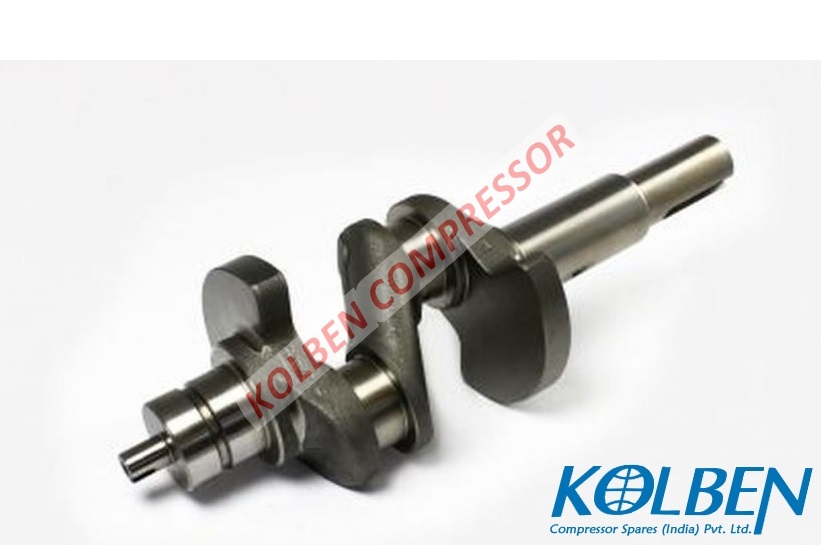

18.		2N-7.2	301007-15	crankshaft Ø57 x Ø45 x 380,5 (30100715)
19.		2N-7.2	380507-52	Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
20.		2N-7.2	380501-52	cross recessed raised screw Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
21.		2N-7.2	302360-18	cylinder head air-cooled Pulsation muffler (30236018)
22.		2N-7.2	302360-01	cylinder head Water cooled (30236001)

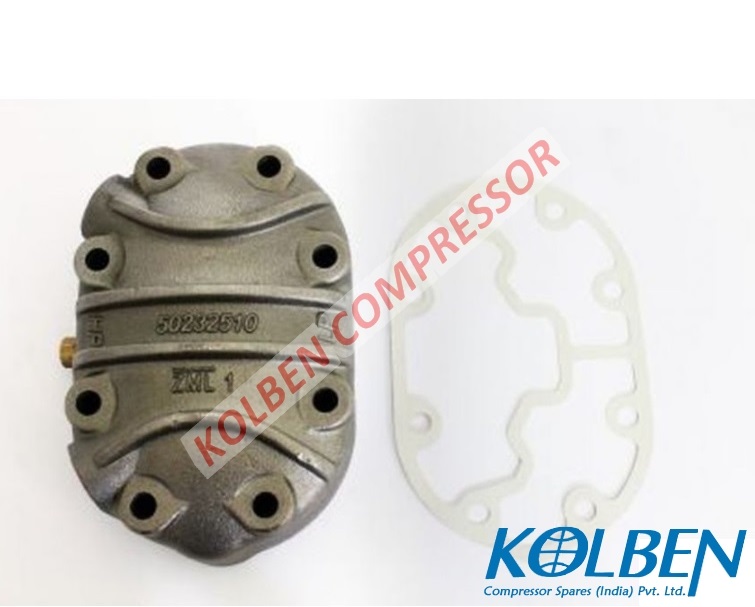

23.		2N-7.2	302325-02	cylinder head water-cooled grey cast iron 196 x 127 x 71 (30232502)
24.		2N-7.2	325002-05	damper element Motor side yellow spring steel 42 mm (32500205)

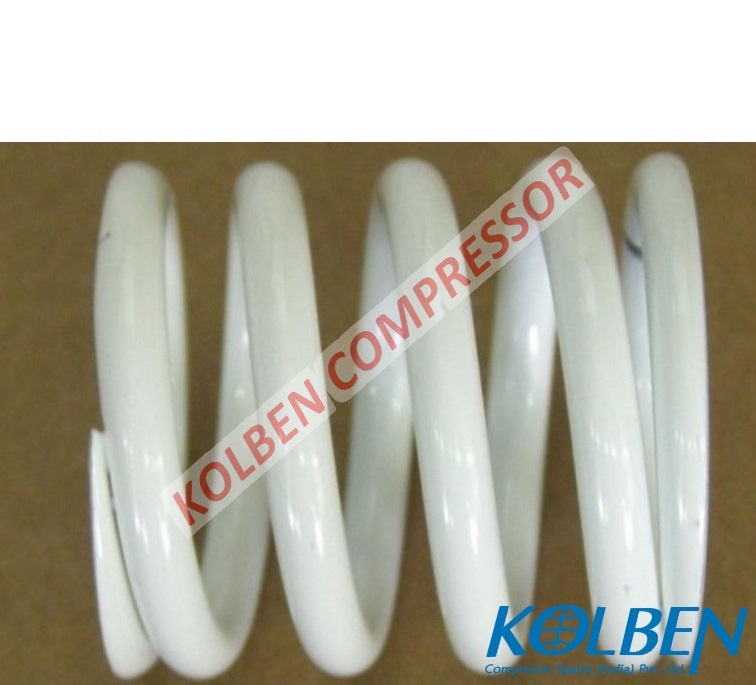

25.		2N-7.2	325002-04	damper element Crankcase side white spring steel (32500204)
26.		2N-7.2	347320-33	differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
27.		2N-7.2	382002-03	Disk brass DIN 125 A6, 4 (38200203)
28.		2N-7.2	389002-01	electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
29.		2N-7.2	320314-01	fixing plate MP54 140 x 40 x 3 (32031401)
30.		2N-7.2	327309-02	foot 315 x 40 x 8 x Ø21 (32730902)
31.		2N-7.2	361110-02	gas equalising valve steel 3/4" - 14 NPTF (36111002)
32.		2N-7.2	372314-03	gasket Ø182 x Ø133 x 1 (37231403)
33.		2N-7.2	372413-01	gasket bottom plate 220 x 200 x 1 (37241301)

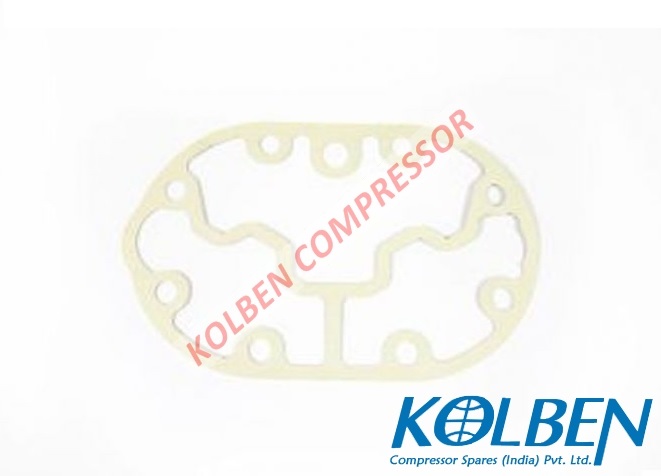

34.		2N-7.2	372611-05	gasket valve plate Pulsation muffler 192 x 127 x 0,75 (37261105)
35.		2N-7.2	372704-01	Gasket 91 x 52 x 1 (37270401)

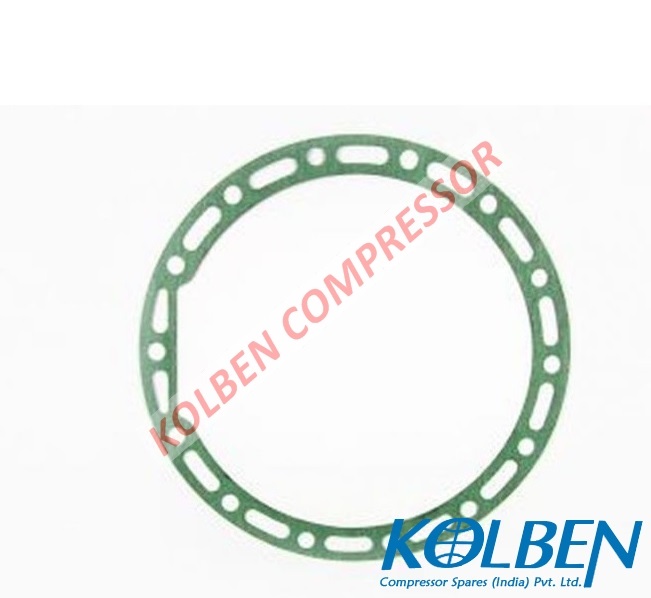

36.		2N-7.2	372316-02	gasket Ø254 x Ø210 x 1 (37231602)
37.		2N-7.2	372120-01	gasket 133 x 117 x 2 (37212001)

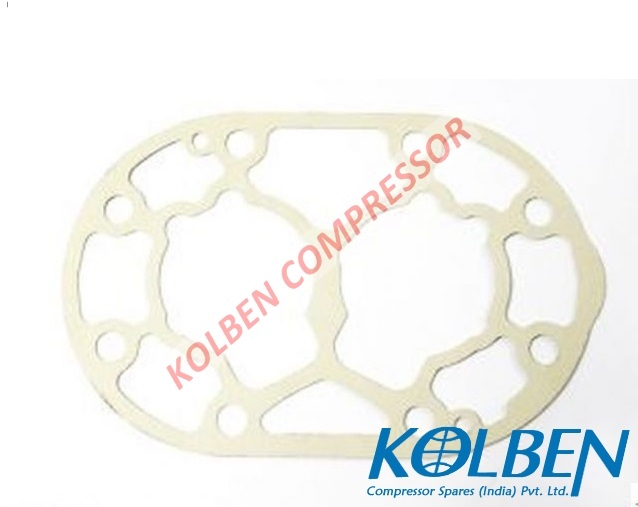

38.		2N-7.2	372510-12	gasket Ø60, 127 x 196 x 0,9 (37251012)
39.		2N-7.2	372200-04	gasket teflon Ø38 x Ø35 x 1,5 (37220004)
40.		2N-7.2	372138-01	gasket Ø 2,5 x 780 (37213801)
41.		2N-7.2	372702-03	gasket 35 x 60 x 1 (37270203)
42.		2N-7.2	375000-01	gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)
43.		2N-7.2	382403-05	Gasket Ring aluminium DIN 7603 A22 x 27 x 1,5 (38240305)

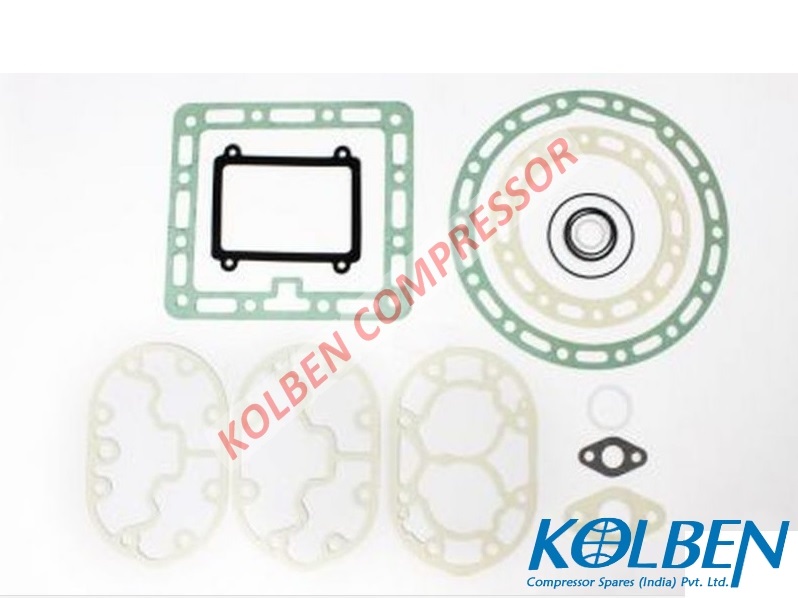

44.		2N-7.2	372804-04	gasket set (37280404)
45.		2N-7.2	345906-05	heater sleeve for 70W heater 43315 (34590605)
46.		2N-7.2	380156-06	hexagon head screw blind flange coated DIN 933, 10.9 M10 x 30 (38015606)
47.		2N-7.2	380056-07	hexagon head screw DIN 931, 10.9 M10 x 80 (38005607)
48.		2N-7.2	380155-05	hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
49.		2N-7.2	380156-05	hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)

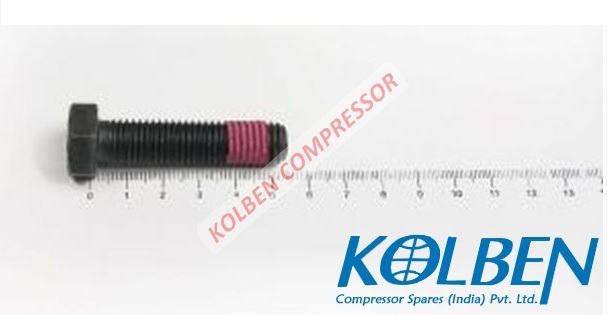

50.		2N-7.2	380167-03	hexagon head screw coated DIN 933, 10.9 M12 x 50 (38016703)
51.		2N-7.2	380056-03	hexagon head screw Motor side DIN 931, 10.9 M10 x 60 (38005603)
52.		2N-7.2	380035-01	hexagon head screw M6 x 40 (38003501)
53.		2N-7.2	380156-53	hexagon head screw galvanized DIN 933, 10.9 M10 x 30 (38015653)
54.		2N-7.2	380154-06	hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
55.		2N-7.2	381301-02	hexagon nut brass M4 (38130102)
56.		2N-7.2	381301-04	Hexagon nut Brass DIN 934 M6 (38130104)
57.		2N-7.2	375002-02	insulating plate 70 x 20 x 6 (37500202)
58.		2N-7.2	375002-01	insulating plate 53 x 18 x 6,5 (37500201)
59.		2N-7.2	372003-15	O-ring sight glass Ø36,3 x 1,78 (37200315)

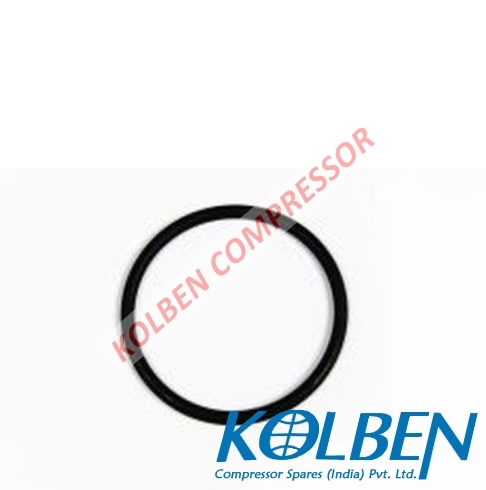

60.		2N-7.2	372001-12	O-ring Ø42 x 3 (37200112)
61.		2N-7.2	372001-19	O-ring Ø74 x 2 (37200119)
62.		2N-7.2	362003-02	oil filter Ø14 x 105 (36200302)

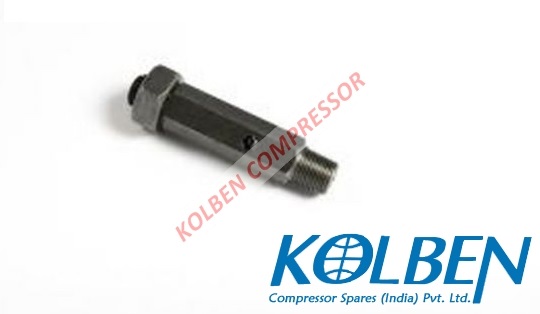

63.		2N-7.2	361105-01	oil pressure relief valve (36110501)

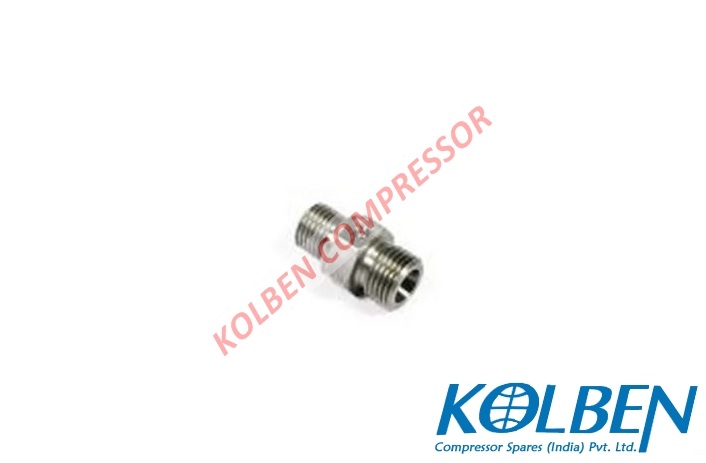

64.		2N-7.2	361204-01	oil pressure relief valve (36120401)
65.		2N-7.2	362503-01	oil pump grey cast iron (36250301)

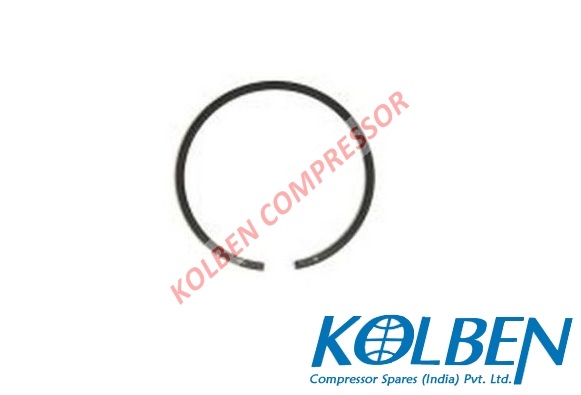

66.		2N-7.2	382310-19	oil scraper ring Piston diameter 59,96mm Ø60 x 1,5 (38231019)
67.		2N-7.2	384002-01	parallel key steel DIN 6885 B5 x 5 x 6 (38400201)

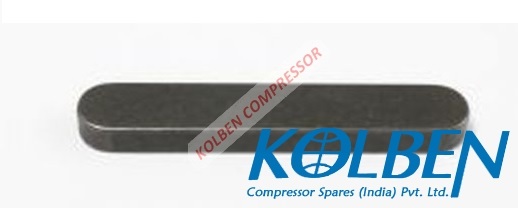

68.		2N-7.2	384003-06	parallel key steel DIN 6885 A10 x 6 x 63 (38400306)
69.		2N-7.2	366000-06	pipe connection steel copper-plated brazed connection Ø28, 1 3/4" - 12 UN (36600006)

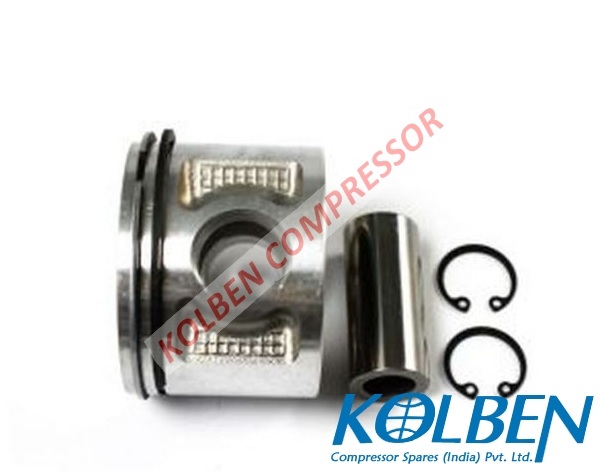

70.		2N-7.2	302232-16	piston aluminium alloy Ø55 (30223216)
71.		2N-7.2	375001-01	pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)
72.		2N-7.2	375001-02	pressure bush Ø6 x Ø21,5 x 8 (37500102)
73.		2N-7.2	325000-01	pressure spring steel Ø18 x 28 x 1,25 (32500001)
74.		2N-7.2	374000-01	pressure spring Ø59 x 7,5 (37400001)
75.		2N-7.2	347028-01	protection device SE-B2 230V-50/60Hz (34702801)
76.		2N-7.2	366201-17	Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
77.		2N-7.2	366201-19	Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)

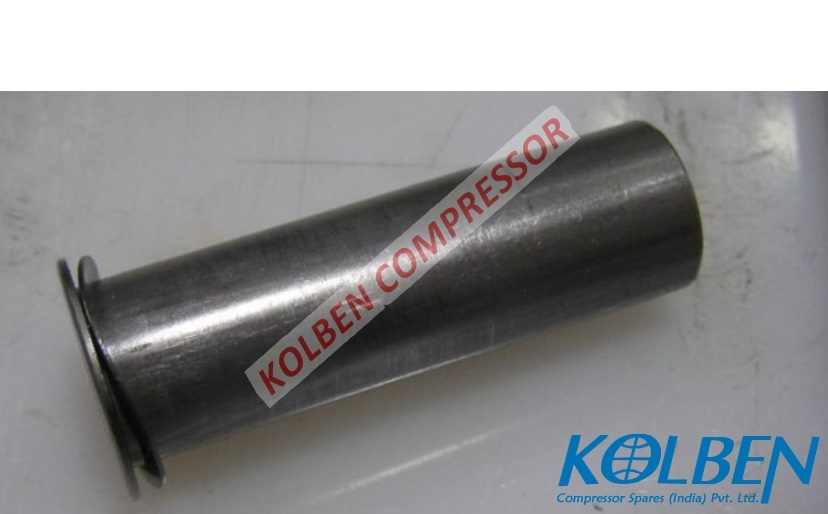

78.		2N-7.2	369107-03	pulsation muffler Ø20 x 15 x 50 (36910703)
79.		2N-7.2	382231-04	retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
80.		2N-7.2	361500-01	Schrader valve T-piece brass Jul-16 (36150001)
81.		2N-7.2	366202-01	sealing nut 7/16" - 20 UNF (36620201)
82.		2N-7.2	314203-01	sealing plug Ø10 x 15 (31420301)
83.		2N-7.2	366110-10	sealing plug steel 1/2" - 14 NPTF (36611010)
84.		2N-7.2	366110-08	Sealing Plug steel 1/4" - 18NPTF (36611008)
85.		2N-7.2	366110-01	Sealing plug steel 1/8“ - 27 NPTF (36611001)
86.		2N-7.2	366124-01	sealing screw permanent magnet M22 x 1,5 (36612401)
87.		2N-7.2	361315-05	shut-off valve brazed connection Ø22 L (36131505)
88.		2N-7.2	361310-07	shut-off valve brazing and welding bush Ø28 (1 1/8") (36131007)
89.		2N-7.2	361802-02	sight glass steel / glass Ø67 x 8,5 (36180202)
90.		2N-7.2	382201-51	single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
91.		2N-7.2	382141-02	single coil spring washer spring steel A6 (38214102)
92.		2N-7.2	382201-06	single coil spring washer spring steel DIN 127 A12 (38220106)

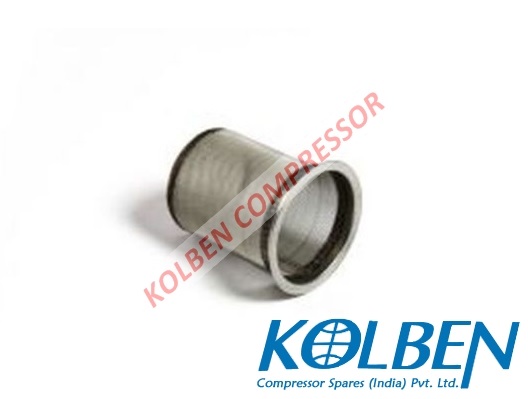

93.		2N-7.2	362001-01	suction gas filter Ø30 x 40 (36200101)
94.		2N-7.2	343517-56	terminal box aluminium 250 x 178 x 76,5 (34351756)

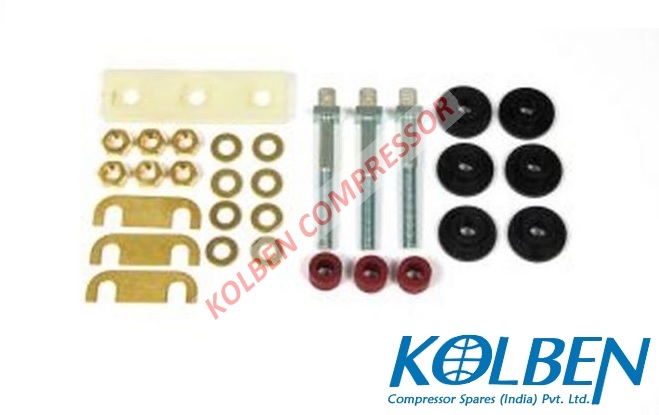

95.		2N-7.2	343414-01	terminal plate kit (34341401)

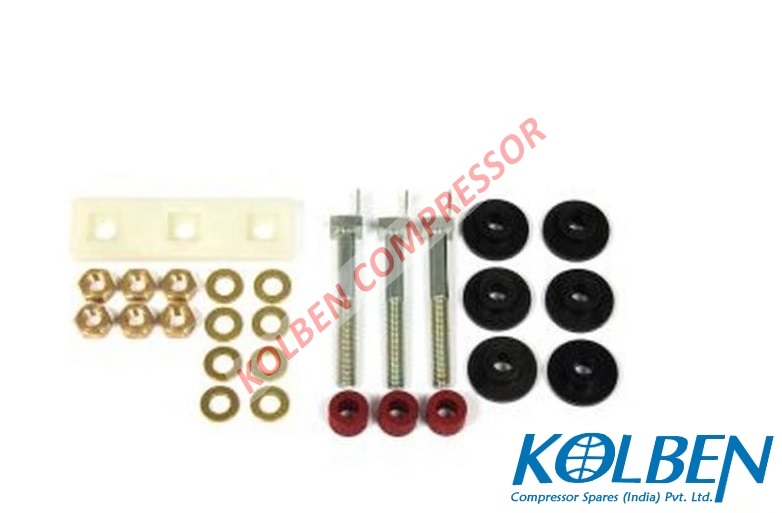

96.		2N-7.2	343414-02	terminal plate kit (34341402)
97.		2N-7.2	343414-07	terminal plate kit (34341407)

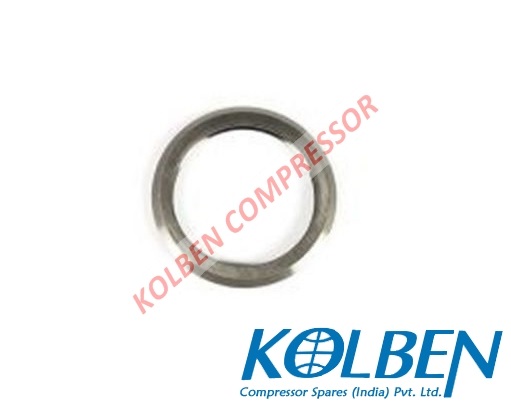

98.		2N-7.2	312002-01	thrust collar Ø55 x 7 (31200201)
99.		2N-7.2	320502-02	thrust washer steel Ø45 x Ø12,5 x 3,5 (32050202)
100.		2N-7.2	320500-04	thrust washer Crankcase side Ø52 x Ø42,5 x 1,7 (32050004)
101.		2N-7.2	320500-07	thrust washer Ø62 x Ø48 x 1,7 (32050007)

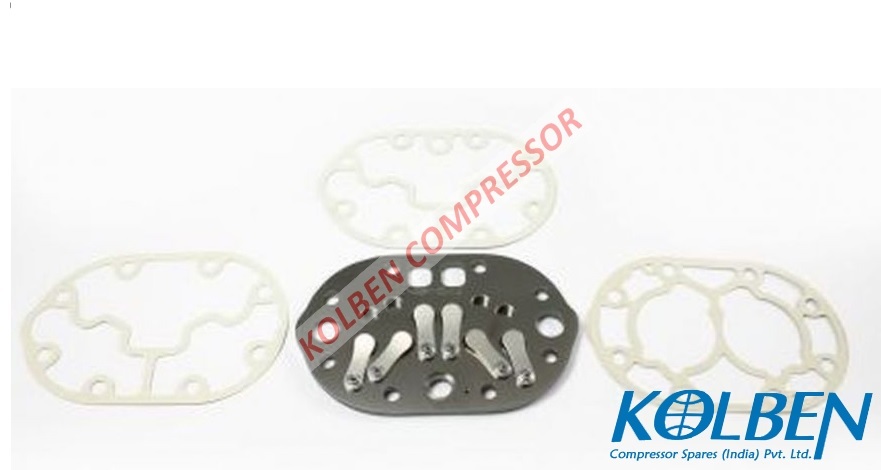

102.		2N-7.2	304056-03	valve plate Pulsation muffler Ø60 (30405603)
103.		2N-7.2	370003-02	vibration damper set Motor side yellow spring Lo=42 (37000302)

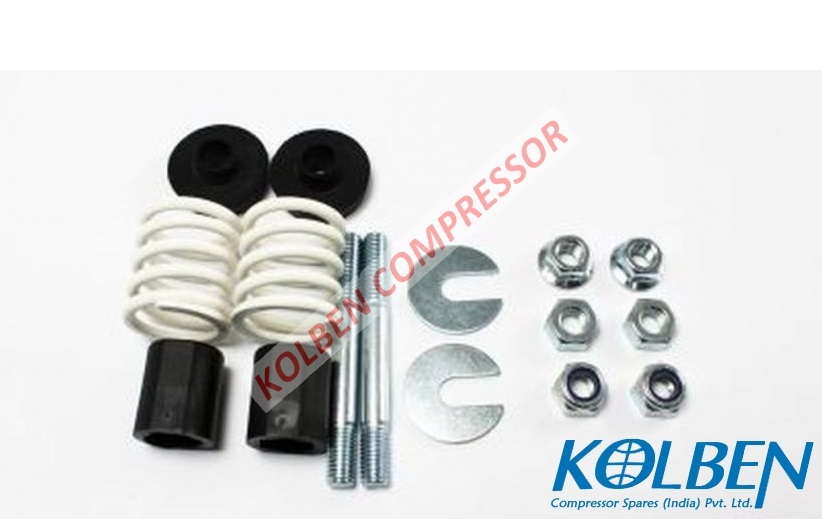

104.		2N-7.2	370003-01	vibration damper set white spring Lo=40 (37000301)
105.		2N-7.2	382002-01	washer brass DIN 125 A4, 3 (38200201)
106.		2N-7.2	383401-04	wrist pin Ø20 x Ø13 x 45 (38340104)
