S4G-12.2

Sr. No.	Image	Model	OEM Part No.	Description

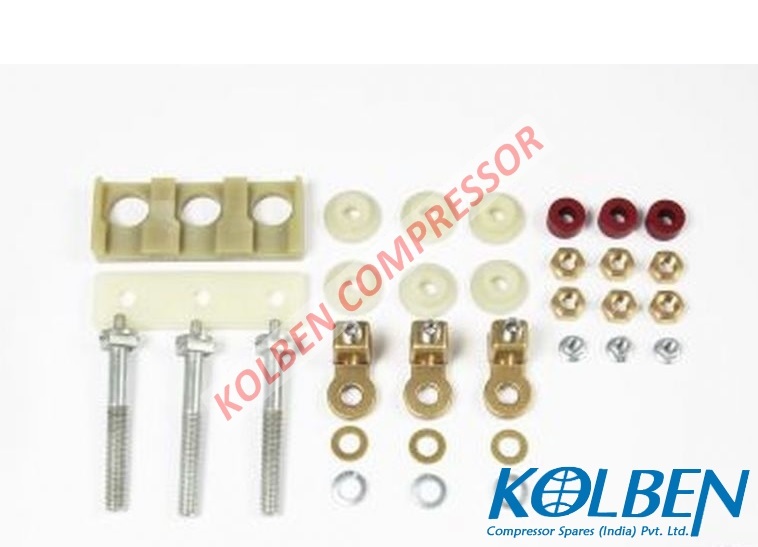

1.		S4G-12.2	34341408	terminal plate kit (34341408)
2.		S4G-12.2	34341707	connection to ground, grounding (34341707)

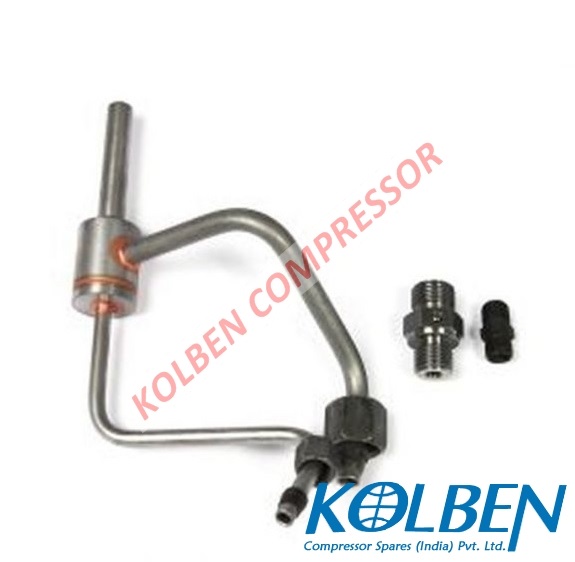

3.		S4G-12.2	36011006	oil return system(36011006)

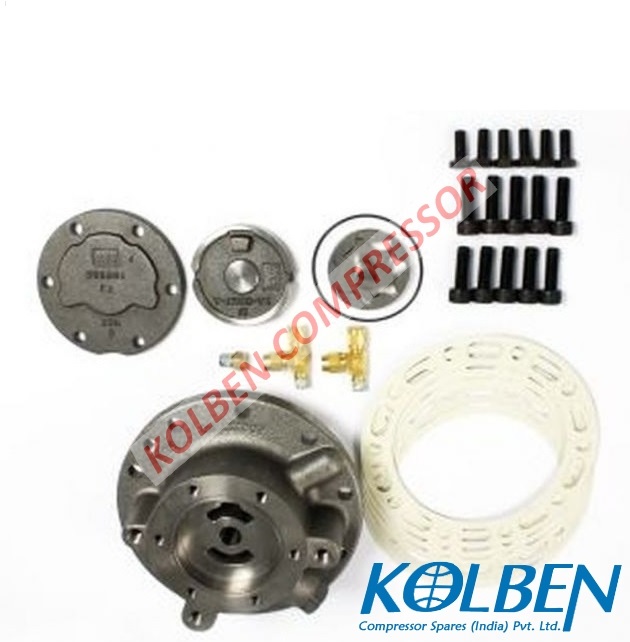

4.		S4G-12.2	30512503	bearing cover inclusive oil pump(30512503)

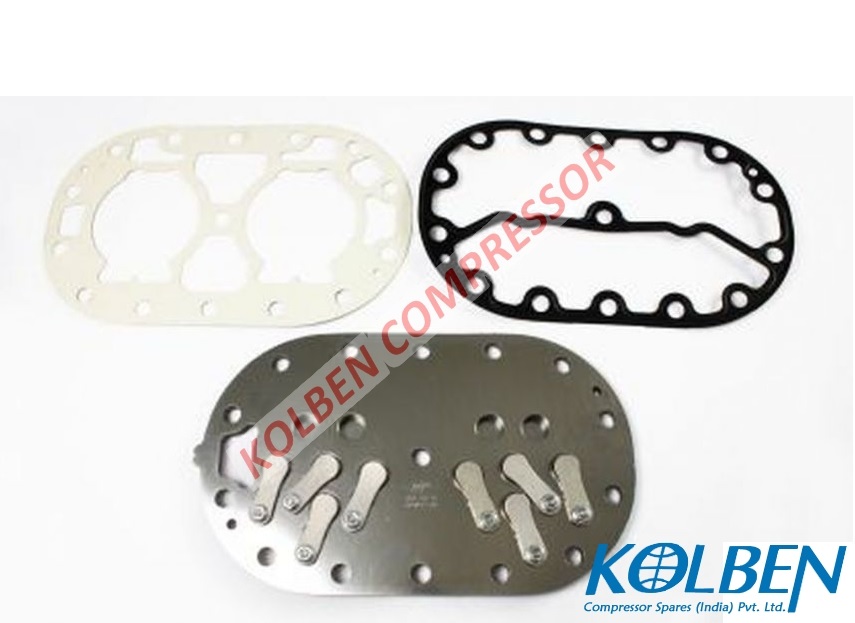

5.		S4G-12.2	30401613	valve plate low pressure stage Low pressure side (30401613)
6.		S4G-12.2	34592306	insulating plate (34592306)
7.		S4G-12.2	36140404	expansion valve operation with liquid subcooler TEVI 2, nozzle 03 R 404A (36140404)

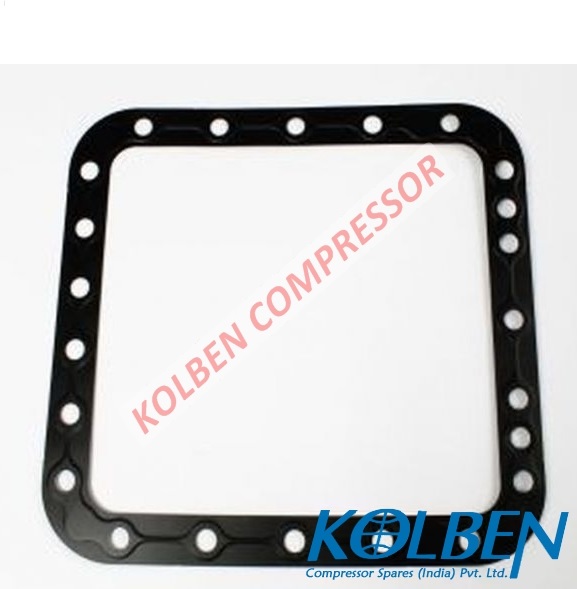

8.		S4G-12.2	37241502	gasket bottom plate (37241502)
9.		S4G-12.2	34341301	conversion kit (34341301)

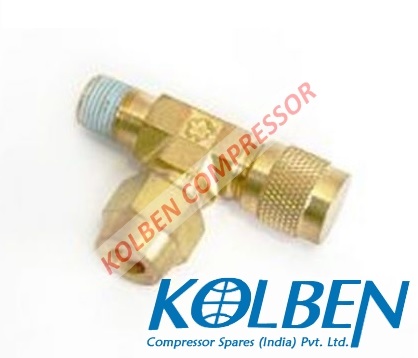

10.		S4G-12.2	36150022	Schrader valve (36150022)

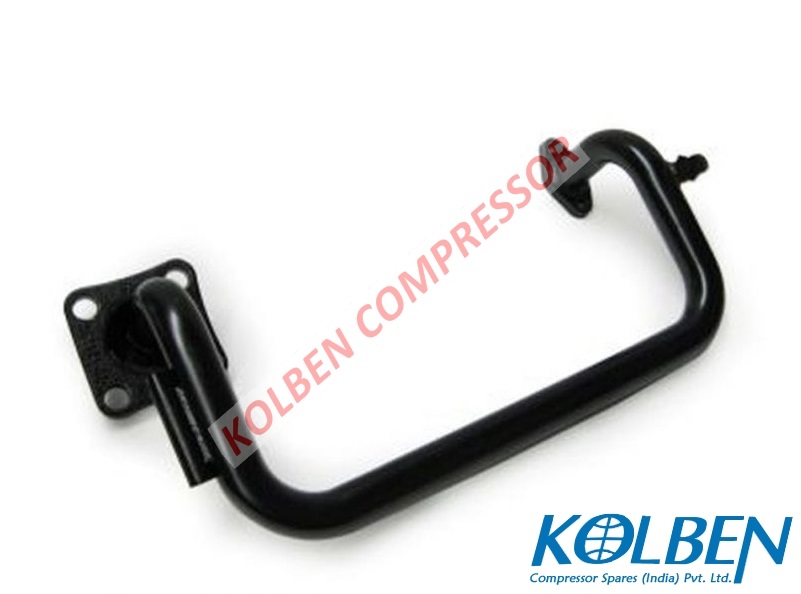

11.		S4G-12.2	36050801	intermediate pressure mixing pipe (36050801)

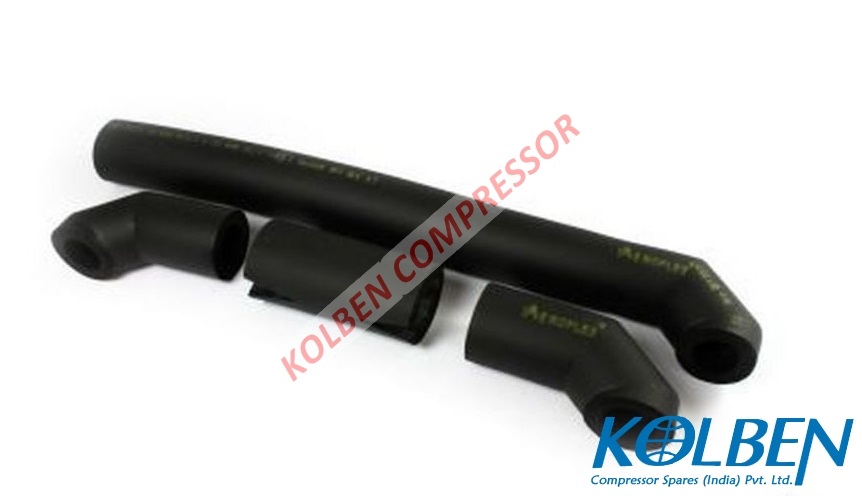

12.		S4G-12.2	37700601	insulation intermediate pressure mixing pipe Armaflex (37700601)
13.		S4G-12.2	30291502	cable connector brass (30291502)
14.		S4G-12.2	34341407	terminal plate kit (34341407)

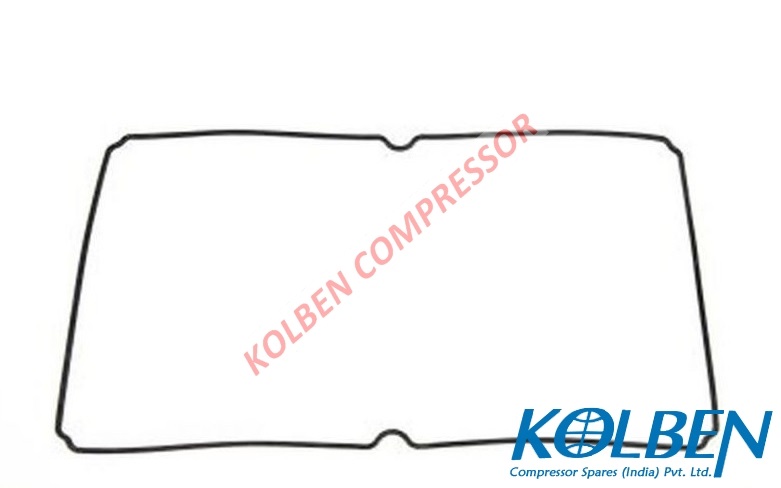

15.		S4G-12.2	37213802	gasket terminal box aluminium (37213802)

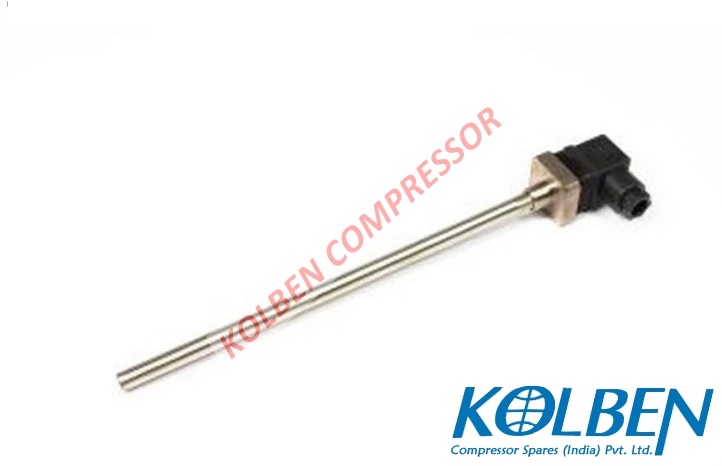

16.		S4G-12.2	34321312	Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)

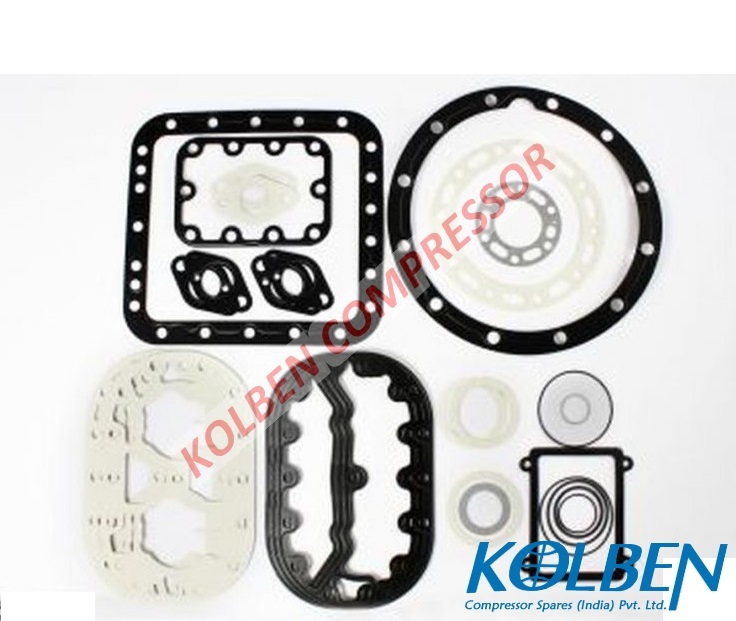

17.		S4G-12.2	37281801	gasket set (37281801)
18.		S4G-12.2	34702804	protection device SE-B2 24V-50/60Hz (34702804)
19.		S4G-12.2	30211551	connecting rod (30211551)
20.		S4G-12.2	34702805	protection device SE-B2 24V-DC (34702805)
21.		S4G-12.2	34702303	PTC-sensor (34702303)
22.		S4G-12.2	37402703	shaft seal bearing bush (37402703)
23.		S4G-12.2	34700401	protection device INT389 230V-50/60Hz (34700401)
24.		S4G-12.2	34341602	terminal plate kit (34341602)
25.		S4G-12.2	34700402	protection device INT389 115V-50/60Hz (34700402)
26.		S4G-12.2	34700405	protection device 115V 50/60 Hz INT389R 115V-50/60Hz (34700405)

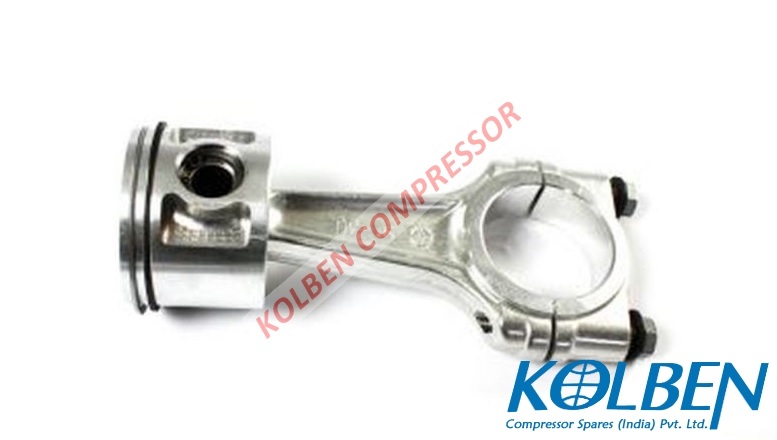

27.		S4G-12.2	30229731	connecting rod / piston high pressure side (30229731)
28.		S4G-12.2	34700403	protection device 230V 50/60 Hz INT389R 230V-50/60Hz (34700403)
29.		S4G-12.2	34703504	protection device SE-B3 110V/230V-50/60Hz (34703504)
30.		S4G-12.2	36611010	sealing plug oil equalising bore steel (36611010)
31.		S4G-12.2	36611002	Sealing Plug steel (36611002)

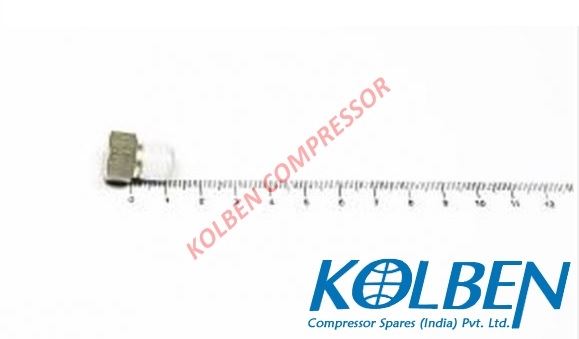

32.		S4G-12.2	36611001	Sealing plug steel (36611001)

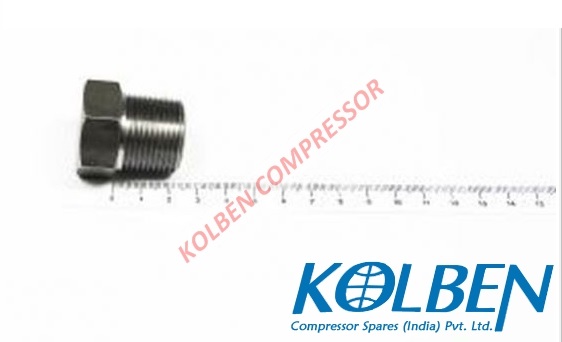

33.		S4G-12.2	36611005	sealing plug low pressure stage steel (36611005)

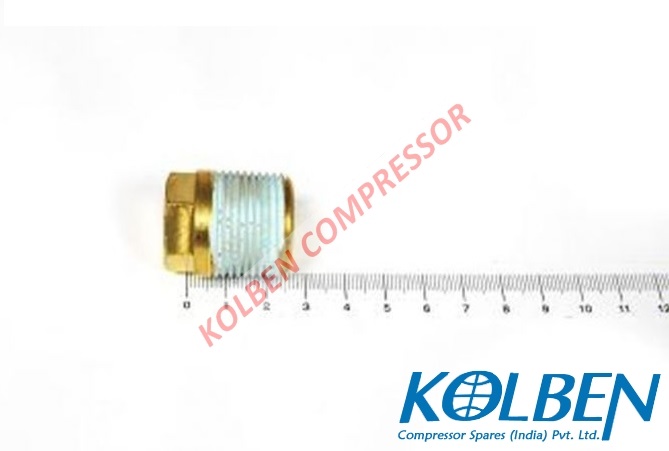

34.		S4G-12.2	36610422	sealing plug separation wall brass (36610422)

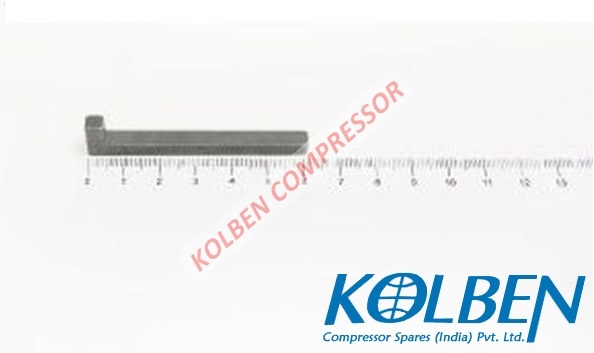

35.		S4G-12.2	38410201	gib-headed key steel DIN 6887 (38410201)
36.		S4G-12.2	38310108	half length taper-grooved dowel pin spacer sleeve DIN 1472 (38310108)

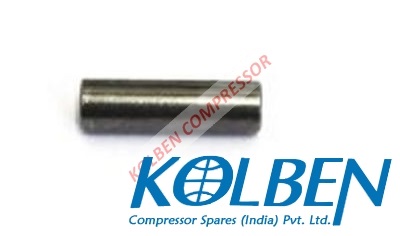

37.		S4G-12.2	32700001	parallel pin (32700001)
38.		S4G-12.2	36150001	Schrader valve T-piece brass (36150001)

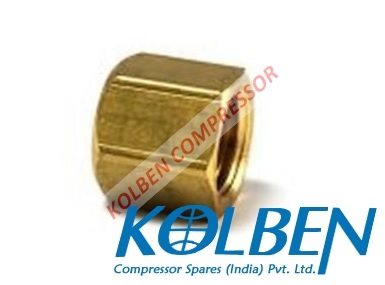

39.		S4G-12.2	36620201	sealing nut (36620201)
40.		S4G-12.2	38204203	washer copper (38204203)
41.		S4G-12.2	38302111	clamping sleeve (38302111)

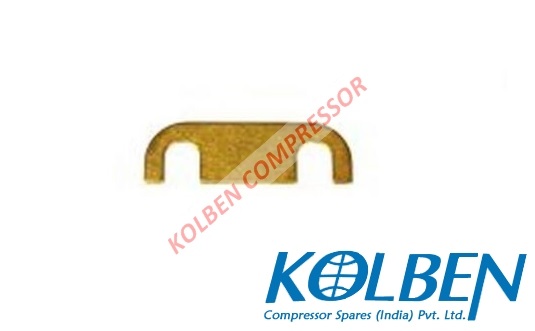

42.		S4G-12.2	32031801	connection bridge (32031801)
43.		S4G-12.2	37500201	insulating plate (37500201)

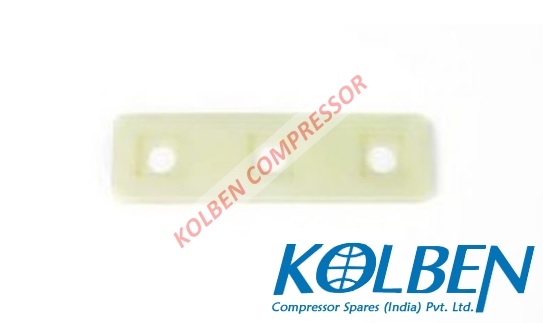

44.		S4G-12.2	37500203	insulating plate (37500203)

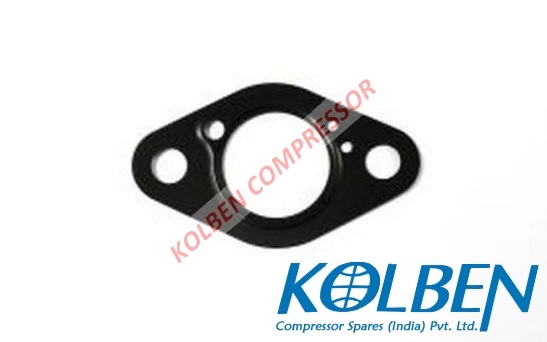

45.		S4G-12.2	37271201	gasket Retall(37271201)
46.		S4G-12.2	37270401	Gasket blind flange (37270401)

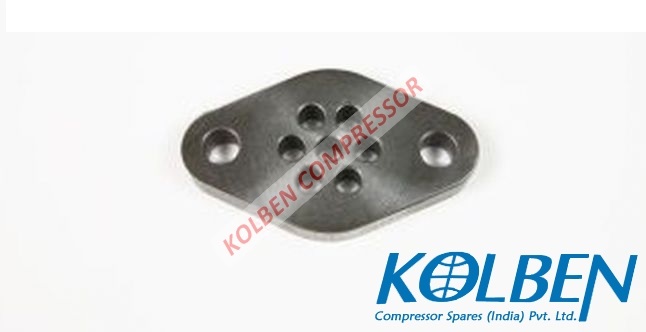

47.		S4G-12.2	36701521	intermediate flange steel (36701521)

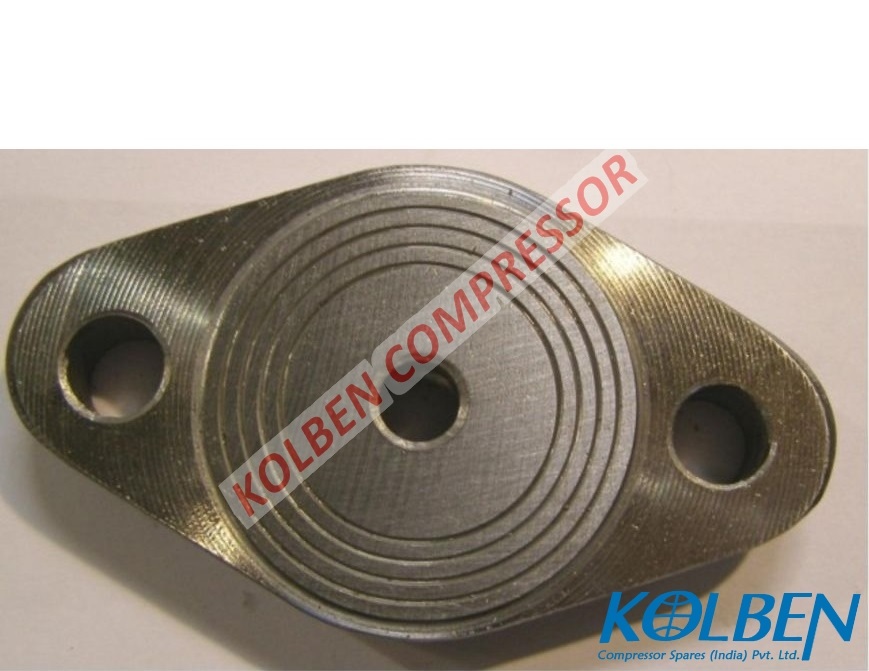

48.		S4G-12.2	36701515	blind flange steel (36701515)
49.		S4G-12.2	34732033	differential oil pressure cut-out MP54 115V/230V-50/60Hz (34732033)
50.		S4G-12.2	37212001	gasket (37212001)
51.		S4G-12.2	32031401	fixing plate MP54 (32031401)
52.		S4G-12.2	30236015	cylinder head low pressure stage Low pressure side (30236015)

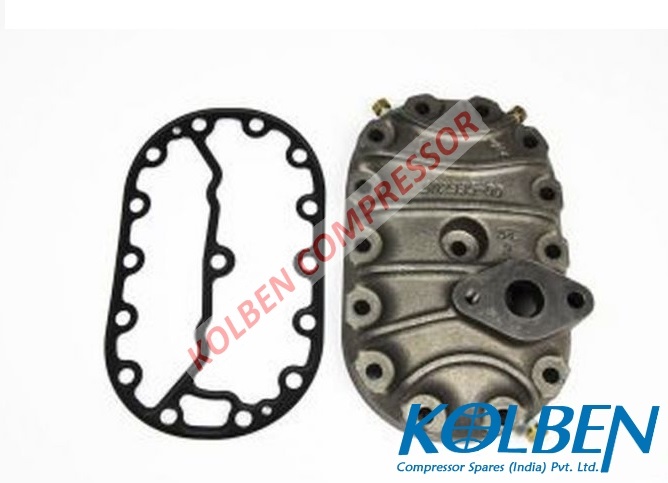

53.		S4G-12.2	30236014	cylinder head high pressure side (30236014)
54.		S4G-12.2	37242115	gasket (37242115)
55.		S4G-12.2	37212401	gasket terminal box aluminium(37212401)

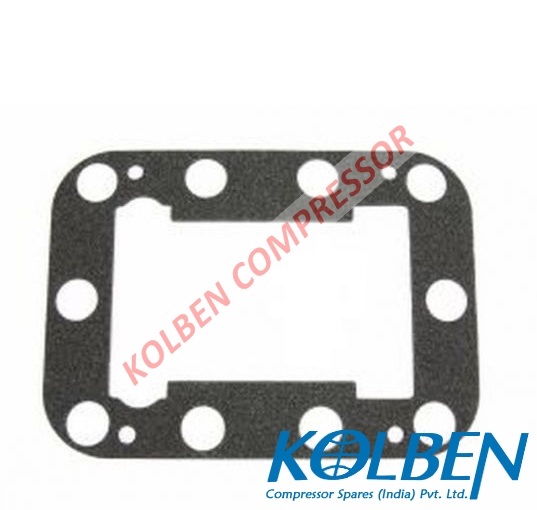

56.		S4G-12.2	37212403	gasket only needed for terminal box IP66 (37212403)
57.		S4G-12.2	30490001	terminal plate (30490001)
58.		S4G-12.2	32120201	centering plate steel (32120201)

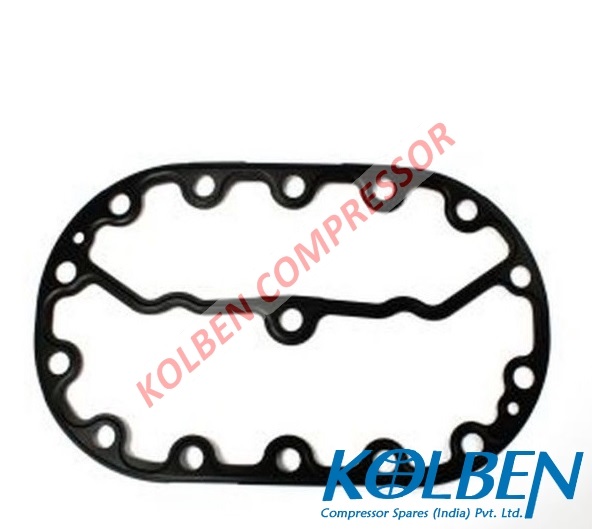

59.		S4G-12.2	37261603	gasket low pressure stage Retall (37261603)

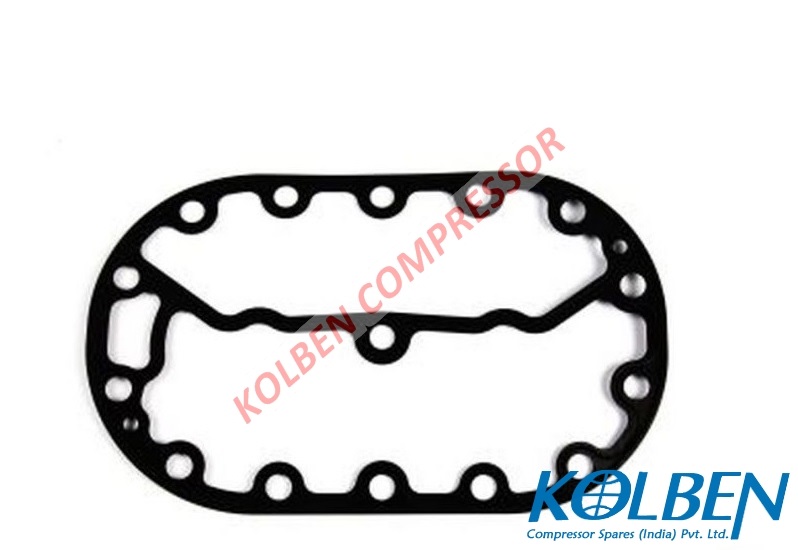

60.		S4G-12.2	37261604	gasket high pressure side Retall (37261604)

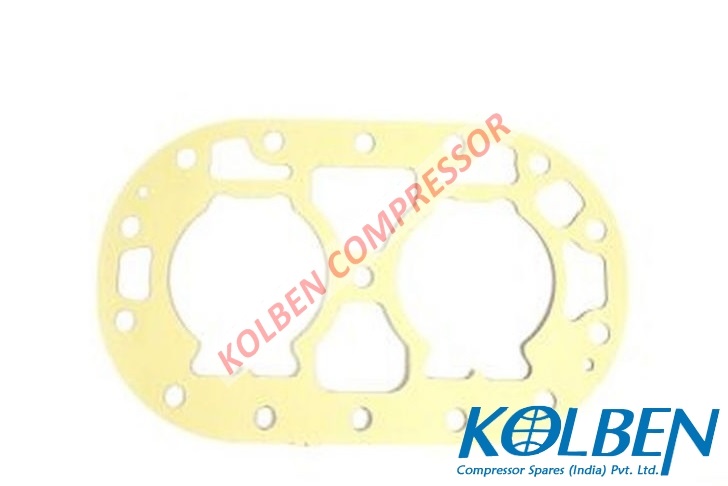

61.		S4G-12.2	37251106	gasket low pressure stage (37251106)

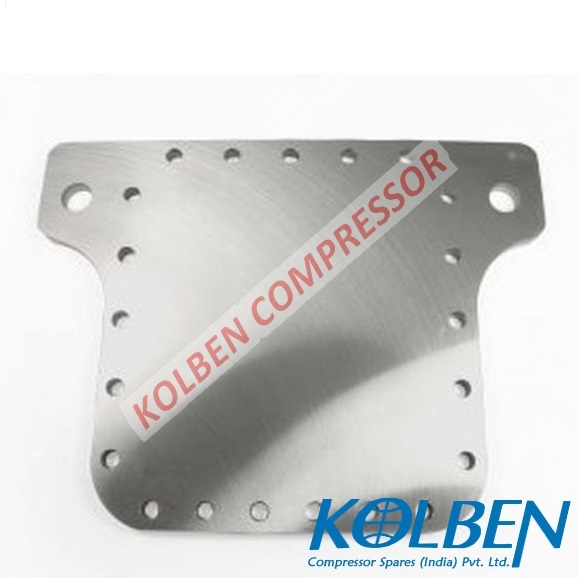

62.		S4G-12.2	32030704	bottom plat steel (32030704)
63.		S4G-12.2	30591445	Cover black (30591445)
64.		S4G-12.2	30095017	terminal box black aluminium cast (30095017)
65.		S4G-12.2	35300207	subcoole (35300207)

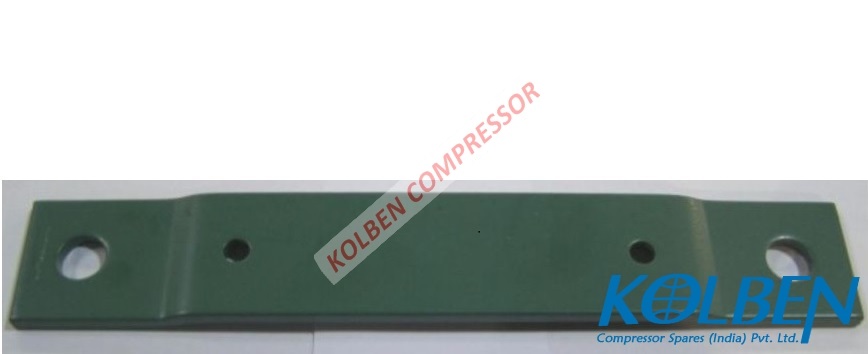

66.		S4G-12.2	32730901	foot (32730901)

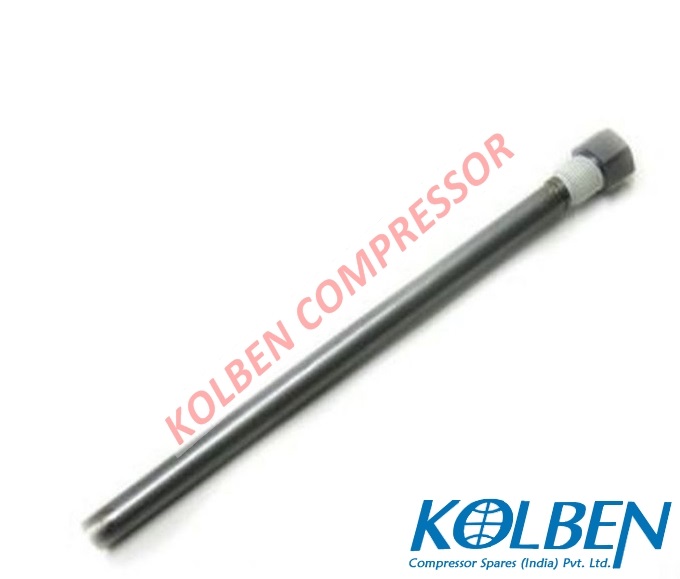

67.		S4G-12.2	34590602	heater sleeve for 140W heate (34590602)
68.		S4G-12.2	38220151	single coil spring washer spring steel galvanized DIN 127 (38220151)
69.		S4G-12.2	38200201	washer brassDIN 125(38200201)
70.		S4G-12.2	38200202	washer brassDIN 125(38200202)

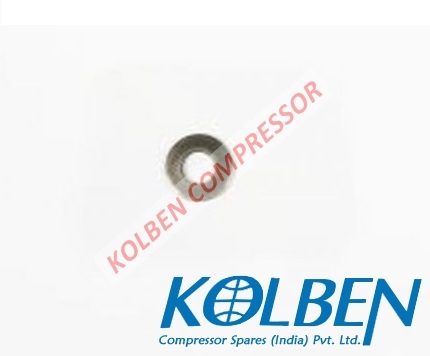

71.		S4G-12.2	38214101	retaining ring with lugs spring steel DIN 6796 - FSt (38214101)

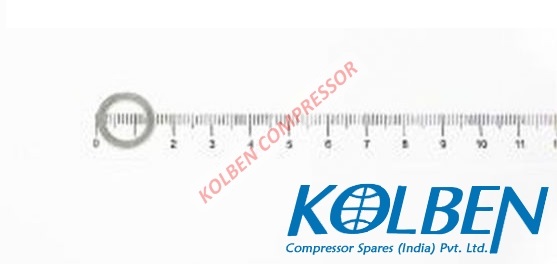

72.		S4G-12.2	38240201	gasket rin aluminium DIN 7603 (38240201)

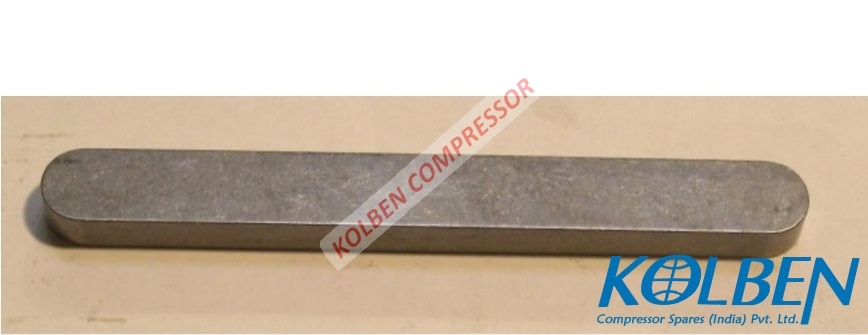

73.		S4G-12.2	38400114	parallel key steel DIN 6885 (38400114)
74.		S4G-12.2	38240304	Gasket Ring oil drain aluminium DIN 7603 (38240304)
75.		S4G-12.2	30401801	valve plate High pressure side (30401801)

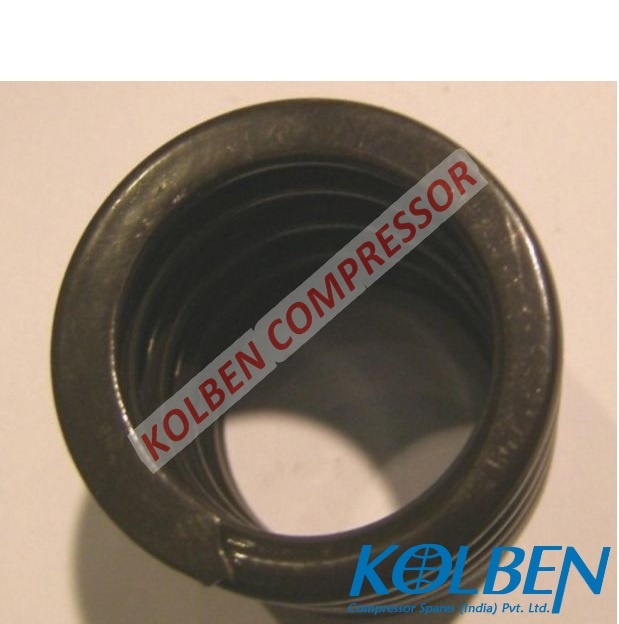

76.		S4G-12.2	32500201	damper element Crankcase side spring steel brown (32500201)

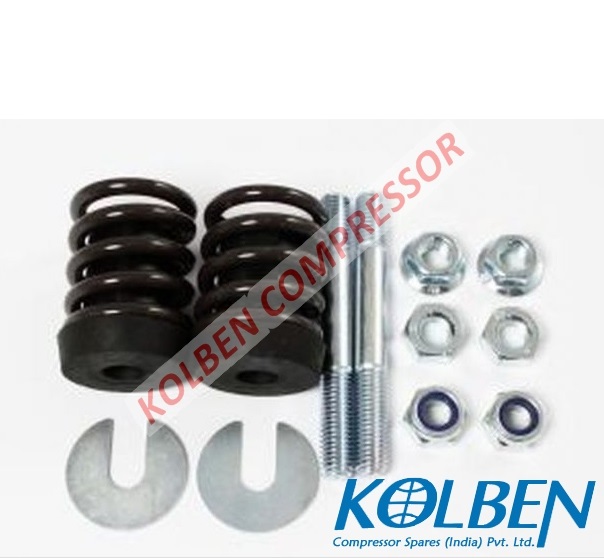

77.		S4G-12.2	37000401	vibration damper set Crankcase side spring brown (37000401)
78.		S4G-12.2	38050751	cheese head screw 4.8 galvanized (38050751)
79.		S4G-12.2	38040201	cheese head screw brass (38040201)
80.		S4G-12.2	38130103	hexagon nut brass (38130103)
81.		S4G-12.2	38050851	Cheese head screw galvanized DIN 7985, 4.8 (38050851)
82.		S4G-12.2	38050154	Oval head screw galvanized DIN 7985, 4.8 (38050154)
83.		S4G-12.2	38015406	hexagon head screw DIN 933, 10.9 (38015406)

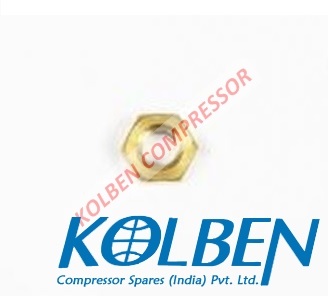

84.		S4G-12.2	38130105	hexagon nut bras (38130105)
85.		S4G-12.2	36611201	sealing screw conic DIN 906 (36611201)
86.		S4G-12.2	38015505	hexagon head screw oil pum DIN 933, 10.9 (38015505)

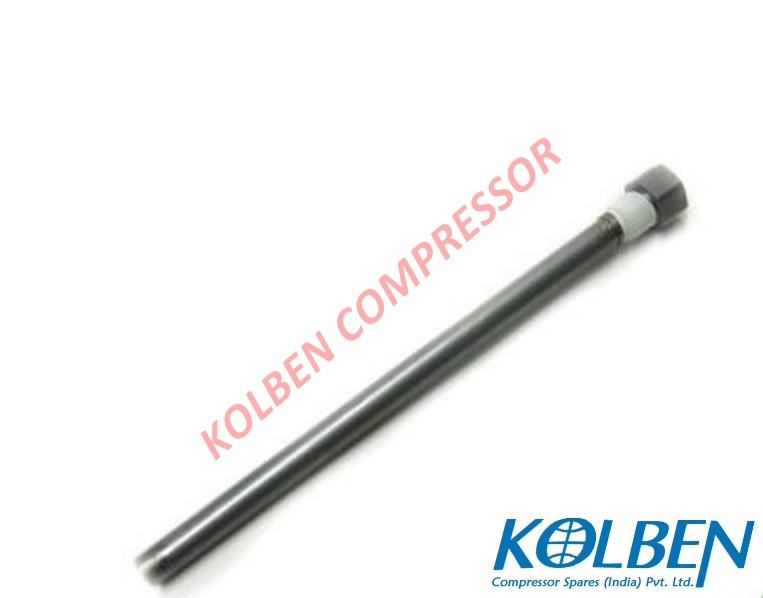

87.		S4G-12.2	38010509	hexagon head screw DIN 933, 8.8 (38010509)
88.		S4G-12.2	38035801	Set screw coated DIN 916 (38035801)

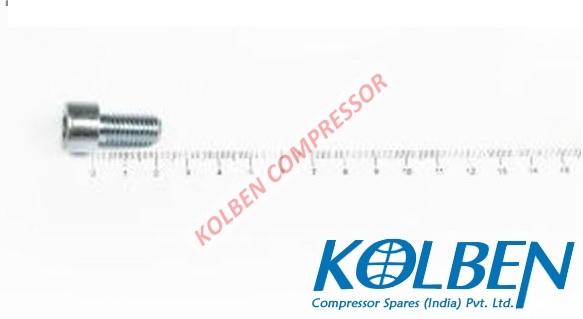

89.		S4G-12.2	38030689	cheese head screw 10.9 galvanized DIN 912, 10.9 (38030689)
90.		S4G-12.2	38015605	hexagon head screw DIN 933, 10.9 (38015605)
91.		S4G-12.2	38015606	hexagon head screw blind flange coated DIN 933, 10.9 (38015606)
92.		S4G-12.2	38030632	Cheese Head Screw bearing cover DIN 912, 10.9 (38030632)
93.		S4G-12.2	38033901	Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K (38033901)

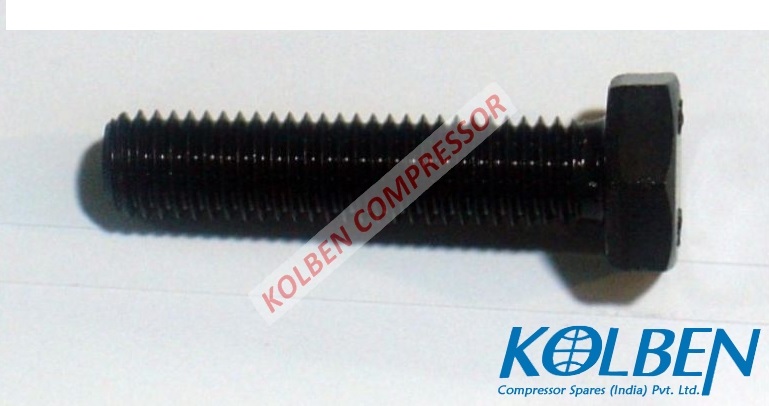

94.		S4G-12.2	38015609	Hexagon Head Screw DIN 933, 10.9 (38015609)
95.		S4G-12.2	38005603	hexagon head screw DIN 931, 10.9 (38005603)

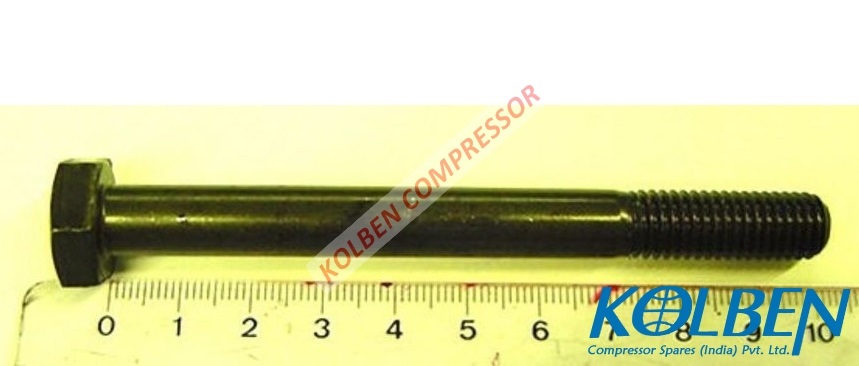

96.		S4G-12.2	38005610	hexagon head screw DIN 931, 10.9 (38005610)

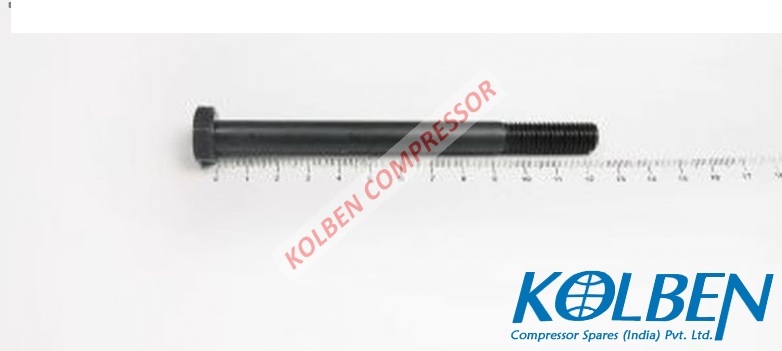

97.		S4G-12.2	38005612	hexagon head screw DIN 931, 10.9 (38005612)

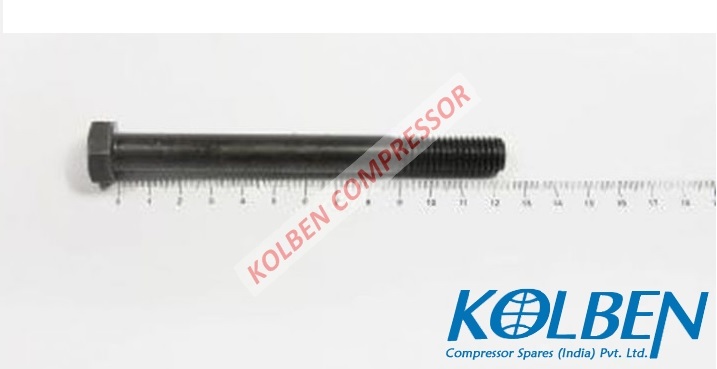

98.		S4G-12.2	38005708	hexagon head screw housing cover DIN 931, 10.9 (38005708)

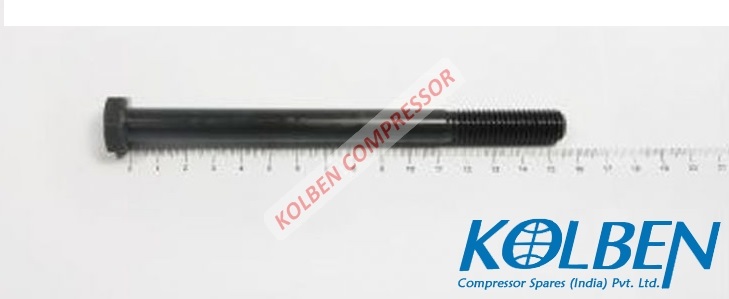

99.		S4G-12.2	38005711	hexagon head screw housing cover DIN 931, 10.9 (38005711)
100.		S4G-12.2	38016612	Hexagon Head Screw coated ISO 4017 - Precote85 (38016612)

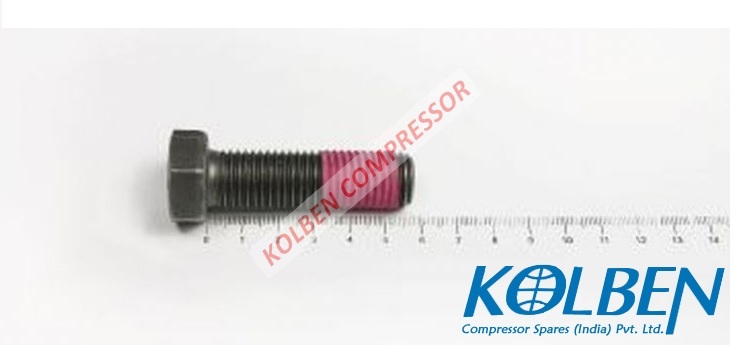

101.		S4G-12.2	38016605	hexagon head screw coated DIN 931, 10.9 (38016605)
102.		S4G-12.2	36620119	Protective Cap Span of the jaw: 27 Plastic - GRP (36620119)
103.		S4G-12.2	36611424	sealing screw with magnet oil drain inclusive O-Ring gasket (36611424)

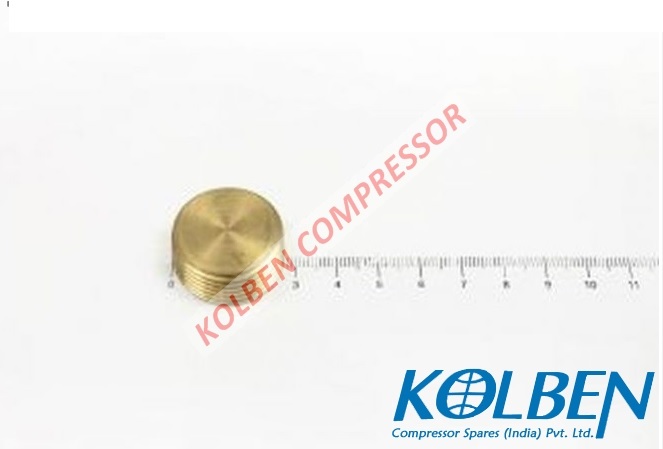

104.		S4G-12.2	38039155	sealing screw conic brass (38039155)
105.		S4G-12.2	38215201	thrust washer DIN 127 (38215201)
106.		S4G-12.2	38215004	thrust washer spring steel (38215004)
107.		S4G-12.2	36110101	oil pressure relief valve (36110101)
108.		S4G-12.2	38900201	electric connector of the machine / device DIN 43650 (38900201)
109.		S4G-12.2	37500001	gasket ring (37500001)
110.		S4G-12.2	37500101	pressure bush (37500101)
111.		S4G-12.2	36040117	pipe injection pipe (36040117)

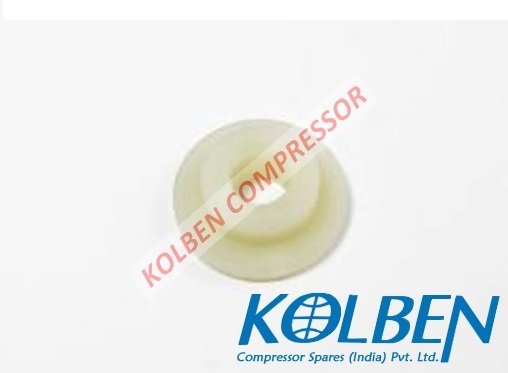

112.		S4G-12.2	37500103	pressure bush (37500103)
113.		S4G-12.2	36210105	filter drier Operation without subcooler brazed connection (36210105)
114.		S4G-12.2	34710002	solenoid valve liquid injection Brazed connection EVR 6 230V-50/60Hz (34710002)
115.		S4G-12.2	36182201	sight glas brazed connection (36182201)

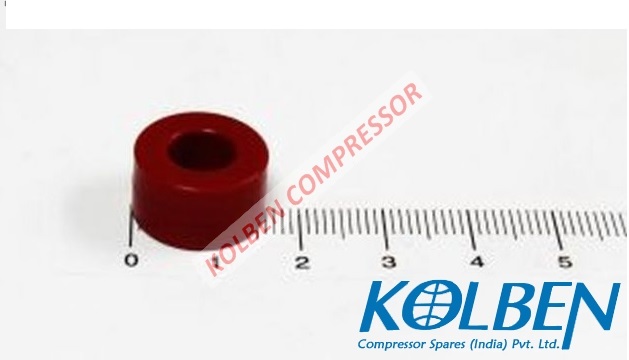

116.		S4G-12.2	37500003	gasket ring (37500003)
117.		S4G-12.2	38223104	retaining ring with lugs spring steel DIN 472 (38223104)

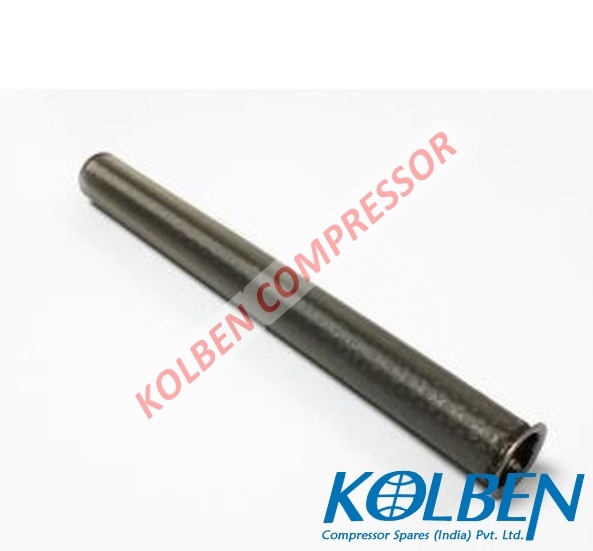

118.		S4G-12.2	36200301	oil filter (36200301)
119.		S4G-12.2	38340104	wrist pin high pressure side (38340104)
120.		S4G-12.2	31110306	bearing bush connecting rod (31110306)
121.		S4G-12.2	32500034	pressure spring steel (32500034)

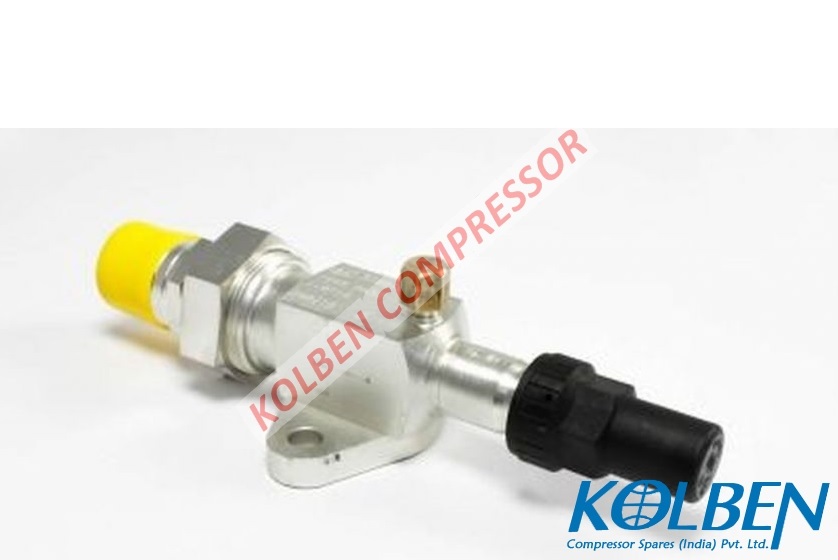

122.		S4G-12.2	36131007	shut-off valve Discharge side brazing and welding bush (36131007)

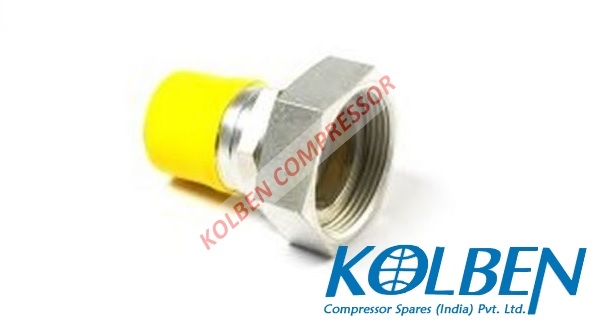

123.		S4G-12.2	36600006	pipe connection steel copper-plated brazed connection(36600006)

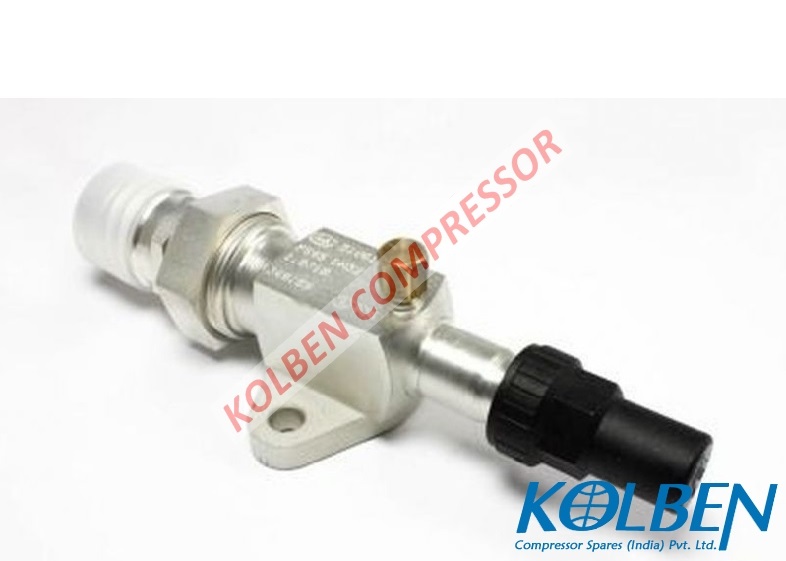

124.		S4G-12.2	36131008	shut-off valve suction side brazing and welding bush (36131008)

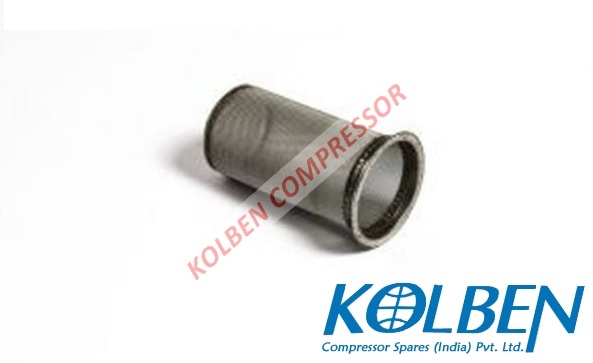

125.		S4G-12.2	36200110	suction gas filter (36200110)
126.		S4G-12.2	36600007	pipe connection steel copper-plated brazed connection (36600007)
127.		S4G-12.2	37200315	O-ring sight glass (37200315)

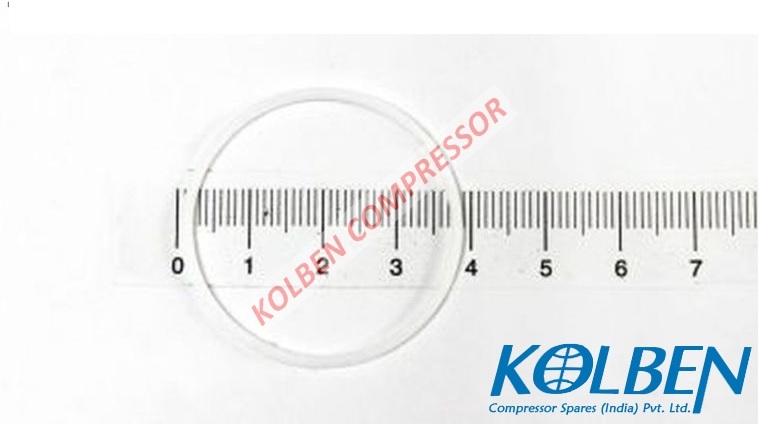

128.		S4G-12.2	37220004	gasket teflon (37220004)
129.		S4G-12.2	31200605	ring spring washer (31200605)

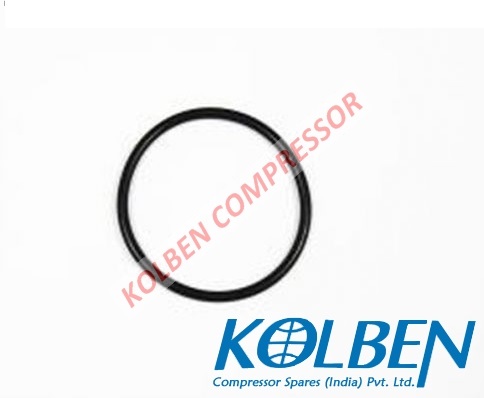

130.		S4G-12.2	37200113	O-ring (37200113)

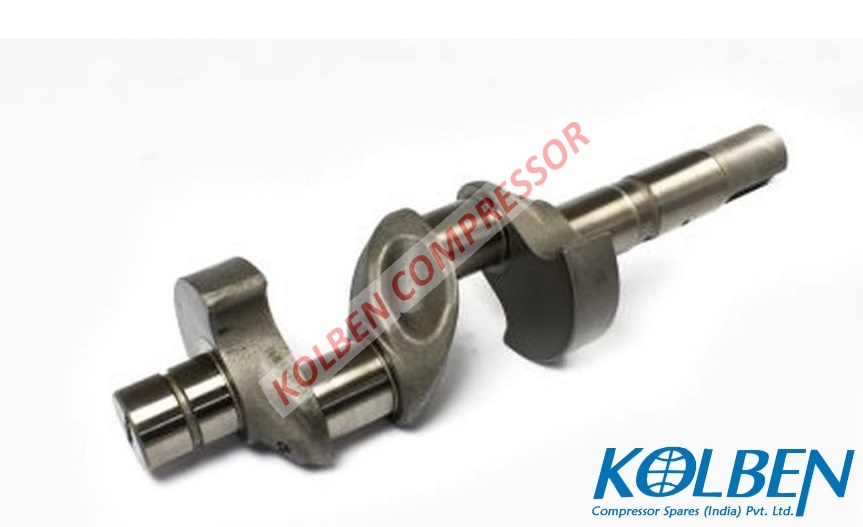

131.		S4G-12.2	30100706	crankshaft Stroke 55mm (30100706)

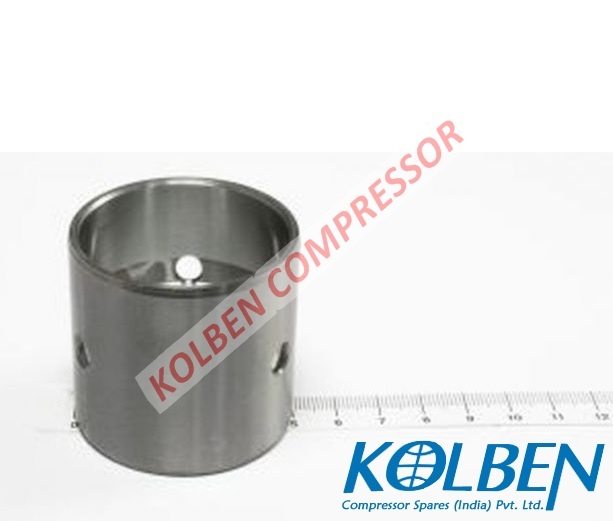

132.		S4G-12.2	31110005	bearing bush Crankcase side (31110005)

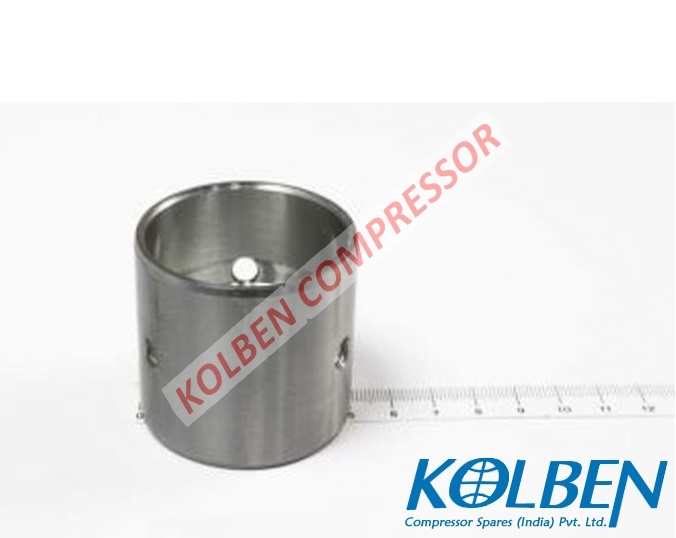

133.		S4G-12.2	31110004	bearing bush Motor side (31110004)
134.		S4G-12.2	30223216	piston high pressure side aluminium alloy (30223216)
135.		S4G-12.2	32590002	spring washer (32590002)
136.		S4G-12.2	30005102	housing (30005102)
137.		S4G-12.2	38230052	compression ring high pressure side Piston diameter 59,96mm (38230052)
138.		S4G-12.2	38231019	oil scraper ring high pressure side Piston diameter 59,96mm (38231019)

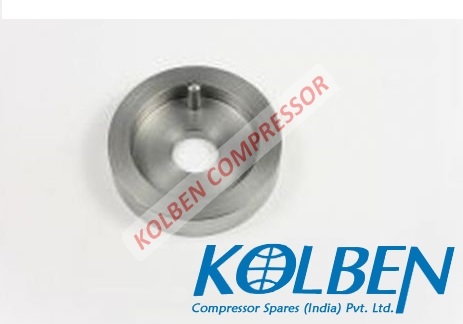

139.		S4G-12.2	31300701	spacer washer (31300701)

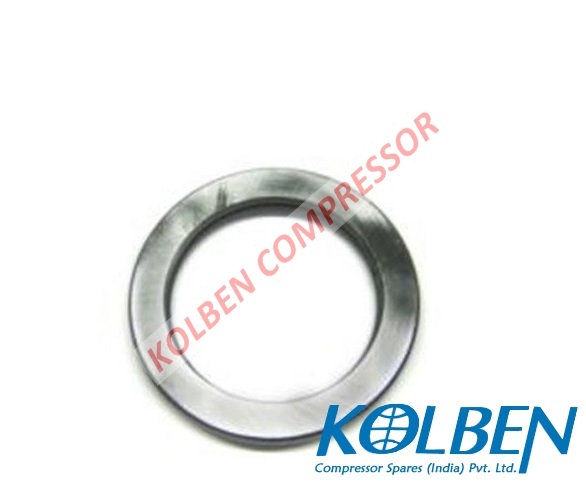

140.		S4G-12.2	31203003	thrust collar (31203003)
141.		S4G-12.2	32050007	thrust washer oil pump side (32050007)

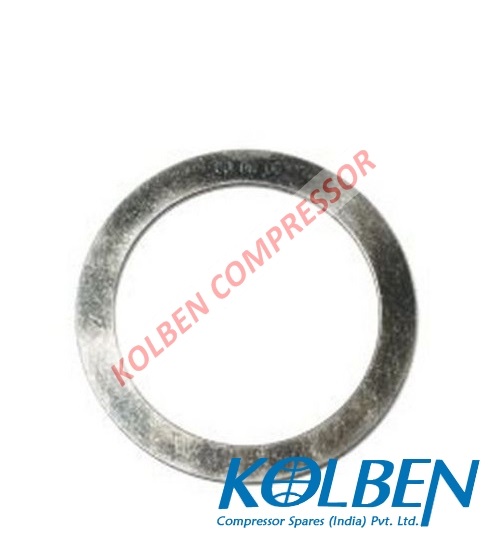

142.		S4G-12.2	32050006	thrust washer Motor side (32050006)
143.		S4G-12.2	36180202	sight glass (36180202)
144.		S4G-12.2	37200119	O-ring oil pump (37200119)

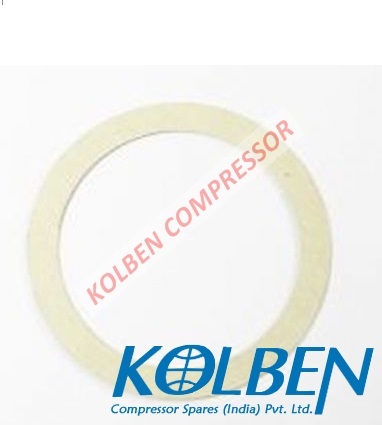

145.		S4G-12.2	37230103	gasket intermediate pressure mixing pipe (37230103)
146.		S4G-12.2	37231403	gasket bearing cover (37231403)
147.		S4G-12.2	34609846	built-in motor 9.2 kW, 4-pole 400V Y/YY 3-50Hz, 440..460V Y/YY 3-60Hz (34609846)
148.		S4G-12.2	30521901	housing cover grey cast iron (30521901)
149.		S4G-12.2	37231503	gasket housing cover (37231503)
