Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|
1. |
|
RC11, RC12 |
2417011 |
Piston - Pin - Circlip - Piston Ring Assy 159.8X55.0X 160.0-Cr/P/Uc/2Oil-Hole- 500147-To Fit Grasso Rc11,Rc12
|
|
|
2. |
|
RC11, RC12 |
2418320 |
Gudgeon Pin 50.0X147.6-1Hole-To Fit Grasso Rc11,12
|
|
|
3. |
|
RC11, RC12 |
2419510 |
Conrod With Bearing Half 96.0X202.2X50.0-Lp-To Fit Grasso Rc11,12
|
|
|
4. |
|
RC11, RC12 |
1144590 |
Bearing Shell(Pair) 53.0X2.93-Std-To Fit Grasso Rc11,12
|
|
|
5. |
|
RC11, RC12 |
1146652 |
Bearing Bush(Bronze) 62.0X50.1X60.0-6 Hole-To Fit Grasso Rc11,12
|
|
|
6. |
|
RC11, RC12 |
974160 |
Piston Ring Set(5Pcs) 160.0-Cr3.98/ P3.98/Uc3.98/ 2Oil7.98-To Fit Grasso Rc11,12
|
|
|
7. |
|
RC11, RC12 |
1146291 |
Bearing Bush 96X90(Std)X103-To Fit Grasso Rc11,12
|
|
|
8. |
|
RC12 |
2038100 |

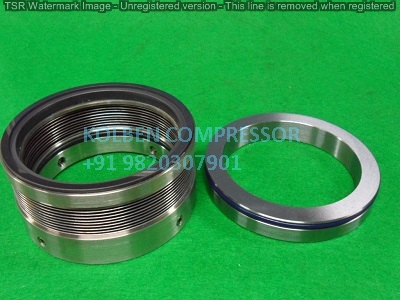

Shaft Seal Set-Metal Bellow-To Fit Grasso 12,Rc412E
|
|
|
9. |
|
RC11, RC12 |
1134058 |
Valve Ring 68.9X58.1-To Fit Grasso Rc11,12
|
|
|
10. |
|
RC11, RC12 |
1133158 |
Discharge Sinusoidal Spring 68.5-To Fit Grasso Rc11,12
|
|
|
11. |
|
RC11, RC12 |
1134076 |
Valve Ring 87.0X76.1-To Fit Grasso Rc11,12
|
|
|
12. |
|
RC11, RC12 |
1133176 |
Sinusoidal Spring,Discharge 86.6-To Fit Grasso Rc11,12
|
|
|
13. |
|
RC11, RC12 |
1134094 |
Discharge Valve Ring 104.8X94.1-To Fit Grasso Rc11,12
|
|
|
14. |
|
RC11, RC12 |
1133194 |
Discharge Sinusoidal Spring 104.4-To Fit Grasso Rc11,12
|
|
|
15. |
|
RC11, RC12 |
1134171 |
Suction Valve Ring 199.8X171.0-To Fit Grasso Rc11,12
|
|
|
16. |
|
RC11, RC12 |
1133271 |
Suction Sinusoidal Spring 199.5-To Fit Grasso Rc11,12
|
|
|
17. |
|
RC11, RC12 |
2719111 |
Discharge Valve Assy-To Fit Grasso Rc11,12
|
|
|
18. |
|
RC11, RC12 |
2718265 |
Valve Seat-To Fit Grasso Rc11,12
|
|
|
19. |
|
RC11, RC12 |
2718360 |
Stroke Limitor Discharge Valve-To Fit Grasso Rc11,12
|
|
|
20. |
|
RC11, RC12 |
2318010 |
Cylinder Liner-Bare 160.0-To Fit Grasso Rc11,12
|
|
|
21. |
|
RC12 |
711025 |

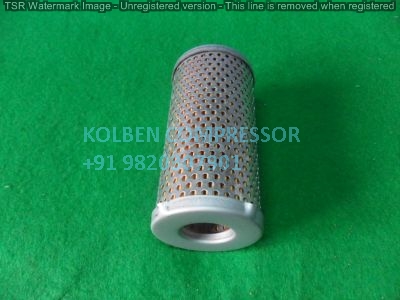

Discharge Grey Cap Paper Filter-To Fit Grasso Rc12
|
|
|
22. |
|
RC9, RC12 |
2038124 |

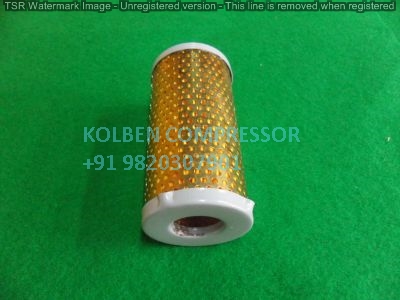

Discharge Oil Filter Set(Grey Marked)-To Fit Grasso Rc9,12,Rc412E
|
|
|
23. |
|
RC9, RC12 |
2038128 |
Suction Oil Filter Set(Blue Marked)-To Fit Grasso Rc9,12,Rc412E
|
|
|
24. |
|
RC12 |
716695 |
Suction Blue Cap Wire Gauge Filter-To Fit Grasso Rc12
|
|
|
25. |
|
RC11 , RC12 |
09-62-290 |
GS Shaft seal assembly forl RC-*11/12
|
|
Manufacturers of GRASSO COMPRESSOR PARTS
|
|
|
