Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|

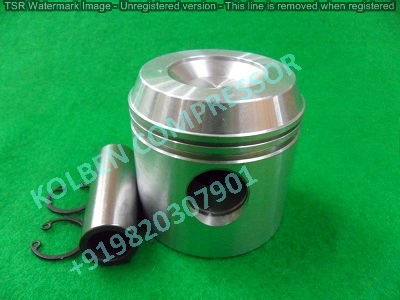

1. |
|
CMO 24 / 26 / 28 |
3124062 |
Piston - Pin - Circlip - Piston Ring Assy 70.0X23.9X 67.1-Cr1.46/Oil2.95- Hole-2256-To Fit Sabroe Cmo24,Cmo26,Cmo28,Tcmo28
|
|
|
2. |
|
CMO 24 / 26 / 28 |
3125122 |
Piston - Pin 22.0X56.6-To Fit Sabroe Cmo24,Cmo26,Cmo28
|
|
|
3. |
|
CMO 24 / 26 / 28 |

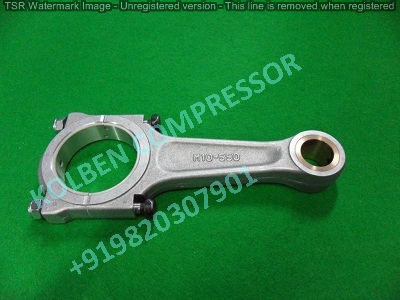

3123118 |
Conrod With Bearing Half 59.2(Std)- Oil Hole-Bush-Lp-R404A,R407C,R507-To Fit Sabroe Cmo20,Tcmo30
|
|
|
4. |
|
CMO 24 / 26 / 28 |

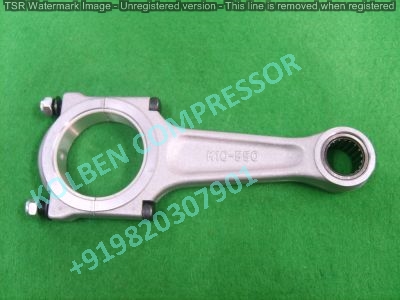

3123120 |
Conrod With Bearing Half 59.2(Std)-Needle-Hp-Hole-To Fit Sabroe Tcmo20,Tcmo30
|
|
|

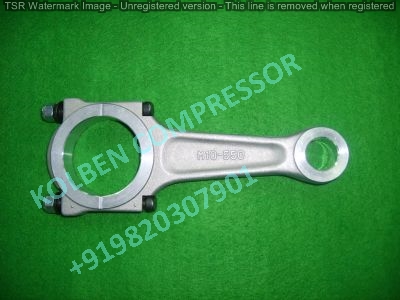

5. |
|
CMO 24 / 26 / 28 |
3123-076 |
Conrod 55.0(Std)X111.5X22.0-Lp-Oil Hole-To Fit Sabroe Cmo20,Tcmo20,Cmo30,Tcmo30
|
|
|
6. |
|
CMO 24 / 26 / 28 |
|
Bearing Half(Pair) 18.5X2.00(Std)-To Fit Sabroe Cmo20
|
|
|

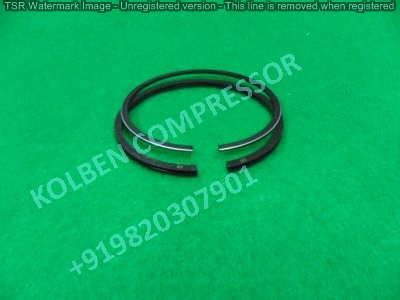

7. |
|
CMO 24 / 26 / 28 |
3125129 |
Piston Ring Set(2Pcs) 70.0-Cr1.46/Oil2.95-To Fit Sabroe Cmo-24/26/28
|
|
|
8. |
|
CMO 24 / 26 / 28 |

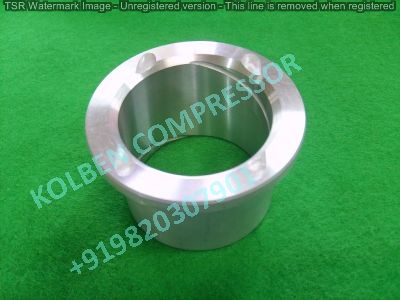

2132086 |
Main Bearing Bushing 85.0X70.0X60.0(Std)X51.7-To Fit Sabroe Cmo-24/26/28
|
|
|
9. |
|
CMO 24 / 26 / 28 |

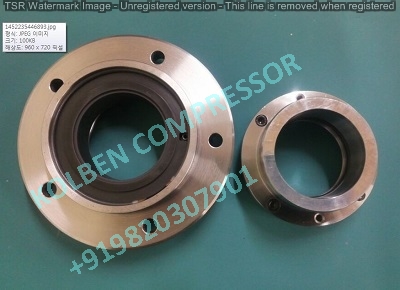

3126180 |
Shaft Seal Assy 55.0 With Cover Plate-To Fit Sabroe Cmo24,Cmo26,Cmo28,Tcmo28
|
|
|
10. |
|
CMO 14 / 16 / 18, CMO 24 / 26 / 28 |
3131006 |
Discharge Valve 63.8X34.1-Sandvik-To Fit Sabroe Cmo-14,16,18,24,26,28
|
|
|
11. |
|
CMO 24 / 26 / 28 |
3131072 |
Suction Valve 92.9X71.0-Sandvik-To Fit Sabroe Cmo24
|
|
|
12. |
|
CMO 24 / 26 / 28 |

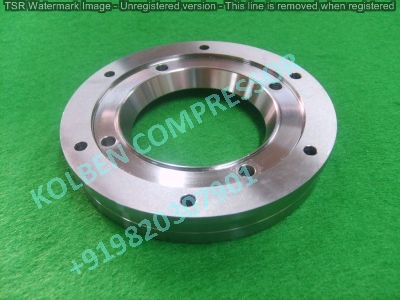

3132075 |
Suction Valve Retaining Plate-Depth-2.24-R717-To Fit Sabroe Cmo-24/26/28,Tcmo-28
|
|
|

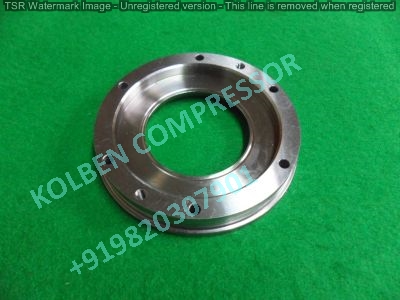

13. |
|
CMO 24 / 26 / 28 |
3132073 |
Suction Valve Retaining Plate-Depth-2.56-Hfc-To Fit Sabroe Cmo-24/26/28,Tcmo-28
|
|
|
14. |
|
CMO 24 / 26 / 28 |

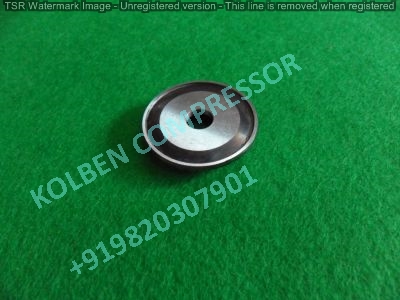

3133029 |
Disharge Valve Seat-To Fit Sabroe Cmo26
|
|
|
15. |
|
CMO 24 / 26 / 28 |

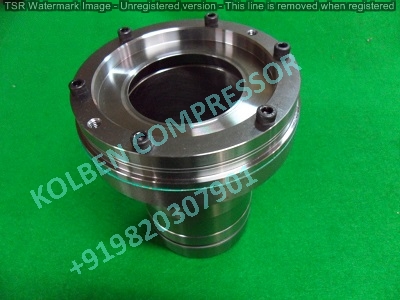

3112076 |
Cylinder Liner Complete-Lp-Hfc-To Fit Sabroe Cmo24,Cmo26,Cmo28,Tcmo28
|
|
|
16. |
|
CMO 24 / 26 / 28 |
3112075 |
Cylinder Liner 70.0-Lp/Hp R717/Hfc/Hcfc-To Fit Sabroe Cmo24,Cmo26,Cmo28,Tcmo28
|
|
|
17. |
|
CMO 24 / 26 / 28 |
3136080 |
Discharge Valve Complete-R717-To Fit Sabroe Cmo24,Cmo26,Cmo28,Tcmo28
|
|
|

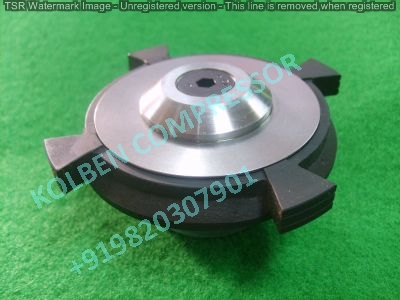

18. |
|
CMO 24 / 26 / 28 |
3136079 |
Discharge Valve Complete R22, R134A,R407C,R404A, R507,R290-R600-R600A,R1270-To Fit Sabroe Cmo24,Cmo26,Cmo28,Tcmo28
|
|
|
19. |
|
TSMC / SMC 100 (S/L/E) , CMO 14 / 16 /18 , CMO 24 / 26 / 28 , SMC 65 |
2141047 |
Valve Spring(1Pc)-To Fit Sabroe Smc100,Cmo1,Cmo2,Smc65
|
|
|

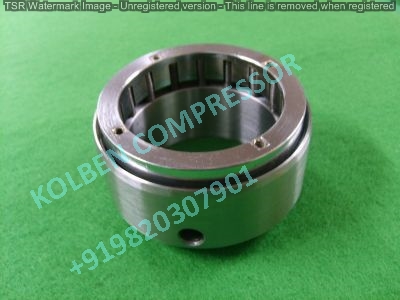

20. |
|
CMO 24 / 26 / 28 |
3135172 |
Unloading Mechanism Complete-To Fit Sabroe Cmo24,Cmo26,Cmo28,Tcmo28
|
|
|
21. |
|
TSMC / SMC 100 (S/L/E) , CMO 14 / 16 /18 , CMO 24 / 26 / 28 , SMC 65 |
3425093 |
Suction Filter Complete 115.0X200.0-To Fit Sabroe
|
|
|

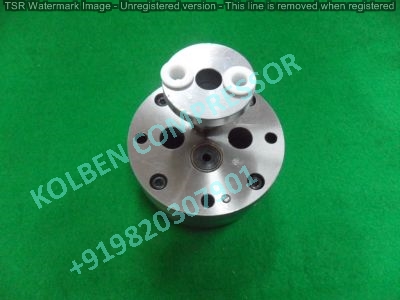

22. |
|
CMO 24 / 26 / 28 |
3141154 |
Oil Pump Complete With Driving Hub-To Fit Sabroe T/Cmo24/26/28
|
|
|
23. |
|
CMO 24 / 26 / 28 |
|
Gasket And O-Ring Set-To Fit Sabroe Cmo28,Tcmo28
|
|
|

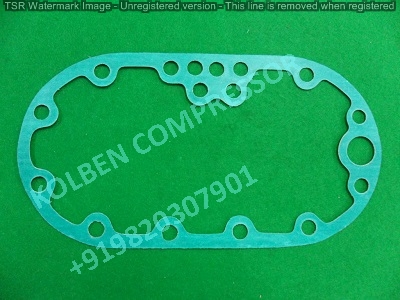

24. |
|
CMO 24 / 26 / 28 |
2353102 |
Gasket 334.0-To Fit Sabroe Cmo20
|
|
|
25. |
|
CMO 24 / 26 / 28 |

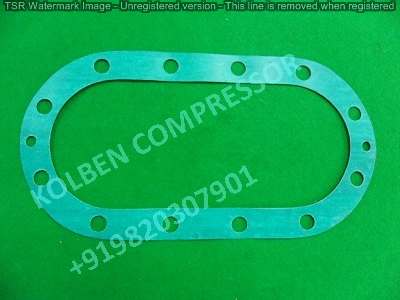

2353172 |
Gasket For Water Cover 334.0-To Fit Sabroe Cmo20
|
|
|
26. |
|
CMO 24 / 26 / 28 |
2353241 |
Gasket Top Cover 335.0-To Fit Sabroe Cmo20
|
|
|
27. |
|
CMO 24 / 26 / 28 |
2132-086 |
SB Bearing main (standard) for CMO-2
|
|
|
28. |
|
CMO 24 / 26 / 28 |
2132-088 |
SB Bearing main (-.50mm u/size) for CMO-2
|
|
|
29. |
|
CMO 24 / 26 / 28 |
3123-076 |
SB Con-rod (standard) for models CMO-2
|
|
|
30. |
|
CMO 24 / 26 / 28 |
3123-078 |
SB Con-rod (-.50mm u/size) for models CMO-2
|
|
|
31. |
|
CMO 24 / 26 / 28 |
3123-077 |
SB Con-rod (std) (2-stage HP-side) for TCMO-2
|
|
|
32. |
|
CMO 24 / 26 / 28 |
1433-115 |
SB Con-rod locking nut for models CMO-2
|
|
|
33. |
|
CMO 24 / 26 / 28 |
3121-380 |
SB Crankshaft for models CMO-26/36
|
|
|
34. |
|
CMO 24 / 26 / 28 |
3121-197 |
SB Crankshaft for models CMO-28
|
|
|
35. |
|
CMO 24 / 26 / 28 |
1517-124 |
SB Filter oil cartridge for models CMO2
|
|
|
36. |
|
TSMC / SMC 100 (S/L/E) , CMO 14 / 16 /18 , CMO 24 / 26 / 28 , SMC 65 |
1226-015 |
SB Sight-glass for models CMO/SMC
|
|
|
37. |
|
CMO 24 / 26 / 28 |
|
SB Gasket set for models CMO24/26/28
|
|
|
38. |
|
CMO 24 / 26 / 28 |
3112-075 |
SB Liner with lift pins & springs for models CMO-2
|
|
|
39. |
|
CMO 24 / 26 / 28 |
3112-076 |
SB Liner & suction plate assembly for models CMO-2
|
|
|
40. |
|
CMO 24 / 26 / 28 |
2122-023 |
SB Liner lift pin for models CMO-2
|
|
|
41. |
|
TSMC / SMC 100 (S/L/E) , CMO 14 / 16 /18 , CMO 24 / 26 / 28 , SMC 65 |
2142-034 |
SB Liner lift spring for models CMO-2 & SMC
|
|
|
42. |
|
CMO 24 / 26 / 28 |
3135-171 |
SB Liner unloading sleeve retainer for CMO-2
|
|
|
43. |
|
CMO 24 / 26 / 28 |
3124-062 |
SB Piston complete for models CMO-2
|
|
|
44. |
|
CMO 24 / 26 / 28 |
3125-122 |
SB Piston pin for models CMO-2
|
|
|
45. |
|
CMO 24 / 26 / 28 |
3141-154 |
SB Pump assembly for models CMO-2
|
|
|
46. |
|
CMO 24 / 26 / 28 |
2125-298 |
SB Oil pump drive hub for models CMO-2
|
|
|
47. |
|
CMO 24 / 26 / 28 |
2132-087 |
SB Oil pump drive bush for models CMO-2
|
|
|
48. |
|
CMO 24 / 26 / 28 |
3125-129 |
SB Piston ring compression for models CMO-2
|
|
|
49. |
|
CMO 24 / 26 / 28 |
3125-124 |
SB Piston ring oil scraper for models CMO-2
|
|
|
50. |
|
CMO 24 / 26 / 28 |
3125-165 |
SB Seal assembly for models CMO-2
|
|
|
51. |
|
CMO 24 / 26 / 28 |
3131-072 |
SB Valve ring suction for models CMO-2
|
|
|
52. |
|
TSMC / SMC 100 (S/L/E) , CMO 14 / 16 /18 , CMO 24 / 26 / 28 , SMC 65 |
2141-047 |
SB Valve spring suction/discharge for CMO/SMC
|
|
|
53. |
|
TSMC / SMC 100 (S/L/E) , CMO 14 / 16 /18 , CMO 24 / 26 / 28 , SMC 65 |
|
SB Valve helical spring suction/discharge for CMO/SMC
|
|
|
54. |
|
CMO 24 / 26 / 28 |
3132-073 |
SB Valve plate suction (HFC duty) for CMO-2
|
|
|
55. |
|
CMO 24 / 26 / 28 |
3132-075 |
SB Valve plate suction (NH3 duty) for CMO-2
|
|
|
56. |
|
CMO 24 / 26 / 28 |
|
SB Valve plate suction assembly (HFC duty) for CMO-2
|
|
|
57. |
|
CMO 24 / 26 / 28 |
|
SB Valve plate suction assembly (NH3) for CMO-2
|
|
|
58. |
|
CMO 24 / 26 / 28 |
3126-079 |
SB Valve cage discharge assm (HFC duty) for CMO-2
|
|
|
59. |
|
CMO 24 / 26 / 28 |
3126-080 |
SB Valve cage discharge assm (NH3 duty) for CMO-2
|
|
|
60. |
|
CMO 24 / 26 / 28 |
3132-072 |
SB Valve (cage only) discharge (HFC duty) for CMO-2
|
|
|
61. |
|
CMO 24 / 26 / 28 |
3132-074 |
SB Valve (cage only) discharge (NH3 duty) for CMO-2
|
|
|
62. |
|
CMO 24 / 26 / 28 |
3133-008 |
SB Valve seat discharge for CMO-1/2
|
|
|
63. |
|
CMO 24 / 26 / 28 |
|
SB Top-End service kit for models CMO-2 (per head)
|
|
