Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|
1. |
|
TSMC / SMC 100 (S/L/E) |
3124052 |
Piston - Pin - Circlip - Piston Ring 100.0X40.0(60)X110-2Cr3.00/Oil5.50- Oval-Hole-4079-To Fit Sabroe Smc100L,Tsmc108L
|
|
|
2. |
|
TSMC / SMC 100 (S/L/E) |
3124065 |
Piston - Pin - Circlip - Piston Ring 100.0X40.0(60)X100.0-2Cr3.00/ Oil5.50-Oval-Hole-4079-To Fit Sabroe Smc100E,Tsmc108E
|
|
|
3. |
|
TSMC / SMC 100 (S/L/E) |
3124002 |
Piston - Pin - Circlip - Piston Ring 100.0X50.0(70)X120.0-2Cr3.00/ Oil5.50-Oval-Hole-4079-To Fit Sabroe Smc100S,Tsmc108S
|
|
|
4. |
|
TSMC / SMC 100 (S/L/E) |
3124084 |
Piston - Pin - Circlip - Piston Ring 100.0X50.0X120.0-2Cr3.00/ Oil5.50-Oval-Hole-4079-To Fit Sabroe Smc100-Co2
|
|
|
5. |
|
TSMC / SMC 100 (S/L/E) |
|
Piston - Pin - Circlip - Piston Ring Assy 65.0X36.8X84.9-2Cr/Oil-2551-To Fit Sabroe Smc65
|
|
|
6. |
|
TSMC / SMC 100 (S/L/E) |
3125084 |
Piston - Pin 40.0X79.8-To Fit Sabroe Smc100
|
|
|
7. |
|
TSMC / SMC 100 (S/L/E) |
3123004 |
Conrod With Bearing Half(Std)-Bush-Lp-Hole-To Fit Sabroe Smc100,Tsmc100
|
|
|
8. |
|
TSMC / SMC 100 (S/L/E) |
3123006 |
Conrod With Bearing Half(Std)-Needle-Hp-Hole-To Fit Sabroe Tsmc108
|
|
|
9. |
|
TSMC / SMC 100 (S/L/E) |
|
Conrod With Bearing Half 59.0(Std)X118.00X25.1-Bush-Lp-To Fit Sabroe Smc65
|
|
|
10. |
|
TSMC / SMC 100 (S/L/E) |
2133003 |
Bearing Half(Pair) 24.0X3.34(Std)-To Fit Sabroe Smc100
|
|
|
11. |
|
TSMC / SMC 100 (S/L/E) |
2133005 |
Bearing Half(Pair) 44.1X3.05(Std)-To Fit Sabroe Smc180
|
|
|
12. |
.jpg "3125130(2)")
|
TSMC / SMC 100 (S/L/E) |

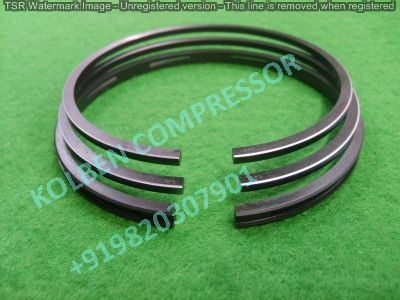

3125130(2) |
Piston Ring Set(3Pcs) 100.0-2Cr2.97/ Oil5.47-To Fit Sabroe Smc100
|
|
|
13. |
|
TSMC / SMC 100 (S/L/E) |
|
Main Bearing Bush 120.0X92.0X80.0(-0.50Mm)X80.0-To Fit Sabroe Smc100
|
|
|
14. |
|
TSMC / SMC 100 (S/L/E) |

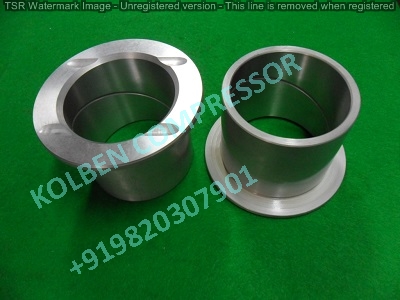

2132021 |
Bearing Bush 120.0X92.0X80.0(Std)X80.0-To Fit Sabroe Smc100
|
|
|
15. |
|
TSMC / SMC 100 (S/L/E) |

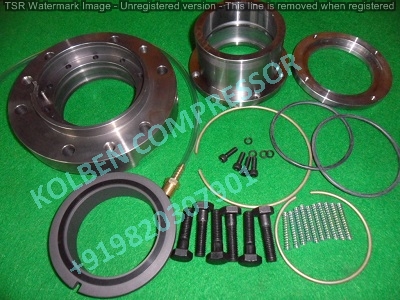

3184226 |
Shaft Seal Assy With Cover Plate 75.0-To Fit Sabroe Smc104,Smc106,Smc108,Tsmc108
|
|
|
16. |
|
TSMC / SMC 100 (S/L/E), SMC 65 |
3131015 |
Discharge Plate 97.9X68.2-Sandvik-To Fit Sabroe Smc100,Smc65 Suction Valve Plate
|
|
|
17. |
|
TSMC / SMC 100 (S/L/E) |
3131021 |
Suction Valve 132.6X103.2-Sandvik-To Fit Sabroe Smc100
|
|
|
18. |
|
TSMC / SMC 100 (S/L/E) |

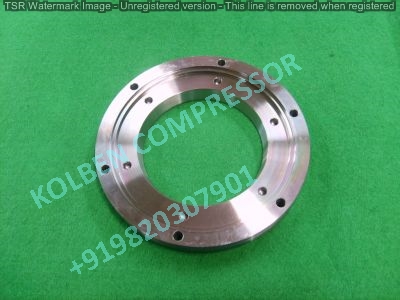

3132083 |
Suction Valve Retaining Plate-R717(Depth 4.65)-6Hole-To Fit Sabroe Smc100
|
|
|
19. |
|
TSMC / SMC 100 (S/L/E) |
3132084 |
Suction Valve Retaining Plate-R12/R22(Depth 4.90)-6Hole-2 Line-To Fit Sabroe Smc100-Old
|
|
|
20. |
|
TSMC / SMC 100 (S/L/E) |
3132095 |
Suction Valve Retaining Plate-Hfc(Depth 4.90)-6 Hole-To Fit Sabroe Smc100,S/L,Lpl-New
|
|
|
21. |
|
TSMC / SMC 100 (S/L/E) |

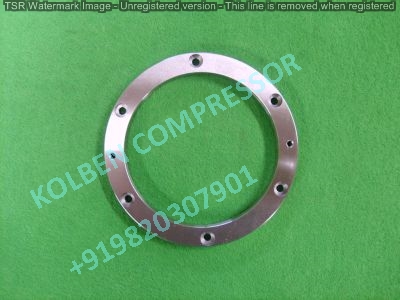

3134008 |
Guide Ring,Discharge Valve-To Fit Sabroe Smc100
|
|
|
22. |
|
TSMC / SMC 100 (S/L/E) |

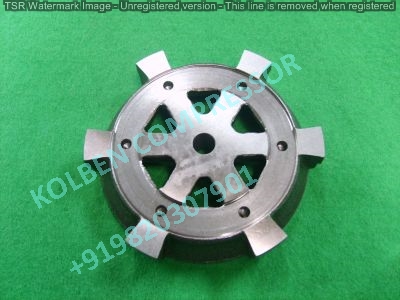

3132090 |
Retaining Plate-R717-Lp-6Hole(Depth2.1Mm)-To Fit Sabroe Smc100
|
|
|
23. |
|
TSMC / SMC 100 (S/L/E) |

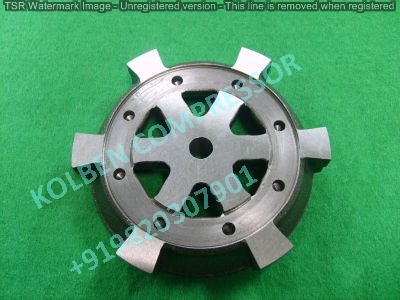

3132092 |
Retaining Plate-R717-Hp-8Hole-To Fit Sabroe Smc100
|
|
|

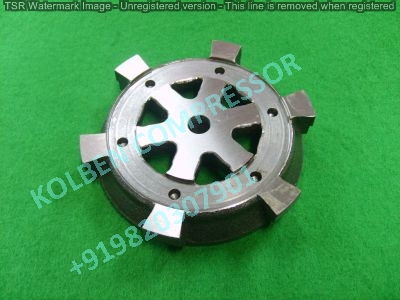

24. |
|
TSMC / SMC 100 (S/L/E) |
3132091 |
Retaining Plate-H(Cfc)-Lp-6Hole(Depth2.5Mm)-To Fit Sabroe Smc100
|
|
|

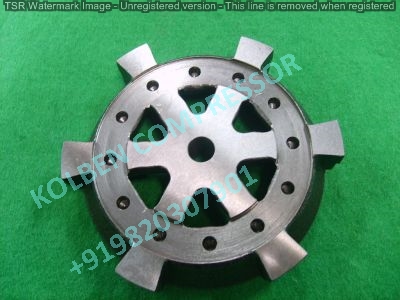

25. |
|
TSMC / SMC 100 (S/L/E) |
3132093 |
Retaining Plate-H(Cfc)-Hp-12Hole-To Fit Sabroe Smc100
|
|
|
26. |
|

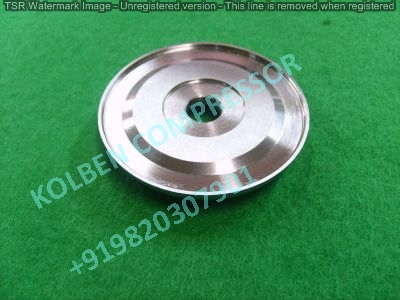

TSMC / SMC 100 (S/L/E) |
3133027 |
Disharge Valve Seat-To Fit Sabroe Smc100,Tsmc108
|
|
|
27. |
|
TSMC / SMC 100 (S/L/E) |
3135054 |
Unloading Ring With Pin 58.5(48.2)-S And L-To Fit Sabroe Smc100,Tsmc100
|
|
|
28. |
|
TSMC / SMC 100 (S/L/E) |
3135173 |
Unloading Ring With Pin 67.0(56.6)-E-To Fit Sabroe Smc100,Tsmc100
|
|
|
29. |
|
TSMC / SMC 100 (S/L/E) |
2142048 |
Tension Spring 342Mm-To Fit Sabroe Smc100
|
|
|
30. |
|
TSMC / SMC 100 (S/L/E) |
2353140 |
Gasket 163.0X141.0X0.2 For Cylinder Liner-To Fit Sabroe Smc100
|
|
|
31. |
|
TSMC / SMC 100 (S/L/E) |
2356111 |
Gasket,Cylinder Liner-0.5Mm-To Fit Sabroe Smc100
|
|
|
32. |
|
TSMC / SMC 100 (S/L/E) |
2356233 |
Gasket,Cylinder Liner-0.8Mm-To Fit Sabroe Smc100
|
|
|
33. |
|
TSMC / SMC 100 (S/L/E) |
3136088 |
Discharge Valve Kit-H(Cfc)-Hp-To Fit Sabroe Smc100
|
|
|
34. |
|
TSMC / SMC 100 (S/L/E) |
3136089 |
Discharge Valve Kit-R717-Hp-To Fit Sabroe Smc100
|
|
|
35. |
|
TSMC / SMC 100 (S/L/E) |
3136086 |
Discharge Valve Kit-H(Cfc)-Lp-To Fit Sabroe Smc100
|
|
|
36. |
|
TSMC / SMC 100 (S/L/E) , CMO 14 / 16 /18 , CMO 24 / 26 / 28 , SMC 65 |
2141047 |
Valve Spring(1Pc)-To Fit Sabroe Smc100,Cmo1,Cmo2,Smc65
|
|
|
37. |
|
TSMC / SMC 100 (S/L/E) , CMO 14 / 16 /18 , CMO 24 / 26 / 28 , SMC 65 |
3425093 |
Suction Filter Complete 115.0X200.0-To Fit Sabroe
|
|
|
38. |
|
TSMC / SMC 100 (S/L/E) |
3425083 |
Filter Bag-To Fit Sabroe Smc100,Tsmc100
|
|
|
39. |
|
TSMC / SMC 100 (S/L/E) |
1517050 |
Oil Filter Cartridge-To Fit Sabroe Smc100
|
|
|
40. |
|
TSMC / SMC 100 (S/L/E) |
1517153 |
Oil Filter-To Fit Sabroe Smc100
|
|
|
41. |
|
TSMC / SMC 100 (S/L/E) |
1517129 |
Oil Filter Element-To Fit Sabroe Smc100
|
|
|

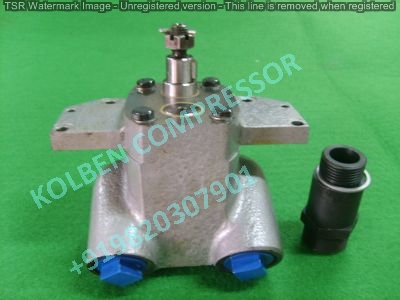

42. |
|
TSMC / SMC 100 (S/L/E) |
3141004 |
Oil Pump Complete-To Fit Sabroe Smc104,Smc106,Smc108,Tsmc108
|
|
|
43. |
|
TSMC / SMC 100 (S/L/E) |
|
Gasket Set-To Fit Sabroe Smc100,Tsmc100
|
|
|
44. |
|
TSMC / SMC 100 (S/L/E) |

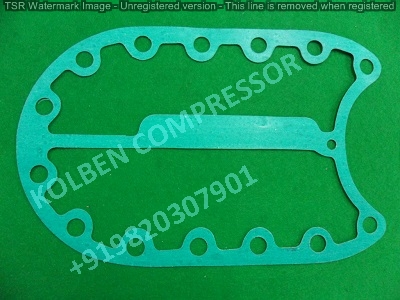

2353176 |
Gasket For Water Cover 320.0 Pos. 2B-1-To Fit Sabroe Smc100
|
|
|
45. |
|
TSMC / SMC 100 (S/L/E) |

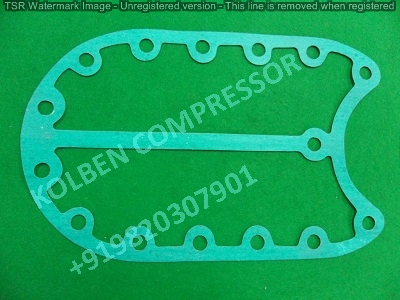

2353154 |
Gasket For Water Cover 322.0-To Fit Sabroe Smc100
|
|
|
46. |
|
TSMC / SMC 100 (S/L/E) |

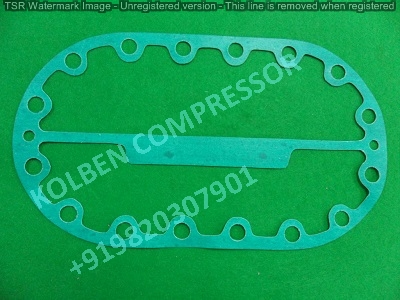

2353175 |
Gasket For Water Cover Pos. 400.0 2B-2/2B-3-To Fit Sabroe Smc100
|
|
|

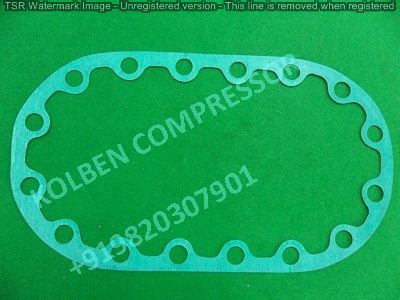

47. |
|
TSMC / SMC 100 (S/L/E) |
2353151 |
Gasket For Top, Side Cover 410.0-To Fit Sabroe Smc100
|
|
|
48. |
|
TSMC / SMC 100 (S/L/E) |
2132-021 |
SB Bearing main (standard) for models SMC
|
|
|
49. |
|
TSMC / SMC 100 (S/L/E) |
2132-022 |
SB Bearing main (-.50mm u/size) for SMC
|
|
|
50. |
|
TSMC / SMC 100 (S/L/E) |
2133-003 |
SB Bearing rod shell pair (standard ) for SMC
|
|
|
51. |
|
TSMC / SMC 100 (S/L/E) |
2133-004 |
SB Bearing rod shell pair (-.50mm u/size) for SMC
|
|
|
52. |
|
TSMC / SMC 100 (S/L/E) |
N/A |
SB Bearing rod shell pair (-.75mm u/size) for SMC
|
|
|
53. |
|
TSMC / SMC 100 (S/L/E) |
N/A |
SB Bearing rod shell pair (-1.0mm u/size) for SMC
|
|
|
54. |
|
TSMC / SMC 100 (S/L/E) |
2132-004 |
SB Bearing con-rod (small-end bush) for SMC-(LP)
|
|
|
55. |
|
TSMC / SMC 100 (S/L/E) |
1511-275 |
SB Bearing con-rod (small-end needle) for SMC-(HP)
|
|
|
56. |
|
TSMC / SMC 100 (S/L/E) |
3123-004 |
SB Con-rod assm for models SMC
|
|
|
57. |
|
TSMC / SMC 100 (S/L/E) |
3123-006 |
SB Con-rod assm (2-stage HP-side) for TSMC
|
|
|
58. |
|
TSMC / SMC 100 (S/L/E) |
2111-068 |
SB Con-rod nut & bolt to fit SMC
|
|
|
59. |
|
TSMC / SMC 100 (S/L/E) |

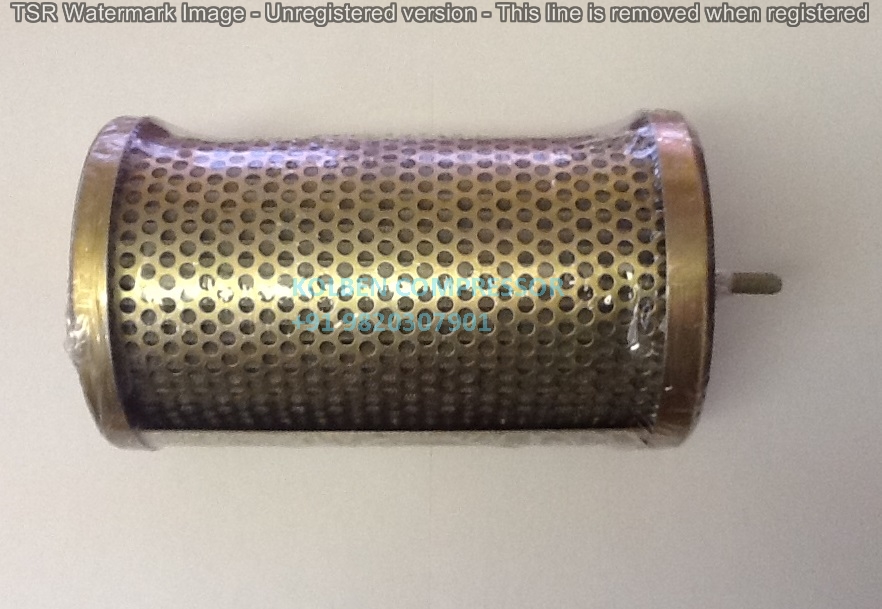

1517-129 |
SB Filter oil cartridge for models SMC
|
|
|
60. |
|
TSMC / SMC 100 (S/L/E) |
|
SB Filter oil suction tube to fit models SMC Mk-II/III
|
|
|
61. |
|
TSMC / SMC 100 (S/L/E) |

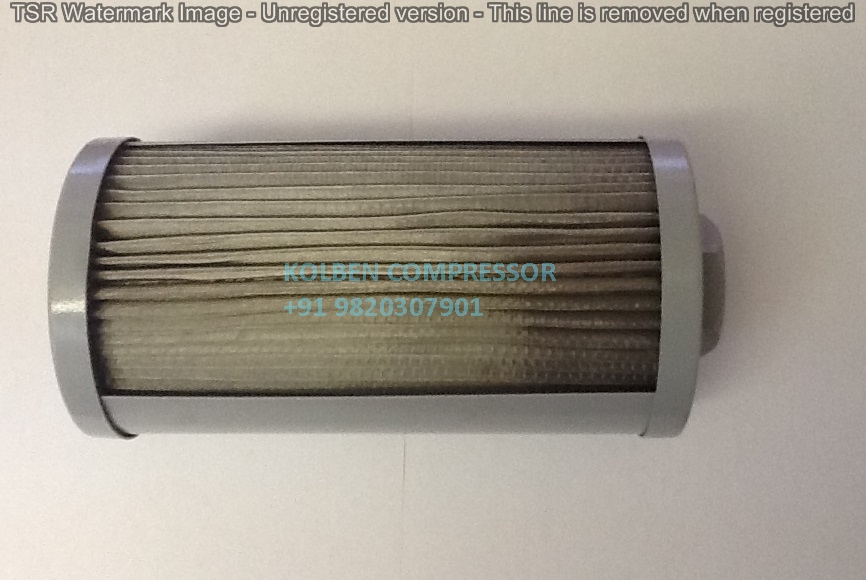

1517-156 |
SB Filter (oil ) internal cartridge SMC MK4
|
|
|
62. |
|

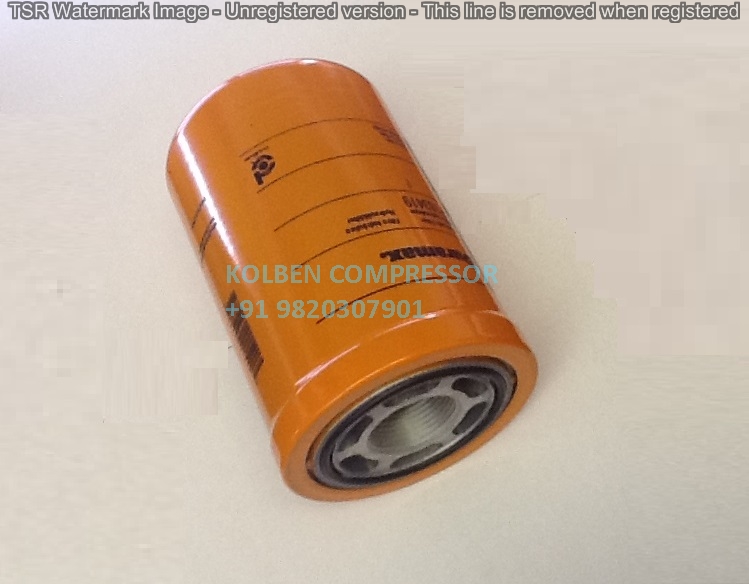

TSMC / SMC 100 (S/L/E) |
1517-153 |
SB External filter oil cartridge SMC-Mk-IV
|
|
|
63. |
|
TSMC / SMC 100 (S/L/E) , CMO 14 / 16 /18 , CMO 24 / 26 / 28 , SMC 65 |
1226-015 |
SB Sight-glass for models CMO/SMC
|
|
|
64. |
|
TSMC / SMC 100 (S/L/E) |
|
SB Gasket set for models SMC 108 Mk III (Air cooled)
|
|
|
65. |
|
TSMC / SMC 100 (S/L/E) |
|
SB Gasket set for SMC 104
|
|
|
66. |
|
TSMC / SMC 100 (S/L/E) |
|
SB Gasket set for SMC-112 MkII/III (Air Cooled)
|
|
|
67. |
|
TSMC / SMC 100 (S/L/E) |
|
SB Gasket set for SMC-112 MkII/III (Water Cooled)
|
|
|
68. |
|
TSMC / SMC 100 (S/L/E) |
|
SB Gasket set for SMC-116 (Air Cooled)
|
|
|
69. |
|
TSMC / SMC 100 (S/L/E) , CMO 14 / 16 /18 , CMO 24 / 26 / 28 , SMC 65 |
2142-034 |
SB Liner lift spring for models CMO-2 & SMC
|
|
|
70. |
|
TSMC / SMC 100 (S/L/E) |
3112-065 |
SB Liner for models SMC S&L
|
|
|
71. |
|
TSMC / SMC 100 (S/L/E) |
3135-054 |
SB Liner unloading ring & pin assm for SMC S&L
|
|
|
72. |
|
TSMC / SMC 100 (S/L/E) |
2142-048 |
SB Liner unloading ring retaining spring for SMC
|
|
|
73. |
|
TSMC / SMC 100 (S/L/E) |
3112-062 |
SB Liner with v/plate & unloading ring assm to fit SMC
|
|
|
74. |
|
TSMC / SMC 100 (S/L/E) |
3112-085 |
SB Liner with v/plate & unloading ring assm to fit SMC HP
|
|
|
75. |
|
TSMC / SMC 100 (S/L/E) |
3124-002 |
SB Piston complete for models SMC 'S
|
|
|
76. |
|
TSMC / SMC 100 (S/L/E) |
3124-052 |
SB Piston complete for models SMC 'L
|
|
|
77. |
|
TSMC / SMC 100 (S/L/E) |
3125-084 |
SB Piston pin for models SMC
|
|
|
78. |
|
TSMC / SMC 100 (S/L/E) |
3141-004 |
SB Pump assembly for models SMC MkII/III
|
|
|
79. |
|
TSMC / SMC 100 (S/L/E) |
3125-130 |
SB Piston ring compression for models SMC
|
|
|
80. |
|
TSMC / SMC 100 (S/L/E) |
3125-065 |
SB Piston ring oil scraper for models SMC
|
|
|
81. |
|
TSMC / SMC 100 (S/L/E) |
3188-029 |
SB Seal assembly for models SMC Mk-II>IV
|
|
|
82. |
|
TSMC / SMC 100 (S/L/E) , CMO 14 / 16 /18 , CMO 24 / 26 / 28 , SMC 65 |
2141-047 |
SB Valve spring suction/discharge for CMO/SMC
|
|
|
83. |
|
TSMC / SMC 100 (S/L/E) , CMO 14 / 16 /18 , CMO 24 / 26 / 28 , SMC 65 |
|
SB Valve helical spring suction/discharge for CMO/SMC
|
|
|
84. |
|
TSMC / SMC 100 (S/L/E) |
3131-021 |
SB Valve ring suction (HFC duty) for SMC
|
|
|
85. |
|
TSMC / SMC 100 (S/L/E) |
3131-022 |
SB Valve ring suction (NH3 duty) for SMC
|
|
|
86. |
|
TSMC / SMC 100 (S/L/E) |
3131-015 |
SB Valve ring discharge (HFC duty) for SMC
|
|
|
87. |
|
TSMC / SMC 100 (S/L/E) |
3131-016 |
SB Valve ring discharge (NH3 duty) for SMC
|
|
|
88. |
|
TSMC / SMC 100 (S/L/E) |
3132-084 |
SB Valve plate suction (HFC duty) for SMC MkI>III
|
|
|
89. |
|
TSMC / SMC 100 (S/L/E) |
3132-083 |
SB Valve plate suction (NH3 duty) for SMC MkI>III
|
|
|
90. |
|
TSMC / SMC 100 (S/L/E) |
3132-095 |
SB Valve plate suction (HFC duty) for SMC Mk-IV
|
|
|
91. |
|
TSMC / SMC 100 (S/L/E) |
3136-088 |
SB Discharge valve cage assm (HFC-HP) SMC MkI>III
|
|
|
92. |
|
TSMC / SMC 100 (S/L/E) |
3136-092 |
SB Discharge valve cage assm (HFC-HP) SMC Mk-IV
|
|
|
93. |
|
TSMC / SMC 100 (S/L/E) |
3136-086 |
SB Discharge valve cage assm (HFC-LP) SMC MkII>III
|
|
|
94. |
|
TSMC / SMC 100 (S/L/E) |
3136-093 |
SB Discharge valve cage assm (HFC-LP) SMC Mk-IV
|
|
|
95. |
|
TSMC / SMC 100 (S/L/E) |
3136-090 |
SB Discharge valve cage assm (NH3-HP) SMC Mk-IV
|
|
|
96. |
|
TSMC / SMC 100 (S/L/E) |
3136-091 |
SB Discharge valve cage assm (NH3-LP) SMC Mk-IV
|
|
|
97. |
|
TSMC / SMC 100 (S/L/E) |
3132-093 |
SB Discharge valve cage only (HFC-HP) SMC MkI>III
|
|
|
98. |
|
TSMC / SMC 100 (S/L/E) |
3132-086 |
SB Discharge valve cage only (HFC-LP) SMC MkI>III
|
|
|
99. |
|
TSMC / SMC 100 (S/L/E) |
3132-087 |
SB Discharge valve cage only (NH3-HP) SMC MkI>III
|
|
|
100. |
|
TSMC / SMC 100 (S/L/E) |
3132-085 |
SB Discharge valve cage only (NH3-LP) SMC MkI>III
|
|
|
101. |
|
TSMC / SMC 100 (S/L/E) |
3133-027 |
SB Valve seat discharge for models SMC MkI>III
|
|
|
102. |
|
TSMC / SMC 100 (S/L/E) |
2145-008 |
SB Valve cage spring guide for models SMC MkI>III
|
|
|
103. |
|
TSMC / SMC 100 (S/L/E) |
3134-008 |
SB Valve plate guide-ring to fit models SMC MkI>III
|
|
|
104. |
|
TSMC / SMC 100 (S/L/E) |
3184-362 |
SB Top-End service kit for models SMC freon duty (per head)
|
|
|
105. |
|
TSMC / SMC 100 (S/L/E) |
|
SB Top-End service kit for models SMC HM duty (per head)
|
|
